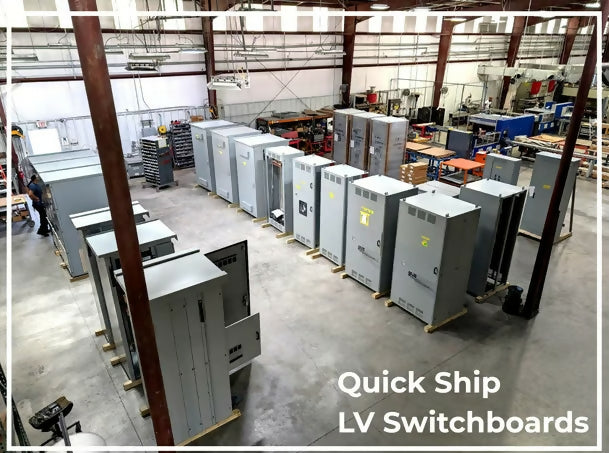

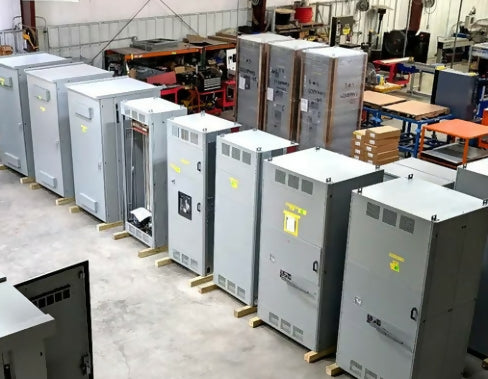

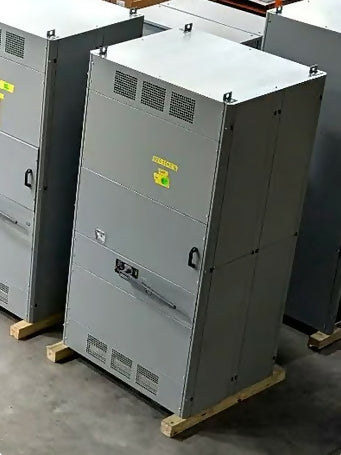

Quick Ship Program - Ships in 4-8 Weeks (4 Weeks ALL Siemens Breakers, Schneider available at longer lead time) - NEMA 1 & NEMA 3R Enclosures - Bottom or Top Feed - Up to 480Vac - 4000A maximum main bus rating - 65 kAIC bus bracing - Silver-plated bus bars - UL489 main breakers and thermal magnetic trip molded case feeder breakers
Standard SWBD's - UL891 Listed - 12-16 Week Lead Time (Expedite Pricing Available) - Voltage: Up to 800Vac - Ampacity: 400A to 6000A maximum main bus rating - Up to 1000A per sq in. fully rated copper bus systems - Up to 200 kAIC - Type 1, 12, 3R or 3RX NEMA enclosures - Drawout and fixed mounted breakers - Silver- or tin-plated copper bussing - Rigid construction isolating bus and breaker assemblies - Cables, bus duct, and closed coupled connection options - UL489 breakers with thermal magnetic or electronic trip units standard, high kAIC or current limiting capability, 80% or 100% rated
LV Panelboards - 2-4 Week Lead Time - Available in Nema 1 and Nema 3R ratings - P1 available in 250A and 400A - P4 available in 60”,75”, 90” - P5 available in 60”,75”, 90” - 14 and 16 gauge steel for strength and rigidity
