CEMS Data Reporting: Key Requirements
Continuous Emission Monitoring Systems (CEMS) are critical for facilities to meet EPA regulations on pollutant emissions. Here's the key takeaway: CEMS must provide accurate, valid data to ensure compliance with federal and state standards. Facilities rely on this data for reporting, audits, and avoiding penalties.
Key Points:
- Data Validity: CEMS data must be logged at least every 15 minutes, with a minimum accuracy of 2.5–5%. Noncompliance occurs if errors exceed thresholds for consecutive days.
-
Core Documentation:
- Data Assessment Reports (DAR) summarize audits, calibration results, and equipment details.
- Quarterly audits (e.g., RATA, CGA) ensure system accuracy and must be documented.
- Availability Standards: Percent Monitor Availability (PMA) ensures consistent data collection. Valid hours exclude downtime for required calibrations and audits.
- Hourly Reporting: Facilities must record and submit hourly emissions data, even during startup or malfunctions, following strict calibration protocols.
- Quality Assurance: Daily calibrations and quarterly audits are required to maintain system reliability. Calibration errors must stay within regulatory limits.
Facilities must maintain detailed records of all monitoring processes, calibration methods, and compliance data to meet EPA standards. Proper system setup, regular audits, and accurate reporting are essential to avoid penalties and ensure adherence to regulations.
CEMS DAHS
sbb-itb-501186b
Core Components of CEMS Data Reporting
The EPA mandates that facilities include three key elements in their CEMS (Continuous Emission Monitoring Systems) data reporting. These components ensure that monitoring systems are working properly and that quality control measures are in place. Each part has a specific role in confirming system reliability and compliance with regulations.
Data Assessment Report (DAR)
The Data Assessment Report (DAR) is a crucial document that compiles audit data and calibration results for submission with emissions reports. As Jennifer Waltrip explains, "The DAR is a report that compiles essential data from CEMS audits. It summarizes accuracy results from quarterly audits and daily calibration drift assessments".
The DAR must include several critical details:
- Name and address of the source owner or operator.
- Identification and location of each monitor.
- Manufacturer and model numbers of the equipment.
- Results from quarterly audits, such as the Relative Accuracy Test Audit (RATA), Relative Accuracy Audit (RAA), or Cylinder Gas Audit (CGA).
- A summary of daily calibration drift assessments.
- Results from "blind" EPA performance audit samples, if applicable.
Currently, the blind audit sample requirement is not enforced because only one accredited audit sample provider (AASP) is available, while regulations call for at least two. The EPA plans to issue a 60-day notice on its Air Emission Measurement Center website when a second provider becomes available. Facilities can find an example DAR format in Appendix F to Part 60, Procedure 1, Section 7. Using a Data Acquisition System (DAS) is highly recommended to streamline report creation and reduce manual errors.
Source and Monitor Information
In addition to the DAR, facilities need to provide detailed information about the equipment used for emissions measurement. This includes:
- Analyzers and their components.
- Conversion equations and software that translate raw data into regulated emission units.
Facilities must keep thorough records of all conversion methods and software programs used to process raw analyzer data. The EPA emphasizes that the quality assurance procedures outlined in Appendix F to 40 CFR 60 are designed to assess the effectiveness of quality control measures and the reliability of data generated by CEMS.
Documentation should also include:
- Reference methods used to verify CEMS accuracy and precision.
- Results from Performance Specifications tests conducted during installation or as required by regulations.
- Site-specific details, such as the definition of "Normal Load" and any stratification of gaseous pollutants at the monitoring location.
Quarterly Audit Results
Quarterly audits are essential for ensuring that monitoring systems and data continue to meet strict performance standards. These audits serve as a check to validate emissions data accuracy and confirm that systems remain within acceptable operating ranges. The results of these audits are a key part of the DAR and must include data from tests like RATA, RAA, and CGA.
If an audit identifies that a CEMS is out-of-control, facilities are required to provide detailed documentation of corrective actions taken. DARs should be submitted at the intervals specified by applicable regulations, often alongside quarterly emissions reports. Facilities should also monitor the EPA's Air Emission Measurement Center website for updates on when performance audit samples will become mandatory.
Data Availability and Valid Hour Reporting
To ensure Continuous Emission Monitoring Systems (CEMS) provide dependable compliance data, the EPA enforces minimum data availability thresholds. These thresholds are designed to confirm that CEMS generate valid data consistently throughout the required reporting period.
Percent Monitor Availability (PMA) Requirements
Percent Monitor Availability (PMA) reflects the percentage of time a CEMS successfully collects valid data during required monitoring periods. The EPA uses this metric to confirm that the system operates effectively for continuous compliance checks and to identify any exceedances of emission standards.
Facilities calculate PMA by dividing the number of valid operating hours by the total number of required monitoring hours. To verify data integrity, facilities follow quality assurance and control procedures outlined in 40 CFR 60 Appendix F and Performance Specifications. Compliance requires that CEMS process pollutant analyzer measurements into the appropriate units of emission limitations using conversion methods such as equations, graphs, or computer programs. Additionally, all hourly emissions data must be reported and made accessible through the EPA Clean Air Markets Program Data website.
The next step is understanding how nonoperational periods are accounted for in the calculation of available hours.
Valid Hour Exclusions
Certain downtime periods, specifically those required for mandated quality assurance activities, are excluded from data availability calculations. Examples include time allocated for daily calibrations, quarterly audits (such as RATA or CGA), and scheduled maintenance under regulatory protocols. These exclusions ensure that necessary quality assurance activities do not unfairly impact a facility's reported monitor availability.
EPA regulations also specify the reference methods used to verify CEMS measurements, and the time spent performing these verification tasks is not counted against total operating hours. Accurate documentation of excluded hours is essential, as facilities must demonstrate that any downtime was directly related to required quality assurance or quality control procedures.
Hourly and Quarterly Reporting Standards
These standards build on data availability guidelines, outlining specific steps for documentation and response.
Hourly Data Recording and Submission
According to 40 CFR Part 75, facilities such as fossil-fuel-fired plants with capacities over 25 MW are required to record hourly emissions of SO₂, NOₓ, and CO₂. This data collection happens continuously, even during startup, shutdown, or malfunctions. Monitors measure pollutant concentrations and stack gas flow rates, converting the raw data into compliance units as detailed in Appendix F. Subpart F (§§ 75.50–75.59) governs the recordkeeping process, while Subpart G (§§ 75.60–75.68) outlines submission requirements.
To ensure data accuracy, daily calibration tests are performed at zero and span levels. These tests must pass to validate the next 24 hours of data. If a test fails, the monitor is considered "out-of-control" until a successful retest is completed. Additionally, online calibrations must be successfully conducted within the last 26 operating hours.
In cases of data gaps, specific protocols are in place to maintain reporting reliability.
Handling Missing Data
When primary Continuous Emissions Monitoring System (CEMS) data is unavailable, facilities must follow the Missing Data Substitution Procedures outlined in Subpart D (§§ 75.30–75.39). Data gaps are categorized by their cause, such as monitor or equipment failure or required calibrations. If downtime exceeds 5% of operating hours, facilities must submit detailed reports that include event times and corrective actions taken. Backup monitoring systems are recommended to minimize reliance on high-uncertainty data substitutions.
Performance Specifications and Quality Assurance

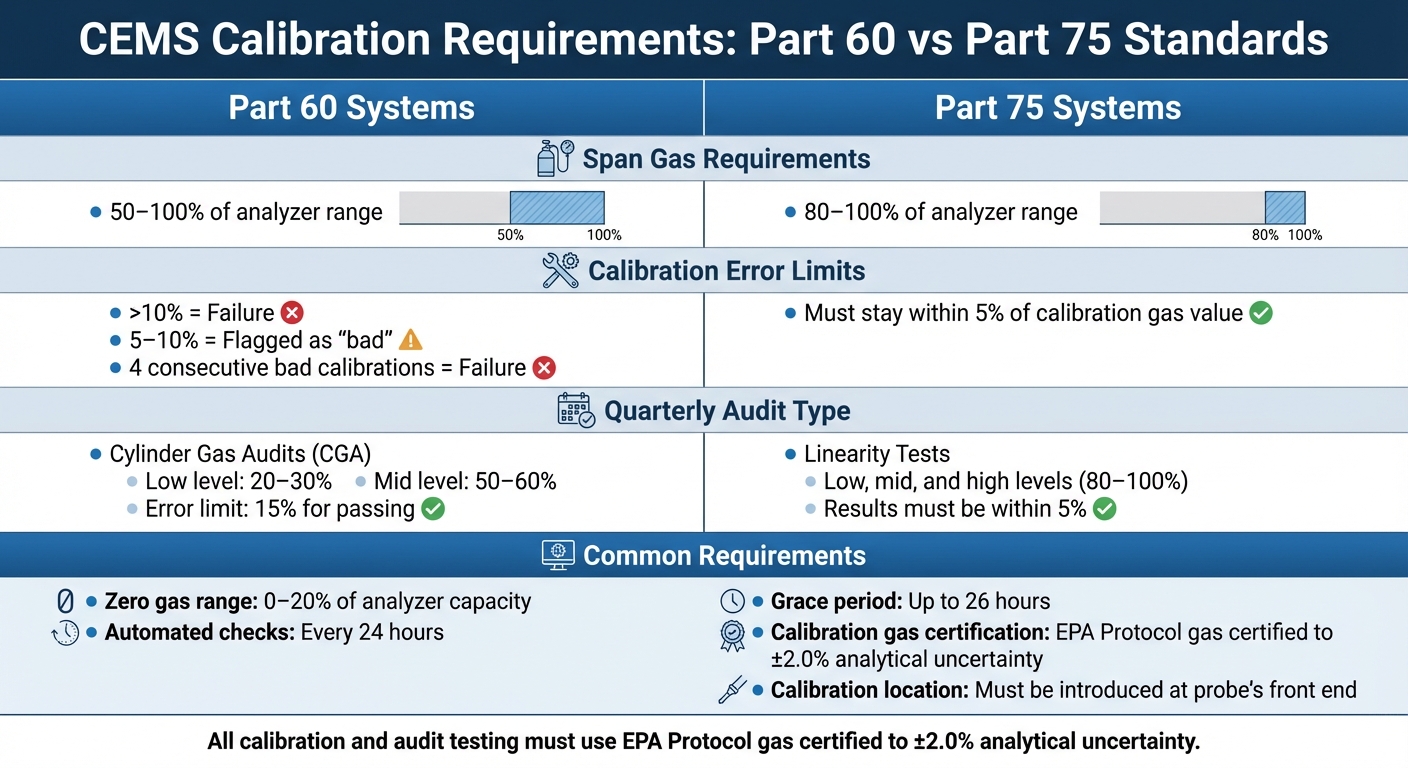

CEMS Calibration Requirements: Part 60 vs Part 75 Standards
EPA standards enforce strict performance benchmarks and rigorous quality checks to guarantee reliable CEMS (Continuous Emission Monitoring Systems) data.
Daily Calibration and Recertification
To ensure accuracy, calibration gas must be introduced at the probe's front end, following the same path as the stack gas. This approach verifies the entire measurement chain's integrity.
Automated zero and span checks are performed every 24 hours. For zero gas, the acceptable range is 0–20% of the analyzer's capacity. Span gas requirements vary by regulation: Part 60 systems must use 50–100% of the range, while Part 75 systems require 80–100%. When a calibration test passes, the subsequent 24 hours of data are validated, with a grace period extending up to 26 hours.
Calibration error limits also depend on the regulatory framework. Part 60 systems fail when errors exceed 10%; errors between 5–10% are flagged as "bad", and four consecutive bad calibrations result in failure. For Part 75 systems, calibration results must stay within 5% of the calibration gas value. All calibration and audit testing must use EPA Protocol gas certified to ±2.0% analytical uncertainty.
If a system fails or undergoes repairs, a probationary calibration is conducted. Once subsequent tests pass, data validity resumes from the time of calibration. A system is deemed "out-of-control" if calibration errors exceed limits, the 26-hour window lapses without a valid test, or interference checks fail.
Quality Assurance Reporting
Beyond calibration, thorough quality assurance reporting ensures system performance remains reliable. Performance Specifications outlined in 40 CFR Part 60, Appendix B establish the primary standards for evaluating CEMS during installation and re-evaluation. These standards confirm systems meet required accuracy and precision levels using reference methods specific to applicable regulatory subparts.
"Quality assurance procedures in Appendix F to 40 CFR 60 are used to evaluate the effectiveness of quality control (QC) and quality assurance (QA) procedures and the quality of data produced by any CEMS that is used for determining compliance with the emission standards on a continuous basis as specified in the applicable regulation." – US EPA
These quality assurance measures work alongside daily calibration protocols to maintain system accuracy. Appendix F to 40 CFR Part 60 governs the ongoing evaluation of QA and QC effectiveness. Facilities must maintain detailed records of all quality assurance activities, including quarterly audits. For instance, Part 60 systems undergo Cylinder Gas Audits (CGA) at low (20–30%) and mid (50–60%) levels, with a 15% error limit for passing. Meanwhile, Part 75 systems conduct Linearity Tests at low, mid, and high (80–100%) levels, requiring results within 5%.
Integration with Emission Reports and Compliance
CEMS (Continuous Emission Monitoring Systems) play a crucial role in meeting EPA's emission reporting requirements. By converting gas and particulate measurements into standardized emission units, CEMS data becomes the backbone for compliance decisions. This processed data serves two key regulatory functions: ensuring continuous compliance and generating mandatory emission reports.
EPA Audit Samples and Data Analysis
To ensure accuracy, EPA audit samples are used as part of established quality protocols. These samples validate the reliability of CEMS data, with quality assurance procedures outlined in Appendix F to 40 CFR Part 60. These procedures assess both the effectiveness of quality control measures and the integrity of the data used for ongoing compliance. Facilities must prove the accuracy of their systems using specific reference methods detailed in relevant EPA subparts. For greenhouse gas reporting under 40 CFR Part 98, standardized monitoring protocols are applied across sectors like electricity generation and stationary fuel combustion. Facilities emitting over 25,000 metric tons of CO₂ equivalent annually are typically required to submit reports.
Documentation and Compliance Integration
Accurate recordkeeping is just as important as real-time monitoring and audits for regulatory compliance. Facilities must maintain detailed documentation to verify CEMS accuracy and performance. This includes records of all methods used to convert raw data into standardized formats. Evaluations performed under 40 CFR Part 60 Appendix B must also be retained to confirm the system's acceptability during installation and any subsequent regulatory reviews. Specific recordkeeping requirements are outlined in various sections of 40 CFR Part 98, such as § 98.37 for stationary combustion and § 98.47 for electricity generation. These records ensure that all CEMS components - analyzers, programs, and conversion equations - are in place to produce compliant results. Proper documentation is essential for credible compliance and successful audits.
Conclusion
Meeting the EPA's CEMS data reporting requirements relies on three key pillars: precise system configuration, strict quality assurance, and comprehensive documentation. According to the EPA, "CEMS are required under some of the EPA regulations for either continual compliance determinations or determination of exceedances of the standards". For regulated facilities, even minor errors can have serious consequences, making these elements essential for maintaining compliance.
It all begins with ensuring your equipment setup is flawless. This includes analyzers, conversion equations, and computer programs that generate results in the exact units specified by your applicable emission standard. Conversion equations must accurately translate raw data, and Performance Specifications should be applied during both the installation phase and at regular regulatory intervals to verify the system's accuracy.
Quality assurance is equally critical and must be a proactive process. Every component of the system, from hourly data recordings to audit results, must function seamlessly. As the EPA highlights, "Quality assurance procedures in Appendix F to 40 CFR 60 are used to evaluate the effectiveness of quality control (QC) and quality assurance (QA) procedures and the quality of data produced by any CEMS that is used for determining compliance with the emission standards on a continuous basis". Adhering to these QA/QC protocols ensures the integrity of your data. Additionally, regular stratification testing for gaseous pollutants helps confirm that your monitoring locations provide accurate and representative measurements.
FAQs
What makes a CEMS “valid hour”?
A Continuous Emissions Monitoring System (CEMS) records a "valid hour" when calibration and performance checks - like zero and span evaluations - are conducted within the same or neighboring clock hours. The data must also comply with EPA tolerance limits to guarantee accurate and dependable emissions measurements.
When is a DAR required, and what should it include?
A Data Assessment Report (DAR) plays a crucial role in Continuous Emissions Monitoring Systems (CEMS) audits. This report must cover several key elements, including:
- Details about the source owner or operator.
- Results from quarterly accuracy audits.
- Evaluations of daily calibration drift.
- Data from EPA audit samples.
These components ensure the report aligns with EPA regulations and demonstrates compliance effectively.
What happens if my CEMS is “out-of-control”?
When your CEMS is considered "out-of-control", it means calibration test errors have gone beyond the limits set by the EPA, or the allowed grace periods for completing required tests have expired without valid results. This situation can jeopardize compliance data and may require immediate corrective actions to bring the system back into proper working order and meet regulatory requirements.
