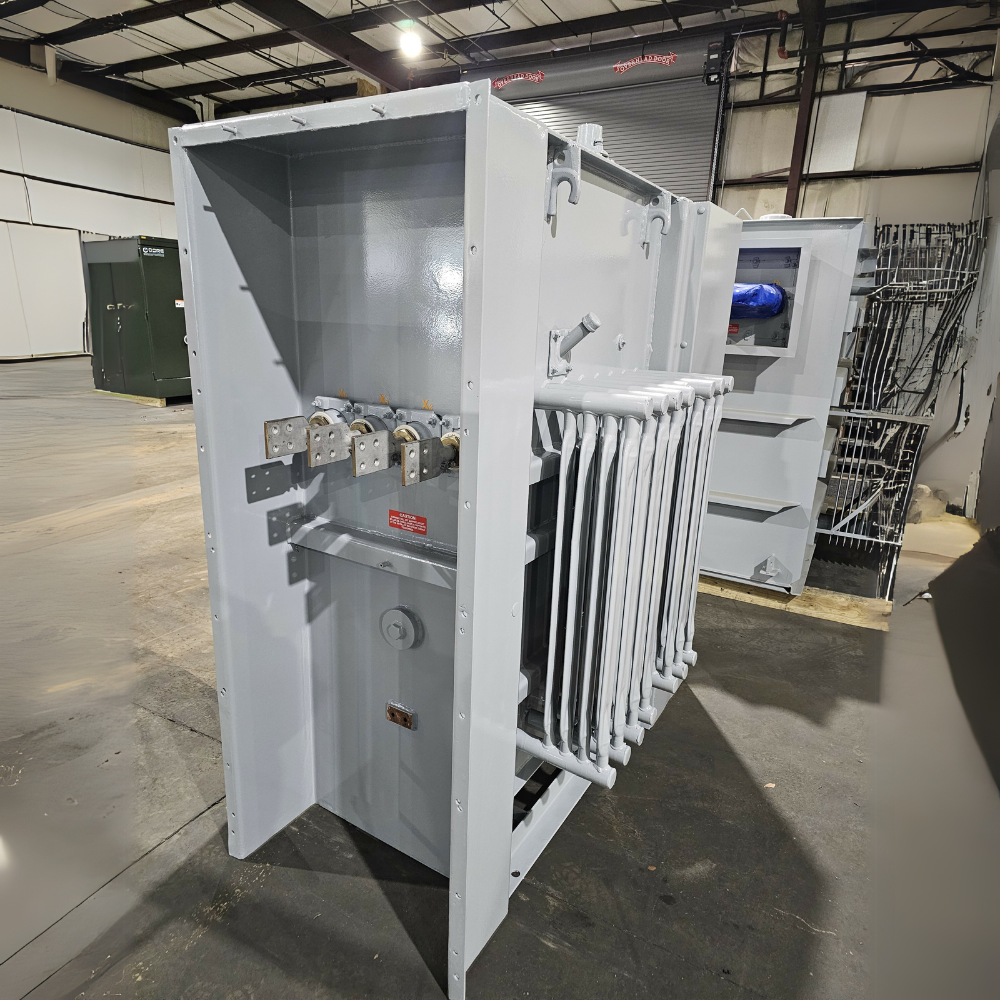

500 Kva 3 Phase Substation Transformer

$48,000.00 USD

Sale Sold out

Shipping calculated at checkout.

Size 560KVA

Seller Info:

Seller Profile Page:

High Voltage: 4160 Delta 60 Kv Bil

Low Voltage: 480Y/277 30 Kv Bil

Taps: 2-2.5%+-

Impedance: 5.1%

HV Bushings: ANSI 2 w/ATCs

LV Bushings: ANSI 4 w/ATCs

Fluid: Mineral Oil

Frequency: 60HZ

Temp Rise: 65C

Cooling Class: ONAN

Conductor: CU/CU

Gauges: Pressure Vacuum

Liquid Temperature

Liquid Level

PRD

Drain And Sample 1”

Condition: Refurbished
