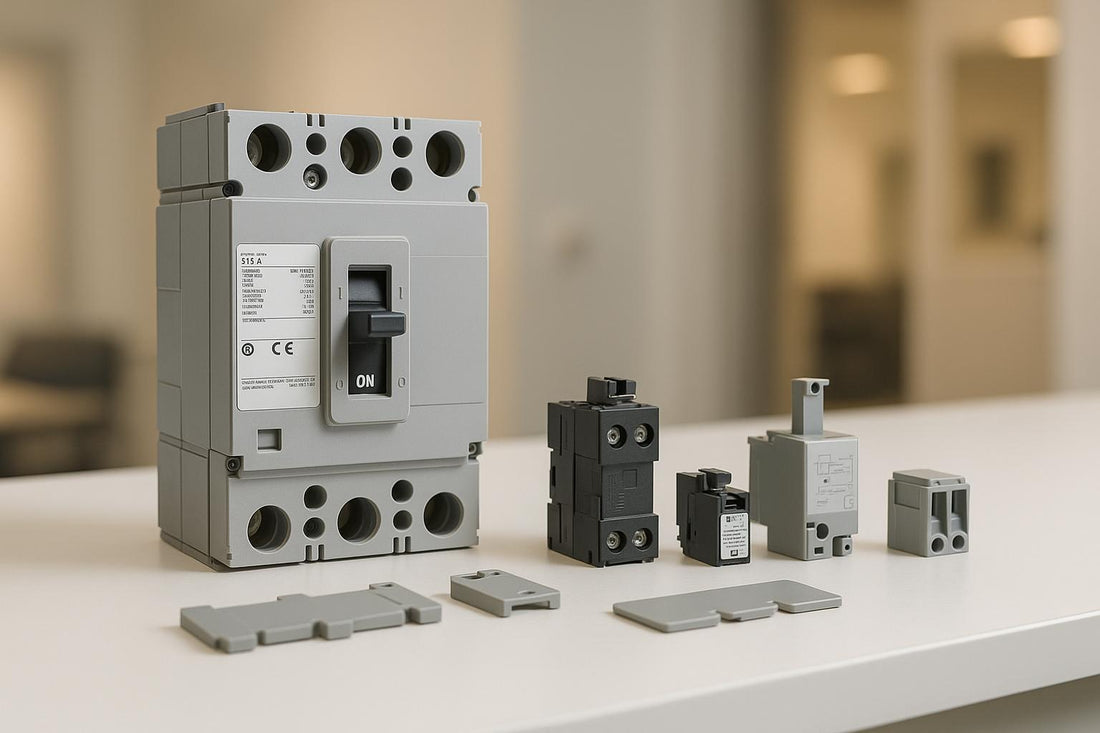

Accessories of a Molded Case Circuit Breaker

Main Types of MCCB Accessories

MCCB accessories add extra layers of functionality to circuit breakers, enabling better control, monitoring, and safety. Each accessory has a specific role, from remote operation to providing status updates. Below, we’ll dive into the main types of these accessories and their uses.

Shunt Trip Units

Shunt trip units allow for remote emergency shutdowns of MCCBs from various points in a facility. They work by receiving a control signal - often from fire alarms, emergency stop buttons, or building management systems - which activates an electromagnetic coil to trip the breaker instantly.

These units are commonly found in:

  • Data centers, where quick shutdowns protect servers during emergencies.
  • Industrial facilities, where hazardous processes need immediate isolation.
  • Commercial buildings, where fire systems must cut power to specific zones.

Operating on control voltages ranging from 24V DC to 240V AC, they’re compatible with most systems. Installation involves wiring the shunt trip unit to both the MCCB and the external control circuit. The device stays inactive during normal conditions, activating only when a signal is received, ensuring fast, remote power disconnection when needed.

Auxiliary Contacts

Auxiliary contacts act as a status communicator between MCCBs and control systems. These switches are mechanically linked to the breaker and indicate its position (open or closed) through separate electrical contacts that don’t interfere with main power switching.

"Auxiliary contacts in YUYE MCCBs serve as vital status indicators and control elements. These normally open (NO) and normally closed (NC) contacts mirror the main contact position, providing crucial information for system monitoring and interlocking." - YUYE Electric Co., Ltd.

Key applications include:

  • Remote monitoring of breaker status in SCADA systems.
  • Fault alarms to signal issues.
  • Interlocking with other protective devices for enhanced safety.

With high durability - such as YUYE Electric’s models rated for over 100,000 operations - these components are reliable. When installing, ensure the breaker is powered off, use secure wiring methods like crimp connectors, and test with a multimeter to confirm proper functionality.

Undervoltage Release Devices

Undervoltage release devices provide automatic protection by tripping the MCCB when voltage drops below a safe threshold. This prevents equipment damage during brownouts and ensures safe restarts when normal voltage is restored.

These devices are especially useful in:

  • Industrial motor setups, where low voltage can cause overheating and damage.
  • Sensitive electronic environments, like data centers, where stable voltage is essential.

The mechanism relies on an electromagnetic hold that releases when voltage falls below the set limit, triggering the breaker to disconnect the load. Adjustable voltage settings allow for customization, making these devices effective in safeguarding equipment and ensuring reliability.

Rotary and Flange Handles

Rotary and flange handles replace standard toggles, offering safer and more convenient breaker operation, especially in enclosed panels. These handles extend through panel doors, enabling control without exposing operators to live parts.

  • Rotary handles operate with a smooth rotating motion.
  • Flange handles use a lever-style design for traditional operation.

Both types often include padlocking options for lockout/tagout compliance with OSHA standards. They also feature position indicators (ON, OFF, or TRIPPED) for quick visual status checks. Some models include interlocking mechanisms to prevent operation under unsafe conditions, such as incorrect transfer switch positions.

Proper installation involves mounting the handle to the panel door and ensuring the mechanical linkage with the MCCB is aligned for reliable operation. These handles enhance safety and make breaker control more user-friendly.

Interlocking Kits and Safety Barriers

Interlocking kits are mechanical systems that prevent multiple breakers from operating simultaneously, ensuring only one power source is active. These are particularly important in generator backup systems, where they eliminate the risk of backfeeding electricity into the grid.

"A Generator Interlock Kit is a simple, yet ingenious, mechanical device that physically prevents you from simultaneously operating the main breaker and the generator breaker in your electrical panel. Think of it as a safety lock that ensures only one power source can be active at a time – either the utility grid or your generator, but never both." - DAIER

Interlocking kits comply with National Electrical Code (NEC) standards and are more affordable than separate transfer switches. They physically block the main and generator breakers from being ON at the same time, protecting utility workers from potentially lethal backfeed.

Safety barriers work alongside these kits by providing physical separation between phases, reducing arc flash risks and improving safety during maintenance. These barriers help contain electrical faults and prevent phase-to-phase contact.

"More than just a product, our Generator Interlock Kits represent a commitment to safety, community, and responsible power management. By choosing to invest in a Generator Interlock Kit, you are not only protecting yourself and your property but also ensuring the safety of the dedicated professionals working to keep our power grid running smoothly." - DAIER

For proper installation, hire a qualified electrician to ensure compatibility with your electrical panel’s brand and model. After installation, always test the system to confirm proper operation, and avoid overloading generators beyond their capacity. These solutions are essential for safe and efficient backup power management.

Benefits and Applications of MCCB Accessories

MCCB accessories play a key role in improving safety, efficiency, and control in electrical systems. These add-ons not only enhance protection but also make systems more adaptable to changing demands, ensuring smoother operations and greater reliability.

Improving System Safety

Expanding on safety measures, MCCB accessories provide critical protection against voltage issues and arc flash incidents. For instance, shunt trip units enable immediate emergency shutdowns during crises. When fire alarms detect smoke or high heat, these units cut power to stop electrical fires from spreading - a feature especially important in hospitals, data centers, and manufacturing plants dealing with hazardous materials.

Other safety-focused accessories include terminal shields and phase insulation barriers, which isolate live components, cutting down the risk of arc flashes during maintenance. Additionally, undervoltage release devices safeguard expensive equipment by disconnecting loads when power quality dips, preventing damage and reducing repair costs.

Increasing Operational Flexibility

MCCB accessories also bring a lot of versatility to electrical systems. Auxiliary contacts allow for remote monitoring and control, enabling facility managers to check breaker status and respond quickly to system changes. This feature enhances centralized management of electrical networks.

Rotary handles make operating breakers safer and more convenient, particularly in tight spaces, by reducing the need for direct contact with live parts. Meanwhile, interlocking kits ensure that utility power and generator power don’t operate simultaneously, eliminating the risk of backfeed conditions.

For facilities where power interruptions are not an option, change-over systems provide seamless switching between power sources, ensuring uninterrupted operations.

Applications in Various Sectors

MCCB accessories are widely used across industries, from heavy manufacturing to residential setups. Here’s a closer look:

Industry Sector Application Benefit
Industrial Manufacturing Protects circuits for heavy machinery and equipment Prevents production delays and shields costly machinery
Commercial Buildings Safeguards panels in offices, malls, and data centers Reduces electrical hazards and fire risks
Power Generation & Distribution Protects power plants and distribution systems Maintains stable power supply and prevents infrastructure damage
HVAC Systems Protects circuits for heating and cooling systems Prevents overloads and equipment damage
Transportation Infrastructure Secures power circuits in stations, airports, and ports Ensures smooth operations in critical sectors
Renewable Energy Shields solar and wind power components Protects inverters and batteries from power fluctuations
Residential Applications Provides overcurrent protection for homes Safeguards household systems from potential hazards
Marine and Offshore Protects circuits in extreme environments Ensures reliable performance under harsh conditions

Construction sites, with their ever-changing power needs, rely heavily on MCCB accessories. Temporary power systems must handle fluctuating loads as equipment is added or removed. Here, auxiliary contacts help track these changes, while shunt trips provide emergency shutdown options in case of accidents near electrical equipment.

In renewable energy installations, MCCB accessories ensure smooth operation. Solar systems use these add-ons to protect inverters and other sensitive components from grid disturbances and weather-related issues. Similarly, wind turbines benefit from these accessories, which safeguard generators, transformers, and control systems from the unpredictable power conditions inherent in wind energy.

Industrial manufacturing plants also gain from the advanced control offered by these devices. For example, chemical processing facilities integrate shunt trips with safety systems to isolate equipment during hazardous conditions. Meanwhile, auxiliary contacts help coordinate production line machinery, reducing downtime caused by electrical faults.

In the marine and offshore sector, MCCB accessories are critical for maintaining safety in harsh environments. These systems must withstand salt air, extreme temperatures, and constant vibrations while ensuring reliable performance.

The versatility and reliability of MCCB accessories make them essential components in modern electrical systems across a wide range of industries.

sbb-itb-501186b

How to Choose the Right MCCB Accessories

Selecting MCCB accessories isn't just about picking parts off a shelf - it’s about ensuring safety, functionality, and compliance. A poor choice could lead to safety risks, equipment failures, or even failing an electrical inspection. Here’s how to make the right call.

Checking Compatibility with MCCB Models

The first step is to ensure that the accessories are compatible with your MCCB model. Using accessories that don’t match the breaker can compromise safety, void warranties, and cause inspection issues. Check the breaker panel door for details about compatible breakers and accessories.

MCCBs come in a wide range of ratings, from 100A to 2,500A. Accessories must align with these specifications to function correctly. Double-check the manufacturer’s drawings and ensure there’s enough clearance in your enclosure. This guarantees the accessories will fit and work as intended within your MCCB system.

Once compatibility is confirmed, it’s time to focus on electrical ratings and installation requirements.

Voltage, Current, and Installation Requirements

After verifying the model fit, you’ll need to match the accessory’s voltage and current ratings with your system. This step is critical to avoid safety hazards. The accessory’s voltage rating should align with your system’s voltage, while its current capacity must match both the breaker’s rating and the actual load. For instance, if you’re adding auxiliary contacts to a 600-amp breaker, ensure the contacts can handle the control circuit current effectively.

It’s also important to consider installation specifics. Some accessories can be installed on-site, while others require factory installation. Keep in mind that accessories may increase the breaker's physical size, so verify that your electrical panel has enough room for both the breaker and its accessories.

MCCB Accessory Comparison

Here's a breakdown of different MCCB accessories, their functions, benefits, and where they work best.

Accessory Comparison Table

Accessory Type Primary Function Key Advantages Best Use Cases
Shunt Trip Units Remotely disconnect power with momentary energization Enables quick remote tripping and integration with external control systems Emergency shutdown systems
Auxiliary Contacts Provide remote signaling and breaker status updates Delivers clear feedback on breaker position, ideal for indicator circuits Control panels and monitoring setups
Undervoltage Release (UVR) Opens the breaker automatically during voltage dips Protects equipment from undervoltage and recloses after power restoration Sensitive equipment and critical load protection
Rotary Handles Allow manual control of the breaker Simplifies manual operation, often paired with door-mounted setups Switchgear panels and manual operation scenarios
Interlocking Kits Ensure proper operational sequencing with safety interlocks Prevents unsafe operating procedures, enhancing overall safety Systems needing secure operational sequencing

When selecting MCCB accessories, consider the specific needs of your application. For example, industrial sites often rely on shunt trip units for emergency shutdowns, while environments with delicate equipment might prioritize undervoltage release devices. In many cases, combining multiple accessories can improve both safety and operational flexibility.

Use this table as a guide to match your safety, control, and operational requirements with the right MCCB accessory.

Conclusion

MCCB accessories play a crucial role in improving the safety, reliability, and adaptability of electrical systems. When used correctly, these tools can reduce electrical accidents by as much as 60%.

This guide has highlighted how these accessories enhance critical functions like emergency shutdowns, real-time monitoring, voltage protection, and safe operational workflows.

Considering that electrical failures result in over $1.4 billion in property damage annually in the U.S., and with the market expected to reach $10.2 billion by 2025, investing in the right MCCB accessories is a smart choice - not just for safety but for financial protection, too.

To get the most out of these accessories, ensure they are compatible with your breaker models and meet the necessary voltage, current, and environmental specifications. Regular maintenance and testing are essential to avoid expensive breakdowns. By prioritizing proper integration and upkeep, you can protect your system's performance and your investment.

FAQs

How can I check if an MCCB accessory is compatible with my circuit breaker system?

To figure out if an MCCB accessory works with your circuit breaker system, start by checking the manufacturer's specifications for your breaker model. Pay attention to details like UL, NEMA, or ANSI standards, and make sure the accessory aligns with your system's voltage, current, and type requirements.

You should also inspect the labeling or documentation on your breaker panel door, as it often lists compatibility details. Stick to the same brand unless the manufacturer specifically states that mixing brands is acceptable. If you're unsure, refer to your breaker’s manual or contact the manufacturer directly to confirm the accessory will fit and function properly.

What are the main advantages of using shunt trip units in data centers and industrial facilities?

Shunt trip units bring valuable benefits to data centers and industrial facilities. One of their standout features is remote power disconnection, which allows circuits to be safely and quickly shut off during emergencies. This capability is crucial for safeguarding both personnel and equipment, reducing the risk of electrical fires, and limiting damage to sensitive systems.

Another advantage is their compatibility with building automation systems. By integrating with these systems, shunt trip units enable centralized control and improved safety. They can automate shutdowns based on specific conditions, offering an extra layer of protection and streamlining operations. This makes them a key component in modern electrical setups.

How do MCCB accessories help improve safety and prevent electrical accidents?

MCCB accessories are essential for boosting safety and reducing the risk of electrical accidents by adding advanced protective features to molded case circuit breakers. Components like shunt trips and ground fault detectors are specifically designed to cut power immediately when faults occur, minimizing the chances of electrical fires, equipment damage, or electric shocks.

These add-ons enhance the performance of MCCBs by enabling them to react quickly to hazardous situations. With the right accessories, professionals can tailor MCCBs to meet specific safety and operational needs, ensuring dependable protection across a wide range of applications.
