10 Best Circuit Breakers for Industrial Use
Industrial circuit breakers are essential for protecting electrical systems from overloads, short circuits, and surges, ensuring safety and preventing costly downtime. This guide highlights the 10 best circuit breakers for industrial use, focusing on their key features, voltage and current ratings, interrupting capacity, and suitability for various environments.
Key Factors to Consider:
- Voltage Rating: Ensure compatibility with your system (e.g., 600V AC, 690V AC).
- Current Rating: Match the breaker's capacity to your system's electrical load (ranges from 3A to 6,300A).
- Interrupting Capacity: Choose a breaker that can handle your system's fault current (up to 200 kA for high-demand setups).
- Environmental Resistance: Look for durability under harsh conditions like high humidity, extreme temperatures, or corrosive environments.
- Standards Compliance: Verify UL, IEC, and ANSI certifications for safety and reliability.
Top Circuit Breakers:
- Schneider Electric PowerPact H-Frame MCCB: Compact and versatile, ideal for manufacturing plants.
- ABB Tmax XT MCCB Series: High interrupting capacity and flexible voltage options.
- Eaton Series G MCCB: Reliable for small to medium industrial setups.
- Siemens 3WL Air Circuit Breaker: Handles large current loads in space-constrained environments.
- GE EntelliGuard G LVPCB: Exceptional fault handling for critical power applications.
- Schneider Electric Masterpact MTZ ACB: Advanced energy monitoring and high fault capacity.
- ABB SACE Emax 2 ACB: Digital features for modern industrial systems.
- Legrand DMX³ MCCB: Energy-efficient and suitable for secondary distribution.
- Mitsubishi Electric AE-SW MPCB: Robust motor protection in automation systems.
- Fuji Electric BW Series MCCB: Reliable for secondary distribution and building applications.
Quick Comparison Table:
| Circuit Breaker | Voltage Rating | Current Rating | Interrupting Capacity | Best For |
|---|---|---|---|---|
| Schneider PowerPact H-Frame | 600V AC | 15A – 400A | 65 kA @ 480V | Manufacturing plants, data centers |
| ABB Tmax XT Series | 690V AC | 160A – 1,600A | 150 kA @ 415V | Heavy industrial facilities |
| Eaton Series G | 600V AC | 15A – 1,200A | 100 kA @ 240V | Small/medium industrial setups |
| Siemens 3WL | 690V AC | 800A – 6,300A | 150 kA @ 415V | Large industrial complexes |
| GE EntelliGuard G | 635V AC | 800A – 4,000A | 200 kA @ 480V | Critical power applications |
| Schneider Masterpact MTZ | 690V AC | 800A – 6,300A | 150 kA @ 415V | Industrial substations |
| ABB SACE Emax 2 | 690V AC | 800A – 6,300A | 150 kA @ 415V | Power distribution networks |
| Legrand DMX³ | 690V AC | 160A – 630A | 50 kA @ 415V | Secondary distribution |
| Mitsubishi AE-SW | 600V AC | 1,250A – 3,200A | 100 kA @ 415V | Motor protection |
| Fuji Electric BW Series | 440V AC | 3A – 800A | 2.5 kA @ 240V | Secondary distribution |
Selecting the right circuit breaker ensures safety, minimizes downtime, and protects your equipment. Dive into the article to explore each breaker's features and find the best match for your industrial needs.
Selecting and Using Circuit Breakers for Industrial Automation (MCB, MCCB) at AutomationDirect

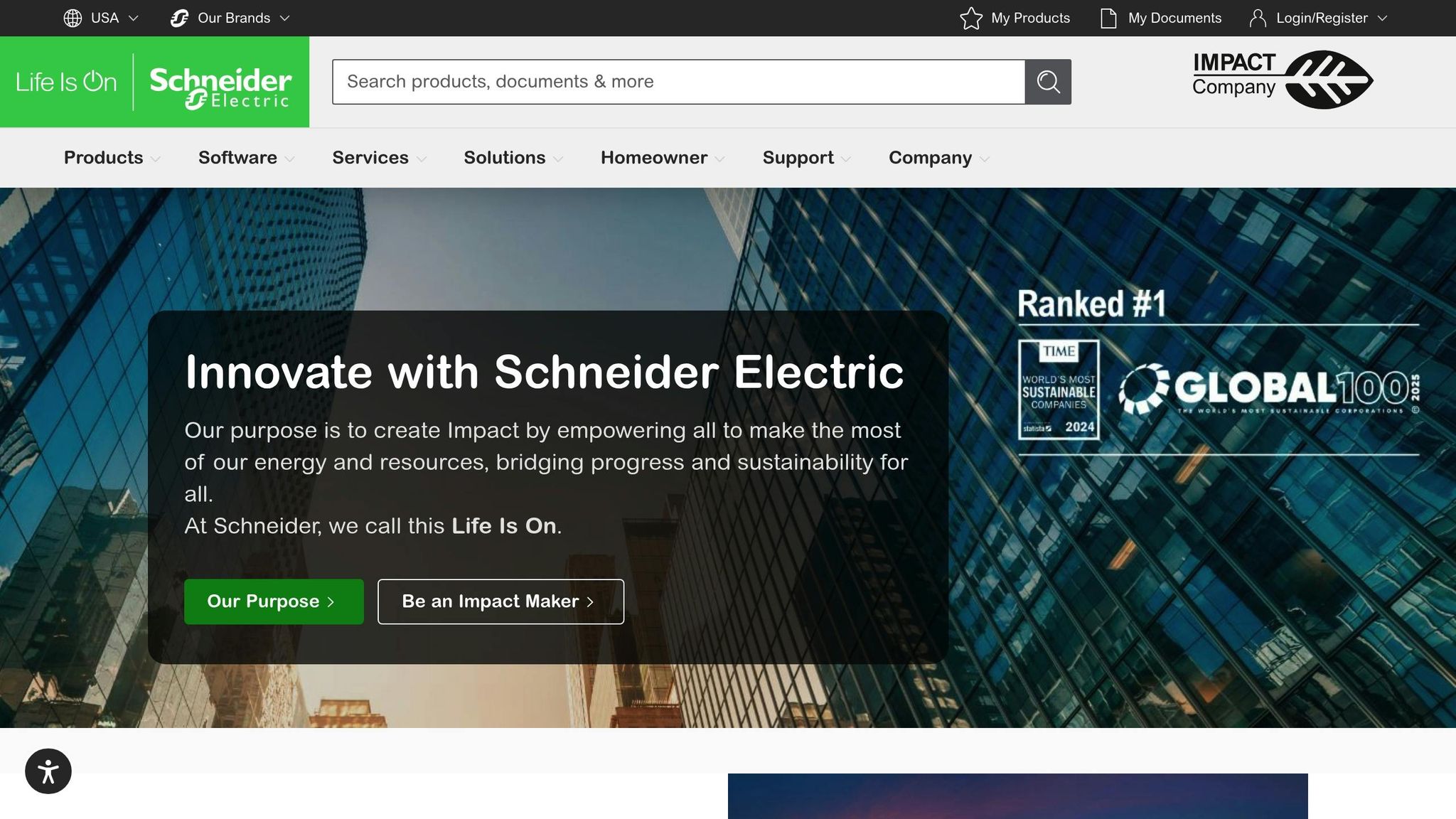

1. Schneider Electric PowerPact H-Frame MCCB
The Schneider Electric PowerPact H-Frame MCCB stands out as a reliable choice for industrial protection. Designed to perform in tough environments, it offers the flexibility needed for a variety of industrial applications. This molded case circuit breaker combines durability with adaptability, making it a go-to option for facilities that demand dependable protection without unnecessary bulk.
One of its key features is its adjustable trip settings, which help minimize nuisance trips while maintaining safety. This level of customization ensures it can meet the specific needs of different circuits. To illustrate its effectiveness, consider a manufacturing plant in Ohio that upgraded to PowerPact H-Frame MCCBs in September 2024. The plant, which produces automotive components, had been struggling with frequent downtime caused by overloads and short circuits. After implementing the H-Frame breakers and tailoring the trip settings to each circuit's load, the facility cut downtime by 40% and boosted production efficiency by 15%.
Voltage Rating
The PowerPact H-Frame supports both 600 Vac and 250 Vdc, making it versatile enough for a range of industrial uses. Whether your system needs AC or DC protection, this breaker has you covered.
| Voltage Rating | Application |
|---|---|
| Up to 600 Vac | Protects distribution systems and industrial control panels |
| 250 Vdc | Ideal for UPS systems and ungrounded setups |
Current Rating
With current ratings available up to 150A, the H-Frame is well-suited for safeguarding motor circuits, lighting panels, and branch distribution systems commonly found in manufacturing environments.
Interrupting Capacity
The H-Frame offers impressive interrupting ratings, including D-14 kA, G-18 kA, J-25 kA, L-50 kA, and R-100 kA at 600 Vac, as well as 20 kA at 250 Vdc. These ratings ensure it can safely handle fault currents, protecting both equipment and personnel.
Environmental Resistance
Industrial settings often present harsh conditions, and the PowerPact H-Frame is built to handle them. It resists mechanical vibrations and electromagnetic disturbances, which is crucial in facilities with heavy machinery or variable frequency drives.
The breaker undergoes rigorous testing to simulate extreme environments, including exposure to cold, dry heat, and damp heat with 95% humidity. It maintains high insulation resistance even in humid or salty conditions, making it a great choice for coastal facilities. Additionally, its materials are resistant to fungus and mold growth, reducing concerns about biological contamination. Salt mist testing further confirms its durability in corrosive settings.
2. ABB Tmax XT MCCB Series
The ABB Tmax XT MCCB Series is designed to deliver dependable protection across a range of industrial voltage systems. With versatile voltage options and strong interrupting capabilities, this series is a go-to for facilities with diverse electrical demands. What makes the Tmax XT series stand out is its ability to offer voltage ratings tailored to specific system requirements, ensuring efficiency and cost-effectiveness. Here’s a closer look at how each model in this lineup meets industrial needs.
The series includes eight models, from XT1 to XT7M, each tailored for unique applications. For instance, the XT1 and XT3 models are optimized for 480V delta systems, offering considerable savings compared to using higher-rated 600V breakers in situations where they aren’t necessary. Each model is carefully designed with specific voltage, current, and interrupting capabilities.
Voltage Rating
The Tmax XT series provides voltage ratings that align with practical industrial applications. It supports AC voltages up to 690V and DC voltages up to 500V, making it adaptable to a variety of setups.
| Model | Maximum Voltage |
|---|---|
| Tmax XT1 | 480V Delta |
| Tmax XT2 | 600V |
| Tmax XT3 | 480V Delta |
| Tmax XT4 | 600V |
| Tmax XT5 | 600V |
| Tmax XT6 | 600V |
| Tmax XT7 | 600V |
| Tmax XT7M | 600V |
The XT1 and XT3 models are particularly beneficial for facilities running standard 480V systems. By eliminating the need for more expensive 600V-rated equipment, they help reduce costs without compromising performance. Every model in the series is UL-listed and CSA/IEC rated, meeting both North American and international standards.
Current Rating
The Tmax XT series accommodates a broad range of current needs, with thermal-magnetic trip units available up to 800A. This makes it suitable for everything from smaller circuits to main distribution panels in industrial settings.
Interrupting Capacity
The interrupting capacity varies across models, with some offering impressive ratings. For example, XT2 and XT4 can handle up to 200 kA at 480V, making them ideal for high-fault-current scenarios.
| Model | Max Interrupt Rating at 480V | Max Interrupt Rating at 600V |
|---|---|---|
| Tmax XT1 | 65 kA | N/A |
| Tmax XT2 | 200 kA | 42 kA |
| Tmax XT3 | 35 kA | N/A |
| Tmax XT4 | 200 kA | 100 kA |
| Tmax XT5 | 200 kA | 100 kA |
| Tmax XT6 | 65 kA | 35 kA |
| Tmax XT7 | 100 kA | 65 kA |
| Tmax XT7M | 100 kA | 65 kA |
Advanced models come equipped with electronic trip units that feature embedded software for tasks like load shedding, automatic transfer switching, and microgrid management. Some models also include integrated power metering with 1% accuracy and power quality monitoring, making them a great choice for facilities needing detailed energy management and adaptive protections.
Environmental Resistance
Built for tough industrial conditions, the Tmax XT series operates reliably in temperatures ranging from -13°F to 158°F (-25°C to +70°C) and can be stored in even harsher environments, from -40°F to 158°F (-40°C to +70°C).
The series also includes features to withstand humid and hot climates, making it suitable for facilities in challenging locations. With impact and vibration resistance, it’s well-suited for environments with heavy machinery.
Electronic trip units are designed to function in relative humidity up to 98%, ensuring reliable performance even in extremely moist conditions. The breakers maintain full operational capacity up to 6,562 feet (2,000m) altitude without derating. Depending on the configuration, the series offers IP40 protection with the front cover installed and IP20 without the cover.

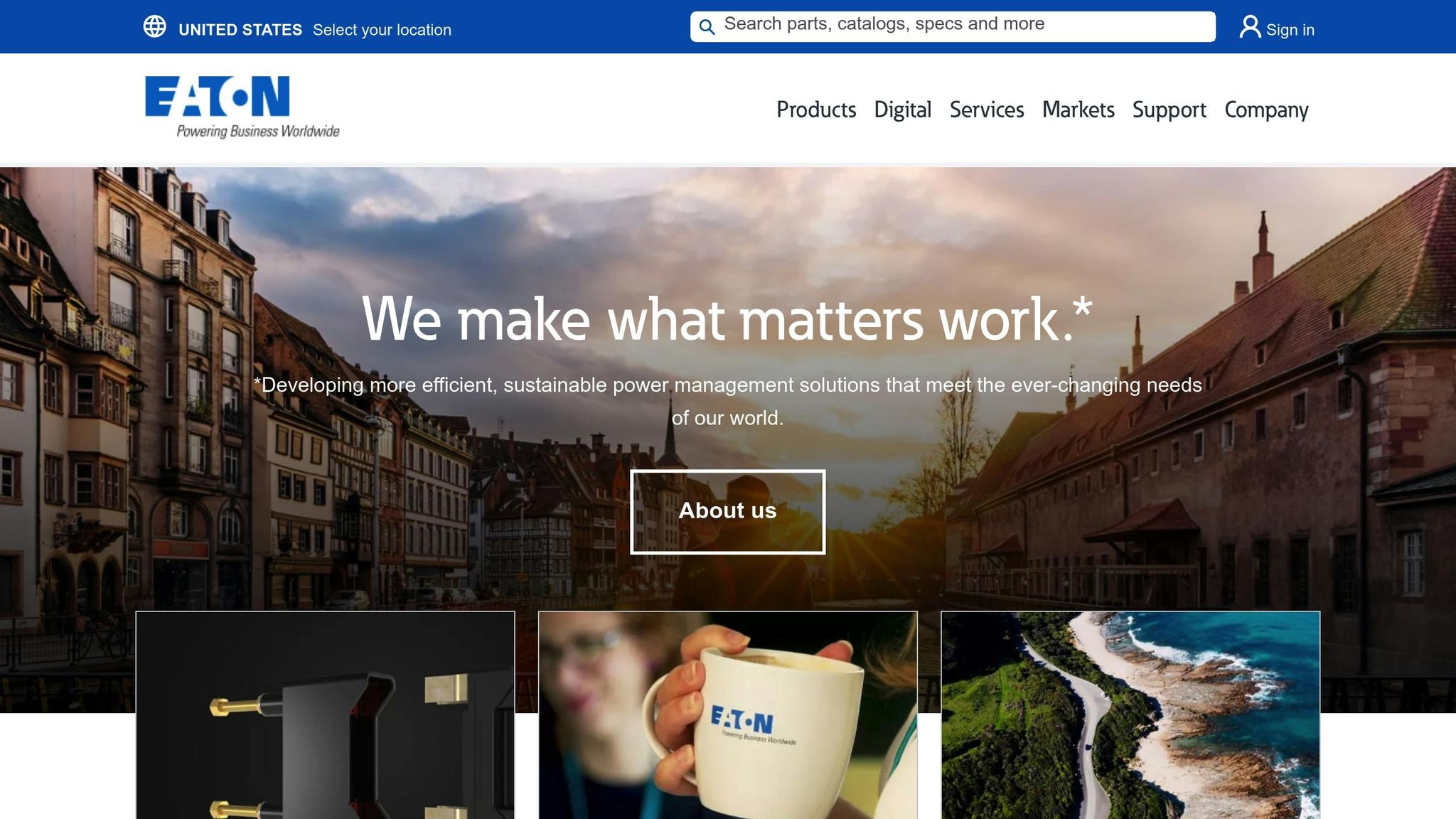

3. Eaton Series G MCCB
After taking a look at ABB's offerings, the Eaton Series G brings another solid option for industrial protection. Like its counterparts, the Series G focuses on delivering reliable performance and safety in industrial systems. It’s a globally-rated platform designed to handle a variety of industrial applications, combining a compact design with strong performance. One standout feature of the Series G is its patented high-speed "blow-open" contact design, which enhances safety and reliability.
The Series G lineup includes five frame sizes, covering a wide range of ratings from 15 to 2,500 amperes. This makes it a flexible choice, capable of managing anything from small circuits to large distribution panels.
Voltage Rating
The Eaton Series G MCCB supports voltage ratings up to 690 VAC, making it adaptable for both North American and international power systems. This flexibility simplifies procurement and maintenance for companies operating across multiple regions. Plus, the Series G meets several international standards, including UL, CSA, CE, IEC, and KEMA KEUR certifications. Its broad voltage compatibility ensures it can handle a wide variety of industrial setups.
Current Rating
With current ratings ranging from 15A to 2,500A, the Series G offers options for both thermal-magnetic and electronic trip units. This versatility allows it to meet the needs of a wide spectrum of industrial applications.
Interrupting Capacity
The interrupting capacity of the Series G is another highlight, offering up to 200 kA at both 480V and 240V. Additionally, Eaton includes current-limiting breakers within this series, which help reduce the energy delivered by fault currents to downstream equipment. These features make the Series G a dependable choice for critical industrial protection.
Environmental Resistance
Beyond its electrical capabilities, the Series G is built to perform in tough industrial environments. It’s engineered to handle harsh conditions while maintaining consistent performance. With international certifications validating its performance across various regional and environmental standards, the Series G proves itself as a reliable option for demanding industrial needs.
4. Siemens 3WL Air Circuit Breaker
The Siemens 3WL air circuit breakers are designed to handle high power demands while maintaining a compact footprint, making them ideal for industrial environments where space is at a premium. Built for managing heavy current loads and providing reliable protection, the 3WL series is a dependable solution for challenging industrial applications.
These breakers serve multiple roles, functioning as incoming-feeder, coupler, and outgoing-feeder devices. They safeguard essential equipment like motors, generators, transformers, and cables, ensuring smooth and secure operations. Let’s take a closer look at the key features that make the 3WL series a standout choice for demanding industrial needs.
Current Rating
The Siemens 3WL series supports current ratings ranging from 630A to 6,300A. Available in four sizes, the breakers come in both 3-pole and 4-pole configurations, offering flexibility to suit diverse industrial setups.
Interrupting Capacity
With five levels of short-circuit breaking capacity, the 3WL series is equipped to handle high-stress conditions. Its electronic trip units integrate multiple functions, including protection, measurement, and communication, ensuring operational efficiency and safety. Additionally, hardware protection and signed firmware enhance security during operation.
Environmental Resistance
Engineered to perform in challenging conditions, the 3WL breaker is climate-proof according to DIN IEC 68 Part 30-2, making it reliable under varying temperature and humidity levels. It meets a range of international standards and certifications, such as IEC 60947-2, DIN VDE 0690 Part 1, CCC, Gost, and shipbuilding approvals from authorities like GL, ABS, LRS, and PRS.
The modular design of the 3WL series allows it to adapt to different applications with ease. Whether for initial installations or future system expansions, these breakers are built to accommodate evolving industrial requirements. They also provide robust support for operator control and network monitoring, making them a practical choice for facilities aiming to maintain flexibility in their electrical systems.

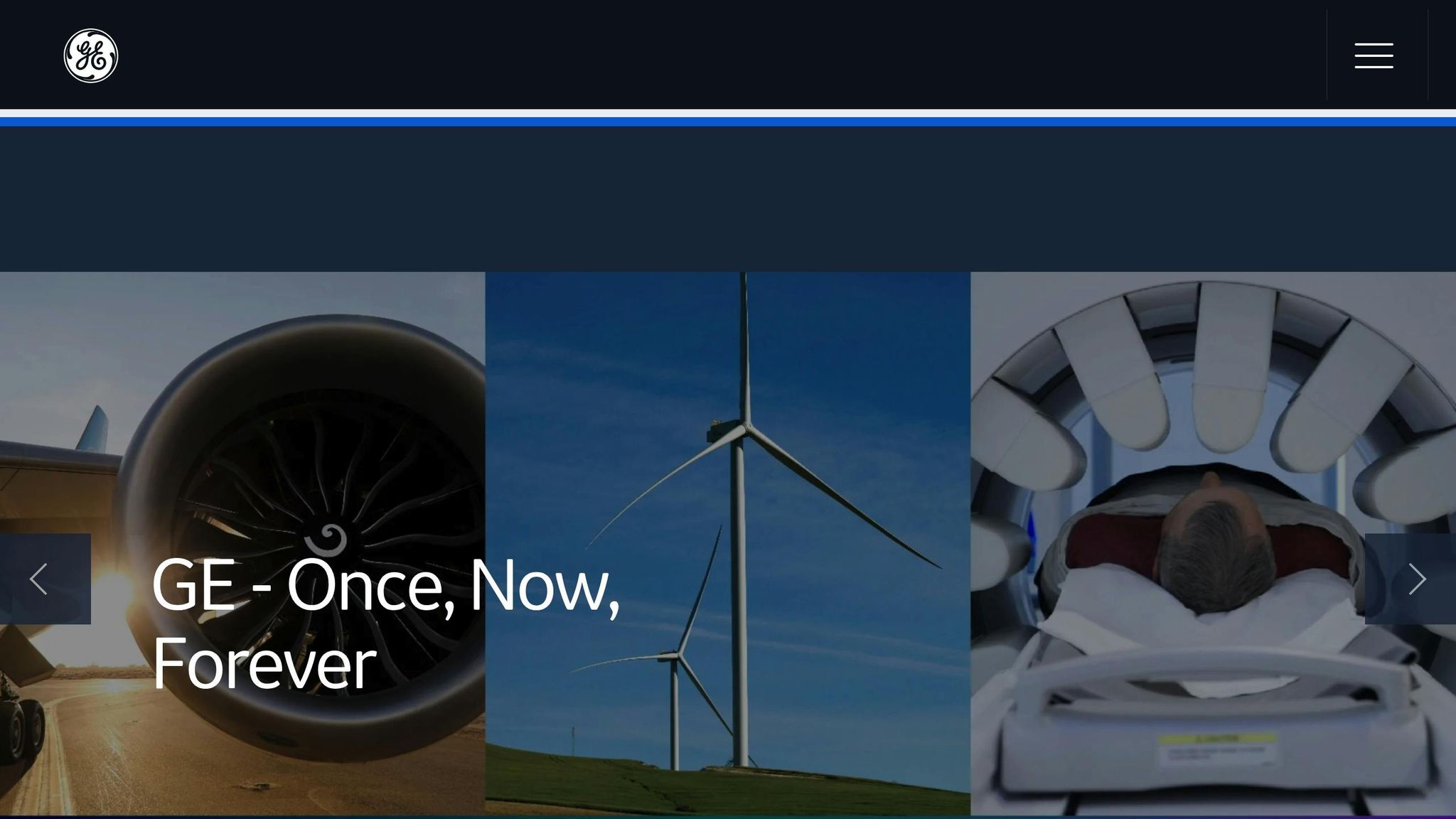

5. GE EntelliGuard G LVPCB
The GE EntelliGuard G LVPCB is designed to provide reliable protection and durability for industrial power distribution systems. As the standard circuit breaker in ABB AKD-20 low voltage switchgear, it delivers dependable performance in challenging industrial settings. Let’s dive into the details of what makes this circuit breaker a strong choice for various industrial applications.
One key feature is its universal trip unit design, making it the only fully universal spare or replacement trip unit in the industry. The EntelliGuard TU Trip Unit can be installed in any EntelliGuard G circuit breaker, regardless of its frame size, sensor size, short circuit rating, or compliance standard (UL, ANSI, IEC). This versatility simplifies maintenance and reduces the need to stock multiple spare parts, saving time and resources for industrial operations.
Voltage Rating
The EntelliGuard G is compatible with 240 Vac, 480 Vac, and 600 Vac systems, and when paired with AKD-20 switchgear, it can handle up to 635 Vac.
This range makes it suitable for most industrial power distribution needs, from smaller facilities to large-scale operations. Its ability to handle up to 600 volts is particularly important for heavy industrial applications where higher voltage levels are critical for efficient power delivery.
Current Rating
With a capacity ranging from 400A to 6,000A, the EntelliGuard G is available in both 3-pole and 4-pole configurations, meeting a wide variety of industrial load requirements.
This broad current range ensures it can support everything from moderate industrial equipment to high-demand systems like large motor drives and industrial processing machinery. The 4-pole option also adds flexibility for setups needing neutral switching or specialized grounding, offering enhanced equipment safety and system reliability.
Interrupting Capacity
The breaker can interrupt fault currents up to 200kAIC, making it highly effective in mitigating electrical faults. Additional safety features include a Reduced Energy Let-through (RELT) setting, which protects at HRC1/2 for fault currents up to 100kA, and ArcWatch technology with WaveForm Recognition and Instantaneous Zone Selective Interlocking. Together, these features can reduce incident energy to below 8 cal/cm².
The integrated EntelliGuard TU Trip Units further boost system protection with advanced functions like measurement and communication capabilities. Users can select communication protocols such as Modbus RTU or Profibus DP, and the unit supports time current curves that align with traditional fuse curves.
Environmental Resistance
Built for tough industrial environments, the EntelliGuard G includes features like bell alarm contacts and key interlocks, ensuring smooth integration with industrial control systems.
6. Schneider Electric Masterpact MTZ ACB
The Schneider Electric Masterpact MTZ ACB is a robust air circuit breaker designed to ensure reliable power supply in critical environments such as healthcare facilities, data centers, manufacturing plants, and large commercial buildings. It’s built to handle challenges like overloads, short circuits, and insulation faults while prioritizing energy efficiency and uninterrupted operation. Below, we dive into its key specifications and features.
Schneider Electric highlights its dedication to reliability and performance in their documentation:
"Each MasterPact innovation has incorporated the most advanced features and has established a solid reputation for power up-time and protection against cable overloads, short circuits, and insulation faults - even in the toughest environments."
Voltage Rating
The Masterpact MTZ offers a voltage rating of 600 Vac, aligning with U.S. industrial standards and ensuring broad compatibility.
Current Rating
This breaker supports a wide range of current ratings, from 800 A to 6,000 A, making it suitable for demanding applications across various industries.
Interrupting Capacity
With an interrupting capacity ranging from 42 to 200 kA at 480 Vac, the Masterpact MTZ is equipped to handle severe fault conditions. It uses air as the arc-quenching medium, ensuring quick and effective fault interruption even in high-stress scenarios. The higher end of this range makes it particularly well-suited for large industrial power systems.
Environmental Resistance
Designed for durability, the Masterpact MTZ withstands electromagnetic interference, extreme temperatures, and corrosive environments. This ensures consistent performance, even in challenging conditions with significant temperature fluctuations or atmospheric contaminants.
sbb-itb-501186b
7. ABB SACE Emax 2 ACB
The ABB SACE Emax 2 ACB is a modern air circuit breaker designed to meet the evolving demands of industrial power systems. Combining cutting-edge digital features with dependable protection, this breaker connects seamlessly with the ABB Ability Energy Manager cloud platform, enabling efficient monitoring and control. It comes in four frame sizes - E1.2, E2.2, E4.2, and E6.2 - offering a range of current and breaking capacities tailored to various industrial needs.
Voltage Rating
The standard ABB SACE Emax 2 ACB is designed to handle typical industrial voltage requirements. For specialized applications, ABB offers the E9/10 versions, which can manage voltages up to 1,000 VAC. Additionally, the series includes switch disconnecters (MS‐E version) capable of handling up to 1,500 VDC, making them ideal for modern DC power systems.
Current Rating
The series provides a versatile range of current ratings across its frame sizes. The E1.2 frame is perfect for lower current demands, while the E6.2 frame is built for high-current industrial applications. This flexibility ensures reliable performance without over-specifying equipment.
Interrupting Capacity
The interrupting capacity varies by frame size and certification standard:
- UL 1066: The E1.2 frame supports up to 65 kA, while the E2.2, E4.2, and E6.2 frames handle up to 100 kA.
- IEC 60947: Capacities are 66 kA for E1.2, 100 kA for E2.2, and 150 kA for both E4.2 and E6.2.
Environmental Resistance
For harsh environments, ABB offers specialized variants of the SACE Emax 2 ACB. The UL1066SA version is designed for marine applications, effectively resisting salt air and moisture. For naval installations, the ML Naval RINA-certified version (available only in IEC configurations) meets stringent naval standards.
This breaker also includes advanced functionalities like Load Shedding, Power Controller, ATS, Interface Protection, Synchrocheck logics, and Adaptive Protection, enhancing system performance and reliability in even the most demanding industrial settings.

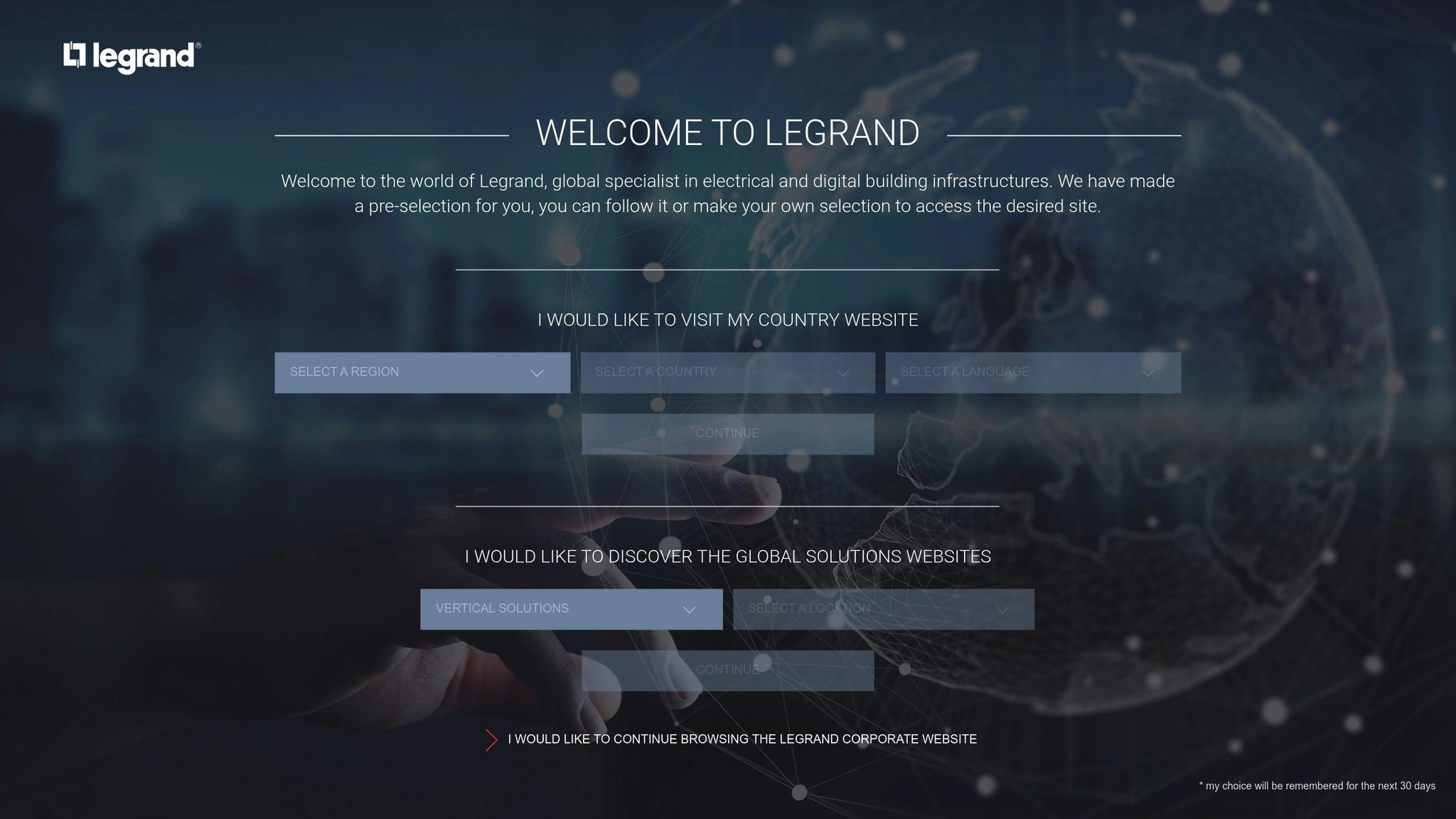

8. Legrand DMX³ MCCB
The Legrand DMX³ MCCB stands out as a dependable option for industrial electrical protection, offering robust performance for high-power applications.
Designed in France, the DMX³ MCCB integrates seamlessly with monitoring systems, making it a strong choice for facilities that demand consistent operation and precise control. Its design prioritizes energy efficiency, featuring open-air breaking chambers to enhance energy dissipation and maintain continuous operation.
To cater to diverse industrial needs, the DMX³ series offers three frame sizes with varying breaking capacities: 50 kA (DMX³ N), 65 kA (DMX³ H), and 100 kA (DMX³ L). This flexibility allows facilities to select the level of protection that best aligns with their specific operational requirements.
Voltage Rating
The DMX³ MCCB operates within a voltage range of 230–690 V, making it suitable for most industrial setups. It also boasts an insulation rating of 1,000 V and a rated impulse withstand voltage of 12 kV.
| Specification | Rating |
|---|---|
| Rated voltage | 230–690 V |
| Rated insulation voltage | 1,000 VAC 50/60 Hz |
| Rated impulse withstand voltage | 12 kV |
This configuration ensures reliable protection and control, particularly at the supply end of low-voltage installations, where maintaining voltage stability and insulation integrity is essential.
Current Rating
The DMX³ series offers an impressive range of current ratings, with 11 settings spanning from 630 A to 6,300 A. For mid-range applications, the DMX³ 2500 models support currents up to 1,600 A, while other configurations extend to 4,000 A. This versatility makes it suitable for both medium-scale manufacturing and large industrial operations.
Interrupting Capacity
The DMX³ series ensures reliable fault interruption with breaking capacities ranging from 42 kA to 100 kA. High interrupting capacity is crucial for maintaining service continuity in demanding environments. The frame capacities are as follows:
- DMX³ N: 50 kA
- DMX³ H: 65 kA
- DMX³ L: 100 kA
These options provide the reliability needed for energy-intensive applications.
Environmental Resistance
Built to withstand harsh conditions, the DMX³ MCCB complies with IEC/EN 60947-1 Annex Q, Category F standards. It is resistant to temperature changes, humidity, vibration, shock, and salt mist. This makes it particularly valuable for challenging environments like coastal facilities and chemical plants, where durability is a priority.
9. Mitsubishi Electric AE-SW MPCB
The Mitsubishi Electric AE-SW MPCB is a high-performance air circuit breaker designed to handle the rigorous demands of industrial environments. Made in Japan, this series combines reliable engineering with practical functionality to tackle challenging electrical conditions.
The AE-SW series provides a range of current configurations, including 1,250A, 1,600A, 2,000A, 2,500A, and 3,200A models. This variety allows industrial facilities to choose the exact protection level needed for their specific electrical loads.
Voltage Rating
Designed for low-voltage industrial applications, the AE-SW MPCB operates at 600V. It comes in both 3-pole and 4-pole configurations, offering flexibility to meet different grounding and neutral system requirements. This voltage rating makes it a great fit for standard industrial setups such as motor control centers and distribution panels.
Current Rating
The AE-SW series covers a wide range of current ratings, making it suitable for medium to large-scale industrial applications. Here's a breakdown of the available models:
| Model | Current Rating |
|---|---|
| AE1250-SW | 1,250A |
| AE1600-SW | 1,600A |
| AE2000-SW | 2,000A |
| AE2500-SW | 2,500A |
| AE3200-SW | 3,200A |
With this range, the AE-SW series can handle diverse industrial needs, from main distribution panels to large motor feeders, ensuring reliable protection and efficient fault management.
Interrupting Capacity
To enhance safety and equipment protection, the AE-SW series employs a robust air-based arc extinction system. This method ensures dependable interruption of fault currents, a critical feature for high-demand industrial environments. Its sturdy construction and fault-handling capabilities make it a reliable choice for maintaining operational safety and minimizing downtime.
10. Fuji Electric BW Series MCCB
The Fuji Electric BW Series MCCB stands out as a dependable, Japanese-engineered molded case circuit breaker designed for a variety of industrial applications. This series offers reliable performance and caters to a broad range of needs. While the standard BW series addresses general industrial requirements, the specialized BW0 series is tailored for more specific applications. Let’s break down its key specifications.
Voltage Rating
The BW series operates at 440V AC, making it ideal for standard industrial voltage systems. Within the BW0 series, the 32AF models are specifically crafted for AC 440V systems, targeting sectors like building construction and secondary distribution markets. This voltage rating makes the BW series a practical choice for secondary distribution setups.
Current Rating
The BW series accommodates a wide current range, from 3A to 800A. For adjustable mechanical configurations, it supports currents between 100A and 630A. For facilities needing compact solutions, the UL489 MCCB G-TWIN Lambda Series is available with ratings from 3A to 50A. On the other hand, the GLOBAL-TWIN G-TWIN Series caters to larger installations, offering rated currents from 3A to 800A with a maximum voltage of 600V.
Interrupting Capacity
The BW series provides enhanced safety with its improved breaking performance. The service short-circuit capacity (Ics) matches its ultimate capacity (Icu). The 32AF model, for example, delivers an Icu of 1.5kA at 440V AC and 2.5kA at 240V AC. These specifications make it well-suited for secondary distribution and building applications, where fault currents are generally lower.
Environmental Resistance
Designed to meet stringent international standards, the BW series complies with IEC60947-2 and EN60947-2. The BW0 series goes a step further, meeting IEC 60947-2, TÜV (IEC/EN 60947-2), and UL508 standards. Its molded case construction ensures resilience against dust, moisture, and temperature fluctuations, which are common in manufacturing plants and commercial buildings. This durability makes it a reliable choice for demanding industrial environments.
Feature Comparison Chart
The table below highlights the key specifications for 10 industrial circuit breakers, providing a quick reference for their capabilities and applications.
| Circuit Breaker | Voltage Rating | Current Rating | Interrupting Capacity | Applications |
|---|---|---|---|---|
| Schneider Electric PowerPact H-Frame MCCB | 600V AC | 15A – 400A | 65 kA @ 480V | Manufacturing plants, data centers, commercial buildings |
| ABB Tmax XT MCCB Series | 690V AC | 160A – 1,600A | 150 kA @ 415V | Heavy industrial facilities, power distribution systems |
| Eaton Series G MCCB | 600V AC | 15A – 1,200A | 100 kA @ 240V, 65 kA @ 480V | Strip malls, office buildings, electrical assemblies |
| Siemens 3WL Air Circuit Breaker | 690V AC | 800A – 6,300A | 150 kA @ 415V | Power generation, large industrial complexes |
| GE EntelliGuard G LVPCB | 635V AC | 800A – 4,000A | 200 kA @ 480V | Critical power applications, hospitals, airports |
| Schneider Electric Masterpact MTZ ACB | 690V AC | 800A – 6,300A | 150 kA @ 415V | Primary distribution, industrial substations |
| ABB SACE Emax 2 ACB | 690V AC | 800A – 6,300A | 150 kA @ 415V | Power distribution networks, industrial plants |
| Legrand DMX³ MCCB | 690V AC | 160A – 630A | 50 kA @ 415V | Secondary distribution, building construction |
| Mitsubishi Electric AE-SW MPCB | 600V AC | 0.1A – 630A | 100 kA @ 415V | Motor protection, automation systems |
| Fuji Electric BW Series MCCB | 440V AC | 3A – 800A | 2.5 kA @ 240V, 1.5 kA @ 440V | Secondary distribution, building applications |
This chart is a starting point for comparing breakers based on their voltage, current, and interrupting capacity. Below, we dive deeper into what these specifications mean and how they influence your choice.
Understanding the Specifications
The table shows that most breakers are designed for 600V or 690V AC systems, but the Fuji Electric BW Series stands out for its suitability in lower-voltage setups at 440V AC.
Current ratings differ significantly depending on the breaker type and intended use. Molded case circuit breakers (MCCBs), like the Schneider Electric PowerPact H-Frame, typically handle up to 2,500A. On the other hand, air circuit breakers, such as the Siemens 3WL and GE EntelliGuard G, are better suited for higher current capacities, making them ideal for large-scale industrial and power distribution needs.
Interrupting Capacity and Application Selection
Interrupting capacity is a critical factor - it must align with the system's fault current. Among the options, the GE EntelliGuard G offers the highest interrupting capacity at 200 kA for 480V systems. The ABB Tmax XT follows with 150 kA at 415V. For smaller-scale or secondary distribution applications, the Fuji Electric BW Series provides a lower interrupting capacity of 1.5 kA to 2.5 kA, which is sufficient for environments with reduced fault current levels.
Each breaker is tailored to specific applications. Air circuit breakers are ideal for power generation and primary distribution, particularly in large industrial complexes. MCCBs are versatile, serving a variety of industrial and commercial needs. Meanwhile, specialized options like the Mitsubishi Electric AE-SW MPCB are designed for motor protection and automation, ensuring precise performance in these roles.
Environmental and Frequency Considerations
Circuit breakers are typically calibrated for operation at 104°F (40°C). This becomes a key consideration for installations in high-temperature settings or systems with variable frequency drives, where performance can be affected by environmental factors.
This comparison chart aims to simplify the decision-making process by focusing on critical specifications like voltage, current, and interrupting capacity, while also factoring in environmental and operational requirements. Whether you're planning for a large industrial setup or a smaller commercial application, this guide helps narrow down the best options for your needs.
Final Thoughts
When it comes to selecting the best industrial circuit breaker, the key lies in matching its technical specifications - like voltage, current, and interrupting capacity - with the actual operating conditions of your system. For example, the Schneider Electric PowerPact H-Frame offers flexibility for manufacturing plants, while the GE EntelliGuard G stands out with its robust interrupting capacity, making it ideal for critical power applications.
"Specifying the right breaker early in the design process can lead to a more robust design, avoid redesigns, decrease development costs, and add value to the end product." - E-T-A
Choosing the right breaker early on can save time and money while improving overall system reliability.
Beyond technical specs, environmental factors play a crucial role. Standard breakers are rated for maximum performance at 122°F, with some maintaining 100% capacity up to 140°F. Additionally, installations above 6,000 feet may require derating for consistent performance. These details are essential for ensuring reliability in varying conditions.
Compliance with industry standards is non-negotiable. Look for breakers that meet UL, IEC, and NEC standards. UL 489 certification, for instance, guarantees rigorous safety testing, while NEC Articles 240 and 110 provide essential guidelines for safe electrical design and installation. Also, check for local requirements, such as seismic considerations in earthquake-prone regions, to ensure full compliance.
Whether you’re safeguarding motors with the Mitsubishi Electric AE-SW MPCB or managing primary distribution with the ABB SACE Emax 2 ACB, the right breaker prevents costly production delays, equipment damage, and safety risks.
Keep detailed installation records to streamline future upgrades and compliance checks. For complex setups where multiple factors come into play, consulting a licensed electrician or electrical engineer is highly recommended.
Finally, remember that most industrial applications up to 600 A operate efficiently with breakers rated for 50-120 Hz. However, specialized systems might need more precise frequency matching. The ultimate goal is to choose breakers that not only meet but exceed the unique demands of your system for optimal performance.
FAQs
What’s the difference between molded case circuit breakers (MCCBs) and air circuit breakers (ACBs) in industrial settings?
Molded Case Circuit Breakers (MCCBs) and Air Circuit Breakers (ACBs) both play crucial roles in safeguarding electrical systems, though they serve different purposes based on the demands of the setup.
MCCBs are compact devices designed for medium-voltage systems. They offer dependable protection against overloads and short circuits, making them a go-to choice for commercial and light industrial settings. These breakers typically handle current ratings between 10 A and 800 A, striking a balance between efficiency and practicality in environments where moderate power demands are the norm.
ACBs, on the other hand, are built to handle much larger loads. Designed for high-voltage, high-current applications, they operate with ratings ranging from 400 A to 6,300 A. ACBs use air to extinguish electrical arcs, ensuring reliable performance in heavy-duty industrial environments. They are commonly installed upstream in electrical systems, where they manage substantial power loads and are used less frequently than MCCBs.
Both MCCBs and ACBs deliver essential safety and functionality, but the choice between them depends largely on the specific power requirements and operational needs of your system.
How do temperature and humidity impact the performance and choice of industrial circuit breakers?
Environmental factors like temperature and humidity play a major role in how industrial circuit breakers perform and which ones are suitable for specific applications. For instance, high temperatures can push circuit breakers to overheat, causing them to trip at currents lower than their rated capacity. A breaker rated for 10 amps might trip at just 7 amps in a hot environment, potentially interrupting operations and risking equipment damage.
Humidity brings its own set of problems. Excess moisture can corrode the breaker's internal components, weaken insulation, and compromise its reliability and lifespan. High humidity levels can also lead to increased leakage currents, which might result in system failures. To maintain safety and ensure reliable performance, it’s crucial to select circuit breakers specifically designed to withstand the environmental conditions of your industrial setup.
Why is it essential to match a circuit breaker’s interrupting capacity to the system’s fault current, and what risks can arise if it’s mismatched?
Matching a circuit breaker’s interrupting capacity to the system’s fault current is a critical step in ensuring safety and reliability in industrial settings. This capacity, measured in kiloamperes (kAIC), indicates the highest fault current the breaker can handle without failing.
Using a breaker with a rating lower than the system’s fault current can lead to serious problems. In the event of a short circuit or overload, the breaker might not trip as it should, which could cause equipment damage, electrical fires, or even explosions. Breakers with the proper rating not only safeguard people and equipment but also help meet safety standards, which require the interrupting capacity to match or exceed the system’s potential fault current.
Choosing the right breaker is essential to prevent these risks and keep industrial operations running safely and efficiently.
