Breaking down Trip Unit features for LV breakers ... LSIG!!!
Trip units are the key component in low-voltage circuit breakers, responsible for monitoring electrical currents and disconnecting power during overloads or faults. They prevent damage, fires, and blackouts by ensuring fast and precise fault isolation.
There are two main types of trip units:
- Thermomagnetic Trip Units: Use physical components (bimetallic strips and electromagnets) for basic overload and short-circuit protection. These are ideal for small-scale applications like homes and small businesses due to their simplicity and lower cost.
- Electronic Trip Units: Use sensors and microprocessors for advanced, fast, and precise fault detection. They offer additional features like remote monitoring, ground fault protection, and customizable settings, making them suitable for larger facilities like factories and data centers.
LSIG protection (Long-time, Short-time, Instantaneous, and Ground fault) is a vital feature in electronic trip units, offering layered protection against various electrical faults. LSIG ensures system reliability by isolating faults quickly and minimizing disruptions.
Key LSIG functions:
- Long-time: Handles prolonged overloads.
- Short-time: Manages transient overcurrents.
- Instantaneous: Reacts to severe short circuits.
- Ground fault: Detects ground leakage to prevent shocks and fires.
Electronic trip units also provide advanced diagnostics, real-time monitoring, and compliance with electrical codes, ensuring safe and efficient power distribution.
Quick Comparison:
| Feature | Thermomagnetic Trip Units | Electronic Trip Units |
|---|---|---|
| Detection Method | Mechanical (bimetal/electromagnet) | Sensors & microprocessors |
| Response Speed | Slower | Faster |
| Adjustability | Limited | High |
| Applications | Homes, small businesses | Factories, data centers |
| Cost | Lower | Higher |
| Additional Features | None | LSIG, remote monitoring, diagnostics |
For optimal performance, trip units must be configured based on system requirements, and regular testing is necessary to maintain reliability. LSIG-equipped breakers are particularly important for high-power systems, ensuring compliance with U.S. electrical codes and enhancing safety.

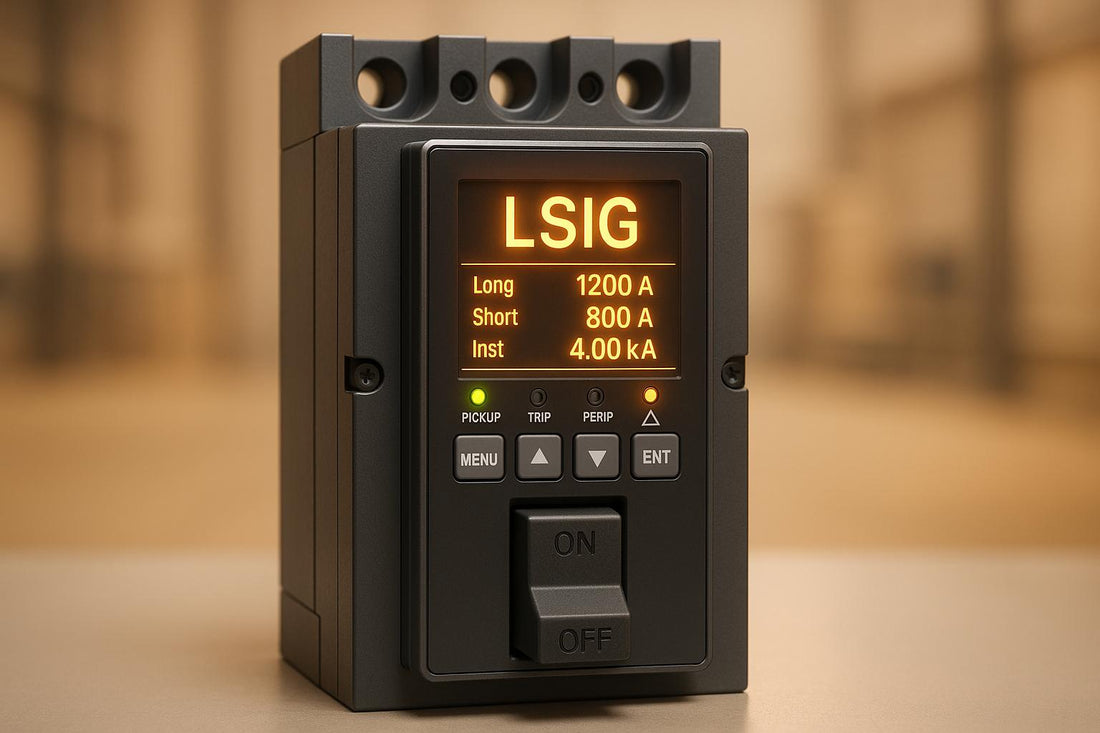

LSIG Trip Unit
LSIG Protection Functions Explained
Understanding how these four LSIG components work helps you select the right settings for your electrical system while ensuring proper coordination with downstream protective devices.
Long-Time Protection (L)
Long-time protection serves as the first safeguard against prolonged overcurrent conditions, which can lead to overheating and damage to equipment and conductors. It functions similarly to the inverse-time thermal trip in traditional thermal-magnetic breakers but offers greater precision and flexibility when using electronic trip units.
This protection includes an intentional delay - adjustable between 2.2 and 27 seconds at six times the continuous amperage - allowing inrush currents from motor starts or transformer energizing without causing a trip. The continuous ampere setting (Ir) can be fine-tuned from 20% to 100% of the circuit breaker’s nominal rating. For instance, a 1,000-amp breaker can have its long-time pickup set anywhere between 200 and 1,000 amps to suit specific load requirements.
Short-Time Protection (S)
Short-time protection addresses transient overcurrent events that fall between normal overloads and extreme short circuits. The short-time pickup can be adjusted from 1.5 to 10 times the trip unit ampere setting, with delays ranging from as short as 0.1 seconds up to less than 60 seconds. On smaller frames, delays may extend up to 100 milliseconds, while larger frames allow for delays between 100 and 500 milliseconds.
Electronic trip units provide two delay modes: fixed-time (adjustable from 0.05 to 0.5 seconds) and I²T ramp mode (adjustable from 0.18 to 0.45 seconds). These options help ensure that downstream devices, like smaller breakers or fuses, have enough time to clear faults before the upstream breaker acts.
Instantaneous Protection (I)
Instantaneous protection responds immediately to severe short circuits, tripping without any intentional delay. Functioning like the instantaneous magnetic trip in thermal-magnetic breakers but with improved adjustability, this feature allows the instantaneous pickup to be set between 2 and 40 times the continuous amperage. For example, in a system with a 1,000-amp continuous rating, the instantaneous protection can be configured to trip at currents ranging from 2,000 to 40,000 amps. This ensures quick fault clearance while maintaining coordination with downstream devices.
Ground Fault Protection (G)
Ground fault protection is designed to detect ground leakage, minimizing risks like shock and fire. This feature is critical for safety and is often required by electrical codes. On larger frame breakers, the ground fault pickup can be adjusted from 25% to 100% of the frame rating, with a maximum setting capped at 1,200 amps to comply with NEC® 230-95(A). Some units allow sensitivity as low as 0.1 times the breaker rating for detecting even minor ground faults. The ground fault time delay can be set anywhere from instantaneous to 500 milliseconds, offering flexibility for system coordination while avoiding unnecessary trips.
This function operates by continuously monitoring the vector sum of currents in all phase conductors and the neutral. If this sum exceeds the set pickup value - indicating a ground leakage - the system triggers a trip after the specified delay.
Properly configuring these settings ensures a well-coordinated protection system, leveraging advanced features in electronic trip units for optimal performance.
Electronic Trip Unit Features
Electronic trip units have brought a new level of sophistication to circuit breaker technology, far surpassing the capabilities of traditional thermomagnetic designs. With their microprocessor-based functionality, these devices provide enhanced protection and simplify system management, transforming how electrical systems are monitored and maintained.
Microprocessor-Based Operation
At the heart of electronic trip units is a microprocessor that processes current signals with exceptional precision. Unlike thermomagnetic units, which rely on physical mechanisms like bimetal strips and electromagnets, electronic units use digital technology to evaluate electrical conditions in real time.
"Digitrip rms trip units use Eaton's microprocessor-based intelligence to provide true rms sensing, permitting increased accuracy and reliable system protection. True rms sensing is not susceptible to nuisance tripping when waveforms containing high harmonic currents are present."
This true RMS sensing technology calculates current from peak values, ensuring more accurate and dependable protection compared to older methods. The microprocessor continuously monitors all phases, detecting even subtle changes that could signal potential issues. This precision allows for fine-tuned trip settings and better coordination among protective devices across the system.
In addition to standard overcurrent and short-circuit protection, electronic trip units provide advanced features such as earth fault protection, neutral monitoring, current unbalance detection, and overvoltage protection. These capabilities make them indispensable in complex systems where multiple layers of protection are required.
Digital Settings and Diagnostics
Building on their advanced processing power, electronic trip units also offer highly configurable settings and real-time diagnostics. These units allow precise adjustments through various interfaces, including dials, keypads, or software platforms, making customization straightforward.
Advanced models go even further by offering real-time monitoring of current, voltage, power, and harmonics. For example, the Digitrip RMS 910 can analyze harmonic content for each phase up to the 27th harmonic, providing critical insights into power quality that can help protect sensitive equipment.
Troubleshooting is also much simpler with these units. Features like cause-of-trip LEDs and trip magnitude information allow technicians to quickly identify whether a trip was caused by long-time, short-time, instantaneous, or ground fault conditions, as well as the exact current levels involved.
Some models even include Arcflash Reduction Maintenance Mode (ARMS), which enhances worker safety by reducing arc flash risks during maintenance. Communication capabilities further extend their utility, enabling remote monitoring and predictive maintenance through integration with central systems.
Thermomagnetic vs. Electronic Trip Units Comparison
To understand the leap forward electronic trip units represent, it's helpful to compare them to traditional thermomagnetic designs:
| Feature | Thermomagnetic Trip Units | Electronic Trip Units |
|---|---|---|
| Protection Functions | Basic overcurrent and short-circuit protection using mechanical components | Advanced LSIG protection with digital precision and additional features like neutral protection |
| Setting Accuracy | Limited adjustment ranges with mechanical parts | Wide, precise digital settings |
| Monitoring Capabilities | No real-time data or diagnostics | Real-time monitoring of current, voltage, power, and harmonics, plus data logging |
| Response Time | Slower due to mechanical operation | Faster and more accurate with digital electronics |
| Maintenance Requirements | Requires periodic calibration | Self-monitoring with diagnostic alerts, reducing maintenance needs |
| System Integration | Limited connectivity | Advanced communication protocols for remote monitoring and system integration |
| Installation Flexibility | Hardware replacement needed for different settings | Software-configurable settings for easier upgrades |
Electronic trip units provide detailed measurement data and operational insights, enabling users to manage installations more effectively. With features like diagnostic alerts and communication capabilities, they support a shift from reactive to predictive maintenance, improving reliability and minimizing downtime.
The ability to adjust settings through software also makes these units highly adaptable to changing load demands. Instead of replacing hardware, users can reconfigure the same unit to handle new requirements, saving time and resources. This adaptability is especially useful in dynamic environments where electrical loads frequently evolve due to new equipment or operational changes.
sbb-itb-501186b
How to Select and Configure LSIG Trip Units
When working with LSIG trip units, it’s essential to configure each setting to align with your system's load and fault characteristics. Choosing the right LSIG trip unit involves evaluating your system's needs and ensuring each protection function works seamlessly with other protective devices.
Setting Up Trip Units for Your Application
Start by adjusting the trip unit's settings - like continuous amperage (Ir), which typically ranges from 20% to 100% of the rated current. Long-time protection should be set to handle normal operating currents without causing unnecessary trips during startup or routine cycling.
The short-time pickup setting, adjustable from 1.5 to 10 times the rated current (Ir), helps coordinate with downstream devices. Instantaneous protection, on the other hand, should be set high enough to ignore normal surges but low enough to clear faults quickly. This setting requires careful consideration of motor starting currents and transformer energization to avoid false trips.
For ground fault protection, the pickup setting can range from 20% to 70% of the breaker’s maximum rating, with a cap of 1,200 amps as per NEC® 230-95 (A). Adjust this sensitivity to the lowest practical level while avoiding trips caused by normal leakage currents.
Meeting U.S. Code Requirements
In the U.S., compliance with UL 489 (for molded case circuit breakers) and UL 1066 (for low-voltage power breakers) is mandatory, along with adherence to NEC® guidelines for ground fault protection. NEC® 230-95 (A) limits ground fault trip settings to a maximum of 1,200 amps, but many systems benefit from lower settings to enhance safety.
System coordination studies are critical to ensure protective devices operate in the correct sequence during faults. LSIG trip units offer extensive adjustability, allowing you to coordinate with upstream and downstream devices. This ensures faults are cleared at the nearest device, reducing disruptions to unaffected circuits.
When configuring trip curves, consider the inrush currents of motors and transformers, which can reach six to eight times their full-load current for several seconds. Properly accounting for these surges prevents nuisance tripping during startup. Once code compliance is confirmed, you can explore how Electrical Trader simplifies the selection process.

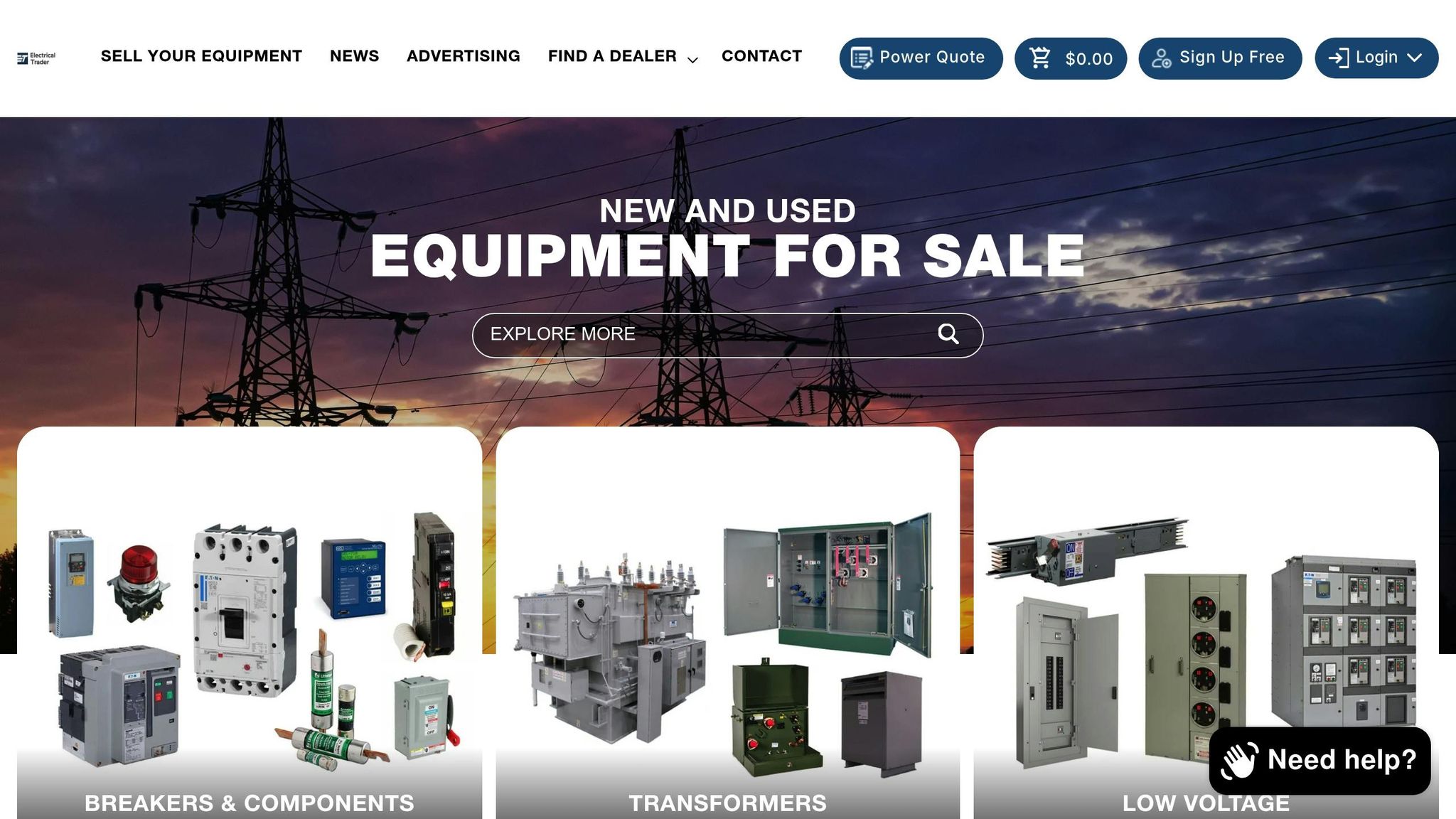

How Electrical Trader Helps with Trip Unit Selection
Electrical Trader offers a comprehensive selection of LSIG trip units, complete with detailed specifications to guide your choice. The platform features products from leading manufacturers, including Micrologic trip units commonly used in PowerPact and Masterpact circuit breakers. These units are available in configurations like LS0, LI, LSI, and LSIG.
Product specifications ensure that the trip units provide the necessary adjustable ranges for your application. For more complex setups, Electrical Trader also offers units with zone-selective interlocking (ZSI) for short-time and ground fault protection. ZSI improves system coordination by allowing upstream devices to delay operation while downstream devices clear faults.
Additionally, Electrical Trader provides access to trip units with advanced features like thermal memory, found in ABB MCCBs. This feature accounts for the thermal history of conductors, reducing the likelihood of nuisance trips in systems with fluctuating load patterns.
Trip Unit Maintenance and Troubleshooting
For circuit breakers equipped with LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault) protection, regular maintenance and troubleshooting are essential to keep their advanced safety functions working properly.
Testing and Calibration Procedures
Trip profiling plays a crucial role in maintenance, as it evaluates both the switching mechanisms and the overall timing of the circuit breaker’s operations.
One of the key methods for verifying LSIG trip unit performance is secondary injection testing. This involves using a test kit - designed specifically for the breaker’s manufacturer - that connects directly to the trip unit’s test socket. By simulating fault conditions, this test ensures the trip unit responds as it should without putting the actual system at risk.
A thorough LSIG testing program should include:
- Load testing to confirm proper operation under normal conditions.
- Short-circuit testing to verify the instantaneous protection feature.
- Insulation testing to identify signs of wear or deterioration.
- Ground fault testing to ensure reliable ground fault detection.
During these tests, take time to inspect relays both visually and mechanically, and perform electrical checks to confirm that pick-up parameters and timing align with specifications. Breaker trip tests are particularly useful for spotting performance issues early, such as the need for lubrication or other maintenance tasks. These tests not only help troubleshoot problems but also provide valuable data for future maintenance.
Common Problems and Solutions
One frequent issue with LSIG trip units is improper settings that don’t match the actual system conditions. This highlights why it’s so important to regularly verify and adjust the trip unit configuration as needed.
Environmental factors, like temperature and humidity, can also impact the performance and lifespan of trip units. When troubleshooting, start by reviewing the settings and utilizing the trip unit’s diagnostic tools, such as fault history logs and self-diagnostic features.
Recording Settings and Maintenance Data
Once testing and troubleshooting are complete, keeping detailed records is critical for ensuring long-term reliability and compliance.
Effective record-keeping involves documenting the original settings, any adjustments made (along with the reasons for them), and the results of all tests, including dates and technician details. Following the manufacturer’s guidelines is equally important - recording calibration settings ensures that the circuit breakers operate in the correct sequence during fault conditions.
To catch early warning signs of potential issues, use tools like thermal imaging and vibration analysis, and record these measurements regularly to build a baseline for performance. Additionally, track environmental data - such as temperature and humidity - as these factors can influence both the performance and the longevity of the circuit breaker.
Conclusion: Safe and Reliable Power Distribution
LSIG trip units represent a leap forward in electrical protection, providing safeguards that go well beyond basic circuit breakers. They ensure safe and dependable power distribution for today’s complex electrical systems.
Key Points to Keep in Mind
The four-layer protection approach - Long-Time, Short-Time, Instantaneous, and Ground Fault - delivers robust defense against a variety of electrical faults. This is especially critical in industrial and commercial environments, where high power demands and sensitive equipment require precise and reliable protection.
The adjustability of LSIG trip units allows engineers to fine-tune settings, ensuring that only the breaker closest to a fault trips. This targeted response helps maintain power to unaffected areas, minimizing disruptions and improving system reliability.
These units also meet code compliance standards, offering not just adherence to regulations but an added layer of safety and operational flexibility that is invaluable in demanding applications.
Additionally, electronic trip units provide diagnostic capabilities. By recording events like overcurrent conditions, ground faults, and trip histories, they help maintenance teams identify and address recurring issues before they become major problems.
Ground fault protection is another critical feature, reducing the risk of electrical shock and fire. The ability to set low trip thresholds ensures a rapid response to dangerous conditions.
These advantages highlight the importance of implementing LSIG trip units in modern electrical systems.
Next Steps
Understanding the benefits of LSIG trip units is just the beginning. The next step is selecting and configuring them to meet your specific application needs.
Proper coordination studies are essential to align LSIG settings with your system's requirements. These studies ensure that breakers trip in the correct sequence during fault conditions, maximizing system protection and minimizing downtime.
Regular testing and calibration are equally important. Following manufacturer guidelines for secondary injection testing, load testing, and ground fault verification ensures these units operate accurately and reliably over time.
For those looking to upgrade or design new systems, Electrical Trader offers a wide range of LSIG-equipped circuit breakers from top manufacturers. Choosing the right configuration is key to building a system that operates safely and reliably for years to come.
Investing in LSIG technology pays off through reduced downtime, improved safety, and better system coordination. As electrical systems grow more complex and vital to operations, the protection provided by LSIG trip units becomes not just a smart choice but a necessity for ensuring safe and reliable power distribution.
FAQs
What makes electronic trip units better than thermomagnetic ones for large-scale electrical systems?
Electronic trip units stand out for their precision, adaptability, and dependability, making them a go-to choice for large-scale systems. Unlike thermomagnetic trip units, they provide adjustable settings like Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) protection, allowing users to fine-tune configurations to fit specific system needs.
These units are also known for their heightened sensitivity and coordination, which help reduce downtime and avoid unnecessary trips. On top of that, many electronic trip units come with advanced monitoring and diagnostic features, boosting safety and performance in complex power distribution networks.
How does LSIG protection enhance the safety and reliability of low-voltage circuit breakers in industrial systems?
LSIG protection enhances the safety and dependability of industrial electrical systems through four main protection modes: long-time, short-time, instantaneous, and ground fault. These modes collaborate to identify and address electrical faults swiftly, reducing the risk of equipment damage, electrical fires, and unexpected interruptions.
By isolating faults effectively, LSIG protection promotes uninterrupted operation and system stability - both of which are vital in industrial settings where consistent performance is crucial. This multi-layered system not only shields equipment but also prioritizes worker safety and supports adherence to safety regulations.
What should I consider when setting up LSIG trip units for safe and efficient operation?
To keep your electrical system running safely and efficiently, LSIG trip units need to be set up according to the unique characteristics of your system. This involves fine-tuning the long-time, short-time, instantaneous, and ground fault protection settings to match your system's load and fault current levels. These adjustments must meet the requirements of the National Electrical Code (NEC) and work seamlessly with other protection devices in your setup.
Regular testing and calibration of the trip units are equally important. These steps ensure the units remain reliable and function as intended during fault conditions. Getting the configuration right not only boosts safety but also helps reduce downtime and shields your equipment from potential damage.
