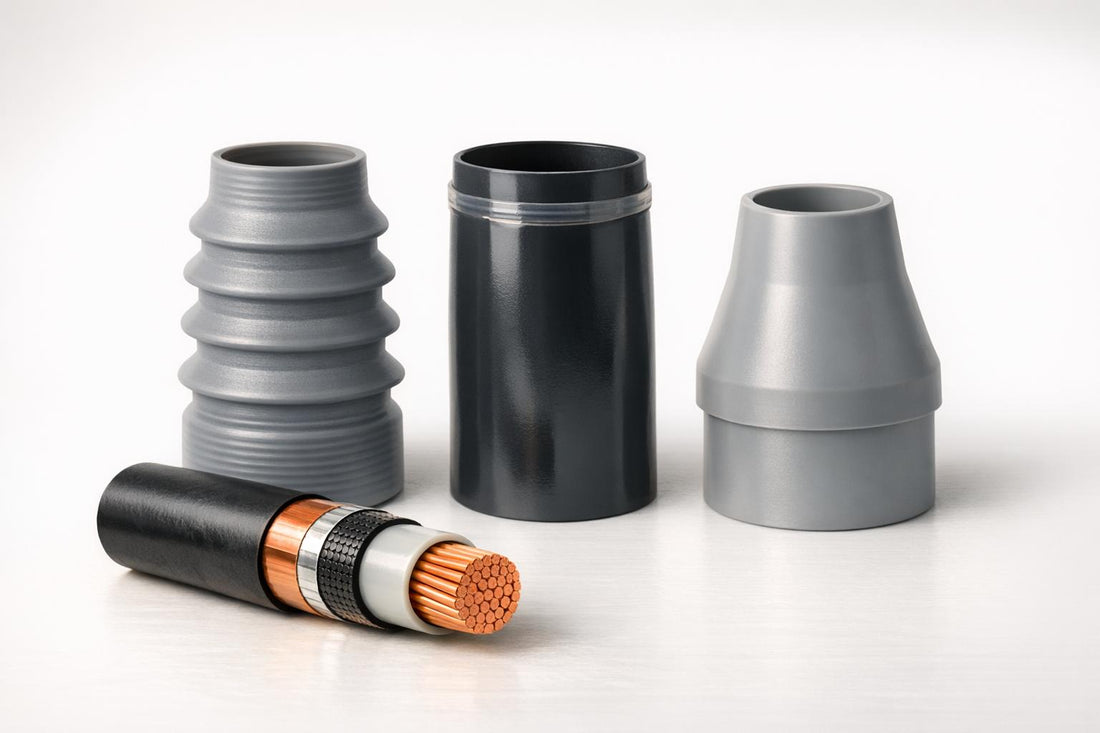

Top Brands for Medium Voltage Cable Accessories
Medium voltage cable accessories are vital for connecting and protecting power cables in electrical systems, typically handling voltages from 12 kV to 52 kV. These components - like joints, terminations, and connectors - ensure safe power distribution and are widely used in sectors like utilities, wind farms, and industrial facilities.
Choosing the right brand is critical for reliability, safety, and performance, especially in demanding environments. Top manufacturers prioritize high-quality materials, compliance with industry standards (e.g., ANSI/IEEE, IEC), and advanced designs to reduce installation errors and improve long-term durability. Silicone rubber and cold shrink technologies are popular for their ease of use and dependability.
Leading Brands:
- Prysmian Group: Offers reliable solutions for utility infrastructures and power grids.
- ABB: Known for Elastimold products, rigorous testing, and innovative features like cold shrink solutions.
- Eaton: Focuses on underground distribution connectors with durable designs.
- Schneider Electric: Provides safe, easy-to-install accessories for modern networks.
- 3M: Pioneered cold shrink technology for faster, tool-free installations.
- TE Connectivity (Raychem): Specializes in connectors for smart grids and renewable energy.
- NKT: Excels in silicone rubber terminations and cold-shrink joints.
- Compaq International: Offers diverse solutions with in-house material control.
- Chardon Group: Delivers dual-compliant connectors for global projects.
Key Takeaways:
- Material Matters: Silicone and EPDM are favored for durability and electrical insulation.
- Installation: Cold shrink simplifies setup; heat shrink provides strong seals.
- System Compatibility: Ensure accessories match voltage ratings, cable types, and system requirements.
For reliable performance, select brands with proven expertise and adherence to industry standards.
Leading Brands for Medium Voltage Cable Accessories

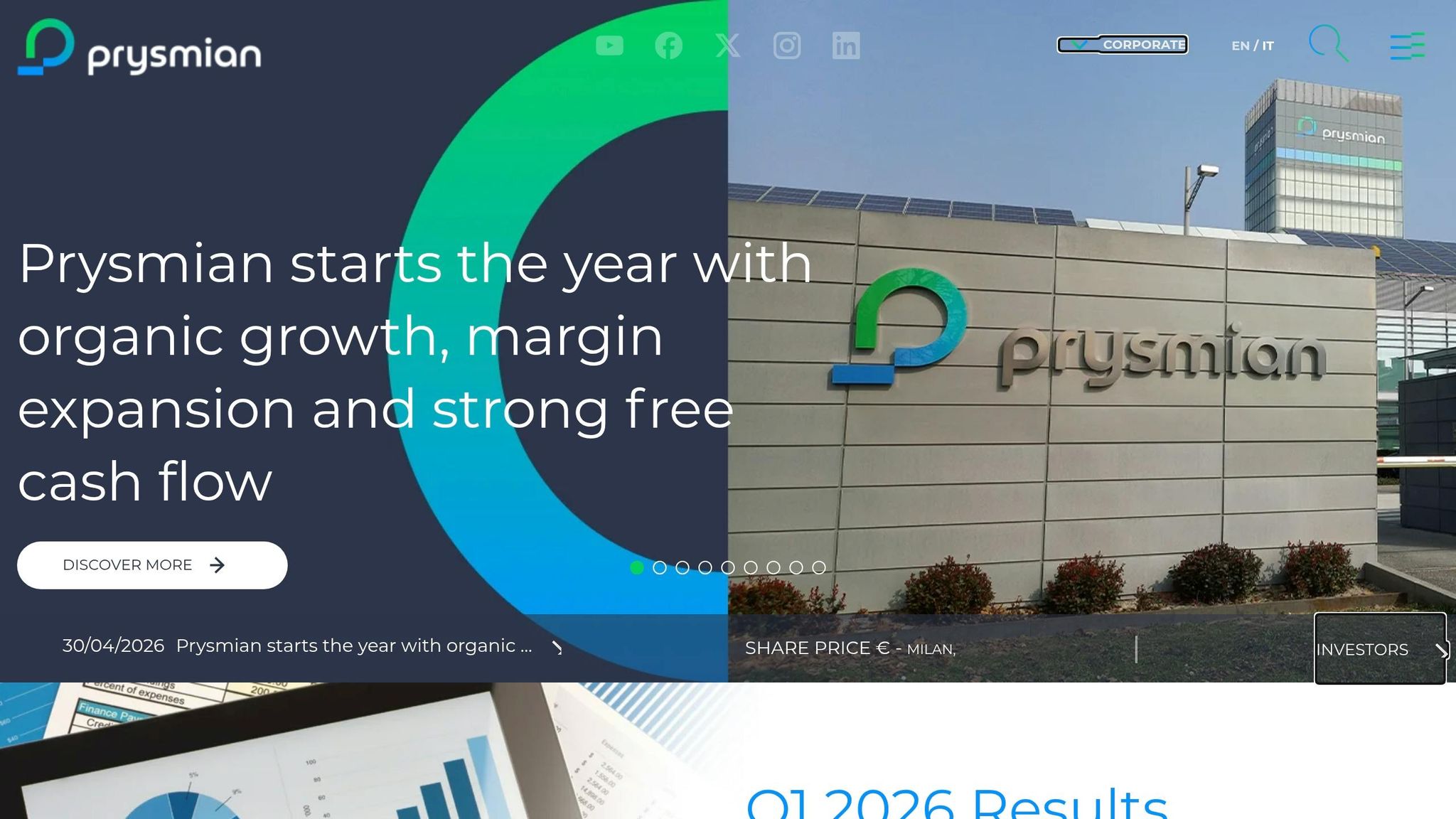

Prysmian Group
Prysmian Group stands out as a global leader in manufacturing cables and accessories, offering a streamlined range of medium voltage solutions. Their products cater to both low and medium voltage utility infrastructures, with accessories specifically designed for power grids and utility networks. Prysmian is recognized for delivering components that ensure steady performance across a variety of installation conditions.

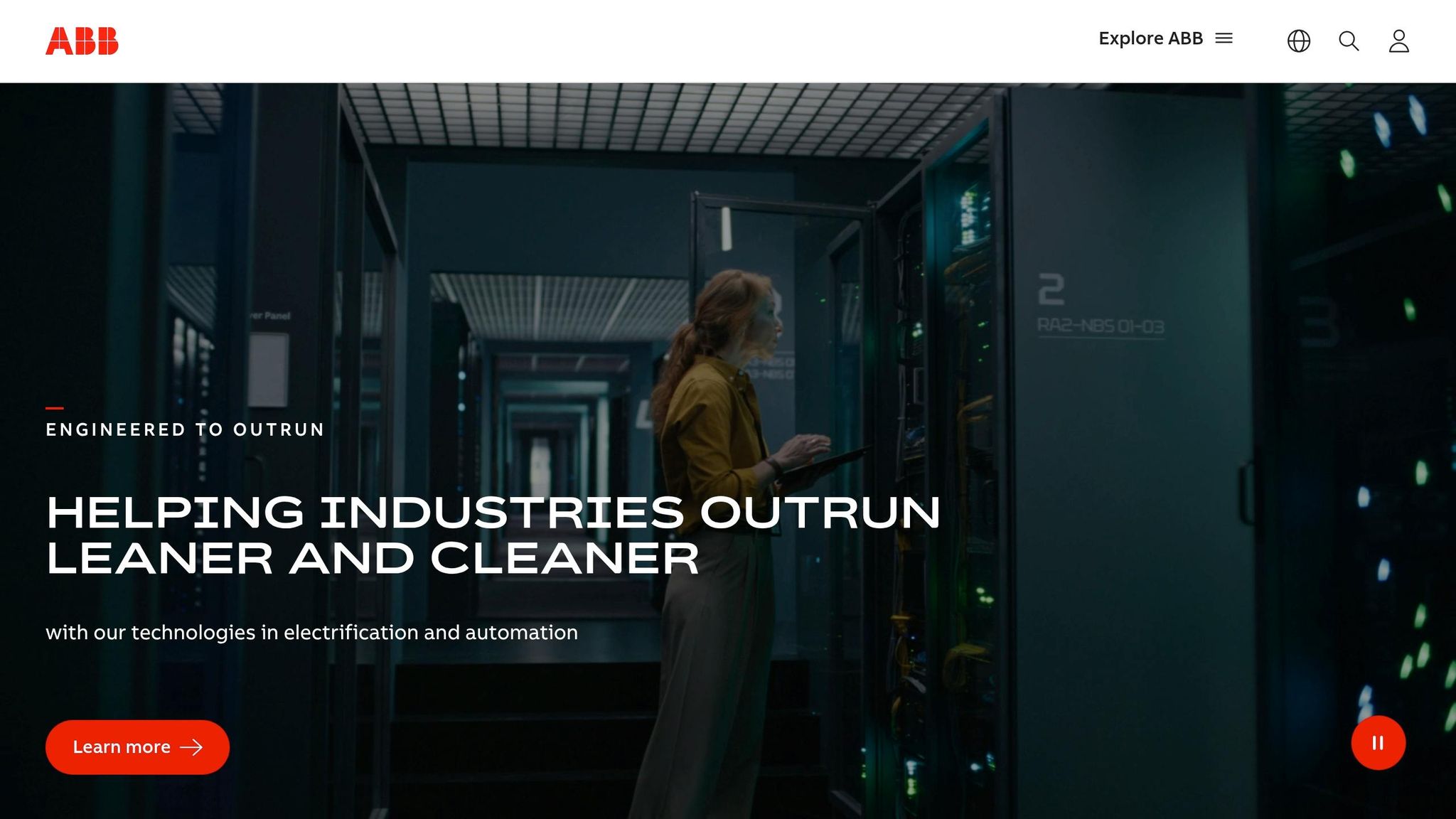

ABB
ABB builds on its extensive expertise to deliver comprehensive medium voltage solutions, particularly through its Elastimold brand, which reflects over five decades of industry experience. Their product lineup includes IEEE-compliant 200 Amp loadbreak/deadbreak and 600/900 Amp EPDM rubber molded medium voltage products. These accessories cover voltage ranges from 5 kV to 138 kV, with every EPDM rubber molded product and epoxy component undergoing rigorous testing to ensure reliability.
Key innovations from ABB include Veri-Spike grounding aids, shear-bolt connections, and vented bushing inserts that address partial vacuum effects. With over 35,000 bays of high voltage gas-insulated switchgear (GIS) installed worldwide, ABB demonstrates its ability to perform in demanding conditions. Their offerings also feature pre-molded and cold shrink solutions, with the cold shrink option simplifying installation by requiring only the removal of a spiral to secure cable insulation.

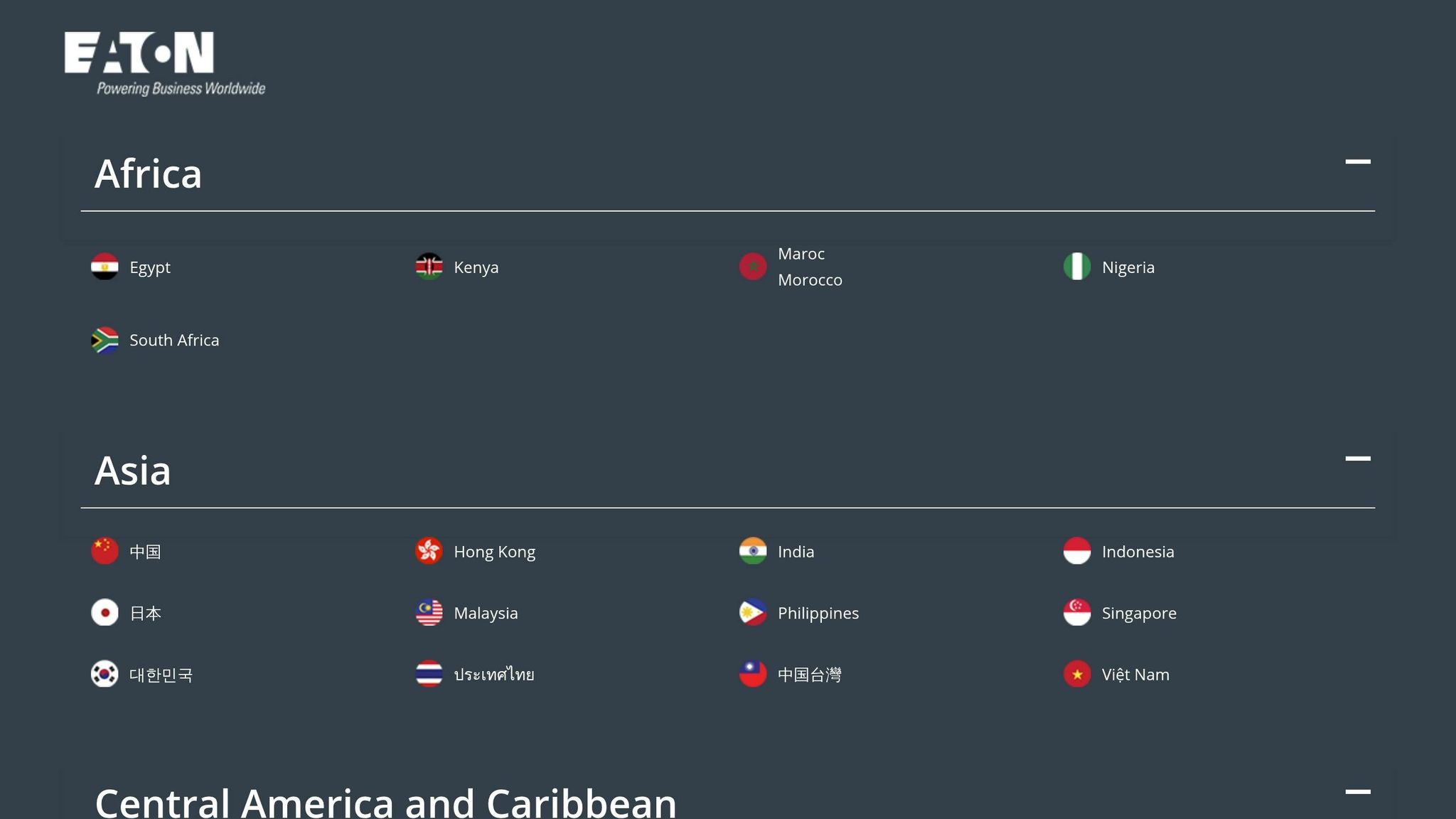

Eaton
Eaton’s Cooper Power series focuses on insulated connectors designed for underground distribution systems. These products are tailored for residential and commercial underground power networks, where dependable underground connections are essential. The Cooper Power line is known for its durability and adaptability to various cable configurations commonly used in utility setups.
Schneider Electric
Schneider Electric provides a range of medium voltage accessories designed to meet the needs of modern distribution networks. Their products are crafted with advanced materials and incorporate design features that prioritize safety and ease of installation. These solutions adhere to strict industry standards while addressing the real-world challenges faced by utility operators and electrical contractors.
Other Key Brands
Several other brands also stand out for their specialized solutions and contributions to the medium voltage accessory market:
-
3M revolutionized the industry with its cold shrink technology, introduced over 40 years ago. Their QT-III cold shrink products support electrical cable terminations ranging from 5 kV to 145 kV. These products allow for faster, tool-free installation, making them especially suitable for tight workspaces. As 3M notes:
Cold shrink was introduced by 3M over 40 years ago and provides faster, easier installation and long-term reliability.
-
TE Connectivity (Raychem brand) has a global footprint, with over 6 million separable connectors in use worldwide. They focus on applications in smart grids and renewable energy, with their connectors featured in projects like Muscat International Airport, global offshore wind farms, and even the world’s first electric road project. TE Connectivity highlights their versatility:
Our separable connectors fit virtually any cable size or installed product and offer reliable performance in the harshest environmental conditions.
- Nexans and Ensto also bring specialized technologies to the table, offering solutions tailored to specific installation challenges and environmental demands across various industries.
These brands collectively contribute to a robust market for medium voltage cable accessories, addressing the diverse needs of utility and industrial applications worldwide.
sbb-itb-501186b
NKT Medium voltage cables & Accessories
Brand Comparison by Product Category

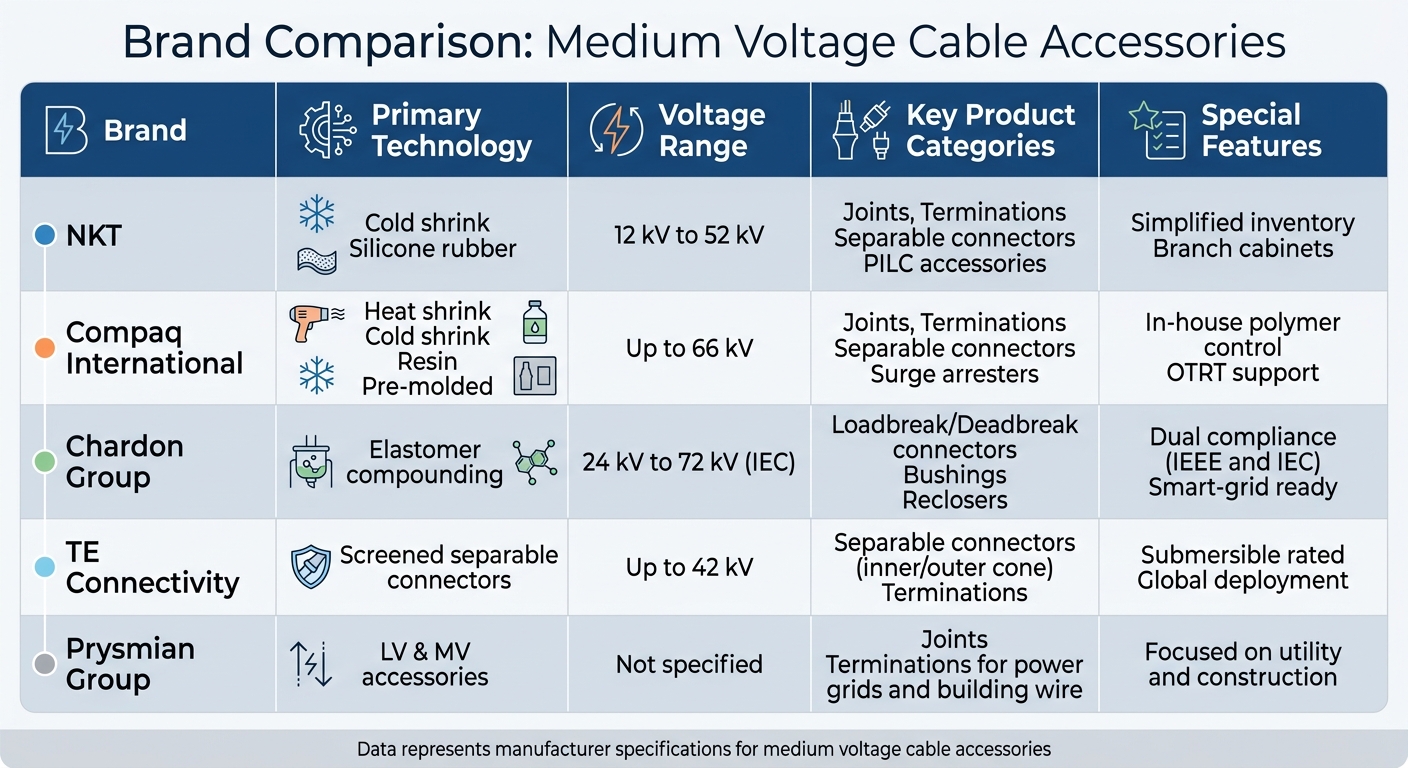

Top Medium Voltage Cable Accessory Brands Comparison by Technology and Features
Comparison Table: Brand Strengths by Category
Examining product categories reveals the distinct areas where each brand excels, shaped by their technology focus and market strategies.
NKT has been a pioneer in silicone rubber terminations for over 60 years. Their expertise lies in offering cold-shrink joints and separable connectors for voltage ranges from 12 kV to 52 kV. A key advantage of their silicone rubber-based designs is that they cover a broad range of cable dimensions with fewer joint sizes, simplifying both inventory and installation planning.
Compaq International stands out with its fully integrated manufacturing process, which includes in-house polymer compounding and extrusion to ensure material traceability. Their product range extends up to 66 kV and includes heat shrink, cold shrink, pre-molded, and resin-based solutions. This variety allows contractors to select the best technology for specific environmental conditions. They also offer an On-Site Technical Response Team (OTRT) to provide field training and audits, ensuring flawless execution in the field.
Chardon Group specializes in connection systems, offering both IEEE/ANSI loadbreak and deadbreak connectors, as well as IEC standard separable connectors and bushings for voltages between 24 kV and 72 kV. Their ability to meet both North American and international standards makes them versatile for projects requiring dual compliance. Additionally, TE Connectivity (Raychem brand) focuses on screened solutions designed for submersible and harsh environments.
The table below summarizes the strengths of these brands by category.
| Brand | Primary Technology | Voltage Range | Key Product Categories | Special Features |
|---|---|---|---|---|
| NKT | Cold shrink, Silicone rubber | 12 kV to 52 kV | Joints, Terminations, Separable connectors, PILC accessories | Simplified inventory, Branch cabinets |
| Compaq International | Heat shrink, Cold shrink, Resin, Pre-molded | Up to 66 kV | Joints, Terminations, Separable connectors, Surge arresters | In-house polymer control, OTRT support |
| Chardon Group | Elastomer compounding | 24 kV to 72 kV (IEC) | Loadbreak/Deadbreak connectors, Bushings, Reclosers | Dual compliance (IEEE and IEC), Smart-grid ready |
| TE Connectivity | Screened separable connectors | Up to 42 kV | Separable connectors (inner/outer cone), Terminations | Submersible rated, Global deployment |
| Prysmian Group | LV & MV accessories | Not specified | Joints, Terminations for power grids and building wire | Focused on utility and construction |
The choice between heat shrink and cold shrink solutions often depends on installation conditions. Cold shrink products from brands like NKT and Compaq are tool-free, making them ideal for quick installations. On the other hand, heat shrink technology provides durable environmental sealing, suited for industrial settings. For modular connections to transformers or switchgear, screened separable connectors from Compaq or TE Connectivity ensure touch-proof safety and flexibility for systems up to 42 kV. These distinctions guide the selection process, helping identify the best fit for specific applications and environments.
How to Select Medium Voltage Cable Accessories
When choosing medium voltage cable accessories, it's critical to focus on reliability, ease of installation, and compatibility with your system. Let’s break down the key considerations.
Reliability and Durability
Medium voltage accessories should restore the cable's dielectric strength and provide a long-lasting, airtight seal that blocks out moisture, contaminants, and other environmental factors. Without this protection, even small amounts of moisture can lead to serious failures.
Materials like silicone, EPDM (commonly used in cold shrink), or cross-linked polyolefin (used in heat shrink) are known for their strength and ability to handle mechanical stress. To ensure reliability, look for products that have undergone rigorous testing, such as IEC 60502-4 standards. This includes assessments for partial discharge (≤10 pC), AC withstand tests, lightning impulse resistance, and thermal cycling.
Beyond the materials themselves, the way an accessory is installed plays a significant role in its long-term performance.
Installation Requirements
The type of installation technology you choose can greatly impact both the complexity and safety of the process. Heat shrink accessories, for example, require a controlled heat source and skilled operators to install correctly. On the other hand, cold shrink technology simplifies installation by using a removable core that contracts onto the cable - no open flames or heat tools needed.
"Our products are produced with integrated stress control, insulation and sealing, making them quick and easy to install." – NKT
For tight or hazardous spaces where heat tools aren’t practical, cold shrink kits offer a safer and faster alternative. Pre-molded slip-on joints are another quick option but require precise cable sizing and preparation. Silicone rubber accessories are particularly versatile, as they can accommodate a wide range of cable sizes, reducing inventory needs and minimizing sizing errors during installation.
Once installation is complete, the final step is ensuring compatibility with your system.
System Compatibility
Accessories must align with the system's voltage rating (e.g., 12/20 kV or 20/36 kV), cable design, and insulation type. Key factors to consider include the insulation material (XLPE, EPR, or PILC), cable construction (armored or unarmored, single-core or multi-core), and the conductor material and size.
For separable connectors, confirm they are compatible with the bushing types and the ratings of the transformer or switchgear. If you’re connecting older paper-insulated cables to newer XLPE cables, transition joints will be necessary to bridge the gap between the two technologies.
Conclusion
Choosing the Right Brand
Selecting the right brand plays a key role in enhancing grid reliability and extending the lifespan of components. For power distribution systems, it's critical to choose manufacturers with a strong history of performance.
Established brands bring years of engineering know-how to the table. As NKT highlights:
Thanks to our extensive experience, our renowned engineering expertise and our commitment to continuous development, we can offer innovative and future-proof products with a long service life.
This dedication results in accessories that are built to last as long as your cables - whether you're working on a wind farm, petrochemical facility, or utility substation.
When assessing brands, focus on those that control their material compounding processes and meet international standards like IEC or ANSI/IEEE. Look for features like integrated stress control, insulation, and sealing that make installation easier and reduce the chance of errors. Brands that use materials such as silicone rubber offer excellent electrical insulation and can cover a broader range of cable dimensions with fewer joint sizes, improving both inventory management and project adaptability. These qualities ensure compatibility with modern procurement systems.

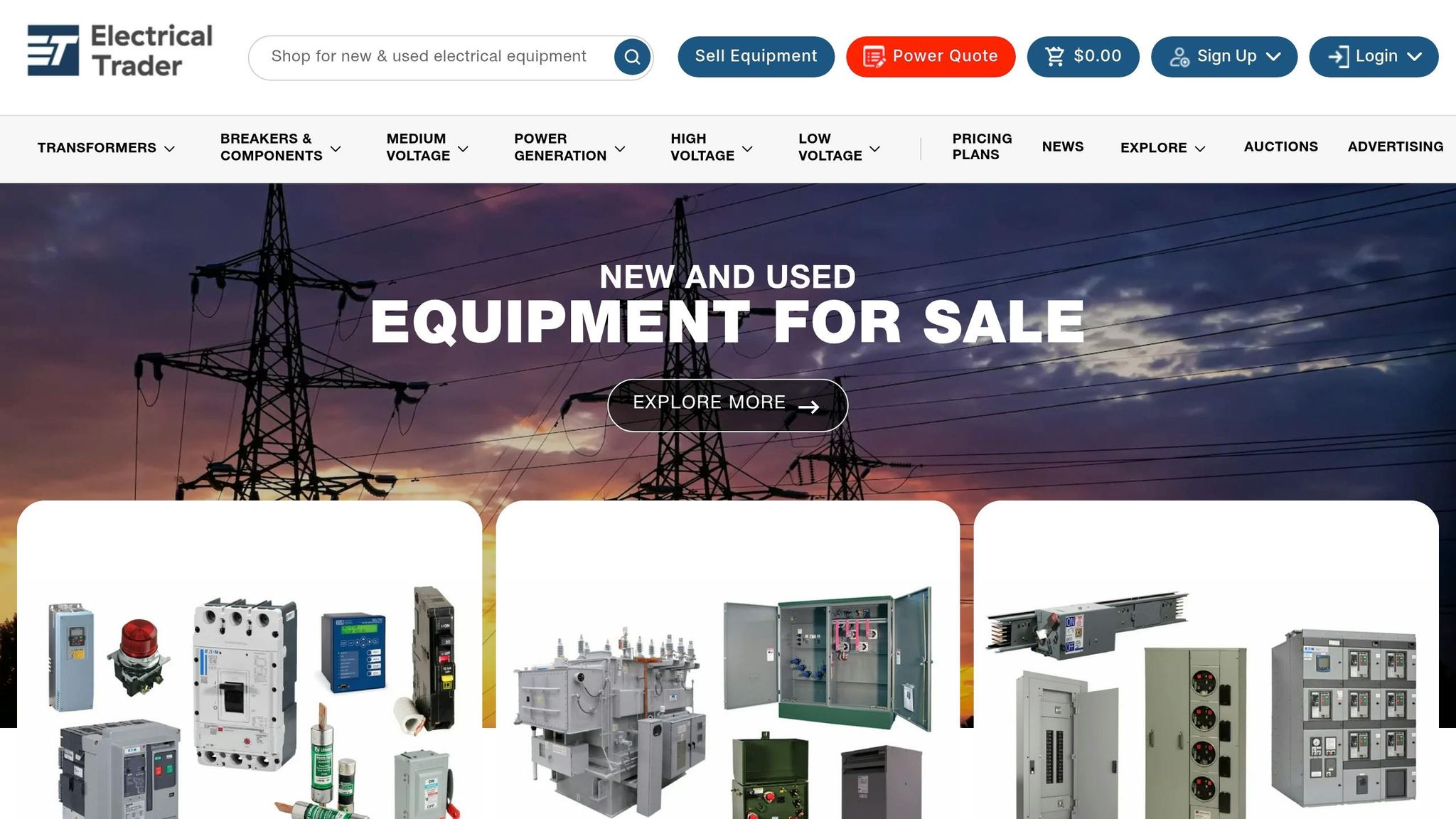

Finding Medium Voltage Accessories on Electrical Trader
Electrical Trader serves as a one-stop marketplace for sourcing medium voltage cable accessories from top manufacturers like Prysmian Group, ABB, Eaton, and Schneider Electric. The platform offers both new and used electrical components, giving you options to fit your project’s budget and timeline.
FAQs
How do I choose between cold shrink and heat shrink accessories?
Choosing between cold shrink and heat shrink accessories boils down to installation preferences, safety considerations, and the surrounding conditions.
Cold shrink accessories, such as silicone rubber splices, are designed to be installed without heat or open flames. This makes them a safer and more straightforward option, especially in environments where flames or high temperatures could pose risks.
On the other hand, heat shrink accessories require heat tools during installation. While this process demands more precision, it provides benefits like stronger seals and higher dielectric strength, which can be crucial for certain technical applications.
The right choice depends on your priorities - whether it's safety, ease of installation, or meeting specific technical demands.
What cable details do I need to match the right joint or termination?
To select the right joint or termination, focus on crucial cable details such as voltage rating, conductor size, insulation type, and the application environment. Paying attention to these factors helps guarantee compatibility and dependable performance tailored to your setup.
Which standards should medium voltage accessories comply with in the U.S.?
Medium voltage accessories in the U.S. are required to comply with IEEE 404 and IEC standards. These standards play a key role in ensuring the quality, safety, and compatibility of cable joints, splices, and terminations. Adhering to them is essential for consistent performance and meeting industry expectations.
