How to Protect Medium Voltage Cables in Harsh Environments

Medium voltage cables (1kV–35kV) are critical for industries like mining, renewable energy, and data centers, but they face challenges like moisture, extreme temperatures, UV radiation, and physical wear. Proper material selection, installation, and maintenance are key to ensuring their reliability. Here's how you can protect these cables:

• Conductor Materials: Use copper for corrosion resistance or tinned copper for added durability. In high-temperature conditions, consider silver- or nickel-plated copper.
• Insulation and Jackets: Opt for materials like XLPE for thermal and electrical stress or EPR for flexibility and heat resistance. For jackets, CPE and PUR provide strong resistance to chemicals and abrasion, while TPE offers flexibility and safety in extreme conditions.
• Shielding: Use copper tape shields, concentric neutral wires, or combination braid and foil shields to manage electrical stress and interference.
• Installation Best Practices: Follow manufacturer guidelines for handling, routing, and terminations. Avoid tight bends, ensure proper grounding, and secure cables to prevent mechanical stress.
• Preventive Measures: Seal cable ends to block moisture, use UV-resistant materials for outdoor setups, and apply protective coatings for abrasion resistance.
• Regular Maintenance: Conduct inspections, insulation resistance tests, and thermal imaging to detect early signs of wear or damage.

Nexans LV/MV/HV fire protection cover - for cable joints

Selecting the Right Cable Materials for Harsh Conditions

When it comes to protecting cables in challenging environments, the materials you choose make all the difference. Medium voltage cables often face exposure to corrosive chemicals, extreme temperatures, and physical wear. Selecting the right materials is your first step toward preventing failures and ensuring safety.

Conductor Materials and Corrosion Resistance

The conductor is the core of any cable system, and the material used directly affects its durability and performance. Copper is often the go-to choice for medium voltage cables due to its natural ability to resist corrosion. Over time, copper forms a protective oxide layer, making it a reliable option for tough environments.

For even greater protection, tinned copper conductors are a smart upgrade. The tin coating acts as a shield, blocking corrosive agents from damaging the copper beneath. This added layer of defense can significantly extend the conductor's lifespan - sometimes lasting up to ten times longer than uncoated copper.

Environmental elements like salt spray, high humidity, and heat can speed up corrosion, especially in industrial settings or hot climates. If cost is a concern, aluminum conductors offer a lighter and more affordable option. However, aluminum is less resistant to corrosion, so additional protective measures are essential when it's used in harsh conditions. Also, keep an eye on galvanic compatibility with other metals in the system.

For extreme conditions, silver-plated or nickel-plated copper conductors are worth considering. Silver plating provides excellent conductivity and corrosion resistance, while nickel plating excels in high-temperature environments.

Once you've chosen the conductor material, the next step is to focus on insulation and jacket materials to protect the cable further.

Insulation and Jacket Materials for Protection

Insulation and jacket materials act as the outer defense layer, shielding cables from environmental threats. Cross-linked polyethylene (XLPE) is a popular choice for medium voltage cables because it can handle thermal and electrical stress effectively. It also resists damage from moisture and chemicals across a wide temperature range.

Another strong option is ethylene propylene rubber (EPR), which offers excellent resistance to heat, abrasion, and corrosion while staying flexible even in colder temperatures.

Here’s a quick comparison of common jacket materials:

Material	Chemical Resistance	UV/Weather Resistance	Temperature Range	Flexibility	Cost
PVC	Good to Excellent	Good to Excellent	Limited	Poor to Good	Low
CPE	Excellent	Excellent	Wide	Good	Moderate
PUR	Outstanding	Excellent	Wide	Excellent	High
TPE	Outstanding	Outstanding	Very Wide	Outstanding	High

Polyvinyl chloride (PVC) is a cost-effective option that provides decent protection against moisture, abrasion, and many chemicals. However, it lacks flexibility in cold conditions and releases harmful chlorine gas when burned, which can be a safety issue in enclosed spaces.

For harsher environments, chlorinated polyethylene (CPE) is a better choice. It resists oxidation, heat, oil, and weather exposure, and it can even handle prolonged water immersion, making it ideal for underground or marine use.

If you need top-tier performance, polyurethane (PUR) jackets deliver exceptional resistance to oil, chemicals, and abrasion, all while maintaining great flexibility. It performs well across a wide temperature range but may soften at very high temperatures.

Thermoplastic elastomer (TPE) is another premium option. It combines excellent chemical and temperature resistance with flexibility across extreme conditions. Plus, it’s halogen-free, which makes it safer in case of fire. However, TPE comes with a higher price tag.

After selecting the right materials for insulation and jackets, it’s time to address the importance of shielding.

Shielding Options for Electrical Stress Control

Shielding is essential for managing electrical stress and reducing electromagnetic interference, both of which can compromise cable performance. Copper tape shields (CTS) are commonly used to evenly distribute the electric field around the conductor, reducing the risk of partial discharges.

Another effective option is concentric neutral wires, which serve two purposes in underground cables: they provide a low-resistance path for fault currents and help contain the electric field. This design works particularly well in medium voltage systems operating between 5kV and 35kV.

For situations where electromagnetic interference is a concern, combination braid and foil shields provide comprehensive protection. The foil blocks high-frequency noise, while the braid offers structural support and guards against low-frequency interference. While foil shields are lightweight and cost-effective, they’re less durable in applications requiring high flexibility. On the other hand, braid shields provide stronger physical protection but come with higher costs and more complex installation requirements.

At cable joints and terminations, stress control components are critical. These components manage electrical stress where the shield ends. Geometric methods, like stress cones, gradually separate equipotential lines to reduce stress concentrations. Material-based methods use specialized materials to grade the electric field and minimize stress at critical points.

Ultimately, the right shielding approach depends on your specific needs. Consider factors like electrical stress levels, environmental conditions, and installation challenges to design a system that minimizes failures and extends the cable's lifespan.

Applying Protection Measures Against Environmental Threats

To ensure reliable cable performance over time, it's not enough to just pick the right materials - you also need to implement measures that address specific environmental hazards. Each type of threat demands a tailored approach.

Preventing Moisture Damage

Moisture can wreak havoc on medium voltage cables, leading to electric shocks and equipment failures. The key is to stop moisture from getting in right from the start.

Start with sealing techniques. Use waterproof sleeves, sealants, or cable-specific sealing sleeves to protect all cable ends and junctions. Once the cable is laid, complete cable heads immediately to prevent exposure. For outdoor setups, secure cables with brackets in elevated positions within cable wells or passages to keep them away from standing water.

Regular maintenance is critical. Inspections can catch early signs of moisture damage, such as discoloration, odd smells, or visible wear. In particularly harsh environments, consider using moisture-resistant cables with advanced coatings for added safety.

Chemical and Abrasion Resistance

In industrial settings, cables often face exposure to corrosive chemicals and mechanical stress, such as foot traffic or constant movement. To counter these challenges, a combination of strategies is essential.

Conduit systems offer strong protection. PVC conduits, for instance, provide natural insulation and eliminate electrical conductivity risks, while metal conduits deliver robust physical protection (though proper grounding is needed). Flexible conduits are ideal for areas requiring cable movement.

Adding specialized coatings to cables can help prevent chemical damage, fire risks, and moisture infiltration. Heat shrink tubing and protective sheathing are particularly effective against abrasion. For installation, raised trays, raceways, or underground ducting can shield cables from harm while simplifying maintenance.

Proper training for staff is equally important. Many cable failures stem from improper handling rather than environmental factors, so educating teams on correct storage, handling, and emergency procedures can make a big difference.

UV and Weather Protection

Cables exposed to sunlight face the risk of ultraviolet (UV) radiation, which can degrade the outer sheath and weaken insulation, potentially causing short circuits. Choosing the right materials is crucial for combating UV damage.

Opt for cables with UV-resistant jackets made from materials like sunlight-resistant PVC or polyethylene (PE). Polyethylene, in particular, stands out for its durability and natural UV resistance. For example, in October 2024, Data Alliance highlighted the LMR series cables (LMR-100, LMR-200, and LMR-400) from Times Microwave Systems as excellent options for outdoor use due to their polyethylene outer jackets, which provide long-lasting UV protection.

Selecting black cable sheaths with high carbon black content also enhances UV resistance. As Windy City Wire puts it:

"When cables must perform reliably in sunlight-exposed environments, material quality becomes mission-critical. UV-resistant jackets help preserve the integrity and performance of the wiring underneath, supporting safety, longevity, and signal continuity over the long haul."

Physical shielding can further extend cable life. Use canopies or enclosures in trunking systems to protect cables from direct sunlight. For existing installations, applying UV-resistant coatings or specialized tape can add an extra layer of defense. Additionally, ensure cables are rated for the maximum Black Bulb temperature to handle heat buildup from direct sunlight.

sbb-itb-501186b

Installation Best Practices for Harsh Conditions

Even the highest-quality materials and protective measures can fall short if cables aren’t installed properly. Poor installation practices are one of the leading causes of cable failures, which makes using the right techniques essential for ensuring long-term reliability. When working in tough environments, paying close attention to every detail becomes even more critical.

Proper Handling and Routing

The foundation of a successful medium-voltage cable installation lies in careful handling and smart routing choices. Always adhere to the manufacturer’s specifications for bend radii - pushing beyond these limits can damage internal conductors and weaken insulation.

Plan your cable route carefully and avoid tight bends that could harm the internal conductor. Use appropriate cable ducts to keep cables organized and shielded from external threats like dirt, dust, and mechanical stress. These ducts also help maintain proper spacing and prevent cables from rubbing against each other during thermal expansion and contraction.

Strategic cable routing is key to avoiding potential issues. Medium-voltage cables should not run adjacent to energized components, as this could lead to safety hazards and induced currents. Instead, map out routes that maintain safe distances and minimize exposure to environmental risks.

Use flexible guides and secure fasteners to accommodate cable movement and prevent slippage. Additionally, cables should be laid in a way that minimizes mechanical stress throughout their lifespan.

Once routing is secure, the next step is ensuring proper terminations to maintain the overall integrity of the system.

Termination and Grounding Techniques

Proper terminations are critical for reliability, especially since over 90% of power cable failures in medium-voltage cables (35kV and below) stem from external factors. To ensure success, start by preparing cable terminations with care. Use guarded tools to remove semicon screens and clean cores and connectors thoroughly to eliminate contaminants. For paper cables, handle them gently to avoid cracking the fragile paper tapes.

Choose terminations that match the cable’s voltage rating and the specific operating environment. Different conditions - whether indoor, outdoor, or particularly harsh - require tailored termination materials and features. Grounding and bonding are equally important for safety and protecting equipment from damage. In challenging environments, grounding connections are especially prone to corrosion, so always opt for materials rated for those conditions.

Inspection and Maintenance Protocols

The job isn’t done once the cables are installed. Alongside material selection and protective measures, thorough installation practices are key to ensuring cable longevity.

From the start, establish detailed inspection and maintenance protocols to maintain reliability in harsh conditions. Perform insulation resistance tests and partial discharge tests to create a baseline for cable health. Keeping this documentation helps track performance and detect any signs of deterioration over time.

Regularly inspect the outer sheath and armor for visible issues like cracks, scrapes, discoloration, or deformities - these could be early signs of environmental damage. Use electrical tests such as partial discharge measurements and Time Domain Reflectometry (TDR) to uncover internal problems that aren’t visible externally. Thermal imaging can also be a powerful diagnostic tool, identifying temperature variations along cables that may signal overheating caused by excessive current, poor connections, or damaged conductors.

Mose Ramieh, Vice President of Business Development at CBS Field Services, emphasizes:

"Properly installed and maintained medium-voltage cable is highly reliable. I'll go on to say that when properly installed, there is little or no maintenance to be performed."

He often recalls his father’s advice:

"Keep it clean, read the instructions, measure twice, and keep it clean." – Dad of Mose Ramieh

For installations in especially difficult environments, it’s wise to develop contingency plans for cable replacement. These plans should include readily available cables, splices, terminations, skilled installers, and detailed installation procedures. Regular testing feedback can also refine installation and maintenance practices. For instance, initial medium-voltage testing revealed that 9 of 24 identified issues in 177 tests were splice-related, highlighting the importance of proper termination techniques.

Finding Quality Medium Voltage Cable Solutions

Once installation is complete, the next step is sourcing cables and accessories that can handle harsh environments. The medium voltage cable market is expanding quickly, with projections showing the global medium voltage cable accessories market will grow from $19.02 billion in 2024 to $29.51 billion by 2033. This growth underscores the need to work with providers who understand the unique challenges of these applications.

Start by evaluating your specific application and environmental needs. This will simplify the process of choosing a supplier without revisiting previously addressed installation hurdles.

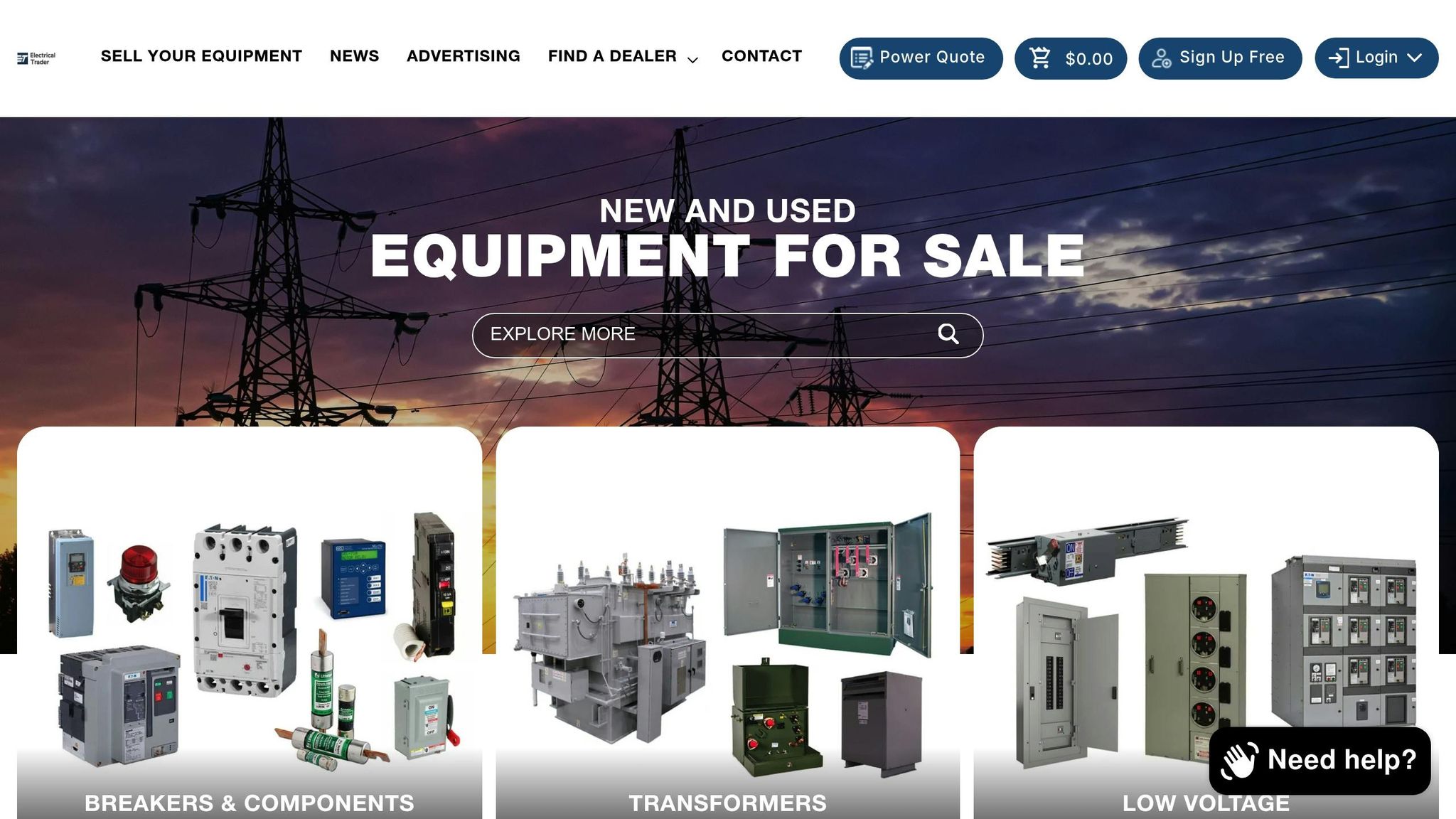

Electrical Trader: A Go-To Marketplace

Electrical Trader is an online marketplace tailored for professionals in search of medium voltage cables, protective accessories, and installation tools. It’s designed for buyers, sellers, electricians, and end-users in industrial and utility sectors, offering a one-stop shop for equipment built to endure extreme conditions. For projects already grounded in solid installation practices, this platform provides a reliable resource for sourcing high-quality components.

The marketplace features a wide array of products, from breakers and transformers to low, medium, and high voltage equipment, as well as power generation tools. This extensive inventory is particularly useful when you need multiple components for a complete system designed to tackle environmental challenges. With categorized listings, finding the right products becomes faster and more efficient.

One standout feature of Electrical Trader is its mix of new and used equipment, giving you flexibility to stay within budget or find replacement parts for existing systems. Their offerings include specialized items like 3-phase and substation transformers, which are critical for medium voltage setups that require durable environmental protection.

Expert Guidance for Tailored Solutions

While online platforms are convenient for standard products, harsh environments often demand custom solutions. Consulting with experts through Electrical Trader can help you avoid costly mistakes and ensure your project’s success.

These specialists understand the impact of environmental factors like oil, chemicals, or motion, which can lead to premature jacket failure. They can recommend materials tailored to your needs, such as Ethylene Propylene Rubber (EPR) for flexibility and moisture resistance or Cross-Linked Polyethylene (XLPE) for its high dielectric strength and thermal stability.

Experts can also guide you in choosing the best jacket materials. For example, PVC offers solid mechanical protection and flame retardancy, while Chlorinated Polyethylene (CPE) excels in resisting oil, chemicals, and abrasion. When it comes to conductor materials, their advice can help you balance performance, installation constraints, and long-term durability, ensuring compliance with industry standards like UL, IEC, IEEE, and NEC.

To make the most of these consultations, be ready to discuss factors like temperature ranges, moisture levels, sunlight exposure, and potential electromagnetic interference. This information helps specialists recommend cables with the right temperature resistance, UV protection, and overall durability. Keep in mind that medium voltage cables are typically used in systems with voltage ratings between 1 kV and 35 kV, so specifying your exact voltage needs is crucial for proper selection.

Conclusion and Key Takeaways

Ensuring the longevity and reliability of medium voltage cables in tough environments demands a well-thought-out strategy. This involves choosing the right materials, implementing effective protective measures, and following best practices for installation. These decisions are crucial for achieving decades of dependable performance.

When selecting materials, prioritize those that align with your operational and environmental needs. For insulation, XLPE offers excellent dielectric strength and thermal stability, EPR provides flexibility and resistance to moisture, and PVC delivers a cost-effective option. Similarly, jacket material matters: CPE is ideal for chemical and abrasion resistance, while PVC ensures solid mechanical protection.

Environmental factors like temperature extremes, humidity, chemical exposure, and UV radiation significantly influence cable performance. With most cable failures caused by external conditions, shielding cables from these hazards is critical. Addressing these challenges with a combination of smart material choices and protective measures is essential.

Proper handling, routing, and termination are equally important to maintain cable integrity. Following manufacturer guidelines and ensuring careful routing can help cables perform as intended. These practices protect against damage during installation and operation.

Regular maintenance plays a key role in extending the life of your cables. Proactive measures - such as visual inspections, insulation testing, and thermal monitoring - can identify potential issues early, avoiding costly failures. Preventing overuse conditions also helps slow insulation aging and reduces the risk of short circuits. Partnering with knowledgeable suppliers like Electrical Trader ensures access to tailored solutions and reliable products, further strengthening your system's durability.

FAQs

How can I safely install medium voltage cables in areas with extreme temperature changes?

To safely install medium voltage cables in areas with large temperature swings, here are some key steps to follow:

• Choose cables built for extreme temperatures, such as those with silicone or XLPE insulation, to handle the conditions effectively.
• Use stable, insulated supports to minimize physical stress and reduce the risk of damage.
• Protect cables with UV-resistant and moisture-proof coverings to guard against harsh environmental elements.
• Ensure proper sealing and grounding to block moisture and maintain electrical safety.
• In colder regions, consider adding insulation or heating systems to prevent damage from freezing temperatures.

Routine inspections and maintenance play a crucial role in catching issues early and prolonging the life of your cables.

What are the best insulation and jacket materials for protecting medium voltage cables in a corrosive industrial environment?

For insulation, materials such as cross-linked polyethylene (XLPE), ethylene tetrafluoroethylene (ETFE), or ethylene propylene rubber (EPR) stand out for their durability and resistance to chemicals and corrosion. These options are built to perform reliably, even in tough and challenging conditions.

For cable jackets, chlorinated polyethylene (CPE) and polyurethane (PUR) are solid choices. Both materials provide excellent protection against chemicals, moisture, and ozone, making them well-suited for industrial settings where corrosion is a concern. Picking the right combination of insulation and jacket materials is crucial for ensuring your cables last longer and operate safely, even in demanding environments.

What maintenance steps can help extend the life of medium voltage cables in tough environments?

To help medium voltage cables reach their full lifespan, especially in challenging environments, regular upkeep is a must. Begin with scheduled inspections to catch early issues like insulation wear or damage to the conductors. Include visual checks to spot physical harm and keep an eye on environmental factors - things like moisture, temperature shifts, or exposure to chemicals can take a toll.

Conduct periodic partial discharge testing to uncover internal problems before they escalate. During installation, avoid putting too much slack or strain on the cables, and make sure they’re stored correctly when not in use. In areas where cables need to move or flex, plan for that flexibility to minimize stress and wear over time. With proper maintenance, these cables can reliably last 25–35 years as expected.
