Common Failures in Chemical-Exposed Electrical Gear
Chemical environments are tough on electrical equipment, causing corrosion, insulation breakdown, and even fire hazards. These failures lead to costly repairs, downtime, and safety risks. Here's what you need to know:
- Corrosion: Metals degrade due to acids, salts, and gases, leading to overheating and voltage drops.
- Insulation Damage: Chemicals weaken insulation, increasing risks of flashovers and moisture absorption.
- Internal Component Failure: Tiny cracks allow chemicals to damage sensitive parts like circuit boards.
- Residue Buildup: Conductive residues cause short circuits and ground faults.
- Fire and Explosion Risks: Electrical faults in chemical environments can ignite flammable vapors.
Solutions:
- Use corrosion-resistant materials like stainless steel and protective coatings.
- Seal components with encapsulation methods to block chemicals.
- Choose chemical-resistant plastics like PTFE or PEEK.
- Regularly inspect, clean, and maintain equipment to prevent failures.
- Follow safety protocols and use proper PPE to protect workers.
Explain the concept of insulation breakdown and its implications in electrical equipment.
Common Failures in Chemical-Exposed Electrical Equipment
Chemical environments create harsh conditions that can wreak havoc on electrical equipment. Understanding these failure patterns is crucial for facility managers and engineers to identify early warning signs and take preventive measures. Below, we explore some common failure modes and their impact on safety and reliability.

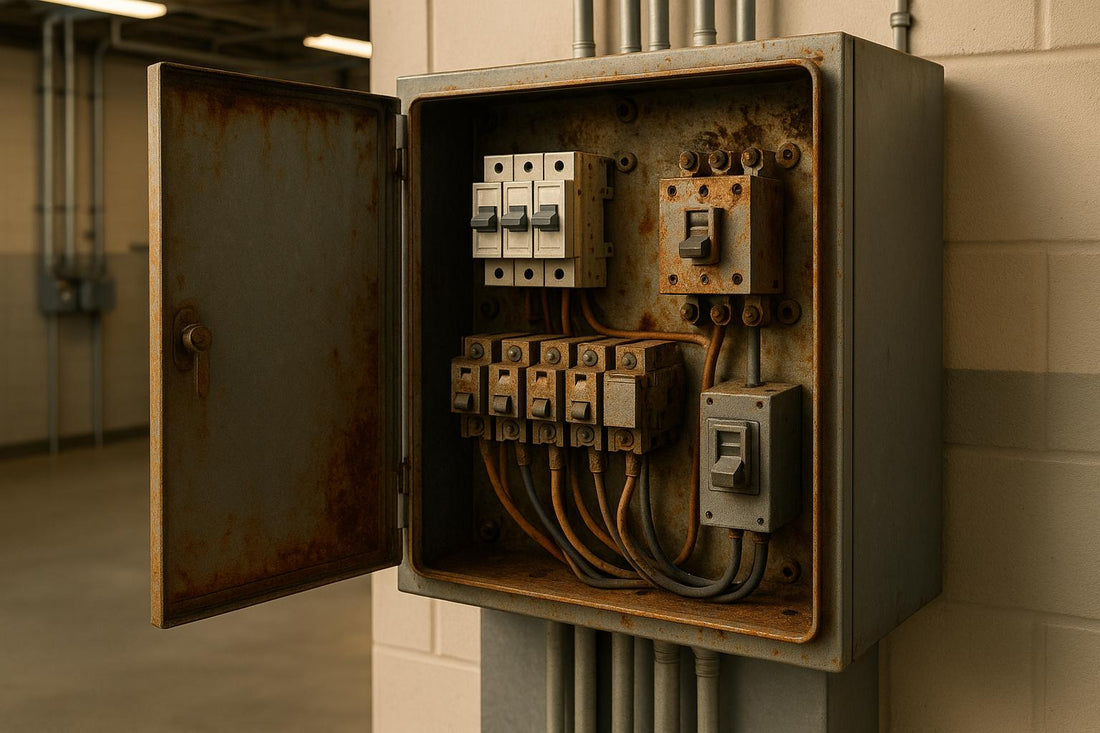

Metal Component Corrosion
Corrosion is one of the most destructive issues in chemical environments, especially for metal components. When exposed to substances like acids, alkalis, and salts, metals begin to degrade. This degradation can take several forms:
- Uniform corrosion: Thins out metal surfaces evenly over time.
- Galvanic corrosion: Occurs when two dissimilar metals come into contact in the presence of an electrolyte.
- Crevice corrosion: Targets hidden areas such as bolt connections or junction boxes.
- Pitting corrosion: Creates deep, localized holes that are difficult to detect.
These forms of corrosion increase resistance, cause voltage drops, and lead to overheating. They can also create unsafe conductive paths, severely undermining the reliability of electrical systems.
Insulation and Housing Breakdown
Insulation materials face significant challenges in chemical environments. They are vulnerable to both direct chemical damage and the absorption of harmful substances. Unlike metals, which corrode on the surface, insulation often degrades internally when chemicals penetrate its structure.
For instance, organic foam insulations can dissolve when exposed to industrial solvents, leaving critical components unprotected. Even supposedly durable materials like fiberglass and mineral wool are at risk, as their organic binders can break down under chemical exposure. As insulation deteriorates, its ability to resist electrical currents diminishes, increasing the likelihood of flashovers, moisture absorption, and other safety hazards.
Chemical Penetration into Internal Components
Even if external housings appear intact, chemicals can find their way through tiny openings like worn gaskets or hairline cracks. Once inside, these substances can attack sensitive internal components such as circuit boards, relay contacts, and other electronics. This kind of internal damage often leads to trace corrosion, open circuits, intermittent connections, or gradual shifts in component performance - all of which can compromise equipment functionality.
Residue Buildup and Contamination
Chemical processes often leave behind residues that accumulate on electrical equipment. These deposits can create unintended conductive paths between components, resulting in short circuits or ground faults. Some residues are hygroscopic, meaning they absorb moisture from the air, which further increases conductivity and accelerates corrosion. Over time, this buildup can lead to serious operational issues.
Fire and Explosion Hazards
Electrical faults in chemical environments can escalate into dangerous situations. Corroded connections or overheating components can produce electrical arcs capable of igniting flammable vapors. Similarly, insulation failures can generate persistent heat, increasing the risk of fire. The construction industry in the United States, for example, accounts for 52% of workplace electrical fatalities, highlighting the severity of these risks. In facilities handling hazardous chemicals, even minor faults can trigger catastrophic incidents, threatening both operations and nearby communities.
How to Prevent Failures in Chemical Environments
Engineers rely on proven methods to prevent failures in chemical environments. These strategies include using appropriate materials, applying protective coatings, and employing specialized engineering techniques. Below, we’ll explore the key approaches in detail.
Corrosion-Resistant Materials and Coatings
Choosing the right materials and coatings is essential for combating corrosion. Dave Mueller from Emerson Automation Solutions underscores the importance of material selection:
"When specifying electrical products for harsh environments, choosing the right materials to ensure adequate corrosion resistance is crucial. Not all industries have the same corrosion problems, but all industries do need to take the possibility of corrosion seriously and choose the right protection for their operations and environment."
Stainless steel is a popular choice, thanks to its self-healing oxide film that provides excellent corrosion resistance. Aluminum also offers strong resistance to corrosion, though it tends to be more expensive than zinc. For cost-sensitive projects, soft metals like copper, brass, and bronze are reliable alternatives.
Protective coatings further bolster defenses. Triple-coat finishes, which combine zinc electroplating, a chromate dip, and an epoxy powder coat, create multiple protective layers. Testing by Emerson Automation Solutions in 2019 showed that triple-coat finishes outperformed standard paint finishes in salt spray tests conducted under ASTM B117-18 standards.
Zinc-nickel coatings are another effective option, offering three times the corrosion resistance of pure zinc in saltwater environments. They also provide an environmentally safer alternative to cadmium while delivering comparable or superior protection. For premium applications, nickel coatings deliver unmatched corrosion resistance, albeit at a higher cost.
Sealing and Encapsulation Methods
Encapsulation is another critical technique for protecting sensitive components in harsh environments. This method creates a barrier that shields equipment from external chemical exposure while providing insulation and stability. Eaton’s Crouse-Hinds Division has applied this approach in their patented encapsulated breakers, which are rigorously tested to ensure proper functionality and eliminate issues like nuisance tripping.
Encapsulation also prevents the ignition of explosive gases or vapors caused by sparking, arcing, or excessive heat. Compared to traditional bolted enclosures, encapsulated systems are lighter, easier to maintain, and still offer superior protection.
Epoxy-based potting compounds are widely used for encapsulation. Companies like Kohesi Bond design these compounds to offer dimensional stability, minimal shrinkage, and strong adhesion to various substrates. These materials also provide thermal management and high chemical resistance, making them ideal for demanding applications.
When selecting encapsulation materials, look for a UL V-0 flame retardancy rating. Additionally, the materials should withstand extreme temperatures and resist water absorption to ensure long-term performance. For complex or high-risk projects, consulting technical experts can help identify the best solutions.
Chemical-Resistant Plastics and Elastomers
Modern plastics and elastomers are excellent alternatives to traditional materials in chemically aggressive environments. Options like polyolefins, vinyls, fluoropolymers, and PEEK have proven effective in such settings.
PTFE (Polytetrafluoroethylene) stands out for its exceptional chemical stability, even at temperatures up to 500°F (260°C). Rigid vinyls like PVC and CPVC provide superior strength and stiffness compared to polyolefins. For high-performance needs, PEEK offers outstanding mechanical properties and can withstand higher temperatures than alternatives such as PPS.
Polycarbonate is valued for its durability, shatter resistance, and UV stability, making it a versatile replacement for metals, glass, and ceramics. It also boasts impact strengths of up to 70 kJ/m². Meanwhile, polypropylene (PP) is a cost-effective option for many applications, though its lower melting point (248°F or 120°C) limits its use in high-temperature settings.
Material selection depends on factors like chemical concentration, temperature, exposure duration, and the part’s geometry. Highly stressed areas, for instance, may be more prone to environmental stress cracking. While chemical compatibility charts provide useful guidance, consulting manufacturing experts ensures the best material choice for long-term success.
Maintenance and Best Practices for Chemical Environments
While robust materials and thoughtful design are essential, consistent maintenance is what truly ensures equipment can withstand the rigors of harsh chemical environments. Without regular upkeep, even the best-protected systems can fail. The Electrical Safety Foundation International (ESFI) highlights the importance of this approach:
"Although administrative and engineering controls help prevent accidents, they still occur, meaning that appropriate electrical safety PPE in reliable condition is workers' last line of defense against potential hazards."
Regular Inspections and Cleaning
Monthly visual inspections are a must, particularly in demanding environments. For equipment in severe conditions (e.g., Physical Condition 3), thermographic checks should be carried out every six months, even though NFPA 70B sets a baseline of annual inspections.
During these inspections, look for wear, damage, corrosion, and any accumulation of dust or contaminants. Specific checks include:
- Transformers: Inspect for leaks, monitor oil levels, and assess the physical condition.
- Circuit breakers: Check for overheating and verify proper operation.
- Motors: Conduct visual and operational checks regularly.
Cleaning is another critical step. Use approved dry methods, avoiding compressed air and excessive liquids that could cause damage. Non-conductive tools are ideal, and proper ventilation is essential during the process. Always follow manufacturer guidelines to ensure cleaning methods match the equipment's material and environmental requirements.
Annual maintenance should go deeper. For instance:
- Transformers: Include oil testing, thermal imaging, and electrical testing.
- Circuit breakers: Perform trip function testing, cleaning, and lubrication.
- Motors: Clean, lubricate, and test them quarterly, with annual bearing checks and insulation resistance testing.
These practices not only extend equipment life but also align with proper storage and handling protocols.
Proper Handling and Storage Procedures
Store electrical equipment and personal protective equipment (PPE) in clean, dry, and accessible spaces, away from potential chemical exposure.
Follow manufacturer-recommended maintenance schedules and keep detailed records of all activities. This documentation helps track performance trends and identify potential issues early.
When replacing components, opt for explosion-proof or intrinsically safe equipment designed for hazardous conditions. These alternatives reduce the risk of igniting flammable gases or vapors. Routine testing, such as insulation resistance and ground fault protection, can catch potential failures before they escalate into safety hazards.
Beyond maintenance, preserving worker safety requires a focus on training and appropriate PPE.
Safety Measures and PPE Requirements
Maintenance personnel must be trained to identify hazards and adhere to strict electrical safety protocols. Electrical work remains a high-risk activity, with construction and extraction workers accounting for 40% of electrical fatalities, and installation, maintenance, and repair workers making up another 20%. Arc flash incidents alone result in approximately 400 deaths and 4,000–5,000 injuries annually, with about 10% proving fatal.
PPE must be selected based on the specific hazards and voltage levels in your facility. For example:
- Electricians: Insulated gloves, safety glasses, arc flash suits, and face shields are essential for panel work.
- Oil refinery workers: Arc flash suits and face shields are standard for handling high-voltage equipment.
| Hazard Type | Primary PPE | Standards | Notes |
|---|---|---|---|
| Chemical | Gloves, goggles, suits, respirators | ANSI Z87.1 | Refer to SDS for exact PPE requirements |
| Electrical | Arc-rated clothing, rubber gloves, face shields | NFPA 70E, ASTM F1506 | Match PPE rating with voltage level |
| Mechanical | Gloves, boots, helmets, eye protection | Steel toe, polycarbonate | Ensure tight fit to avoid entanglement |
PPE should be inspected, cleaned, and replaced as per the manufacturer's guidelines.
In areas with exposure to harmful substances, chemical-resistant PPE is indispensable. For maximum protection, Level A PPE covers respiratory systems, skin, eyes, and mucous membranes, while Level D offers basic protection against minor contamination. The choice of PPE should align with the specific risks posed by the chemicals in your environment.
Lastly, maintenance plans should evolve based on equipment performance and operational needs. This continuous refinement, paired with robust safety measures, ensures reliable equipment operation in challenging chemical environments.
sbb-itb-501186b
Finding Reliable Electrical Equipment for Chemical Environments
When it comes to selecting electrical equipment for chemical environments, making informed decisions is critical. In 2022 alone, 107 workers lost their lives due to workplace fires and explosions, underscoring the importance of choosing the right tools for hazardous conditions. The process starts with understanding the specific risks you face and partnering with suppliers who specialize in chemical-resistant solutions.

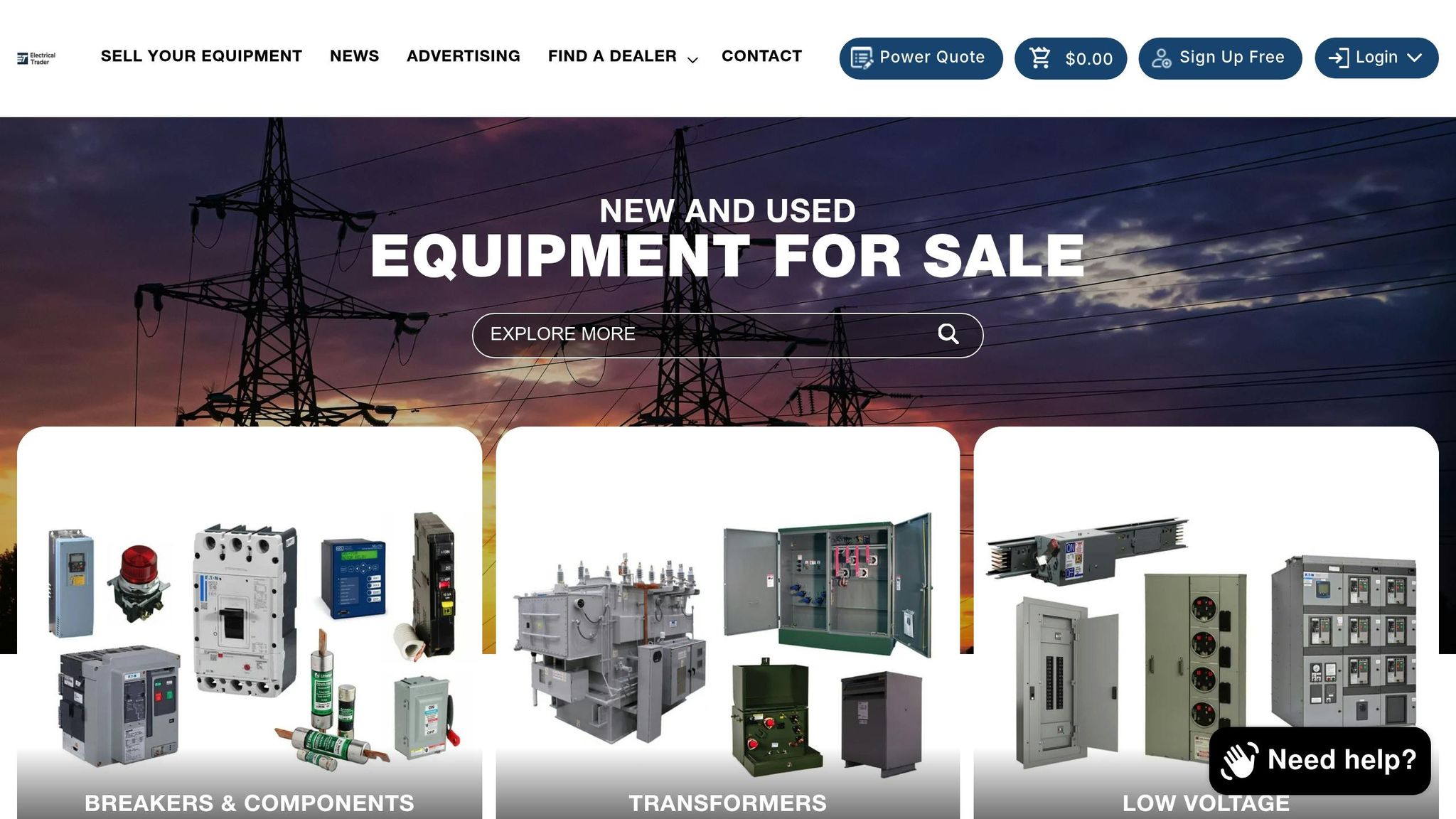

Why Choose Electrical Trader
Electrical Trader stands out as a go-to source for chemical-resistant electrical products, including their Buffalo Chemical Resistant range, which is specifically designed for challenging industrial environments. This range is built to endure conditions where standard equipment simply cannot perform.
What makes the Buffalo range unique is its color-coded system, tailored to two distinct chemical exposure scenarios. The RO (Resistant Orange) range, featuring a dark red switch actuator on an orange body, is engineered for acidic environments and offers UV resistance, making it perfect for outdoor applications. On the other hand, the RG (Resistant Grey) range, with a dark purple actuator and matching grey enclosures, is built for alkaline and caustic settings, such as those found in abattoirs and meat processing facilities.
This targeted approach removes the guesswork from equipment selection. Instead of wondering whether standard devices can handle specific chemicals, Electrical Trader provides purpose-built solutions. Additionally, their marketplace model offers both new and used equipment, helping businesses balance safety needs with budget limitations. With categorized listings, finding transformers, breakers, or power distribution equipment that meet chemical resistance standards becomes a straightforward process.
By focusing on specialized solutions, Electrical Trader simplifies the decision-making process, even for the harshest chemical environments.
Selecting Products for Harsh Conditions
Once you’ve identified the chemical hazards in your environment, the next step is matching equipment to those specific exposures. This involves understanding not only the chemicals present but also their concentrations, temperatures, and patterns of exposure. Such details help determine whether you need intrinsically safe equipment, explosion-proof systems, or chemical-resistant enclosures.
Material selection is equally important. Stainless steel, aluminum, and polycarbonate each have unique advantages depending on the chemicals involved. While an Ingress Protection (IP) rating measures resistance to dust and water, chemical resistance requires a deeper evaluation.
For explosive atmospheres, two primary protection methods are available:
- Intrinsically Safe (Ex i) Equipment: Prevents explosions by limiting energy levels, making it ideal for environments with continuous exposure to hazardous gases.
- Explosion-Proof (Ex d) Equipment: Designed to contain internal explosions within robust housings, this option is better suited for high-energy applications where limiting energy isn’t feasible.
Here’s a quick comparison of these two systems:
| Feature | Intrinsically Safe Equipment | Explosion-Proof Equipment |
|---|---|---|
| Basic Principle | Limits energy to prevent ignition | Contains internal explosions |
| Best Applications | Low-energy, constant gas exposure | High-energy, spark-prone environments |
| Installation Cost | Lower | Higher due to heavy-duty materials |
| Maintenance | Easier, less downtime | More complex, may require shutdown |
While intrinsically safe systems are generally more cost-effective to install and maintain, explosion-proof systems are built for durability and handle more extreme scenarios.
When selecting equipment, look for compliance with standards like ATEX, IECEx, NEC, UL 60079, or UL 1598. Also, ensure suppliers provide detailed chemical compatibility charts and technical support.
Finally, don’t overlook temperature and pressure ratings. Equipment must perform reliably not just under normal conditions but also during emergencies or extreme chemical processes. Evaluate whether new equipment will integrate seamlessly with your existing systems - matching voltage requirements, communication protocols, and mounting configurations can save time and money during installation.
Conclusion
Chemical environments pose serious risks to electrical equipment, leading to issues like corrosion, insulation failure, chemical penetration, residue buildup, and fire hazards. These problems not only cause equipment breakdowns but also create safety risks that can escalate into catastrophic failures. In fact, in 2023 alone, the U.S. recorded over 270 hazardous chemical incidents.
Loose connections are responsible for 30.3% of electrical failures, while moisture contributes another 17.4%. These numbers highlight how corrosion alone costs industries billions of dollars each year in repairs, maintenance, and replacements. But the financial impact doesn’t stop there - it ripples into production downtime, safety incidents, and even environmental damage.
Thankfully, there are effective solutions available. Companies like DuPont Safety & Construction, U.S. Chemical Storage, and Chase Corporation offer products designed to combat these challenges. From corrosion-resistant materials to explosion-proof designs and chemical-resistant coatings, advancements in engineering have proven capable of addressing the harshest chemical exposures.
However, relying solely on advanced products isn’t enough. Long-term safety and reliability require regular inspections, well-planned maintenance schedules, and properly trained personnel. Equipment must be installed by certified professionals and maintained under strict protocols to ensure its durability in hazardous environments.
"Corrosion protection is vital for safeguarding infrastructure and equipment, reducing costs, ensuring safety, and maintaining the reliability and longevity of critical electrical and electronic systems across various industries." - EnviroTech Europe Ltd
Understanding the causes of equipment failure and the challenges of maintenance highlights the importance of sourcing well-engineered, chemical-resistant equipment. Choosing specialized suppliers can make a significant difference. For instance, Electrical Trader’s Buffalo Chemical Resistant range offers tailored solutions, with color-coded options like the RO range for acidic environments and the RG range for alkaline conditions. This simplifies the process by ensuring equipment is matched to specific chemical exposures.
In environments where electrical equipment is exposed to chemicals, specialized solutions are essential for maintaining safety and reliability. By addressing common failure points, committing to proper maintenance practices, and partnering with knowledgeable suppliers, industries can confidently operate even in the harshest conditions.
FAQs
What materials are best for protecting electrical equipment from corrosion in chemical environments?
In chemical environments, preventing corrosion is crucial, and materials like stainless steel, titanium, and specialized plastics such as PTFE (polytetrafluoroethylene) are excellent choices. These materials are resistant to chemical reactions, offering both durability and safety for electrical equipment.
When deciding on materials, it's essential to evaluate the specific chemicals in the environment and how they might interact with the equipment. Selecting the appropriate material not only extends the lifespan of your equipment but also reduces the need for frequent maintenance.
Why is regular maintenance important for electrical equipment in chemical environments?
The Importance of Regular Maintenance in Chemical Environments
Keeping electrical equipment in top shape is essential, especially in chemical settings where conditions can be harsh. Components often face challenges like corrosive substances, extreme heat or cold, and moisture, all of which can cause gradual wear or outright failures.
By scheduling regular inspections, cleaning, testing, and repairs, you can catch early warning signs like frayed cables, rusted connectors, or weakened insulation. Tackling these problems early reduces the risk of serious issues such as electrical fires, sudden equipment breakdowns, or safety hazards. Plus, consistent upkeep not only prolongs the life of your equipment but also ensures it meets safety regulations in these demanding environments.
What safety precautions and PPE should workers use when handling electrical equipment in chemical environments?
When dealing with electrical equipment in chemical environments, safety should always come first. This means using the right personal protective equipment (PPE) and sticking to strict safety protocols. Essential gear includes insulated gloves, arc flash suits, face shields, safety glasses, and chemical-resistant gloves to guard against both electrical risks and chemical exposure.
Before touching any equipment, take a moment to perform a visual inspection. Look for any signs of damage or contamination. Make sure all tools are properly grounded, use tools rated for the voltage you're working with, and always de-energize equipment before starting maintenance. It's also critical to keep electrical gear away from water or chemical spills to avoid accidents. Following these steps creates a safer work environment and minimizes the chances of injury.
