Common Transformer Problems and Solutions

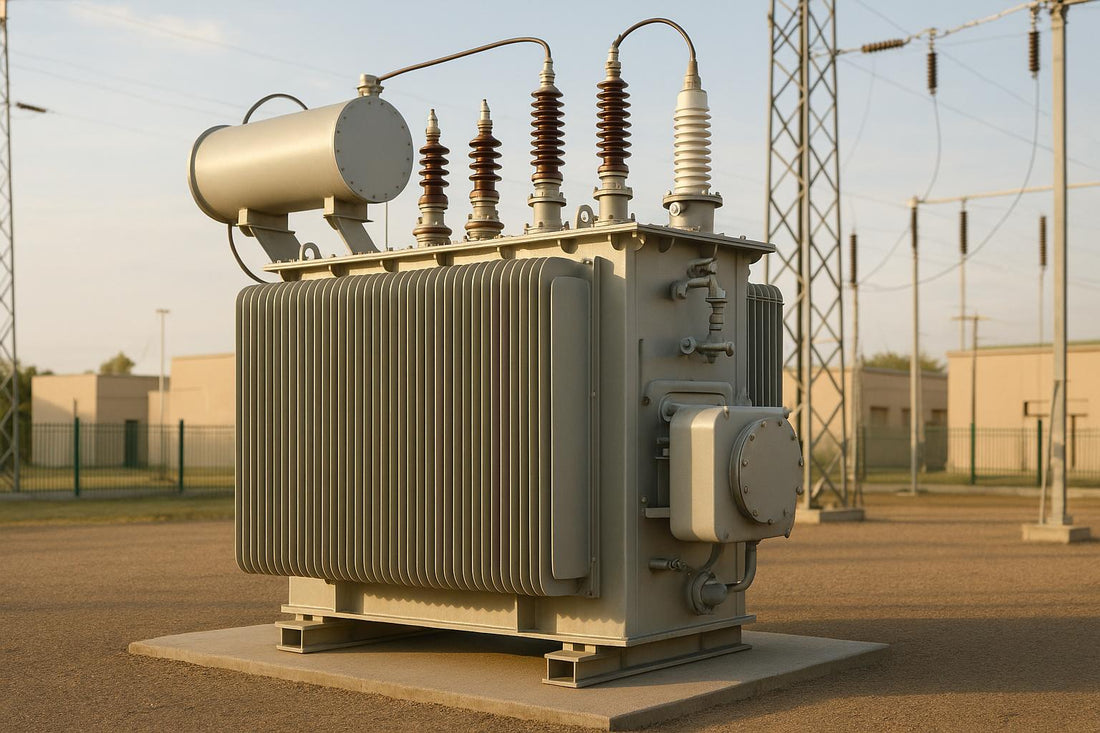

Transformers are critical for power systems, but they face common problems like overheating, insulation failure, voltage fluctuations, and moisture contamination. These issues can lead to costly failures, reduced lifespan, and safety risks if not addressed. Here's a quick summary of key solutions:

• Overheating: Prevent by managing loads, maintaining cooling systems, improving ventilation, and using temperature monitoring tools.
• Insulation Failure: Detect early with Dissolved Gas Analysis (DGA) and resistance tests. Repair with re-insulation, rewinding, or thermal upgrades.
• Voltage Fluctuations: Fix unbalanced loads, maintain tap changers, and monitor voltage with quality analyzers.
• Moisture and Oil Contamination: Test and treat oil regularly, maintain seals, and use desiccant systems to control moisture.

Proactive maintenance, regular testing, and early detection are essential to avoid costly downtime and extend transformer lifespan.

How to Troubleshoot Transformer Failure & Diagnose Bad Contactor on Central AC System

Overheating Problems and Fixes

When transformers overheat, it means their internal temperatures have gone beyond what they’re designed to handle. To keep transformers operating reliably, it’s critical to address overheating issues as soon as they arise. This requires understanding the causes and applying the right strategies to prevent damage.

What Causes Overheating

Several factors can lead to transformer overheating, often working together to create dangerous conditions. One major culprit is overloading - running a transformer beyond its rated capacity generates more heat than the cooling system can manage.

Another common issue is blocked ventilation. Dust buildup, neighboring equipment, or poor installation can obstruct airflow, reducing cooling efficiency and causing temperatures to spike.

Faulty cooling systems also play a significant role. Malfunctioning fans, clogged vents, or inadequate ventilation in transformer rooms can prevent proper heat dissipation. While transformer insulation can typically handle temperatures up to 220°C (428°F), the enclosure cover is allowed to reach 65°C (149°F) above the surrounding air temperature.

Harmonic distortion in the power supply is another contributor. High neutral currents and harmonic loads force transformers to work harder, generating extra heat that exceeds their design limits.

Environmental factors like high ambient temperatures, poor ventilation, and incorrect input voltages can also push transformers past their safe operating range. Even a small temperature increase - just 8–10°C (14.4–18°F) above the maximum - can cut a transformer’s lifespan in half. As Saira Dar from 3i Condition Monitoring Consultancy points out:

"Transformers are essential, and when they go wrong, they usually take out a lot of equipment."

By understanding these underlying causes, it becomes easier to implement effective solutions.

How to Prevent Overheating

Preventing overheating starts with tackling the root causes. For starters, proper load management is key. Monitor transformer loads to ensure they stay within rated limits. During peak usage, spread the load across multiple units and use load forecasting tools to predict and avoid overload situations.

Next, focus on cooling system maintenance. Keep cooling channels clean and free from obstructions, ensure fans are functioning properly, and clear dust buildup while the transformer is de-energized.

Environmental control is another important factor. Install transformers in well-ventilated areas and avoid placing them too close to walls, other equipment, or overhead obstructions that might block airflow.

Regular oil testing can also help prevent overheating. Analyze transformer oil for moisture, dissolved gases, acidity, and sludge buildup. Filtering and purifying the oil removes contaminants that could otherwise lead to overheating.

Using temperature monitoring systems is a proactive approach. Automated systems can detect rising temperatures and trigger actions like activating additional cooling or alerting maintenance teams.

Here’s a quick reference table for common problems and solutions:

Problem	Solution
Excess load beyond transformer rating	Reduce load, replace with a larger transformer, or add fans to boost cooling.
High ambient temperature	Relocate to a cooler location, improve ventilation, or use a low-temperature-rise transformer.
Harmonic loads causing high neutral currents	Reduce harmonic loads or upgrade to a transformer with the right k-rating.
Blocked ventilation	Clear obstructions and ensure proper airflow.
Incorrect input voltages	Adjust tap settings and address over/under voltages.
Dust clogging air vents	Clean vents while the transformer is off.

Once these prevention methods are in place, regular monitoring can catch potential problems early.

Tools and Testing Methods

Several tools and techniques can help identify and address overheating issues:

• Infrared thermography: This non-invasive method spots hot spots, localized heating, and cooling system issues.
• Dissolved Gas Analysis (DGA): DGA identifies signs of insulation or oil deterioration, overheating, and arcing. Using online DGA monitoring can extend a transformer’s life by 6–10 years.
• Oil testing: Regular oil analysis reveals moisture, acidity, and insulation degradation, helping predict maintenance needs.
• Load assessment tools: These tools measure overloads or phase imbalances, guiding decisions on load redistribution or equipment upgrades.
• Visual inspections: Simple checks can reveal oil leaks, worn gaskets, faulty fans, or physical damage that might lead to overheating.

Insulation Failure: Detection and Repair

Insulation failure poses a serious risk to the reliability and safety of transformers. When insulation starts to break down, it can lead to short circuits, fires, or even total equipment failure. Spotting the signs of trouble early and understanding the causes can save money on repairs and help prevent dangerous incidents.

Why Insulation Fails

Over time, insulation naturally wears down due to several factors, including age, moisture, electrical stress, dust, and overheating. Most transformers are designed to last about 20 years, provided their winding temperatures stay within safe limits.

Moisture is a major culprit - it reduces the dielectric strength of insulating materials. Water can enter transformers through damaged seals, condensation, or improper storage, even before installation. Electrical stress from voltage surges, switching operations, or lightning can create micro-cracks in the insulation, further weakening it.

Dust, oil degradation, and pollutants can form conductive paths that compromise insulation. Additionally, heat takes a toll. Even small temperature increases can cause insulation materials to become brittle, shortening the transformer's lifespan significantly.

Testing Methods

Detecting insulation issues early is crucial, and several proven methods can help. Dissolved Gas Analysis (DGA) is one of the most effective tools for identifying insulation problems. By analyzing gases dissolved in transformer oil, DGA can reveal signs of dielectric deterioration and insulation breakdown. Elevated gas levels often indicate trouble.

Other methods include insulation resistance tests and visual inspections. These can uncover symptoms like darkened insulation, coil shifts, or oil leaks. Listening for unusual sounds, such as buzzing or crackling, can also point to partial discharge or insulation damage.

Establishing a regular testing schedule based on the transformer's age, importance, and operating conditions helps ensure timely maintenance. Early detection enables targeted repairs, reducing the risk of catastrophic failure.

Repair Options

When testing confirms insulation damage, there are several ways to restore a transformer's performance without necessarily replacing the entire unit.

• Re-insulation: This involves replacing only the damaged sections of insulation, leaving the unaffected areas untouched. It’s a practical solution for localized issues identified during testing or inspections.
• Rewinding: For more extensive damage, rewinding may be required. This process replaces entire coil sections with new conductors and fresh insulation materials.
• Thermal upgrading: By using modern, higher-temperature-rated insulating materials, thermal upgrading can extend a transformer's lifespan and improve its performance.
• Core re-lamination: If insulation between the core laminations is compromised, re-laminating the core can reduce eddy current losses and overheating.

For oil-filled transformers, insulation repairs should go hand-in-hand with oil filtering or replacement to prevent further degradation.

In cases where the damage is severe and widespread, a complete insulation replacement may be necessary. This process includes a thorough assessment, de-energizing the transformer, replacing components, and conducting post-repair testing. For high-voltage or critical applications, specialized service providers can ensure precise and reliable repairs.

Catching insulation issues early not only keeps repair costs manageable but also ensures the transformer continues to operate safely and efficiently.

sbb-itb-501186b

Voltage Problems: Causes and Corrections

Voltage fluctuations can wreak havoc on transformers and the equipment they power. When voltage strays beyond acceptable levels, it not only reduces efficiency but also shortens the lifespan of connected devices. Knowing what causes these issues and how to address them is key to keeping power systems running smoothly.

Common Causes of Voltage Problems

Voltage irregularities in transformers can stem from several factors:

• Unbalanced Loads: When loads are unevenly distributed, transformers experience undue stress, leading to inefficiency. Power quality analyzers often flag voltage imbalances exceeding 2% as problematic.
• Damaged Windings: Physical damage or wear - caused by electrical stress, overheating, or mechanical forces - can impair a transformer's ability to regulate voltage effectively.
• Faulty Tap Changers: Tap changers, which adjust the transformer's output voltage by changing the turns ratio, can disrupt voltage control when they malfunction.
• Loose Connections: Poor connections increase resistance, causing voltage drops. Operating above the rated voltage by just 10% can significantly raise temperatures, accelerating insulation aging.
• Harmonic Distortion: Nonlinear loads introduce harmonic distortion, complicating voltage regulation. According to IEEE 519 standards, systems under 69 kV should maintain total harmonic distortion below 5%. Exceeding this limit can distort voltage waveforms and affect sensitive equipment.

Monitoring and Adjustment Techniques

Staying on top of voltage issues requires continuous monitoring. Modern systems track transformer performance in real time, sending alerts when parameters deviate from acceptable ranges.

Electronic temperature monitors are indispensable for voltage regulation. A 10°F (about 6°C) temperature increase can double the aging rate of a transformer. Meanwhile, power quality analyzers provide detailed insights into voltage imbalance, harmonic distortion, and other critical factors - helping to catch issues early.

Tap changer adjustments are another critical tool. On-load tap changers (OLTC) allow voltage corrections without interrupting transformer operations, ensuring stability even under varying loads. Additional equipment like voltage stabilizers and automatic voltage regulators can compensate for input fluctuations, keeping output consistent.

For example, a European utility company used asset monitoring software to detect a gradual temperature rise in a high-voltage transformer. Early detection allowed for timely maintenance and component replacement, avoiding a potential outage. Such proactive measures highlight the importance of comprehensive monitoring in preventing voltage problems.

Prevention Methods

Preventing voltage issues starts with regular maintenance and testing:

• Tap Changer Maintenance: Routine inspections, including contact resistance measurements, oil analysis, and mechanical checks, ensure tap changers function properly.
• Load Balancing: Distributing loads evenly across all three phases minimizes stress on transformer windings and prevents voltage imbalances. Continuous load monitoring can identify emerging problems early.
• Electrical Testing: Insulation resistance tests, turns ratio tests, and impedance measurements are essential for spotting potential issues before they escalate.
• Cooling System Care: Adequate cooling prevents overheating, which can lead to voltage regulation problems. Regularly cleaning cooling fins, checking fan operation, and ensuring smooth oil circulation all contribute to reliable performance.
• Protection Systems: Properly calibrated protective relays shield transformers from overcurrent, overvoltage, and short circuits, responding quickly to abnormal conditions to prevent further damage.
• Connection Maintenance: Keeping external connections tight and free of corrosion ensures proper current flow and stable voltage levels, reducing the risk of voltage drops.

Investing in these preventive measures is not just good practice - it’s financially wise. Major transformer failures can cost approximately $14,000 per MVA in property damage. As Muhammad Hanif, Former Quality Manager at ABB Electrical Industries Co. Ltd., aptly put it:

"Proper maintenance of transformers is essential to ensure their reliability, longevity, and safe operation. Regular maintenance helps identify potential issues early on and allows for timely corrective actions, preventing costly downtime and major failures".

Next, we’ll explore how moisture and oil issues can further impact transformer reliability.

Moisture and Oil Problems: Prevention and Treatment

Moisture and contaminated oil can severely impact transformer performance. These issues speed up aging and increase the likelihood of electrical failures. By understanding how these problems arise and applying the right preventive measures, you can cut down on repair costs and avoid unnecessary downtime. Below, we’ll explore the causes of these problems and highlight effective testing, treatment, and sealing techniques to tackle them.

How Moisture and Contaminants Cause Damage

Water in transformer oil is a major culprit behind rapid insulation degradation. In fact, doubling the moisture content can cut insulation life in half. Moisture typically enters transformers in three ways:

• Incomplete drying during manufacturing: Residual water left in the insulation system at the factory.
• Aging of materials: As oil and paper insulation age, they naturally produce moisture as they break down.
• Environmental exposure: Faulty seals or malfunctioning breathing systems allow humid air to seep into the transformer tank.

Moisture reduces the oil’s dielectric strength, making it less effective at handling electrical stress. This can lead to partial discharges, which generate heat and further degrade the insulation. Temperature swings make things worse. Daily oil level fluctuations of 4–5% can create a "breathing effect", drawing in moisture-laden air if seals are compromised.

Oil Testing and Treatment Methods

Routine oil testing acts as an early warning system, helping you catch moisture and contamination issues before they escalate. For reference, a new, dry transformer should have moisture levels below 0.5% in the insulation, and oil moisture content should stay between 10 and 25 ppm for dry transformers.

Testing the dielectric strength of oil is crucial. New transformer oil should have a minimum breakdown voltage of 30 kV per millimeter. Among available methods, ASTM D1816 is preferred over ASTM D877 because it’s more sensitive to moisture and cellulose particles .

Test Standard	Gap Size	Time Between Tests	Number of Tests
ASTM D1816	2 mm or 1 mm	1–1.5 min	5
ASTM D877	2.54 mm	1 min	5
IEC 60156	2.5 mm	2 min	6

For deeper insights, Dissolved Gas Analysis (DGA) is invaluable. It detects gases like carbon monoxide (signaling paper insulation breakdown) and hydrogen or methane (indicating corona discharge). These gases often appear before other symptoms, making DGA an essential tool for early problem detection.

If moisture levels exceed safe limits, drying out the transformer becomes necessary. For example, when oil moisture reaches 2.5% by dry weight or 30% saturation, vacuum dehydration is recommended. This process removes both free and dissolved water from the system, provided the transformer tank is vacuum-rated.

Proper sampling is equally important. SDMyers analyzed over 500 samples that initially showed high moisture levels. After retesting with thorough flushing, only 70% of the samples were actually wet. This highlights the need for accurate sampling to avoid costly misdiagnoses and unnecessary treatments.

Sealing and Maintenance Tips

The best way to control moisture is to prevent it from entering in the first place. Regular testing and visual inspections for leaks are key to keeping transformers dry. Here are some practical steps to ensure long-term reliability:

• Desiccant systems: Use desiccant systems for transformers rated at 100 kVA or higher. Replace silica gel when more than 50% of it changes color. For smaller transformers, check and replace oil in the oil pillow periodically.
• Gasket and seal maintenance: Replace damaged or deformed seals with ones that meet original specifications. Clean all sealing surfaces before installation, and inspect areas like manholes, hand holes, and tap changer doors for oil leaks .
• Breather unit checks: Ensure breather units are functioning properly. For bladder-type conservator systems, check for oil leaks by swabbing the inside of the bladder with a cotton cloth.
• Bushing care: Regularly clean bushings to prevent dirt buildup, which can absorb water and create conductive paths.
• Temperature management: Avoid long storage times before energizing transformers. During maintenance, drain and thoroughly clean dirty oil from the oil pillow, then reseal it properly.
• Bolt tightening: Periodically tighten bolts to prevent leaks caused by operational vibrations.

Conclusion: Maintaining Transformer Reliability

Ensuring transformers stay reliable hinges on consistent upkeep and spotting issues early. As Henry Petroski wisely put it:

"Successful engineering is all about understanding how things break or fail".

This underscores the critical need to address potential problems before they escalate into costly disruptions.

A well-organized maintenance plan - covering daily inspections, monthly system checks, and thorough annual tests - helps prevent unexpected breakdowns. These steps align with the troubleshooting methods outlined earlier.

Preventive maintenance proves far more cost-effective and minimizes downtime compared to emergency repairs. Unplanned fixes not only cost more but also lead to prolonged outages. Since transformer failures are often predictable, sticking to regular inspection schedules allows for planned repairs or replacements, saving both time and money.

Maintenance Approach	Cost Impact	Downtime	Long-term Benefits
Preventive	Lower overall costs	Scheduled, minimal	Longer equipment life, predictable budgets
Reactive	Higher emergency costs	Unplanned, extended	Frequent failures, unpredictable expenses

Techniques like routine oil analysis and electrical testing, such as Dissolved Gas Analysis (DGA) and Frequency Response Analysis (FRA), are essential for spotting issues early. Facilities that adopt these proactive monitoring methods have significantly extended the lifespan of their transformers.

Incorporating modern technology into maintenance routines further boosts reliability. Tools like Computerized Maintenance Management Systems (CMMS) automate scheduling and tracking, ensuring tasks are completed on time. Meanwhile, power companies using IoT devices for real-time monitoring report faster detection of anomalies and improved system stability.

For long-term reliability, it’s not just about technology - it’s about having skilled personnel, keeping accurate records, and managing environmental factors. Overheating, insulation problems, voltage fluctuations, and moisture issues require proactive solutions. Keeping the area around transformers clear for proper airflow and maintaining ambient temperatures within safe limits are simple yet effective measures. When combined with consistent maintenance, these steps significantly extend a transformer's service life and reduce the risk of sudden failures.

FAQs

What steps can I take to monitor transformer performance and prevent issues like overheating or insulation failure?

To ensure your transformer operates smoothly and steers clear of issues like overheating or insulation breakdown, having a reliable monitoring strategy is a must. Start by installing temperature sensors to keep a constant watch on critical areas like windings and oil. These sensors can help you catch unusual temperature spikes early, often signaling a problem before it escalates.

In addition, tools like thermal imaging and dissolved gas analysis (DGA) can provide deeper insights into the transformer's condition. Thermal imaging highlights hidden hotspots, while DGA identifies gases that might indicate internal faults. Together, these methods make it easier to address potential issues proactively, reducing the risk of unexpected downtime. Regular checks and preventive maintenance are crucial for keeping your transformer dependable and extending its lifespan.

What are the best ways to detect moisture and oil contamination in transformers, and how often should you test for these issues?

When it comes to detecting moisture in transformers, Karl Fischer titration is considered the most reliable method. It's highly precise in measuring moisture levels. Another essential tool is Dissolved Gas Analysis (DGA), which not only helps detect moisture but also identifies oil degradation and potential faults. Even simpler approaches, like visual inspections and oil color tests, can reveal early signs of contamination or wear.

To keep your transformer running smoothly, these tests should generally be performed once a year. For transformers older than 5 years or those operating in demanding conditions, testing every 6 months is a smarter approach. Regular checks like these help maintain efficiency, minimize the risk of failures, and can significantly extend the life of your equipment.

What are the long-term advantages of proactive transformer maintenance compared to fixing issues as they occur?

Regular maintenance of transformers brings a host of advantages that far surpass the drawbacks of waiting for problems to occur. By conducting routine inspections and upkeep, you can prolong the life of your transformers, significantly lower the chances of unexpected breakdowns, and sidestep the hefty expenses tied to major repairs or replacements. Tackling potential issues early ensures that transformers stay dependable and operate efficiently for years to come.

Beyond boosting reliability, staying ahead with maintenance reduces downtime and cuts overall expenses by minimizing energy losses and avoiding disruptive outages. It also improves safety by decreasing the risk of severe failures that could endanger both equipment and personnel. A proactive approach not only keeps your transformers running at their best but also saves you valuable time and money over the long haul.
