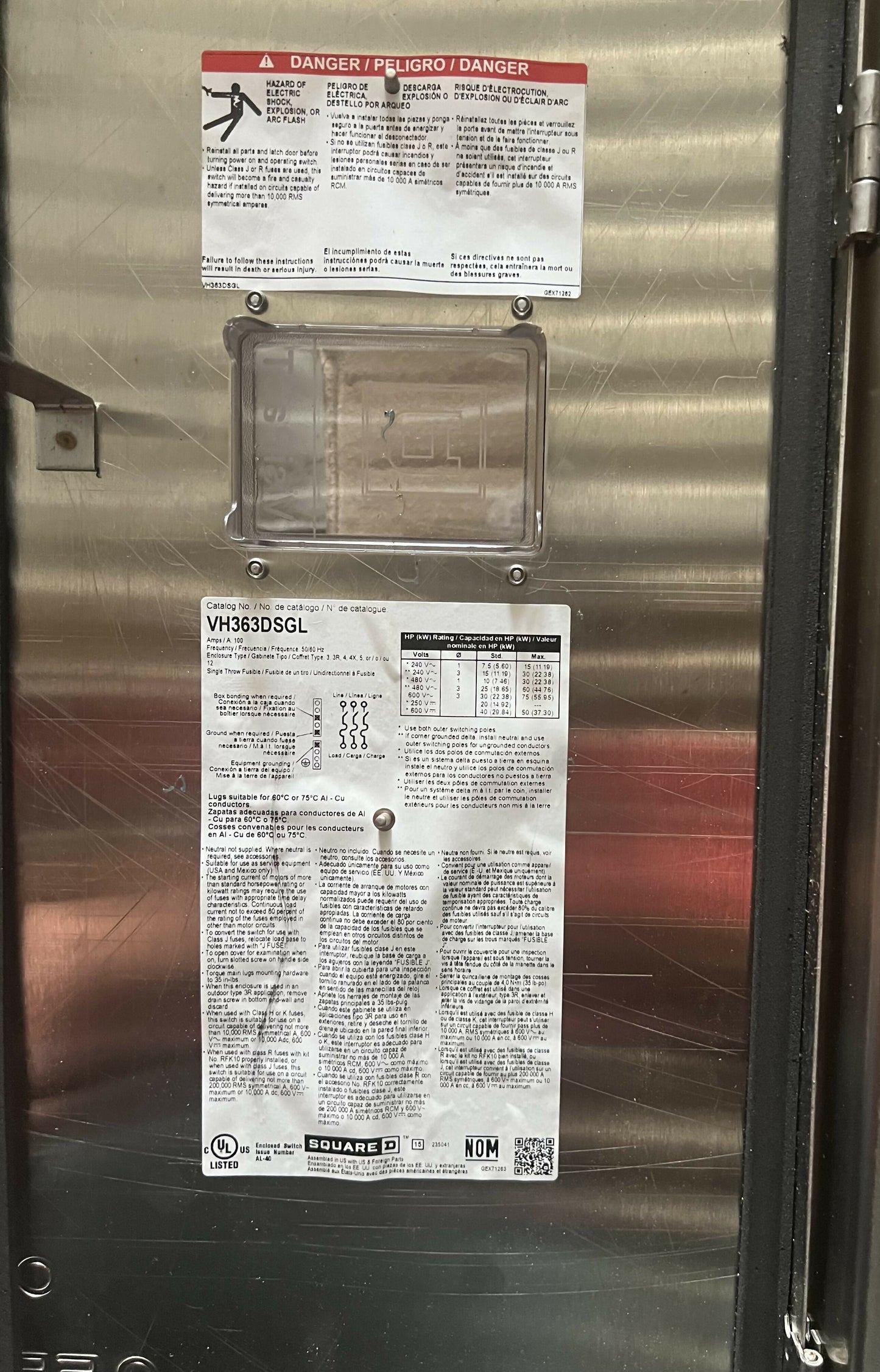

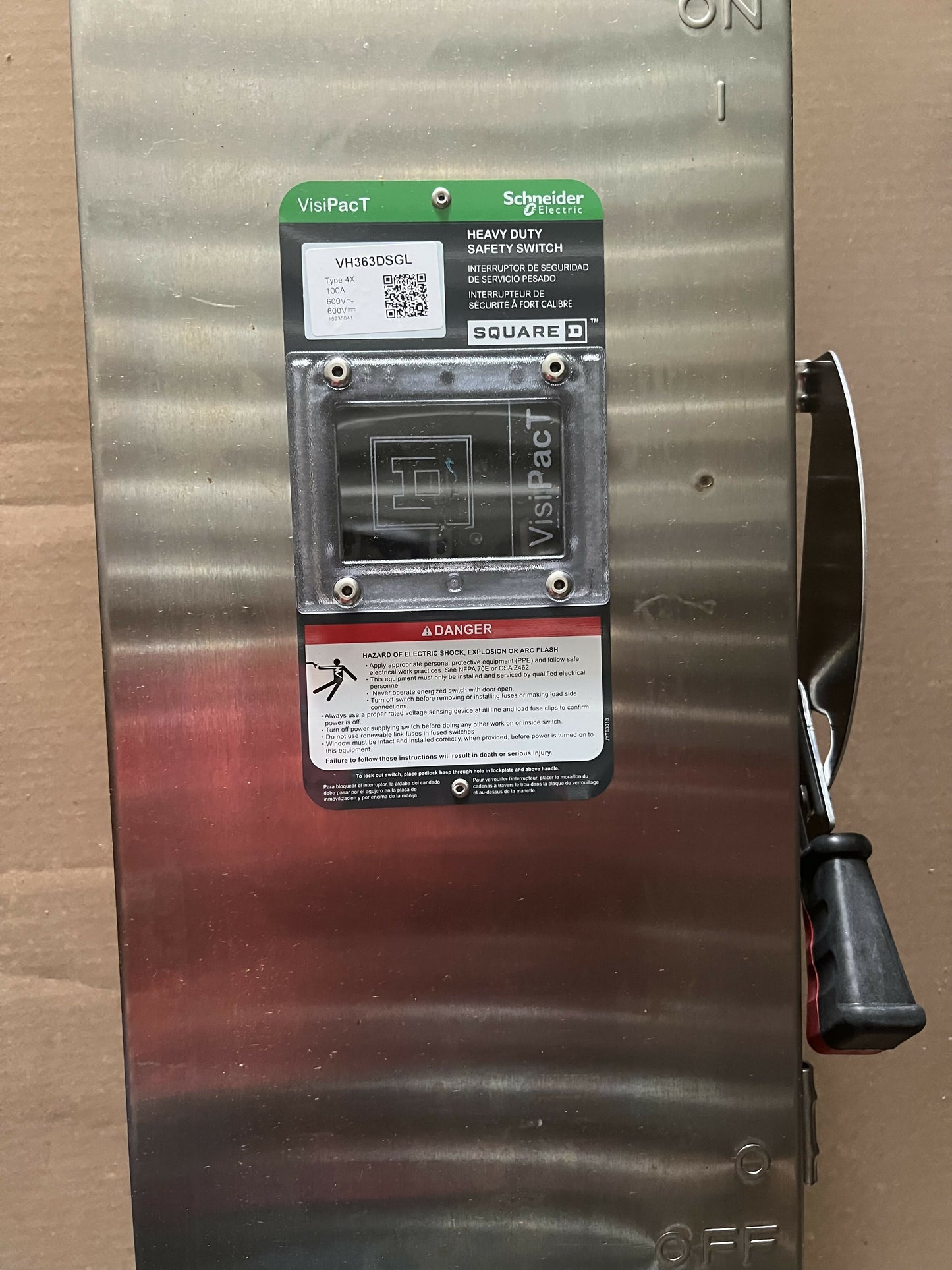

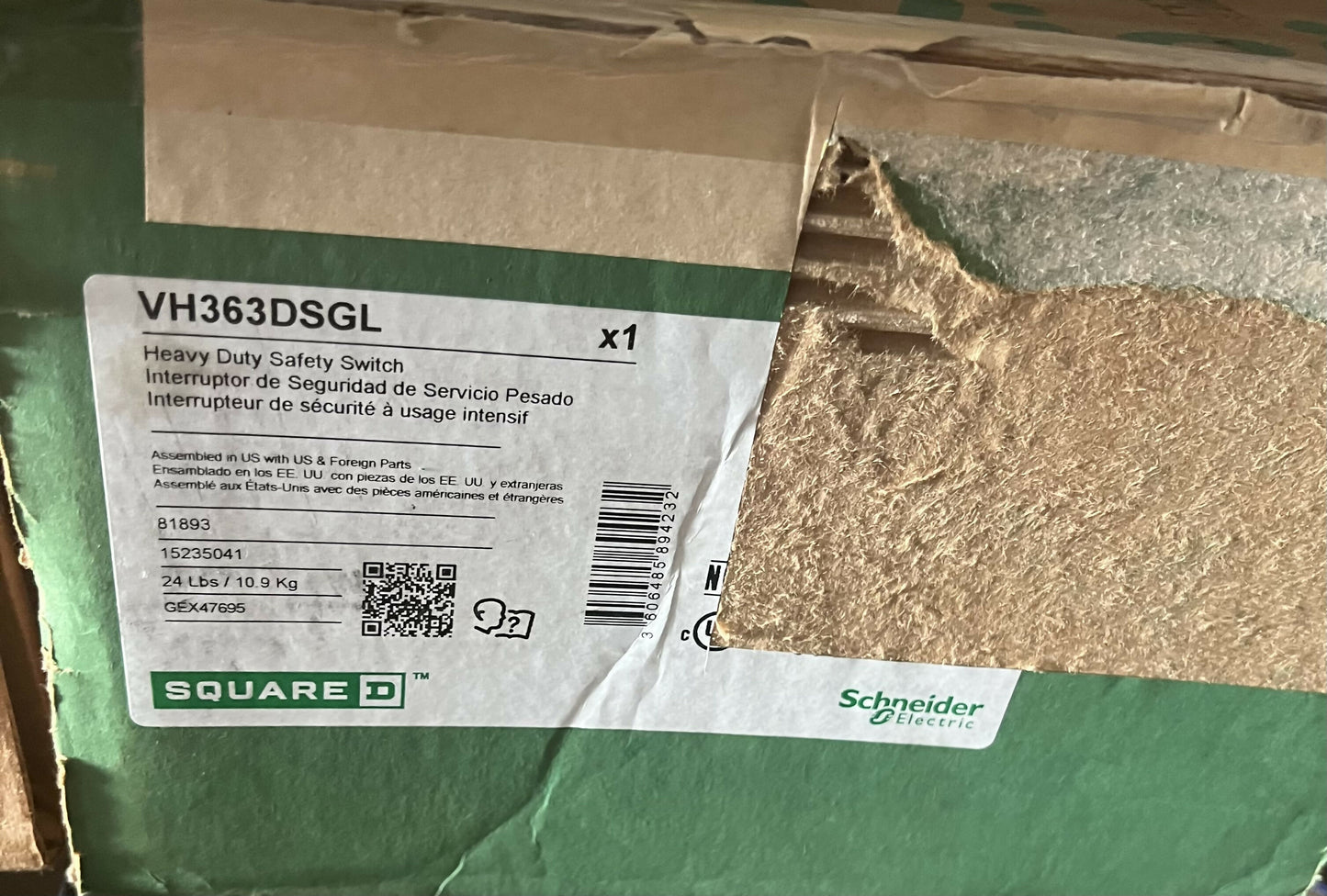

Square D VH363DSGL

Square D VH363DSGL

$2,750.00 USD
$3,694.00 USD $2,750.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Manufacturer: Square D
  • Model: VH363DSGL
  • Model Location: Florida

Seller Info:

Seller Profile Page:

  • Verified Seller
  • Hassle-Free Transaction
  • Fast Shipping

Main

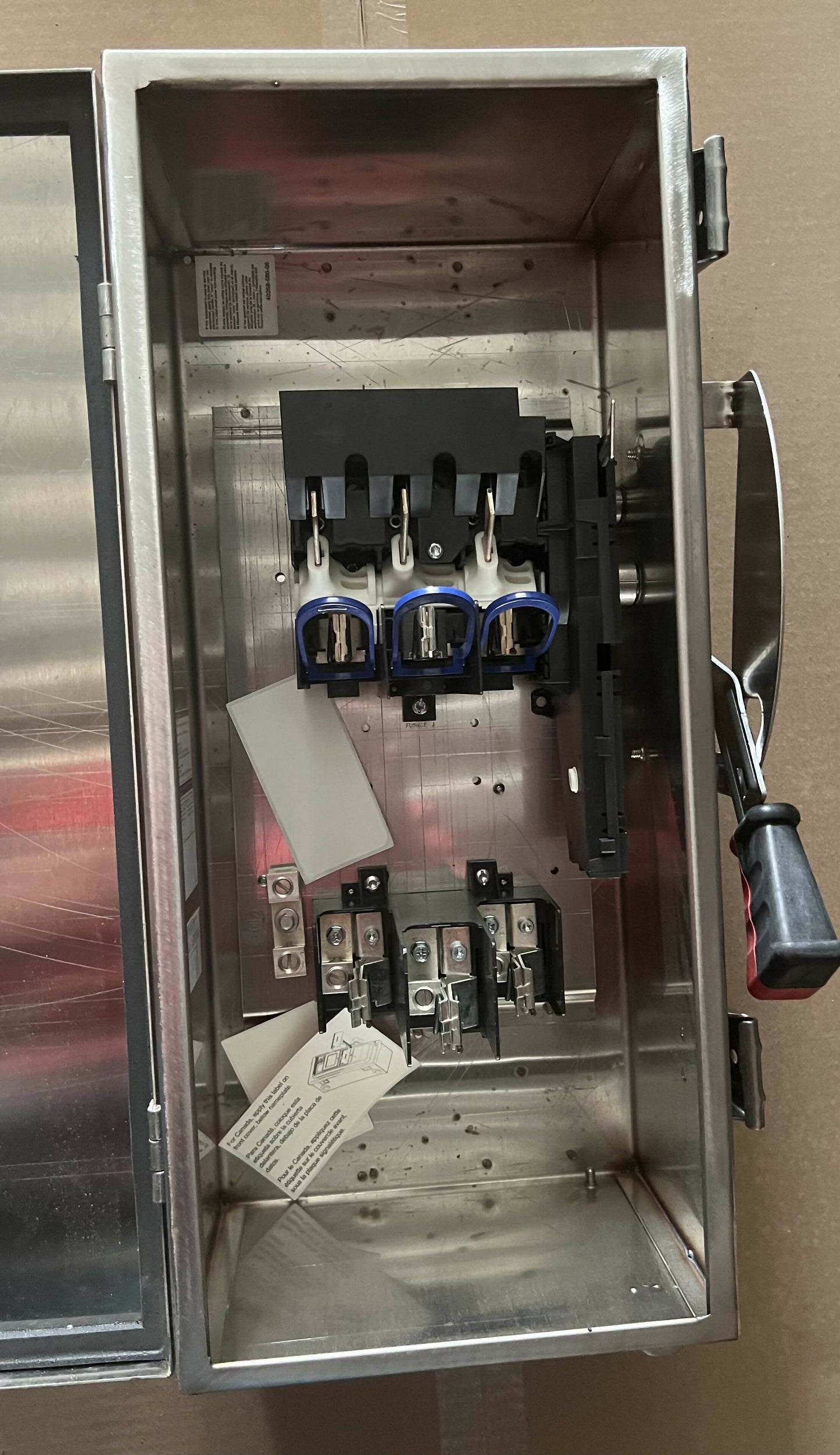

Product Single Throw Safety Switch

Duty Rating Heavy duty

Device Application Heavy application

Disconnect Type Fusible disconnect

Factory Installed Neutral Field installed kit available

Number of Poles 3

Current Rating 100 A

Voltage Rating 600 V AC/DC

Enclosure Rating NEMA 4X stainless steel 304

Standard Motor Power Rating 25 hp at 480 V AC 50-60 Hz for 3 phase motors

60 hp at 480 V AC 50-60 Hz for 3 phase motors

30 hp at 600 V AC 50-60 Hz for 3 phase motors

100 hp at 600 V AC 50-60 Hz for 3 phase motors

50 hp at 600 V DC

Complementary

Short-circuit current 10 kA for H, K, J or R without fuse rejection clips

200 kA for R with fuse rejection clips

200 kA for J

Fuse type H or K

R or J

Mounting Type Surface

Electrical Connection Lugs

Wiring configuration 3-wire

Wire Size AWG 12...AWG 1/0 aluminium

AWG 14...AWG 1/0 copper

Tightening torque 50 lbf.in (5.6 N.m) (AWG 1...AWG 3/0)

45 lbf.in (5.08 N.m) (AWG 6...AWG 4)

40 lbf.in (4.5 N.m) 0.013 in² (8.367 mm²) (AWG 8)

35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.06…5.261 mm²) (AWG 14...AWG 10)

Depth 7.2 in (182.9 mm)

Width 9.336 in (237.134 mm)

Height 20.73 in (526.54 mm)

Net Weight 22.99 lb(US) (10.43 kg)

Grounding Kit Factory installation



Condition: New

View full details

FAQ

Does the product come with a warranty?

Please contact the seller of the product you purchased for any relevant warranty information

Does this product meet safety certifications?

Yes, this product is UL-certified and meets all relevant safety standards for electrical products.
