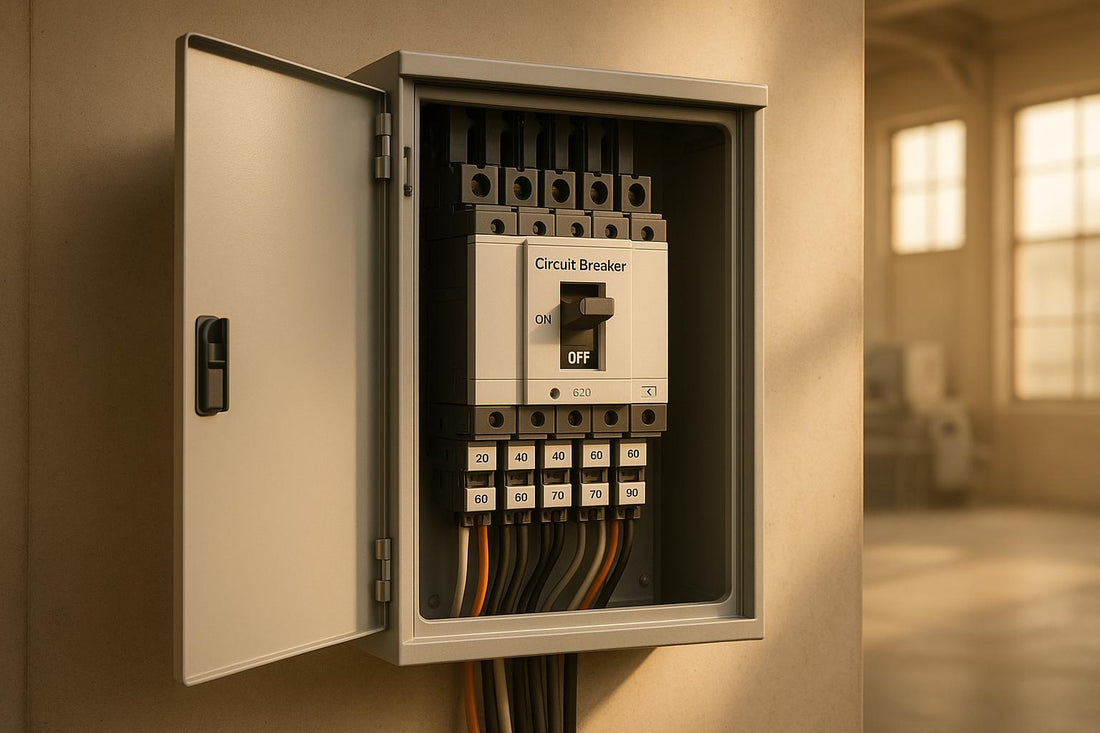

Checklist for Selecting Industrial Breakers
When choosing an industrial circuit breaker, getting it right is crucial to protect equipment, ensure safety, and avoid costly downtime. Here's a quick guide to what you need to know:
- Voltage and Current Ratings: Match the breaker's voltage and current capacity to your system. Avoid mismatches to prevent inefficiency, overheating, or tripping during normal operations.
- Load Type: Identify whether your system handles resistive, inductive, or capacitive loads. Each type impacts breaker performance differently.
- Pole Configuration: Choose the correct number of poles (e.g., single, double, triple, or four-pole) based on your system's wiring and phase requirements.
- Interrupting Capacity: Ensure the breaker can handle the maximum fault current at its installation point to avoid catastrophic failures.
- Compliance and Safety: Look for UL certifications and adherence to NEC, OSHA, and ANSI standards. Proper labeling and maintenance are essential.
- Environmental Factors: Consider installation conditions like temperature, moisture, and dust. Use appropriate enclosures (e.g., NEMA-rated) for added protection.
- Breaker Technology: Choose between air, vacuum, SF6, or oil breakers based on voltage needs, space, and maintenance requirements.
- Cost Analysis: Evaluate the total cost of ownership, including installation, maintenance, and potential upgrades.
Pro Tip: For reliable sourcing, opt for certified suppliers offering both new and reconditioned breakers to suit your budget and project needs.
Selecting and Using Circuit Breakers for Industrial Automation (MCB, MCCB) at AutomationDirect
Application Requirements: Match Breaker Specs to Your Project
Choosing the right industrial breaker starts with a thorough understanding of your project's specific needs. This involves analyzing your electrical system's demands and aligning them with the breaker's capabilities. A mismatch can lead to safety risks, equipment damage, or unnecessary downtime. Here's how to ensure your breaker specifications meet your project's requirements.
Check System Voltage and Current Ratings
Voltage compatibility is a top priority. The breaker must match your system's voltage to operate safely and efficiently. Breakers are categorized by voltage levels: low-voltage (below 1 kV), medium-voltage (1–72 kV), and high-voltage (72.5 kV and above). Always refer to your system's specifications to verify compatibility. A voltage mismatch can compromise safety and reduce efficiency.
Current ratings are equally important. The rated current indicates the maximum amount the breaker can handle continuously at a standard ambient temperature. Common low-voltage ratings include 10 A, 20 A, 30 A, 50 A, and 100 A. Selecting a breaker with an excessively high current rating may prevent it from tripping during dangerous overcurrent situations, leading to overheating or equipment damage. On the other hand, a rating that’s too low could cause the breaker to trip during normal operations, disrupting productivity.
When evaluating current needs, consider both operational and peak loads, as well as potential future expansions. A good rule of thumb is to choose a breaker rated at about 120% of your system's load. For larger facilities, modular breakers can be a practical choice, allowing for quick replacements or upgrades.
Identify Your Load Type
Understanding the type of electrical load your system handles is crucial for selecting the right breaker. Different load types - resistive, inductive, and capacitive - affect voltage and current behavior, influencing breaker performance.
- Resistive loads are the simplest to manage. They consume only active power, with voltage and current perfectly in sync, resulting in a unity power factor. Both voltage and current drop to zero simultaneously, making these loads straightforward for breakers to handle.
- Inductive loads, such as motors and transformers, are more challenging. They draw reactive power, causing the current to lag behind the voltage by 90 degrees. Most systems operate at a lagging power factor near 0.8. These loads can be tough on breaker contacts, as the voltage across the contacts peaks when the current is at zero.
- Capacitive loads consume reactive power as well, but with the current leading the voltage by 90 degrees. This phase difference can make switching capacitive loads particularly demanding on breaker components.
When selecting a breaker, ensure it’s designed to handle the specific challenges of your load type. Systems with significant inductive or capacitive loads may require breakers tailored for those conditions.
Choose Number of Poles and System Type
Once you’ve matched the breaker to your load type, ensure its configuration aligns with your system’s wiring and phase requirements. The number of poles determines how many circuits the breaker can protect.
- Single-pole (SP) breakers protect one circuit and are ideal for single-phase systems.
- Double-pole (DP) breakers are used for two circuits or 240-volt applications.
- Triple-pole (TP) breakers are standard in three-phase systems and are common in industrial settings.
- Four-pole (4P) breakers offer protection for three-phase systems with a neutral wire. They include a protective release for the neutral, making them suitable for systems with high neutral currents caused by unbalanced loads or harmonics.
For three-phase systems with a neutral wire, TPN (Triple Pole and Neutral) breakers can switch the neutral without providing protection, while 4P breakers add neutral protection. In setups with multiple power sources, TPN or 4P breakers can isolate the neutrals of different sources.
To choose the right configuration, consider your system’s voltage, amperage, and equipment requirements. Environmental factors, such as whether the installation is indoors, outdoors, or in a corrosive setting, also play a role. For complex installations, consulting a licensed technician can help ensure your breaker setup meets your system’s needs. Properly aligning breaker configuration with these criteria is essential for preventing overcurrent and maintaining smooth operations.
Electrical Ratings and Performance: Safety and Reliability Requirements
When choosing an industrial breaker, it's not just about meeting basic specifications. The electrical performance ratings of your breaker play a critical role in ensuring it can handle operational demands safely. These ratings directly influence the reliability of your system and the safety of your facility. Selecting the wrong specifications could lead to serious issues like equipment failure or arc flashes. Once you've assessed your system and load requirements, it's time to dive into the key electrical ratings to ensure your breaker meets both safety and performance standards.
Check Interrupting Capacity
The interrupting capacity of a breaker defines the maximum fault current it can safely interrupt. This rating must meet or exceed your system’s Maximum Available Fault Current (MAFC) at the installation point. If the fault current surpasses the breaker's interrupting capacity, the results can be catastrophic - ranging from equipment damage to fires or dangerous arc flashes.
"Interrupting Capacity (IC) is the maximum fault current that can be interrupted by a circuit breaker without failure of the circuit breaker." – Carling Technologies
The National Electrical Code (NEC) underscores the importance of this rating. Section 409.22 of the 2011 NEC specifies that an industrial control panel must not be installed if the available short-circuit current exceeds the panel's short-circuit current rating. The 2024 edition of NFPA 70E takes it a step further, requiring all components to match the MAFC.
Here’s a quick comparison of breaker types and their interrupting capacities:
| Type of Circuit Breaker | Typical Interrupting Capacity | Application |
|---|---|---|
| MCB (Miniature Circuit Breaker) | 6 kA, 10 kA | Residential and light commercial setups; handles lower fault currents. |
| MCCB (Molded Case Circuit Breaker) | 10 kA, 25 kA, 65 kA | Suitable for industrial, commercial, and residential use; protects against overloads and short circuits. |
| ACB (Air Circuit Breaker) | 10 kA to 85 kA | Designed for industrial systems; manages higher fault currents. |
| VCB (Vacuum Circuit Breaker) | 25 kA to 40 kA | Ideal for medium-voltage systems, such as transformers and distribution lines. |
| SF₆ Circuit Breaker | 100 kA and above | Used in high-voltage applications like substations and power plants. |
To select the right interrupting capacity, calculate the MAFC at each installation point. An arc flash evaluation can help identify any underrated breakers that may require replacement. Properly rated breakers are crucial - they can trip in under 0.02 seconds when fault currents exceed 3,000 A, significantly reducing arc flash risks.
While interrupting capacity is essential, don’t overlook the continuous current rating for long-term operational safety.
Set Continuous Current Ratings
A breaker's continuous current rating represents the maximum current it can handle under normal conditions without tripping. This rating must align with your circuit's maximum load, but there are additional factors to consider.
Temperature is a key variable. Standard breakers are calibrated for 104°F. If your environment operates at higher temperatures, adjustments will be necessary to ensure the breaker performs reliably. The NEC provides guidance through Table 210.24, which outlines standard breaker ratings based on conductor sizes and load allowances. Additionally, the breaker should be rated slightly above the continuous load to handle operational peaks.
If the rating is too high, the breaker might not trip during overloads, leading to overheating and equipment damage. On the other hand, a rating that's too low could cause unnecessary interruptions, disrupting your operations.
Start by calculating both your facility’s operational and peak load demands. Circuit breakers are available in a wide range - typically from 15 A to several thousand amperes for large-scale operations. Choose one that matches your current load while leaving room for future growth.
Review Switching Frequency Needs
The frequency rating of your breaker must align with your electrical system to maintain efficiency and avoid damage. Most industrial applications operate well with breakers rated for 50–120 Hz.
However, systems running above 120 Hz require derating due to the increased heating effects caused by eddy currents and iron losses. This excess heating can shorten the breaker's lifespan or lead to premature failure.
For breakers rated above 600 A, proper calibration is critical for safety. This is particularly relevant in systems like diesel generators, where frequency stability is crucial for reliable performance.
Before installation, always verify the frequency compatibility of your breaker. A mismatch can compromise performance and safety. Manufacturer guidelines are a good resource for ensuring your breaker is suited to your system’s frequency requirements.
Compliance and Safety Standards: Meet Code Requirements
Choosing the right industrial breaker isn’t just about matching electrical specs - it’s also about meeting strict safety standards to safeguard both people and property. According to the Electrical Safety Foundation International (ESFI), the majority of electrical fatalities occur in electrician, construction, and maintenance roles, with private industry accounting for most of these incidents. Adhering to safety regulations not only protects lives but also helps avoid legal complications. This means your equipment must meet established certification and safety criteria in addition to performing reliably.
Verify Certifications and Compliance
Certifications are a critical starting point. Look for breakers that are "UL Listed" under standards like UL 489, which applies to molded-case circuit breakers (MCCBs), fused circuit breakers, and breakers with integrated ground-fault protection. A UL Listing confirms the equipment has undergone rigorous safety and performance testing and is often a requirement for passing electrical inspections or meeting insurance guidelines.
Beyond UL certification, ensure compliance with NEC, OSHA, and ANSI standards. Here’s a quick breakdown:
| Standard | Focus |
|---|---|
| UL 489 | Molded-Case Circuit Breakers |
| NFPA 70 (NEC) | Electrical Installations |
| OSHA 1910 | Workplace Safety Regulations |
| ANSI Z535 | Labeling Clarity and Safety |
For industrial control panels, UL 508A sets design, control, and usage standards. Inspectors often reference UL 508A during evaluations, and the UL 508A Listing Mark signifies that the panel meets all necessary requirements as verified by an independent third-party organization.
For advanced technologies like solid-state circuit breakers, UL 489I is the go-to standard. It covers solid-state molded-case circuit breakers (SSCB) and hybrid versions (SSHCB) rated up to 1,000 VAC and 1,500 VDC. These devices are tested for performance under normal and extreme conditions, including environmental stresses, electromagnetic interference, and software reliability.
Keep in mind that specific environments require tailored wiring materials and methods as outlined in the NEC. Equipment certified by a nationally recognized testing laboratory (NRTL) like UL, CSA, ETL, or TUV ensures compliance with these standards. Consulting a licensed electrician or expert can help fine-tune your selection.
Check Protection Against Electrical Hazards
Once certifications are confirmed, focus on the breaker’s ability to protect against electrical hazards. While standard breakers handle overloads and short circuits, modern industrial setups often require more robust protection against issues like arc faults. Arc fault circuit breakers (AFCIs) are designed to detect and interrupt dangerous arc faults - unintended electrical discharges that can spark fires. These breakers use advanced technology to sense arcing conditions that standard breakers might miss.
To ensure hazard protection, verify that the breaker carries certifications like UL or CE. For AFCI-equipped breakers, use an AFCI tester to confirm proper functioning. During installation, check for devices with high inrush currents or switching noise, and ensure neutral wires aren’t improperly shared or bonded across circuits.
The NEC emphasizes the importance of durable safety markings and clear circuit identification:
"The markings shall be of sufficient durability to withstand the environment involved." - NEC 110.21(b)
"Every circuit and circuit modification shall be legibly identified as to its clear, evident, and specific purpose of use." - NEC 408.4(A)
OSHA adds workplace-specific safety requirements:
"Safety signs, safety symbols, or accident prevention tags shall be used where necessary to warn employees about electrical hazards which may endanger them, as required by 1910.145." - OSHA 1910.335(b)
For wire temperature ratings, follow the component’s label or instructions. If no rating is provided, use the NEC’s guidelines: the 60°C column for components rated at 100 amps or less, and the 75°C column for those above 100 amps.
OSHA also requires lockout/tagout procedures to ensure systems are de-energized during maintenance. Employers must clearly label and warn workers about electrical hazards. Regular preventive maintenance, including testing and calibrating protective devices, is essential for identifying risks and avoiding potential issues. Inspections and audits further ensure all electrical panels and circuits are properly installed and labeled.
Finally, note that UL 489 circuit breakers are mandatory for compliance with NFPA 70 and NFPA 79. While UL 1077 supplementary protectors can complement UL 489 breakers or UL 248 fuses, they cannot replace them.
sbb-itb-501186b
Site Conditions: Installation and Location Factors
Where and how a breaker is installed plays a big role in its performance and lifespan. Factors like dust, moisture, temperature swings, and limited space can wear down a breaker over time. These environmental considerations are just as important as electrical ratings and safety standards when it comes to ensuring safe and reliable operation.
Select Proper Enclosure Ratings
Choosing the right enclosure is key to protecting your breaker from environmental hazards that might lead to failures or safety risks. NEMA ratings, set by the National Electrical Manufacturers Association back in 1926, specify how well an enclosure shields against dust, water, and corrosive elements.
For indoor setups where dust is the main concern, a NEMA 12 enclosure offers solid protection against dust, dirt, and dripping non-corrosive liquids. These enclosures are commonly used in manufacturing plants, warehouses, and other controlled environments.
If you're dealing with outdoor conditions, you'll need something tougher. Enclosures like NEMA 3R, 4, or 4X are designed to handle rain, windblown dust, and more. For harsher environments, NEMA 4X adds corrosion resistance, making it a go-to choice for coastal areas, chemical plants, or locations exposed to corrosive substances.
| NEMA Rating | Environment | Protection Against |
|---|---|---|
| NEMA 12 | Indoor | Dust, dirt, dripping non-corrosive liquids |
| NEMA 3R | Outdoor | Rain, sleet, snow, windblown dust |
| NEMA 4 | Indoor/Outdoor | Windblown dust, rain, splashing water, hose-directed water |
| NEMA 4X | Indoor/Outdoor | Same as NEMA 4, plus corrosion resistance |
In industries like food processing or pharmaceuticals, where frequent washdowns are required, materials that resist corrosion are essential to handle sanitizing chemicals.
Check Temperature and Climate Limits
Temperature extremes can take a toll on a breaker's performance and durability. Most electrical equipment is built to operate in ambient air temperatures ranging between 104°F and 122°F (40°C to 50°C). Exceeding these limits can lead to serious problems.
"Environmental factors such as moisture or temperature changes can affect the performance of a circuit breaker over time." – Brenda Rose
Temperature swings can cause internal components to expand and contract, leading to wear and tear over time. Prolonged exposure to extreme heat or cold can damage the breaker's internal parts and shorten its lifespan. Even though breakers are generally designed to last 20–30 years, harsh environmental conditions can significantly reduce that timeframe.
For outdoor installations, using enclosures with internal heaters can prevent condensation when temperatures drop below the dew point. In hotter climates, you may need to adjust the breaker's capacity (known as derating) and coordinate this with your overall protection system. Keeping breakers in dry, cool locations and shielding them from temperature fluctuations is critical for long-term reliability.
Review Installation Space and Mounting
Proper installation isn’t just about fitting a breaker into the available space - it’s also about ensuring mechanical and electrical compatibility. Always check the panel's label and the manufacturer's UL compatibility list to confirm the breaker is approved and safe for use.
For outdoor setups, wall-mounted or pole-mounted breaker boxes are common. Wall-mounted units should be installed 36–48 inches off the ground to ensure accessibility and avoid areas prone to flooding.
Electrical panels must meet Class CTL (Circuit Total Limiting) standards to prevent overloading by limiting the number of circuits. This requirement might mean opting for larger panels or even multiple panels for complex systems.
Hiring a licensed electrician is essential for a safe and code-compliant installation. Improper setups can lead to fire hazards, electrical failures, or code violations. Regular inspections by a professional can also catch potential issues early, and upgrading older breakers to newer models can improve reliability. These site-specific factors are crucial to ensuring your breaker operates safely and efficiently, aligning with both electrical and operational needs.
Breaker Technology and Cost Analysis
When choosing breaker technology, it's important to weigh performance, cost, and long-term value. Different arc quenching technologies offer unique benefits, and understanding these differences ensures your choice aligns with your voltage needs, space availability, and budget.
Choose Arc Quenching Medium
The arc quenching medium plays a critical role in how effectively a breaker interrupts electrical faults, directly influencing its performance. The four primary technologies in the industrial breaker market are SF6 gas, vacuum, oil, and air.
SF6 (Sulfur Hexafluoride) breakers are ideal for high-voltage applications due to their exceptional dielectric strength. At 1 bar, SF6 gas provides approximately 9 kV/mm of dielectric strength, increasing to 50-60 kV at 6 bar. While they excel in performance, SF6 breakers come with environmental concerns because of their global warming potential. The gas itself is inert, non-flammable, non-toxic, and thermally stable, with excellent thermal transfer properties that help absorb arc energy.
Vacuum circuit breakers (VCBs) are compact, low-maintenance, and a popular choice for low to medium-voltage systems, typically ranging from 11 kV to 33 kV. With a dielectric strength of about 30 kV/mm, they are quieter and have less environmental impact compared to SF6 breakers.
Oil circuit breakers are effective for arc extinction and provide good insulation, making them suitable for high currents and voltages. However, they require regular monitoring and pose a fire risk, which SF6 breakers mitigate.
Air circuit breakers rely on normal dry air at atmospheric pressure, offering around 3 kV/mm of dielectric strength. They are cost-effective and easy to maintain for low-voltage applications but tend to be bulkier and may need more frequent servicing. Additionally, air blast circuit breakers are noisier than other options.
When selecting a breaker, factor in voltage requirements, space constraints, maintenance demands, and environmental considerations. For SF6 breakers, proper handling and maintenance are essential to prevent gas leaks. Use an analyzer to check the SF6 gas quality before handling it, as by-products can be hazardous. Each technology brings its own strengths and weaknesses, shaping how they perform over time.
Calculate Total Cost of Ownership
Evaluating the Total Cost of Ownership (TCO) is crucial when assessing breaker options. TCO goes beyond the initial purchase price, accounting for all associated costs over the equipment's lifespan, such as maintenance, upgrades, training, and more.
The basic TCO formula is:
Acquisition cost + All related expenses over the equipment's useful life - Resale value.
"You need to ask yourself, 'How many laborers will it take to retrofit or install the equipment? How long will the process take? What is the cost per hour of downtime?' All those things are part of your initial investment." – Helen Xi, Intralox Business Development Analyst
Include installation labor, downtime, staff training, spare parts, and maintenance contracts in your calculation. Consider the volatility of supply costs and the expense of future updates. Investing in quality equipment can save significant maintenance costs over time, avoiding the need for constant repairs on outdated systems.
"Total cost of ownership is more than a number on a spreadsheet. It's a conversation with our customers to understand their projects so we can deliver the right solution." – Helen Xi, Intralox Business Development Analyst
Compare Breaker Types
Once you've considered technology and cost, compare breaker types to find the best fit for your application. Each technology has specific strengths and weaknesses, making it important to match the breaker to your needs.
| Breaker Type | Advantages | Disadvantages | Best Applications |
|---|---|---|---|
| Air Circuit Breakers (ACB) | Affordable, easy to maintain, and parts are widely available | Bulky design, may need frequent maintenance | Low-voltage industrial projects, cost-sensitive setups |
| Vacuum Circuit Breakers (VCB) | Excellent arc control, long lifespan, minimal maintenance, compact, quiet | Higher upfront cost, limited to medium-voltage systems | 11-33 kV systems, space-limited installations |
| SF6 Circuit Breakers | Reliable, excellent insulation, compact, handles up to 800 kV | Environmental risks, requires special handling, higher initial cost | High-voltage transmission, critical systems |
| Oil Circuit Breakers (OCB) | Effective arc control, good insulation, suitable for high currents/voltages | Fire risk, requires oil monitoring, environmental concerns | Legacy systems, high-current applications |
When choosing a breaker, consider key specifications like voltage rating, current rating, trip curve, and interrupting capacity. Vacuum breakers are often more compact and efficient for medium-voltage systems, while SF6 breakers are better suited for high-voltage applications. Vacuum breakers generally need less maintenance and have a smaller environmental footprint compared to SF6 breakers.
For specialized needs, hybrid circuit breakers combine different technologies to enhance performance and efficiency. However, they are more complex and come with higher upfront costs. Always consult certified electricians for breaker installation and request multiple quotes to ensure fair pricing.
Matching the right breaker technology to your specific voltage, space, and cost requirements is key. Work closely with your equipment supplier early on to evaluate all critical factors and make an informed decision.
Where to Source Industrial Breakers
Once you've established the technical and safety criteria for your project, the next step is finding a trustworthy supplier. This decision is just as important as selecting the right breaker itself, as it directly impacts the quality, reliability, and overall success of your project. With the growing risks of counterfeit components, it's essential to stick to reputable sources.
Electrical Trader stands out as a comprehensive platform for sourcing both new and reconditioned industrial circuit breakers. This online marketplace specializes in electrical components and power distribution equipment, offering a wide range of breakers designed to meet or exceed industry standards. Whether you're dealing with unexpected equipment failures or planning ahead, they provide quick and reliable options for replacements and repairs. Their approach ensures that technical requirements are matched with long-term quality and support.
The platform offers two main inventory options: new, certified circuit breakers and carefully reconditioned ones. New breakers comply with the latest industry standards and often include manufacturer warranties, spare parts availability, and ongoing support. On the other hand, reconditioned breakers provide a cost-effective alternative, especially for replacing outdated units. These breakers undergo a meticulous process involving disassembly, cleaning, inspection, reassembly, and rigorous testing. As Bay Power explains:
"Reconditioned breakers are used breakers that have been disassembled, cleaned, assessed, reassembled, inspected, and tested. In other words, they work like new."
Reconditioned breakers are tested to meet or exceed UL standards, making them a practical choice for projects where a complete panel upgrade would be unnecessarily expensive.
Electrical Trader also emphasizes transparency and education, helping you make informed decisions. Their detailed product pages include specifications that let you verify whether a breaker aligns with your project's needs. This is especially important because, as industry experts highlight:
"The interrupting capacity of the breaker must be equal or greater than the amount of fault current that can be delivered at the point in the system where the breaker is applied. Failure to apply the correct amount of interrupting capacity will result in damage to the breaker."
When evaluating suppliers, look for key factors such as robust safety certifications, rigorous inspection processes, and the ability to handle large-scale projects or sudden demand spikes. Certifications like CE and CB, competitive pricing, and 24/7 technical support are also critical considerations.
For those prioritizing sustainability, choosing used equipment can help reduce costs and environmental impact, while new breakers ensure peak performance and reliability. Regardless of your choice, always check reviews, confirm certifications, and understand warranty policies before making a purchase. If opting for reconditioned breakers, ensure they come from reputable companies with thorough testing and inspection processes.
With its focus on detailed product information, educational resources, personalized support, and dependable delivery, Electrical Trader provides a reliable solution for sourcing industrial breakers tailored to your project's specific requirements.
Conclusion: Key Points for Selecting Industrial Breakers
When selecting industrial breakers, it’s all about finding the right mix of technical specifications, safety compliance, and long-term value. Here's a quick rundown of the most important factors:
Application Requirements:
Make sure the breaker’s voltage, current, frequency, and pole configuration align perfectly with your system’s needs.
Electrical Performance and Safety:
Look at critical safety features like interrupting capacity and tripping level settings to ensure your system stays protected during faults.
Compliance and Safety Standards:
Stick to established standards such as UL 489 and IEC. Also, remember that continuous loads shouldn’t exceed 80% of the breaker’s rated capacity.
Site Conditions:
Consider environmental factors like temperature, altitude, corrosion, and dust. Standard breakers typically handle up to 122°F, while 100% rated breakers can go up to 140°F. If your installation is above 6,000 feet, derating will be necessary.
Technology and Cost Considerations:
Think beyond the upfront price. For example, vacuum breakers are known for their reliability in medium-voltage applications, while air breakers are easier to maintain. When evaluating costs, include installation, operation, and maintenance to get a true picture of the total cost of ownership.
Always double-check specifications and consult a certified electrician for more complex setups. Keep in mind that molded-case circuit breakers often provide higher interrupt ratings compared to miniature circuit breakers.
By carefully weighing these factors - not just cost - you can ensure reliable operation, compliance with safety standards, and peace of mind.
For sourcing high-quality industrial breakers, Electrical Trader offers a wide selection of new and used products built to meet strict industry standards.
FAQs
How can I choose the right interrupting capacity for an industrial breaker to handle fault currents safely?
To choose the right interrupting capacity for an industrial breaker, the first step is to figure out the maximum fault current that might occur at the installation site. This requires calculating the short-circuit current, which depends on factors like system impedance and fault levels.
Once you've determined this value, make sure the breaker's interrupting capacity is at least equal to or higher than the calculated fault current. Selecting a breaker with the proper interrupting capacity ensures it can handle fault currents safely, preventing damage and keeping the system within safety requirements.
What environmental factors should I consider when choosing an industrial breaker for outdoor use?
When choosing an industrial breaker for outdoor use, it’s essential to factor in the environmental conditions that could affect its durability and performance. Opt for breakers with weatherproof enclosures to protect against moisture, dust, and temperature swings. Also, make sure the breaker is built to withstand corrosion and prevent insulation damage from humidity and temperature shifts.
Harsh weather - like intense heat, freezing cold, or heavy rainfall - can gradually compromise a breaker's efficiency. To ensure reliable and safe operation over time, select equipment that carries the appropriate ratings and certifications for the environmental challenges it will face.
What are the main differences between SF6, vacuum, oil, and air circuit breakers, and how do I choose the right one for my project?
When it comes to circuit breakers, each type has its own strengths and considerations. SF6 circuit breakers are known for their compact design and suitability for high-voltage applications, thanks to their high dielectric strength. However, they demand careful handling due to environmental concerns associated with SF6 gas.
Vacuum circuit breakers are a popular choice for medium-voltage systems. They are highly reliable, require very little maintenance, and are built to last. On the other hand, oil circuit breakers are effective for lower voltage applications but need regular oil handling and upkeep, which can add to maintenance efforts.
For low to medium-voltage needs, air circuit breakers stand out as a cost-effective and straightforward option. However, their insulation strength is lower compared to SF6 or vacuum circuit breakers, which may limit their use in certain scenarios.
Selecting the right circuit breaker for your project involves weighing several factors, such as voltage requirements, environmental conditions, maintenance demands, and adherence to safety standards. Ensuring the breaker matches your specific application is key to achieving reliable and efficient performance.
