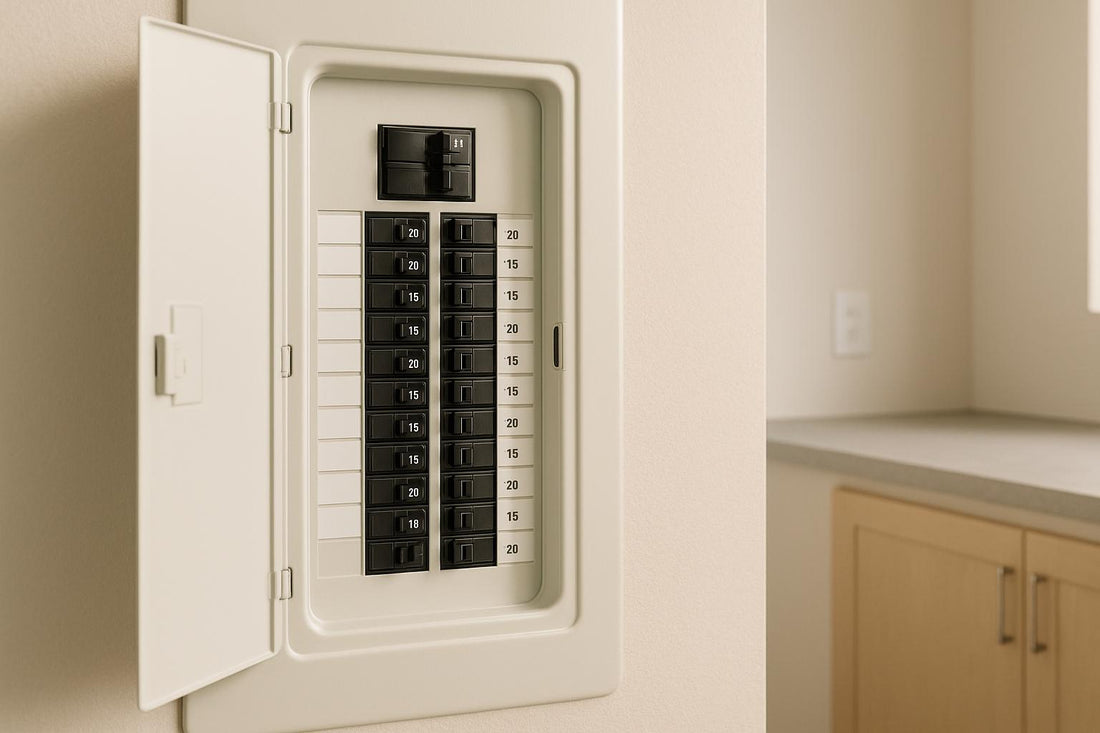

Choosing the right electrical breaker size is crucial for safety and efficiency. A breaker that's too small trips too often, while an oversized one may fail to protect against overloads, increasing fire risks. Here’s what you need to know:

  • Use the 125% Rule: For continuous loads (running 3+ hours), multiply the load by 1.25 to determine breaker size.
  • Match Breaker to Wire Size: Example: 14 AWG wire pairs with a 15-amp breaker, 12 AWG with a 20-amp breaker.
  • Standard Breaker Sizes: Common residential options include 15A, 20A, 30A, and 40A, depending on appliance needs.
  • Check Equipment Specs: Always verify amperage and voltage requirements on device nameplates.
  • Follow NEC Guidelines: Compliance ensures safety and avoids legal issues.

If unsure, consult a licensed electrician to ensure proper installation and code compliance. A correctly sized breaker protects your home and appliances while reducing risks.

Circuit Breaker Basics

What is a Circuit Breaker?

A circuit breaker is an essential electrical safety device designed to protect circuits from damage caused by overcurrent or short circuits. Think of it as a protective switch that allows electricity to flow under normal conditions but cuts the power when it detects a fault. This mechanism relies on a spring system, which is triggered by either an electromagnet or a bimetallic strip during an overload or short circuit. Unlike fuses, which need to be replaced after a fault, circuit breakers can be reset and used again once the issue is resolved. For most homes, breakers are built to handle up to 6,000 amps of short-circuit current, ensuring dependable protection for residential electrical systems.

Understanding how circuit breakers work highlights the importance of selecting the right size for optimal safety and performance.

Why Breaker Size Matters

Grasping the internal workings of a breaker underscores why its size must align with the circuit's requirements. Proper sizing is key to ensuring both safety and efficiency. An oversized breaker, for instance, might fail to trip during an overload, allowing dangerous conditions to persist. This can result in wires overheating, insulation melting, and components being damaged - all of which increase the risk of electrical fires.

On the flip side, improper protection can lead to costly repairs or the replacement of critical equipment like motors and transformers.

Breaker Size Issue Immediate Risk Long-term Consequence
Too Small Power outages and frequent tripping Damage to appliances due to repeated abrupt shutoffs
Too Large Overheated wiring and inadequate overload protection Higher chances of electrical fires and equipment failure
Mismatched Non-compliance with electrical codes and insurance issues Legal and financial complications during property transactions

Choosing the correct breaker size not only protects your electrical system but also prevents avoidable risks and expenses.

How to Choose the Right Wire Size and Circuit Breaker?

How to Calculate the Right Breaker Size

Figuring out the correct breaker size involves a step-by-step process that takes into account the electrical load, safety considerations, and compliance with electrical codes. This ensures your system operates safely and efficiently.

Basic Breaker Size Calculation

To calculate the appropriate breaker size, use this formula: Breaker Size = Continuous Load × 1.25. This approach ensures both protection for your circuit and adherence to electrical codes.

The 125% rule is key here, offering a safety margin for continuous loads. According to the National Electrical Code (NEC), a continuous load is one that runs at maximum current for three hours or more. Examples include lighting circuits, heating systems, and many commercial setups.

For instance, if a circuit has a continuous load of 16 amps, the calculation would be 16 × 1.25 = 20 amps. In this case, a 20-amp breaker is the right choice. For noncontinuous loads - those operating for less than three hours - you can size the breaker at 100% of the load.

For more specific cases:

  • In a single-phase AC system (230V, 1.5 kW) with a 25% safety factor, the current calculation points to a 10-amp breaker.
  • For a three-phase system, like a 480V system with a 20 kW load, a 0.9 power factor, and a 20% safety factor, the calculation is:
    20,000 ÷ (1.73 × 480 × 0.9) × (1 + 20 ÷ 100) = 32.07 amps, which requires a 33-amp breaker.

After calculating, always double-check your results against the specifications of your equipment.

Reading Equipment Specifications

Equipment nameplates and spec sheets are essential for precise breaker sizing. These provide details like rated current, voltage requirements, and power consumption (in watts or kilowatts), helping you avoid costly errors and ensuring compliance with codes.

Start by locating the amperage rating on the nameplate. This value shows the maximum current the device will draw under normal conditions. If the nameplate lists wattage but not amperage, you can convert it using this formula: Amperes = Watts ÷ Voltage.

Pay special attention to devices with high inrush currents - like refrigerators, air conditioners, and motors - which draw extra current during startup.

Environmental conditions also matter. Equipment used in high humidity or extreme temperatures might need breakers with adjusted ratings. Additionally, check the Continuous Current Rating (CCR), which indicates the maximum current a breaker can handle without tripping.

Once you’ve determined the required amperage, you can move on to selecting a standard breaker size.

Selecting Standard Breaker Sizes

After calculating the amperage, match it to the nearest available standard breaker size. Common options include 15A, 20A, 25A, 30A, and so on.

Always round up to the next standard size. For example, if your calculation results in 18 amps, choose a 20-amp breaker instead of a 15-amp one.

Different types of electrical loads require specific sizing rules:

  • Resistive loads like heaters and lighting typically follow the 125% rule.
  • Hermetically sealed motors (e.g., in air conditioners) can allow up to 175%.
  • Welders may require up to 200%.
  • Motor Control Panel (MCP) breakers for motors should be sized at 125% or the next larger standard size.

Make sure the breaker size aligns with the wire gauge. For example, a 20-amp breaker needs 12 AWG copper wiring to prevent overheating. Proper coordination between breaker size, wire capacity, and load type is crucial for maintaining electrical safety.

Matching Breakers to Wire Size

When it comes to electrical safety, pairing the right circuit breaker with the correct wire gauge is absolutely essential. A circuit breaker’s primary job is to protect the wire by preventing it from carrying more current than it can safely handle. If the breaker’s rating exceeds the wire’s capacity, it might not trip in time, creating a serious fire hazard. This is why understanding wire ampacity and avoiding mismatches is so important.

Wire Gauge Ampacity Chart

To properly match breakers and wires, you need to understand wire ampacity. The American Wire Gauge (AWG) system measures wire thickness, with smaller numbers indicating thicker wires capable of carrying more current.

Wire Size (AWG) Maximum Breaker Size
14 15 amps
12 20 amps
10 30 amps
8 40 amps
6 55 amps
4 70 amps
2 95 amps

It’s also important to note that ampacity can vary depending on factors like temperature and installation conditions. For instance, an 18 AWG wire can handle 10 amps at 60°C but increases to 18 amps at 90°C. Similarly, wires bundled together in conduits or placed in areas with poor heat dissipation may require derating. For safety, circuits should operate at no more than 80% of their rated capacity to provide a margin for unexpected surges.

Preventing Wire and Breaker Mismatches

One of the most critical rules in electrical work: never use a breaker with a rating higher than the wire’s capacity. Common mistakes, like using a 20-amp breaker with 14-gauge wire or a 30-amp breaker with 12-gauge wire, violate electrical codes and pose serious safety risks.

Here’s what can go wrong with undersized wires:

  • Overheating: This can damage insulation and significantly increase the risk of fire.
  • Voltage Drops: Reduced efficiency can harm appliances and lead to performance issues.
  • Energy Waste: Higher resistance leads to energy loss, which can increase electricity bills.
  • Short Circuits: The risk of electrical fires and system failures grows significantly.

When in doubt, always opt for a thicker wire. Using a wire that’s too thin is not only unsafe but can also damage your appliances and increase fire risks. For longer wire runs (over 100 feet) or situations where heat dissipation is limited - like wires bundled in conduits - consider upgrading to the next larger wire size.

Additionally, ensure your appliances’ amperage requirements match the wire and breaker ratings. You can calculate amperage by dividing the appliance’s wattage by its voltage. If you’re upgrading to a higher-powered appliance, verify that your circuit breaker and wire gauge can handle the increased load.

Lastly, remember that copper wires can carry more current than aluminum wires of the same gauge. Most circuit breakers are designed to trip at 80% to 90% of their rated load, offering an extra layer of protection when the breaker and wire are correctly matched. Proper pairing of breakers and wires is a cornerstone of electrical system safety.

sbb-itb-501186b

Common Breaker Sizes and Uses

Choosing the right breaker size is crucial for both safety and compliance with electrical codes. Circuit breakers come in standard amperage ratings, each tailored to specific electrical loads and applications. Let’s break down the most common sizes and their uses.

Standard Residential Breaker Sizes

Homes typically rely on a few standard breaker sizes to handle everyday electrical demands.

  • 15-amp breakers: These are the workhorses of residential circuits, protecting lighting, general-purpose outlets, and small appliances. You’ll see them in spaces like bedrooms, living rooms, and hallways where electrical needs are relatively low.
  • 20-amp breakers: Found more often in newer homes, these breakers handle outlets and lighting circuits in areas with higher energy demands, such as kitchens, bathrooms, and laundry rooms. They’re perfect for powering devices like hair dryers and microwaves, helping avoid nuisance tripping.
  • 30-amp breakers: Commonly used for appliances like electric dryers and small air conditioning units, these breakers provide enough capacity for devices that draw more power.
  • 40–50-amp breakers: These are designed for heavy-duty appliances like stoves, ovens, and electric water heaters. For example, a 4,500-watt water heater running on 240 volts (drawing 18.75 amps) would typically require a 30-amp breaker. Larger units, like a 240V tankless water heater with a 27kW output, might need a 120-amp breaker.
  • 60-amp breakers: Ideal for larger applications, such as powering HVAC systems, electrical subpanels, or EV chargers.

Here’s a quick reference table for common residential breaker sizes:

Breaker Size (Amps) Applications
15 Lighting circuits, general outlets, small appliances
20 Kitchen circuits, bathroom circuits, laundry rooms
30 Electric dryers, small air conditioners
40-50 Stoves, ovens, electric water heaters
60 Large HVAC systems, subpanels, EV chargers

Older homes often lean on 15-amp circuits for outlets and lighting, whereas newer homes favor 20-amp circuits to better handle modern electrical needs.

Heavy-Duty and Industrial Applications

In industrial settings, breaker selection becomes even more critical, as the electrical loads and safety requirements are far greater. While residential breakers rarely exceed 200 amps, industrial systems often require much higher capacities, ranging from 70 amps to an impressive 6,000 amps.

  • 100-amp to 225-amp breakers: These are common in large commercial buildings and for powering heavy industrial equipment. They’re often used to protect main distribution panels in office spaces or manufacturing facilities.
  • 400-amp to 600-amp breakers: These serve high-demand operations like manufacturing plants and data centers. Handling such large loads requires detailed planning and professional expertise.
  • 1,000-amp and larger breakers: At the top end, these breakers are designed for the most demanding applications, such as multi-panel systems in massive facilities. These systems typically operate at higher voltages, like 480V or 600V, compared to the 120V/240V standard in residential homes.

One major difference between residential and industrial breakers lies in their durability and fault current interrupting capacity. Industrial breakers are built to handle harsher conditions and significantly higher fault currents, ranging from 25kA to 150kA, compared to the 10kA to 22kA typical of residential breakers.

When choosing a breaker, always calculate the wattage and amperage requirements of the devices it will protect. If you’re unsure about the total load or the best breaker size for your situation, it’s wise to consult a licensed electrician.

Meeting Electrical Code Requirements

Selecting the right breaker size isn’t just about safety - it’s also about meeting legal requirements. The National Electrical Code (NEC) provides the baseline for these rules, but local regulations often add their own layers of complexity. Understanding these codes is essential to ensure your installation is both safe and compliant.

NEC Breaker Sizing Rules

The NEC lays out detailed guidelines for breaker sizing, going well beyond simply matching amperage. Article 210 focuses on conductor sizing and overcurrent protection, covering both residential and commercial installations.

For circuits with continuous loads (those running for three hours or more), the NEC requires sizing at 125% of the load, plus any non-continuous loads. For example, if a lighting circuit draws 12 amps continuously, the breaker must handle at least 15 amps (12 × 1.25 = 15 amps).

The NEC also defines standard branch circuit ratings of 15A, 20A, 30A, 40A, and 50A for most applications. Circuits rated above 50 amps are limited to single appliances, such as HVAC systems or water heaters, and cannot power multiple outlets or lights. Additionally, conductor ampacity must not exceed the lowest temperature rating of connected components to prevent overheating.

When it comes to overcurrent protection, Section 240.4 requires fuses or breakers that do not exceed the conductor's ampacity. However, Section 240.4(B) offers some flexibility, allowing the use of the next higher standard breaker size under certain conditions.

Here’s a quick reference table for common wire sizes and their corresponding breaker ratings:

Wire Size (AWG) Material Maximum Ampacity Standard Breaker Size
14 Copper 15A 15A
12 Copper 20A 20A
10 Copper 30A 30A
12 Aluminum 15A 15A
10 Aluminum 25A 25A

For large-scale installations, Section 240.4(C) states that when overcurrent protection exceeds 800 amps, the conductor’s ampacity must match or exceed the protection device rating. This is especially critical in industrial settings, where precise coordination is necessary to handle heavy electrical loads.

When to Consult a Licensed Electrician

Even with clear NEC guidelines, some installations are too complex to handle without professional help. After determining breaker sizes and matching them with the correct wire gauge, consulting a licensed electrician ensures compliance with both national and local codes.

Electrical panel upgrades, for instance, require more than just picking a breaker. Load calculations, utility coordination, and permits are part of the process, and licensed electricians are equipped to handle these tasks. Their expertise ensures that your system meets all requirements for safety and reliability.

For industrial and commercial projects, professional involvement is non-negotiable. These systems often involve intricate calculations, specialized equipment, and coordination across multiple components. Mistakes here can lead to equipment damage, safety hazards, or costly downtime.

Some signs that you may need professional help include frequent breaker trips, dimming lights when appliances start, or difficulty adding new devices. These issues could point to an overloaded system or improper breaker sizing, both of which require expert diagnosis.

Environmental factors also play a role. Installations in areas with extreme temperatures, high humidity, or high altitudes often need specialized breakers and techniques. Electricians can recommend the right equipment for these challenging conditions.

Additionally, devices like Ground Fault Circuit Interrupters (GFCIs) and Arc Fault Circuit Interrupters (AFCIs) have specific requirements that vary depending on location and application. Licensed electricians stay up-to-date with these evolving codes and know exactly where these devices are required.

For larger systems, proper breaker coordination is key. This ensures that only the breaker nearest to a fault trips, minimizing system disruptions. Achieving this requires a detailed analysis of time-current curves and fault calculations - tasks that exceed typical DIY knowledge.

Whether you’re upgrading a panel, adding new circuits, or tackling a project that requires permits, hiring a professional is an investment in safety, compliance, and long-term performance.

Conclusion

Selecting the correct electrical breaker size isn’t just about following technical guidelines - it’s a safety measure that safeguards lives and property. As Dr. Jane Smith aptly states, "A dependable safety device is your primary protection against power fires". The consequences of mistakes, such as fires, equipment damage, and unnecessary downtime, can be severe.

The process begins with accurate load calculations, using the formula Amperes = Watts ÷ Voltage, and factoring in the 125% rule for continuous loads. Equally important is matching breaker ratings to wire ampacity - for instance, pairing 14 AWG copper wire with a 15-amp breaker or 12 AWG wire with a 20-amp breaker helps prevent overheating.

Data highlights the risks of improperly sized breakers, which can lead to failures to trip, fires, equipment damage, and even code violations that may affect insurance claims or property sales.

Tom Baynum, a Master Electrician and owner of Premiere Electric, shares a practical perspective: "One failure can cost many times more than the cost of normal maintenance and with much less downtime". This reminds us that investing in the right breaker size not only enhances safety but also ensures long-term reliability.

For more complex setups, consulting a licensed electrician is always the wisest choice. Professionals bring expertise in local codes, perform detailed load assessments, and ensure installations meet safety standards. Whether you’re adding circuits or upgrading a panel, their guidance protects your investment and guarantees compliance. With accurate sizing and expert advice, you can count on a safe and efficient electrical system.
