Switchgear Upgrades: What to Know

Switchgear upgrades are essential for keeping your electrical systems safe, efficient, and compliant with modern standards. Aging equipment can lead to safety risks, costly downtime, and inefficiencies, especially as energy demands rise. Here's what you need to know:

• Why Upgrade?
  Switchgear typically lasts about 20 years. Beyond that, reliability declines, safety risks increase, and maintenance costs soar. Modern systems improve safety, reduce energy use by up to 40%, and extend equipment life by 15–20 years.
• Key Warning Signs:
  Frequent breaker trips, overheating, difficulty sourcing parts, and visible wear are clear indicators your system may need an upgrade.
• Upgrade Options:
  1. Direct Replacement Breakers – Swap outdated breakers with modern ones for minimal disruption.
  2. Compartment Conversions – Add modern breakers to existing frames, saving costs.
  3. Hard Bus Retrofill – Upgrade to higher-capacity systems for growing power needs.
• Budgeting Tips:
  Plan for equipment, labor, and hidden costs like permits or structural changes. Set aside 10–20% for contingencies and consider lifecycle savings from energy-efficient systems.
• Compliance and Safety:
  Use certified components (e.g., UL, IEC standards) to meet safety codes and reduce risks like arc flashes or fires.

Proactively upgrading your switchgear prevents unexpected failures, improves efficiency, and ensures long-term reliability. Whether you're replacing breakers or overhauling your system, careful planning and expert guidance are critical for success.

Upgrade Your Medium Voltage Switchgear: Direct Replacement Solution | Schneider Electric

How to Know When You Need an Upgrade

Keeping an eye on your switchgear through regular inspections can help you spot early signs of wear and tear. As equipment ages, it not only becomes less efficient but also poses safety risks. Upgrading to modern systems ensures both safety and reliability while avoiding costly breakdowns. Here are the key signs that it might be time for an upgrade.

Warning Signs of Old or Failing Switchgear

If your switchgear is showing its age, you’ll likely notice some of these red flags:

• Frequent equipment failures: Repeated tripping of breakers or activation of protective devices often points to internal problems like insulation breakdown, worn contacts, or mechanical fatigue.
• Difficulty finding parts: When original manufacturer components become scarce, repairs can turn into a costly and time-consuming challenge.
• Outdated safety features: Older systems often lack modern protection mechanisms, increasing safety risks and possibly falling short of today’s electrical standards.
• Visible wear and tear: Cracks, discoloration, or corrosion on the equipment are clear signs of aging. Mechanical parts may also loosen or wear down, compromising reliability.
• Signs of overheating: Hot spots, discolored areas, or burning smells suggest issues like poor connections or excessive resistance. Thermal imaging inspections can help detect these problems early [5].
• Environmental damage: Moisture, dust, and corrosive conditions can speed up deterioration. For older setups, ensuring enclosures are properly sealed against moisture is especially critical.

Beyond visual checks, advanced monitoring systems can track internal issues like partial discharge or insulation breakdowns. However, interpreting this data correctly requires skilled professionals to avoid misdiagnosing potential problems.

Risks of Delaying Upgrades

Choosing to delay a switchgear upgrade can have serious consequences:

• Increased safety risks: Aging systems are more prone to arc flashes, fires, or even electrocution. Electrical faults are a leading cause of fires in commercial buildings, making modern upgrades essential for reducing these hazards.
• More downtime: Older equipment is more likely to fail, and repairs can take longer, leading to unexpected interruptions and operational setbacks.
• Rising costs: Inefficient systems often consume more energy, driving up utility bills. Additionally, non-compliance with current regulations can result in fines and other penalties.
• Sudden breakdowns: Ignoring the signs of aging equipment can lead to unexpected failures, often at the worst possible times, requiring costly emergency fixes.

Upgrading your switchgear isn’t just about keeping things running smoothly - it’s about staying safe, efficient, and ahead of potential problems. Proactively addressing these issues can save you time, money, and headaches in the long run.

Switchgear Upgrade Methods

Upgrading aging switchgear can significantly extend its lifespan and reduce costs by up to 70% compared to a full replacement, while also improving efficiency and reliability. The challenge lies in selecting the method that best suits your facility's needs, balancing cost savings with minimal downtime. Modern designs can even free up valuable space. Here are three effective approaches to consider.

Compartment Adapter Conversions

This method uses custom adapters to integrate modern breakers into your existing switchgear frames. By designing and fabricating adapters, you can fit modern breakers into older frames without major structural changes.

The main advantage? You reuse the existing frames, eliminating demolition costs while benefiting from modern breaker technology. These adapters ensure a secure and precise fit, bridging the gap between older systems and newer vacuum or SF6 breakers. This approach works best if your switchgear frames are in good condition but the internal components need an upgrade.

Direct Replacement Breakers

Direct replacement breakers offer a straightforward solution: swap out outdated breakers with modern ones that fit seamlessly into your existing cubicles. This method requires minimal modifications.

It’s particularly effective for upgrading older air-magnetic or oil breakers to modern vacuum or SF6 breakers. The newer technology improves performance, enhances safety, and boosts reliability - all without major structural overhauls. Plus, the installation process is quicker since the existing framework is retained. Just ensure the replacement breakers are UL certified for your application, and that any modifications maintain your system's UL marking.

Hard Bus Retrofill and Cradle-in-Cradle Solutions

For facilities needing greater capacity, hard bus retrofill and cradle-in-cradle solutions provide a more comprehensive upgrade. These methods convert low-voltage (LV) systems to medium-voltage (MV), significantly increasing system capacity and efficiency.

Though more complex, this approach can reduce energy consumption by up to 40%, making it a smart investment for facilities with high energy costs. It involves careful planning, engineering, and integration of new components. Partnering with qualified professionals ensures the modifications are properly designed and implemented.

This solution is ideal for facilities facing growing power demands or requiring higher voltage ratings. While the upfront costs are higher, the long-term benefits in capacity, efficiency, and reliability often outweigh the initial investment.

Choosing the Right Method

Selecting the best upgrade method requires a detailed evaluation of your current equipment, facility needs, and budget. Key factors include the age of your switchgear, availability of spare parts, compliance requirements, and plans for future expansion. By carefully assessing these elements, you can maximize the value of your upgrade while minimizing disruptions.

Pros and Cons of Switchgear Upgrades

Switchgear upgrades come with a mix of advantages and challenges. By weighing these factors, you can make better decisions about your electrical infrastructure investments. While the benefits can be substantial, these projects also require thoughtful planning and execution to address potential hurdles.

Benefits of Upgrading

Enhanced Safety and Reliability
Upgrading older systems reduces the risk of electrical failures and improves overall safety. Modern switchgear includes advanced safety features that weren't available in earlier designs, offering better protection for both equipment and personnel.

Extended Equipment Lifespan
Modernization can extend the lifespan of switchgear by 15 to 20 years, reducing the need for frequent replacements and simplifying maintenance.

Energy Efficiency
New switchgear systems can lower energy consumption by as much as 40%, translating to reduced energy costs and a smaller environmental footprint.

Advanced Monitoring and Control
Modern systems offer real-time data collection, predictive maintenance, and compatibility with smart grid technologies. These features provide better visibility into system performance, enabling proactive maintenance and reducing unexpected downtime.
For instance, one data center upgrade improved reliability by 40%, reduced maintenance downtime by 30%, and cut energy use by 15%.

Improved Maintenance Efficiency
Upgraded systems often include advanced features like digital microprocessor-based relays and power circuit breakers with high fault-current withstand capabilities. These innovations enhance protection, improve communication, and speed up response times.

Common Challenges

Compatibility Issues
Merging modern switchgear components with older infrastructure can be tricky. Custom engineering solutions are often needed, adding complexity and cost to the project.

Custom Engineering Requirements
Every facility has unique conditions and configurations, which means most upgrades require tailored designs. This customization can extend project timelines and increase expenses.

Unplanned Costs During Installation
Unexpected issues, like structural modifications or additional compliance requirements, can arise once the project begins. These surprises highlight the importance of contingency planning and flexible budgets.

Compliance and Certification Challenges
According to IEEE C37.59-2018, upgrades must meet or exceed the original system's performance, insulation, and safety standards. Ensuring compliance while integrating new technology requires detailed documentation and rigorous verification.

Project Coordination Complexity
Switchgear upgrades often involve coordinating multiple trades, managing downtime, and maintaining safety during live electrical work. These factors can make project management more challenging.

Comparison Table: Methods, Benefits, and Drawbacks

Upgrade Method	Cost Range	Downtime Required	Complexity Level	Safety Improvements	Key Benefits	Main Drawbacks
Direct Replacement	Low to Moderate	Minimal	Low	Moderate	Quick installation with minimal modifications	Limited capacity increase
Compartment Adapters	Moderate	Low to Moderate	Moderate	High	Retains existing frames while adding modern tech	May require custom fabrication
Hard Bus Retrofill	High	Moderate to High	High	Very High	Boosts capacity and saves energy (up to 40%)	Complex engineering; higher costs

The table highlights how each upgrade method balances cost, complexity, and benefits. Direct replacement is simple but offers limited improvements, while hard bus retrofill delivers significant upgrades at a higher cost and complexity.

Risk Mitigation Strategies
To minimize risks, consult experienced engineers early in the process. They can help identify potential issues before they escalate. Partnering with certified manufacturers ensures modifications meet industry standards, while thorough documentation aids compliance and future maintenance.

Success in switchgear upgrades hinges on careful planning, realistic budgeting, and collaboration with professionals who understand both the technical and logistical aspects of modernizing these systems.

sbb-itb-501186b

Cost Planning and Budgeting

When diving into switchgear upgrades, it's not just about the technical details - getting the budget right is just as important. The true cost of these upgrades goes well beyond the price of the equipment itself. With the U.S. switchgear market projected to grow from $19.31 billion in 2024 to $33.93 billion by 2034, facility managers need a clear game plan to manage these investments effectively.

Here’s a closer look at the key cost components and practical budgeting strategies.

What Goes Into Upgrade Costs

Equipment Procurement
A big chunk of your budget will go toward purchasing the switchgear itself. Prices vary depending on factors like voltage, capacity, and advanced features. For example, modern "intelligent" switchgear with capabilities like fire detection and smart power management tends to cost more but delivers long-term savings and operational improvements.

Engineering Design and Consultation
Integrating new components into an existing system often requires custom engineering solutions. These design and consultation services, especially for complex setups, can add notable costs due to the detailed assessments needed for compatibility.

Fabrication and Manufacturing
Custom fabrication - like compartment adapter conversions or hard bus retrofill projects - requires specialized manufacturing. These processes can drive up costs, especially if custom components have long lead times, potentially extending project timelines.

Installation Labor
Skilled labor is another major expense. Hiring experienced electrical contractors ensures proper installation, reduces the risk of costly mistakes, and enhances safety.

Commissioning and Testing
Thorough commissioning and testing are critical to verify that the upgraded system meets safety and performance standards. While these steps add to the budget, they’re essential for ensuring long-term reliability.

Hidden Cost Factors
Don’t overlook additional expenses like permit fees, structural changes, disposal of old equipment, and site cleanup. These can quietly inflate your overall costs if not accounted for upfront.

Budgeting Tips for US Projects

Establish Realistic Cost Baselines
Opting for direct replacement circuit breakers can reduce project costs by over 40% compared to replacing an entire system. Knowing your options is key to keeping your budget in check.

Plan for Contingencies
Set aside 10%–20% of your budget as a contingency fund. This cushion can cover unexpected costs like material price hikes or unforeseen issues, such as outdated wiring or structural challenges.

Consider Total Lifecycle Costs
While automated switchgear comes with higher upfront costs, it often leads to lower operational, maintenance, and lifecycle expenses compared to manual systems. Weighing these long-term savings can help justify the initial investment.

Justify Investments with Production Impact
Lost production and failure costs are often the strongest arguments for upgrades. According to an ARC Advisory Group survey, 41% of respondents highlighted these as key reasons for upgrading electrical systems.

"In the current environment of scarce funds for capital expenditure, ARC Advisory Group recommends that users justify electrical power systems upgrades or replacements by emphasizing the costs of lost production and the cost of failure."

Obtain Multiple Quotes
Getting estimates from several licensed contractors ensures competitive pricing. Discuss permit requirements, cleanup responsibilities, and potential structural changes upfront to avoid surprises later.

Time Your Project Strategically
Schedule upgrades during planned maintenance windows to minimize downtime. Assess your systems thoroughly beforehand to align the work with existing outages and avoid unplanned interruptions.

Account for Service Upgrades
If your upgrade increases power demands, you might need to upgrade service lines. This can cost several thousand dollars. Similarly, rewiring to handle higher loads can range from $1,500 to over $10,000, depending on the size and complexity of your facility.

Balancing short-term costs with long-term benefits is the cornerstone of successful budgeting. While switchgear upgrades require a significant investment, smart financial planning - including strategies that can save up to 40% - can make the process smoother and ensure you get the most value out of your project.

Finding Equipment and Support

Once you’ve set your budget, the next step is sourcing high-quality equipment and dependable suppliers to ensure a smooth and successful switchgear upgrade.

Why Compliant Components Matter

The success of any upgrade hinges on using certified, compliant equipment that not only safeguards lives but also minimizes costly downtime. In the United States alone, electrical fires account for over 50,000 incidents annually, causing more than $1.3 billion in property damage. On top of that, electrical hazards claim the lives of over 300 workers and result in approximately 4,000 injuries each year.

To ensure safety and reliability, verify that components meet key compliance standards such as UL certification, IEC standards, ISO 9001 quality management systems, CE Marking, and CB Scheme certifications. Don’t just take a supplier’s word for it - request valid certificates and recent audit reports to confirm adherence to these standards.

When assessing components, focus on material quality and suitability for the environment. For conductors and enclosures, high-grade metals like copper, aluminum, and stainless steel are ideal, while insulating materials should include epoxy, ceramics, or advanced polymers tailored to your voltage class. Components must also endure harsh conditions like extreme temperatures, humidity, vibrations, and chemical exposure specific to your facility. Additionally, ensure new components align with your existing equipment’s voltage ratings, current capacities, temperature ranges, and dimensions. Mismatched components can lead to costly integration issues and project delays.

Establishing this compliance groundwork sets the stage for effective sourcing strategies.

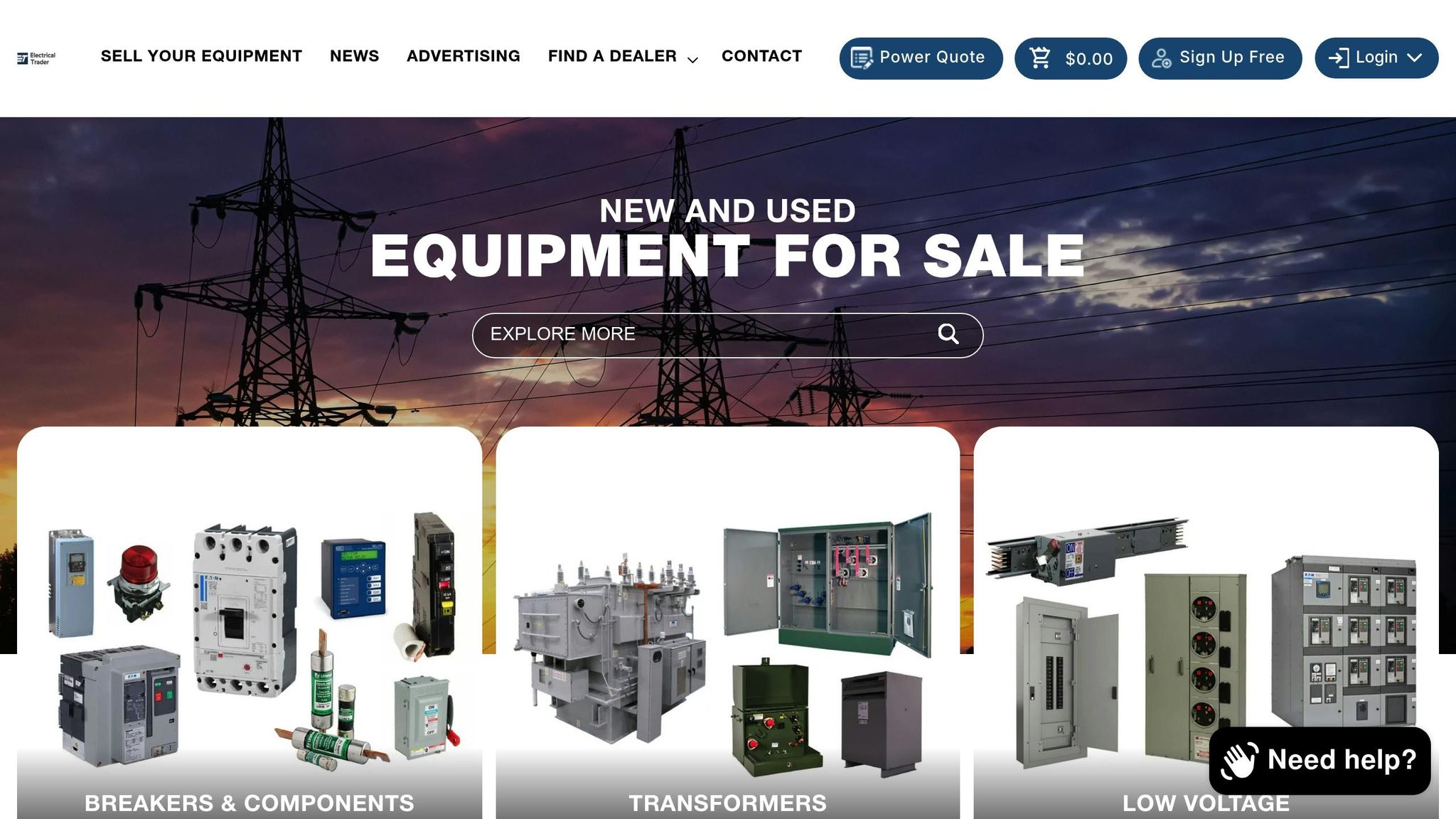

Using Electrical Trader for Sourcing

Once compliance is addressed, finding a reliable source becomes critical. Traditionally, sourcing switchgear components involved juggling multiple vendors and lengthy negotiations. Electrical Trader simplifies this process by offering a centralized marketplace for electrical components and power distribution equipment.

The platform provides access to both new and used products, offering flexibility to accommodate various budgets and timelines. Designed for buyers, sellers, electricians, and end-users alike, Electrical Trader creates a one-stop ecosystem for switchgear upgrades. Its extensive catalog includes breakers, transformers, low- to high-voltage equipment, and power generation tools, enabling you to source multiple components from a single platform. This not only streamlines procurement but also reduces the complexity of managing multiple vendors.

For switchgear upgrades, this centralized approach can save significant time while providing access to quality components that align with your budget and project needs.

Working with Reliable Suppliers

To ensure a seamless upgrade, it’s vital to partner with suppliers who deliver not just quality components but also comprehensive support throughout the installation and beyond. The best suppliers act as true partners, committed to the success of your project.

Engineering support and fitment verification are key services to look for. Trusted suppliers will help ensure that components integrate seamlessly with your existing systems, potentially saving you from expensive compatibility issues. This includes reviewing your specifications, confirming voltage and current ratings, and identifying potential challenges before you make a purchase.

Technical documentation and support are equally important. Look for suppliers who provide detailed specs, installation guides, wiring diagrams, and ongoing support. Make sure to secure written guarantees on warranty terms, local service availability, and response times.

Testing and quality assurance should never be overlooked. Reliable suppliers should offer or facilitate critical testing services such as dielectric testing, high-potential testing, primary and secondary injection testing, contact resistance measurement, and thermal imaging verification. For high-stakes applications, consider hiring independent inspectors to perform pre-shipment checks, especially when sourcing from regions with varying regulatory standards.

Suppliers with strong inventory management, realistic lead times, and proactive communication can prevent delays. Additionally, evaluate the total cost of ownership by considering long-term support, availability of replacement parts, and the supplier’s ability to minimize downtime costs. For components used in challenging environments, ensure suppliers provide proper surface treatments and corrosion protection.

Working with suppliers who meet these criteria turns your switchgear upgrade into a well-managed project with predictable results, eliminating unnecessary headaches and ensuring lasting success.

Key Takeaways

Upgrading legacy switchgear is a smart move to protect your investment, ensure safety, and maintain smooth operations. Modern switchgear systems can cut energy use by up to 40% while extending the lifespan of equipment by 10–20 years. These upgrades don’t just improve efficiency - they also translate into meaningful cost savings and enhanced safety.

Annual electrical safety audits are another crucial step, reducing electrical incident rates by as much as 60%. Waiting for warning signs like frequent breaker trips or visible wear can be risky. As Spike Electric explains:

"Switchgear conversions give you the power of modern infrastructure without the cost or chaos of full replacement. But they require deep engineering knowledge, precision execution, and a safety-first mindset."

These statistics highlight the importance of acting proactively. Upgrades don’t have to break the bank - methods like compartment adapter conversions, direct replacement breakers, or hard bus retrofill solutions can save 30–70% compared to full replacements. The key is selecting the approach that fits your specific requirements and constraints.

Compliance is non-negotiable. Upgrading ensures adherence to OSHA, National Electrical Code, and NFPA 70E standards. Plus, the International Labour Organization reports that every dollar spent on workplace safety delivers a return of at least four dollars in reduced costs and increased productivity.

Finally, sourcing the right components is critical. Make sure to use certified, compliant equipment that meets standards like UL and IEC. Platforms such as Electrical Trader simplify this process by offering both new and used components in one place, saving time and cutting down on vendor complexity.

FAQs

What are the best ways to upgrade switchgear while keeping downtime and costs low?

Upgrading switchgear while keeping downtime to a minimum is possible with retrofitting. This process involves swapping out older components, like protective relays or circuit breakers, for modern ones. It’s often a more cost-effective and quicker solution compared to a full system replacement, which helps keep operations running smoothly.

Another smart option is opting for modular upgrades. These include pre-assembled substation modules or tailor-made equipment designed to integrate seamlessly with your existing setup. This approach speeds up installation and avoids the need for major modifications, saving both time and money.

Focusing on targeted upgrades rather than complete system overhauls allows you to improve reliability and efficiency without breaking the bank or causing significant interruptions.

What steps should I take to ensure my switchgear upgrade meets current safety and electrical standards?

To make sure your switchgear upgrade meets the latest safety and electrical standards in the United States, it’s essential to adhere to key regulations like UL standards - such as UL 1558 for low-voltage switchgear - and the National Electrical Code (NEC). These guidelines are crucial for maintaining safety and compliance nationwide.

During and after the upgrade, carry out detailed inspections and testing. Confirm that all modifications satisfy UL requirements and that the equipment complies with updated safety protocols. Regular maintenance, combined with strict adherence to these standards, can help minimize risks and ensure your system performs reliably.

What are the financial advantages of upgrading outdated switchgear to modern systems?

Upgrading to modern switchgear systems can lead to substantial long-term savings. These systems are built with energy efficiency in mind, often cutting energy consumption by up to 40%. For businesses, this means noticeably lower utility bills and reduced day-to-day operating costs.

Beyond energy savings, modern switchgear offers greater reliability and improved safety, significantly reducing the risk of unexpected outages and expensive repairs. With less downtime and lower maintenance expenses, companies can save thousands each year while keeping operations running smoothly. Over time, these upgrades not only reduce overall ownership costs but also boost system efficiency.
