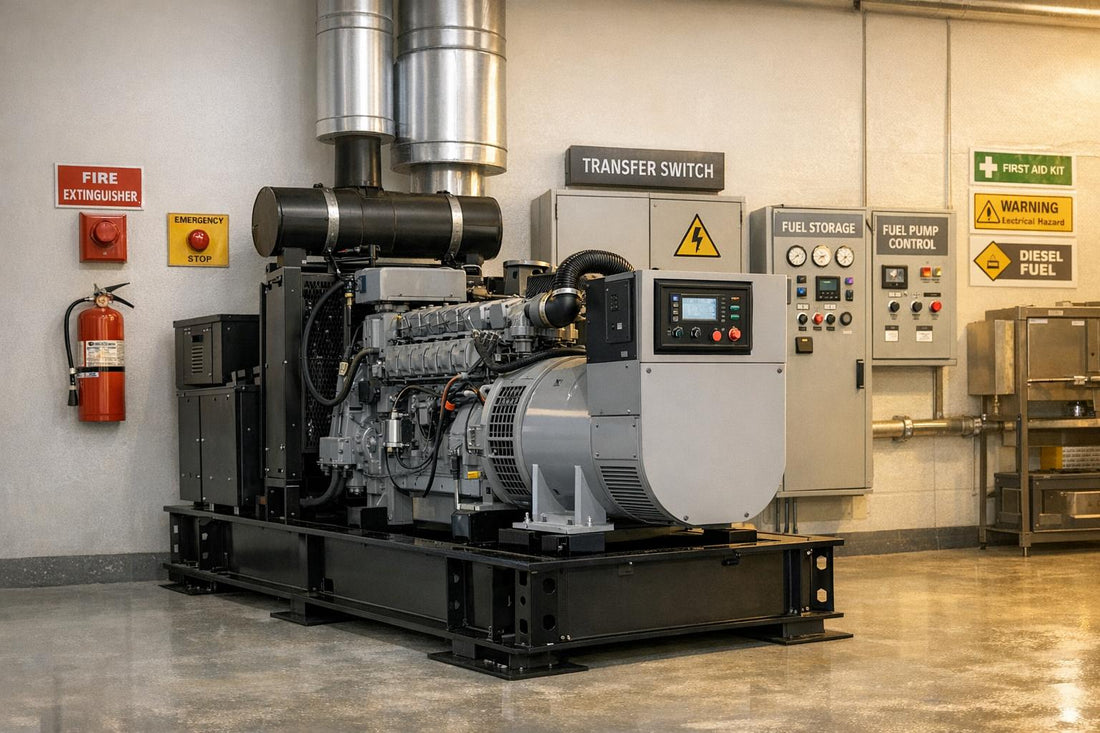

NFPA 110: Generator Safety Standards Explained
NFPA 110 is the key standard for ensuring emergency power systems perform reliably during power outages. It establishes guidelines for design, installation, and maintenance of Emergency Power Supply Systems (EPSS), critical for facilities like hospitals and data centers. The standard categorizes systems by Level (importance to safety), Class (runtime without refueling), and Type (time to restore power). For instance, a Type 10 system must restore power within 10 seconds, while a Class 96 system must run for at least 96 hours.
Key highlights include:
- Level 1 and Level 2 Systems: Level 1 systems are used in life-critical applications (e.g., hospitals), requiring stringent installation and testing. Level 2 systems are for less critical needs.
- Installation Requirements: Includes proper generator sizing, fuel storage (133% of required runtime), and protection against hazards like floods and fires.
- Maintenance and Testing: Regular inspections, monthly load tests, and triennial extended runtime tests ensure reliability.
- AHJ Approval: Compliance is verified by the Authority Having Jurisdiction (AHJ), who oversees design and testing.
NFPA 110 ensures these systems are ready when needed, safeguarding lives and maintaining uninterrupted operations during emergencies.
Understanding Ratings for Emergency Power Supply Systems in NFPA 110
EPSS Classification Under NFPA 110
NFPA 110 Emergency Power System Classification Guide: Levels, Classes, and Types
This section delves into how NFPA 110's classification system ensures emergency power supply systems (EPSS) operate effectively and safely, aligning generator capabilities with facility needs.
NFPA 110 employs a three-part classification system - Level, Class, and Type - to guide the design, installation, and maintenance of EPSS. These designations are critical for selecting equipment that meets both operational demands and code requirements.
Level 1 vs. Level 2 Systems
Level 1 systems are reserved for the most critical applications, where failure could lead to severe consequences. As Curtis Power Solutions states:
"Level 1 classifications are the most stringent and imposed where failure of the equipment to perform could result in loss of human life or serious injuries."
These systems are commonly used in facilities like hospitals, fire pumps, emergency lighting, and fire alarms - situations where power loss could jeopardize life safety. On the other hand, Level 2 systems are designed for less critical scenarios, such as heating, sewage disposal, or certain industrial processes, where power interruptions impact operations but don't directly threaten human life.
The requirements for these levels differ significantly. For example, Level 1 generators must be installed in dedicated spaces with a two-hour fire-resistance rating and located in areas safe from flooding. They also undergo rigorous testing, such as a load bank test every 36 months. Level 2 systems, however, follow standard maintenance schedules. Ultimately, the Authority Having Jurisdiction (AHJ) determines the appropriate level based on codes like NFPA 101 (Life Safety Code) and NFPA 99 (Health Care Facilities Code).
Beyond Levels, NFPA 110 also defines Class and Type designations, which address runtime and restoration requirements.
EPSS Classes and Types
The "Class" designation in NFPA 110 specifies the minimum duration a generator must operate at its rated load without refueling. Meanwhile, the "Type" designation sets the maximum time allowed to restore power after a primary power failure. These classifications influence equipment choices and fuel storage strategies.
Here’s a breakdown of Class and Type requirements:
| Class | Minimum Runtime | Type | Maximum Restoration Time |
|---|---|---|---|
| Class 2 | 2 hours | Type 10 | 10 seconds |
| Class 6 | 6 hours | Type 60 | 60 seconds |
| Class 48 | 48 hours | Type 120 | 120 seconds |
| Class X | User-defined, typically 72–96 hours | Type M | Manual (no time limit) |
For life safety loads under Level 1, Type 10 mandates power restoration to load terminals within 10 seconds. Meeting this requirement often involves automatic transfer switches and reliable battery systems. Additionally, NFPA 110 stipulates that main fuel tanks must hold 133% of the fuel needed for the designated Class runtime. For instance, a Class 96 system in a remote location might require extra planning to account for fuel delivery schedules.
To avoid errors in classification, it’s critical to map out every electrical load supported by the generator. A facility may have both Level 1 loads (requiring Type 10 restoration) and Level 2 loads (tolerating longer restoration times). In these cases, the system must be designed to meet the most critical requirement, ensuring compliance and operational reliability.
Generator Installation Standards
Proper installation plays a pivotal role in ensuring generator systems meet the performance and reliability benchmarks set by NFPA 110. Chapter 7 of NFPA 110, titled "Installation and Environmental Considerations", outlines the critical requirements for generator setup. These guidelines cover aspects like generator sizing, fuel storage, environmental safeguards, and room specifications, all of which contribute to the system's dependability during emergencies.
Generator Sizing and Fuel Storage
Getting the generator size right is non-negotiable. The Emergency Power Supply (EPS) must be capable of handling the entire emergency load in a single step. This means the generator must not only have the capacity but also the speed to take on the full load within the timeframe dictated by its Type classification - 10 seconds for Type 10 systems or 60 seconds for Type 60 systems.
Fuel storage is equally critical. Tanks must be sized to hold 133% of the fuel required to power the generator for the system's designated runtime:
"Regardless of the type of fuel, it needs to be sized to 133 percent of the fuel required to run the generator for the time required by the class of the system."
Since only about 80% of a tank's total capacity is usable, this ensures an adequate reserve. For Level 1 systems, fuel cannot be shared with non-emergency uses unless the system design prevents other equipment from depleting the emergency reserve.
Placement of fuel tanks is another key factor. Tanks must be close enough to meet the engine’s fuel pump suction requirements. If the main tank is too far or positioned at a lower elevation, a fuel transfer pump and day tank become necessary. For colder regions, using Grade #1 diesel or a blend is advisable, as it resists gelling better than standard Grade #2 diesel.
Once sizing and storage are addressed, the next step is safeguarding the system against environmental risks to ensure uninterrupted operation.
Protection from Environmental Hazards
NFPA 110 mandates that generator systems remain operational during extreme conditions, including floods, earthquakes, fires, and storms. CK Power emphasizes:
"Your EPSS needs to be designed to operate in flood, earthquake, fire and storm conditions."
For flood protection, generators must be installed above the base flood elevation or in areas safe from flooding. Seismic protection is critical in high-risk zones, where facilities often face Class X requirements, including a 96-hour runtime capability. Additionally, Level 1 systems require dedicated rooms with a two-hour fire-resistance rating. Ventilation systems in these rooms must maintain the fire rating while efficiently removing heat generated by the radiator, alternator, and exhaust.
To minimize mechanical wear, vibration isolators are used for mounting, protecting both the generator and the building structure. Outdoor installations require adequate clearance from building openings and combustible materials, along with weatherproofing and sound-dampening measures. For Level 1 systems, the generator room must maintain a minimum ambient temperature of 40°F (4.5°C) to ensure reliable startup.
These measures ensure the system is equipped to handle environmental challenges and transitions seamlessly to power transfer mechanisms.
Transfer Switches and Room Requirements
Automatic transfer switches (ATS) are essential for monitoring the primary power source and transferring the electrical load to the generator during outages. For Level 1 systems, power restoration must occur within 10 seconds.
Room specifications for Level 1 installations are stringent. Generators must be housed in dedicated spaces free of non-EPSS equipment, except for essential maintenance tools. Additionally, Level 1 EPSS equipment cannot share space with normal service equipment rated over 150V to ground and 1,000 amps or more. Proper ventilation is critical to expel heat from the engine, alternator, and exhaust, ensuring safe operation and preserving the two-hour fire-resistance rating.
Consulting with your local Authority Having Jurisdiction (AHJ) during the design phase is essential. NFPA 110 defines "approved" as "acceptable to the AHJ", and local regulations may impose additional requirements beyond the standard.
sbb-itb-501186b
Maintenance and Testing Requirements
Getting an emergency power system installed is just the beginning. NFPA 110 Chapter 8 outlines a structured maintenance and testing program to ensure these systems remain dependable throughout their lifespan. As Curtis Power Solutions states:
"The continued reliability of the EPSS is dependent on an established program of routine maintenance and operational testing."
Regular inspections and testing are non-negotiable. Facilities are required to follow both the manufacturer's guidelines and the minimum standards set by NFPA 110. All tasks must be handled by qualified personnel to maintain readiness and reliability.
Inspection and Testing Schedules
NFPA 110 Chapter 8 specifies weekly visual inspections to monitor fuel levels, oil pressure, cooling systems, battery voltage, and the overall condition of the equipment. These routine checks help identify and address potential issues early.
Monthly generator testing is also mandatory. During these tests, the generator must run under load for at least 30 minutes at a minimum of 30% of its nameplate kW rating. This prevents wet-stacking, a problem that occurs when diesel engines operate under insufficient load. If there are multiple automatic transfer switches, rotate which switch initiates the test each month to ensure all starting functions are verified.
For diesel generators that can't meet the 30% load during monthly tests, annual load bank testing is required. This involves running the generator at 25% load for 30 minutes, 50% load for another 30 minutes, and 75% load for a full hour. Additionally, Level 1 circuit breakers must be exercised annually with the EPS in the "off" position.
Level 1 systems undergo a more rigorous test every 36 months. These systems must operate for the duration of their assigned class, up to a maximum of four continuous hours. This triennial test ensures the system can handle extended outages.
Beyond operational testing, maintaining fuel quality and keeping detailed records are vital for long-term reliability.
Fuel Quality and Record Keeping
Fuel degradation is a leading cause of generator failures. Curtis Power Solutions highlights this issue:
"Fuel quality and fuel management are concerns since many generator failures are attributed to poor fuel quality, contamination, and other fuel system problems."
To address this, annual fuel quality testing using ASTM standards (such as ASTM D 975 for diesel) is required. For added precaution, semi-annual testing can help catch potential issues earlier. Fuel samples should be taken from the tank bottom for visual checks and from the lower levels for quality testing, as this is where the engine draws fuel. If contamination is detected, fuel polishing (filtering and cleaning) or a complete fuel replacement may be necessary.
Keeping meticulous records of all inspections, tests, repairs, and modifications is equally important. Each log entry should include the date, the name of the servicing personnel, any identified issues, and the corrective actions taken. Additionally, facilities should maintain two sets of instruction manuals - one near the equipment and another in a separate, secure location. Records must be stored on-site and made available for review by the Authority Having Jurisdiction. While NFPA 110 doesn't specify how long records should be retained, a three-year minimum is often recommended.
Lastly, whenever the emergency generator is out of service for maintenance or testing, a portable generator or alternate power source must be provided. This ensures uninterrupted protection during routine upkeep.
How to Achieve NFPA 110 Compliance
To meet NFPA 110 standards, you need to focus on thorough testing, collaboration with your Authority Having Jurisdiction (AHJ), and the use of equipment designed for emergency power systems. Compliance hinges on proper classification, installation, and testing, all under the watchful eye of your AHJ. As the NFPA itself states: "The NFPA doesn't certify any equipment or installations - your AHJ does." Before starting installation, you must determine your system's Level (its importance for life safety), Class (minimum runtime), and Type (power restoration speed). These steps ensure that every part of your Emergency Power Supply System (EPSS) aligns with NFPA 110 requirements.
Initial and Periodic Testing
Compliance begins with a two-hour on-site acceptance load test, which your AHJ must supervise. This test evaluates how well your generator, transfer switches, conductors, and control equipment function together as a complete system under real-world conditions.
After commissioning, ongoing testing is essential. Monthly tests are required to confirm the generator meets the necessary load. If it falls short, annual load bank testing at 25%, 50%, and 75% capacity becomes mandatory. These tests ensure your EPSS remains reliable and ready to perform when needed.
Working with Authorities Having Jurisdiction
Your AHJ - often a fire marshal, building code official, or health department - has the final say on compliance. Engaging with them early in the design phase is crucial. They’ll help define your facility's specific Class, Type, and Level requirements based on local codes. The AHJ also oversees key aspects like approving your maintenance program, witnessing acceptance tests, and inspecting documentation during routine evaluations. As one source notes: "Ultimately, though, the AHJ has final say in whether or not your EPSS installation is compliant."
After obtaining AHJ approval, the next step is sourcing equipment that meets these standards.
Sourcing Compliant Equipment
It’s important to note that individual components can’t be labeled as "NFPA 110 compliant." Compliance is achieved only when the entire system is installed and tested correctly. That’s why selecting equipment specifically designed for emergency standby applications is critical. Platforms like Electrical Trader provide access to reliable diesel generators, transfer switches, and power distribution equipment tailored for EPSS installations. Choosing dependable components from trusted suppliers helps ensure your system meets the rigorous standards required during both initial testing and ongoing operation.
Conclusion
NFPA 110 lays out a detailed framework designed to save lives by ensuring that emergency power systems, especially in critical settings like hospitals and high-rise buildings, restore power quickly and undergo thorough testing. For Level 1 systems, where failure could result in severe injury or loss of life, these standards are non-negotiable.
But beyond the technical requirements, compliance offers additional operational advantages. Following NFPA 110 not only protects lives but also helps avoid potentially devastating financial losses. As Brian O'Connor, Technical Services Engineer at NFPA, points out:
"The failure of one or more of these subsystems could compromise the ability of the emergency power system to deliver electricity in an emergency".
Routine maintenance plays a key role in identifying common issues, such as battery failures, before they escalate into full system breakdowns.
NFPA 110’s structured approach ensures that every component of your emergency power system is built and maintained for peak reliability. Compliance is enforced by your Authority Having Jurisdiction (AHJ), making it both a legal requirement and a practical safeguard.
Key practices like keeping detailed records, conducting load bank tests when necessary, and maintaining duplicate instruction manuals are essential for ensuring reliability. As the NFPA 110 Standard states:
"The continued reliability of the EPSS is dependent on an established program of routine maintenance and operational testing".
When primary power fails, NFPA 110 compliance ensures your Emergency Power Supply System delivers electricity exactly when it’s needed most. Proper installation, regular testing, and ongoing maintenance not only meet regulatory demands but also ensure safety, operational continuity, and peace of mind during emergencies.
FAQs
What is the difference between Level 1 and Level 2 generator systems in NFPA 110?
Under NFPA 110, generator systems are classified into two categories: Level 1 and Level 2, depending on how critical the systems they support are.
- Level 1 systems are intended for situations where failure could lead to loss of life or serious injury. Think of applications like hospitals, fire protection systems, or emergency shelters. These systems are held to the highest standards of reliability and performance.
- Level 2 systems serve less critical needs where failure doesn’t directly endanger lives. Examples include backup power for small businesses or systems that aren’t tied to emergencies.
Knowing these classifications is key to choosing and maintaining the right generator system for its purpose, ensuring both safety and dependability remain priorities.
What does NFPA 110 say about runtime and restoration time for emergency power systems?
NFPA 110 divides emergency power systems into two main categories: runtime and restoration time.
Runtime is determined by the system's "class", which defines how long the system can operate without needing refueling. For example, a Class 0.083 system is designed to run for about 5 minutes, while a Class X system allows users to set the runtime according to their specific requirements.
Restoration time is governed by the system's "type", which specifies how quickly power must be restored after an outage. A Type 10 system, for instance, must restore power and transfer the load within 10 seconds. These classifications are essential for ensuring that emergency power systems meet the necessary safety and reliability standards for their intended uses.
Why should the Authority Having Jurisdiction (AHJ) be involved in installing emergency power systems?
Incorporating the Authority Having Jurisdiction (AHJ) is a key step in making sure your emergency power system aligns with NFPA 110 standards and complies with local building codes. The AHJ plays a vital role in confirming that the system is designed, installed, and tested correctly to meet all necessary safety standards.
By involving the AHJ, you not only streamline the approval process but also ensure that critical life-safety loads stay operational during power outages. This safeguards both individuals and property when it matters most.
