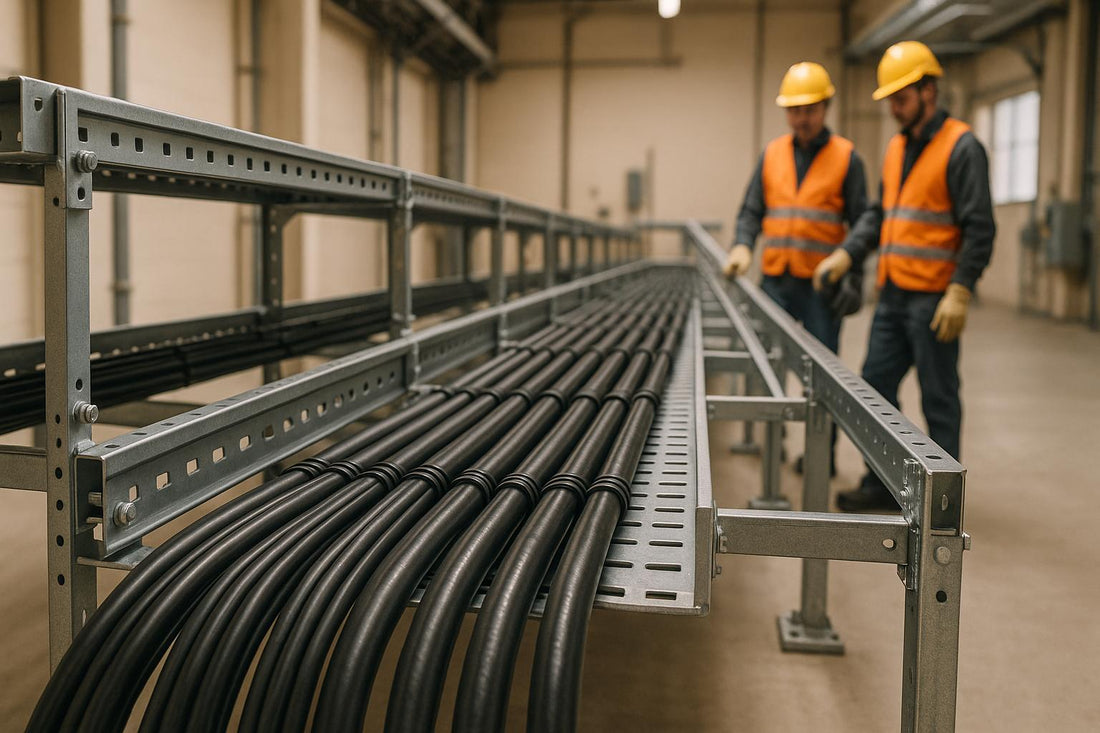

Medium Voltage Cable Tray Installation Steps

Installing medium voltage cable trays requires precision and planning to ensure safety and reliability. Here's what you'll learn:

• Planning: Assess cable requirements, calculate loads, and select the right tray system (ladder, trough, or wire mesh) based on factors like weight and environment.
• Preparation: Clean the site, mark tray positions, and ensure accurate measurements to avoid errors.
• Installation: Mount brackets, align trays, and connect sections securely using proper tools and materials.
• Cable Management: Lay cables neatly, follow bend radius requirements, and avoid overloading trays.
• Grounding & Testing: Bond metallic components, test continuity, and inspect the entire system for safety and compliance.

Use durable materials, follow spacing guidelines, and document every step for future maintenance. Proper execution ensures long-term performance and minimizes risks.

Full guide of cable tray installation and sizing - Part 1

Planning and Preparation

A well-thought-out plan is the backbone of a smooth installation process. Investing time in preparation upfront can save you from headaches, delays, and costly mistakes down the road.

Determining Cable Requirements

Start by taking stock of all the cables you'll be working with. Identify each cable's type, gauge, length, and weight. Whether you're dealing with power cables, control lines, or communication cables, each type has unique voltage ratings and insulation needs that you must consider.

Next, calculate the total number of cables and their combined weight. This step is crucial because it directly impacts the capacity of the cable tray you’ll need. For instance, if you have 50 power cables weighing 2–3 lbs/ft and 30 control cables at 0.5 lb/ft, the total load could reach around 130–160 lbs per 10-foot tray section. Such calculations help you choose the right tray for your needs.

Don’t just plan for today - think ahead. Consider potential cable additions over the next 3–5 years. A good rule of thumb is to use no more than 40% of the tray's rated capacity to allow for airflow and future expansion. For example, if your tray supports 100 pounds per foot, aim to keep the load below 40 pounds per foot.

Thermal expansion can add up to 15% more load, so factor this into your calculations. If you're unsure about your requirements, consult with the cable manufacturer or a professional engineer. These detailed assessments will guide every decision you make during installation.

Choosing the Right Cable Tray System

Selecting the right cable tray system depends on your environment and application. Here are the three main types of trays to consider:

• Ladder trays: With two rails and rungs, these are ideal for heavy loads and provide excellent ventilation. They’re a popular choice for medium voltage installations in indoor commercial spaces.
• Trough trays: Featuring a fully enclosed bottom, these trays protect cables in dusty environments where debris is a concern.
• Wire mesh trays: Lightweight and offering great airflow, these work best for indoor settings but have lower load capacities compared to ladder or trough trays.

Material selection is just as important as tray type. Each material has its strengths:

Material	Cost per 10-Foot Section	Best Application
Galvanized Steel	$80–$150	Most indoor and outdoor settings
Stainless Steel (AISI 316L)	$150–$300	Humid, coastal, or chemically harsh environments
Aluminum	$120–$250	Lightweight installations with lower load needs
Fiberglass	$200–$350	Corrosive chemical environments

Galvanized steel is a cost-effective option with solid corrosion resistance for general use. In high-humidity or coastal areas, stainless steel (AISI 316L) is worth the extra cost, thanks to its self-healing chromium oxide layer that enhances durability. Aluminum is a lightweight alternative but supports less weight, while fiberglass is ideal for chemical-heavy environments where metals might fail.

Collecting Required Tools and Materials

Having all the necessary tools and materials ready before you start can save you from unnecessary delays. Your toolkit should include equipment for measuring, installation, and safety.

For layout tasks, you’ll need tools like a 50-foot measuring tape, a level, marking tools, and chalk or laser guides. For installation, gather a power drill, screwdriver set, impact driver, torque wrench, cable rollers, guide wheels, and cable lubricants. A torque wrench is especially important to ensure hardware is tightened to manufacturer specifications, preventing damage or distortion. Use soft cable ties or velcro straps to secure cables without harming their insulation; avoid hard plastic zip ties, which can degrade insulation over time.

Safety gear is non-negotiable. Equip yourself with safety glasses, work gloves, a hard hat, and steel-toed boots. Include a voltage tester to confirm circuits are de-energized and a multimeter for continuity checks.

Budget around $2,000–$5,000 for a complete professional toolkit. Many electricians already own basic tools and may only need specialized equipment for cable installation.

For materials, your list should include tray sections (ladder, trough, or wire mesh), mounting brackets rated for your calculated load, U-bolts or clamps for securing trays, splice plates for joining tray sections, and expansion joints to handle thermal changes. Use hardware compatible with the tray material to prevent galvanic corrosion.

For medium voltage systems, grounding and bonding are critical. Gather bonding straps or cables (2/0 or larger copper is common), grounding lugs, and continuity testing equipment. Cable dividers, separators, and labeling materials will help organize and identify cables at entry and exit points.

Finally, follow all local, state, and federal codes to ensure safety and compliance. Prepare a scaled drawing of the entire tray route, including bracket locations, cable entry and exit points, and any bends or transitions. This detailed plan will serve as a valuable reference during installation and help you avoid costly errors.

Preparing the Installation Site

Having a clean and organized work area is crucial for both safety and efficiency during installation. Skipping proper preparation can lead to measurement errors and increase the risk of accidents.

Cleaning the Work Area

Start by clearing away all debris from the site. Common obstacles like dust, concrete fragments, metal shavings, or leftover construction materials can interfere with accurate measurements and compromise the stability of brackets. Pay special attention to the mounting surfaces where brackets will be attached - a thin layer of dust can weaken anchor adhesion and reduce bracket stability.

While clearing the area, inspect for any existing cables, pipes, or structural elements that might obstruct the planned cable path. Use safety goggles and dust masks to protect yourself from airborne particles and ensure a safe working environment. Eliminate any tripping hazards as you go.

Examine all mounting surfaces for sharp edges, debris, or deformities. Smooth out rough spots and check for structural issues like damage, corrosion, or rot in concrete, steel beams, or wooden structures. Addressing these issues ensures the brackets remain secure and the anchors hold firmly.

Once the area is clean and safe, you’re ready to mark the precise positions for the cable trays.

Marking Tray Positions

Accurate markings are essential to avoid mistakes that could lead to costly rework. Begin by surveying the site to identify obstacles and determine the best cable path. While planning documents or scaled drawings can serve as references, always verify measurements on-site before making any permanent marks.

Use chalk lines or a laser tool to mark the cable tray route on the floor. For installations on concrete ceilings or at height, transfer these floor markings upward using a plumb bob or laser for accuracy.

Mark the locations for support brackets along the route, ensuring consistent spacing. Typically, brackets are spaced 5 to 6.5 feet (1.5 to 2 meters) apart. Use a measuring tape to confirm precise distances, accounting for cable weight and span to prevent sagging.

When marking drill points, clearly indicate where anchors or fasteners will go, ensuring they align with the tray’s attachment points. Double-check all measurements before drilling to avoid wasting anchors or creating unnecessary holes.

For multi-layer installations, mark each layer’s support system separately. For example, the bottom layer might hold a solid-bottom cable trunk for electrical circuits (e.g., 6 in × 4 in), while an upper layer could use a basket tray for structured cabling. Ensure adequate spacing between layers for cable routing, maintenance access, and heat dissipation. Transfer these markings to the ceiling or soffit to maintain vertical alignment.

For longer runs, mark expansion joint locations approximately every 98 feet (30 meters) to accommodate thermal expansion and reduce stress on the tray system. These markings will serve as a clear guide during the installation process.

Setting Up the Cable Path

Careful planning of the cable path ensures smooth cable flow and prevents tangles, interference, or overheating. Walk the entire route from start to finish to identify any overlooked challenges, such as sharp turns, tight spaces, or areas where cables might rub against building structures.

At turns and elevation changes, place cable rollers or guide wheels to minimize tension on heavy cables. Space cables to allow airflow and reduce the risk of insulation damage caused by heat buildup. Whenever possible, lay cables in a single layer and avoid crossing patterns to prevent stress points and restricted airflow.

Ensure all turns meet the required bend radius specifications. If tight turns are unavoidable, adjust the tray placement or add curved sections to create smoother transitions. Mark accessible grounding connection points to maintain electrical continuity throughout the system. Plan for bonding wires between tray sections to minimize electrical hazards, and verify that all mounting surfaces and supports are either conductive or equipped with proper bonding features.

For concrete installations, consult approved shop drawings to confirm grounding requirements, support system details, and the number of tray layers needed. Prepare connection points for bonding conductors, and ensure all support materials - like Unistrut channels, threaded rods, and brackets - meet grounding standards.

Finally, mark the complete cable route on the floor and transfer these markings to the installation surface to create a clear visual guide. Leave extra length on threaded rods and fastening systems to allow for future adjustments or modifications without requiring a complete reinstallation. This forward-thinking approach helps accommodate any changes down the road.

sbb-itb-501186b

Installing the Cable Tray System

With the site prepped and all markings in place, it’s time to install the cable tray system. This step demands precision to ensure the system provides stable and reliable cable support.

Mounting Brackets and Supports

Start by drilling holes at the marked locations on the mounting surface. Use a power drill with the correct drill bit size for your screws - choosing the wrong bit can weaken the fasteners and compromise the installation. Double-check your measurements before drilling to avoid wasting anchors or creating unnecessary holes.

Once the holes are ready, secure the mounting brackets with screws and a screwdriver. Make sure each bracket is tightly fastened and perfectly level. Use a spirit level or laser level to verify alignment before fully tightening the screws. Even small misalignments at this stage can lead to bigger issues as you add more tray sections.

Stick to the bracket spacing you marked earlier, adjusting only if the cable weight or the manufacturer’s guidelines require it. The type of support you choose depends on the installation environment:

• Ceiling-mounted threaded rods: Best for overhead systems where floor space needs to stay clear.
• Wall-mounted brackets: Ideal for tight spaces or vertical cable runs.
• Floor-mounted supports: Useful for ground-level installations or handling heavier loads.

If you’re mounting to channels (e.g., attaching to floor or roof structures), secure the channel to the structure first, then attach the cable tray to the channel using hardware specified by the manufacturer. This method ensures better load distribution and stability.

In areas prone to moisture, opt for corrosion-resistant materials. Standard steel hardware can rust quickly, jeopardizing the system’s structural integrity.

Attach the trays to the supports using U-bolts, clamps, or brackets that match your setup. Tighten all hardware to the torque specifications provided by the manufacturer. Over-tightening can warp the tray, while under-tightening leaves the connections unstable. After mounting the brackets, test their stability by applying light pressure. They should feel firm, with no movement. Fix any loose connections before moving forward.

With the brackets securely in place, you’re ready to align the tray sections.

Aligning and Leveling Trays

Install the tray sections one at a time, checking their horizontal and vertical alignment as you go. Use a laser level or spirit level to ensure the trays are perfectly horizontal, and a plumb bob for vertical runs. Even slight misalignments can cause cables to shift, leading to uneven weight distribution and sagging.

Make sure each tray section follows the path you marked during preparation. The trays should align precisely with no twists or lateral shifts. Misalignment here can make joining sections difficult and create stress points that weaken the system over time.

Secure each tray section with the appropriate hardware - such as U-bolts, clamps, or brackets - and tighten firmly but not excessively. If you notice sagging after securing a section, address it immediately. This could mean the brackets are spaced too far apart or that a support isn’t properly fastened. Adding extra brackets or adjusting the spacing will help redistribute the weight and prevent future issues.

For multi-layer systems, leave enough space between layers to allow for cable routing, maintenance, and heat dissipation. Begin with the bottom layer, ensuring it’s level and aligned, before adding the upper layers. Each layer should be independently stable and properly supported.

Joining Tray Sections

Once the trays are aligned and level, connect the sections using connectors and splice plates. Proper placement of splice plates is critical for maintaining structural integrity. For straight sections, position the splice plates at the quarter-point of the span. For example, on a 12-foot tray, the splice plates should be placed 3 feet from each end. This placement helps distribute the load evenly and minimizes stress on the connection points.

When joining sections, carefully align the attachment holes before inserting bolts. Misaligned holes can cause twisting or gaps between tray sections. Insert bolts loosely at first, then tighten them in a cross pattern to ensure even pressure and prevent warping. Use a torque wrench to tighten bolts to the manufacturer’s specifications. Over-tightening can damage the tray or strip threads, while under-tightening leaves connections vulnerable to loosening over time.

For runs longer than 98 feet (30 meters), include expansion joints at regular intervals to accommodate thermal expansion. These joints are especially important in areas with significant temperature changes, such as outdoor installations or near heat-generating equipment. Expansion joints prevent stress on the system caused by material expansion and contraction, helping to extend its lifespan.

As you connect sections, inspect each joint for sharp edges, metal burrs, or deformations that could damage cables. Smooth out any rough spots with a file or deburring tool. Even small burrs can wear down cable insulation over time, leading to safety risks and potential system failures.

After all sections are joined, walk along the entire tray system to inspect it. Check that the trays are properly aligned, level, and securely fastened. Ensure splice plates are positioned correctly and bolts are tightened. This final inspection helps catch any issues before cables are installed, saving time and effort later.

Document the installation by noting the locations of splice plates, expansion joints, and support brackets. This record will be invaluable for future maintenance or modifications. Finally, have the installation reviewed by the site supervisor or quality team to confirm that all requirements are met before starting cable installation.

Installing and Securing Cables

With the tray system firmly in place, it's time to install the cables. This step requires careful attention to detail to ensure the system operates safely and reliably for years.

Laying Cables in the Tray

Begin by planning the cable layout based on the tray's dimensions and the number of cables to be installed. Before pulling cables, inspect the path to ensure it’s clear and free of sharp edges that could damage the insulation. Handle cables gently to avoid unnecessary wear.

When placing cables, arrange them in a single layer to allow for proper heat dissipation and easier maintenance. Group cables by type - keep power cables separate from control and communication lines. If mixing cable types is unavoidable, use dividers to prevent interference between high-voltage and low-voltage cables.

Follow the 40% capacity rule to maintain airflow and leave room for future expansions. Overcrowding can lead to overheating, which degrades insulation and shortens cable life.

For horizontal runs, secure cables at both ends and add supports every 16 to 33 feet (5 to 10 meters). For angled runs steeper than 45°, reduce the spacing to every 6.5 feet (2 meters) to prevent sagging. Use ties or clips to secure the cables, but avoid over-tightening as this can damage the insulation or restrict airflow.

Pay close attention to the minimum bend radius specified by the cable manufacturer. This radius is usually a multiple of the cable's diameter and must be adhered to when routing cables around corners or through fittings. Ignoring this can cause internal conductors to fail or insulation to crack, even if the damage isn’t immediately visible. Use gentle curves to exceed the minimum bend radius whenever possible.

If you notice sagging after installation, address it right away. This often means the support spacing or cable tension needs adjustment. Add extra brackets or modify the spacing as needed to maintain proper tension without stressing the cable ends.

Label each cable clearly at entry and exit points with durable tags that won’t fade or fall off over time. Include details like cable type, voltage rating, and destination. Proper labeling saves time during maintenance and troubleshooting.

Once all cables are laid, perform a light tug test to ensure they’re secure. The cables should remain stable with minimal movement. If any cables shift, add more ties or adjust the brackets as necessary. This step ensures the system is ready for grounding and final inspections.

Grounding and Bonding

After routing the cables, secure the system by grounding and bonding it properly. This is a critical safety measure to protect against electrical hazards by safely channeling fault currents.

First, ensure electrical continuity across the entire tray system. Bond all metallic components, including tray sections, fittings, and support brackets, using bonding wires to create a continuous electrical path. This prevents dangerous voltage differences between parts of the tray.

Install grounding clamps at designated points, ensuring they make solid metal-to-metal contact. Clean the connection points to minimize resistance and ensure a reliable bond.

Check that all bolts and supports are tightened to the manufacturer’s specifications. Loose connections can generate heat or disrupt fault current flow. Use a torque wrench to verify proper tightness.

Once bonding is complete, test the system for continuity using a low-resistance ohmmeter. The resistance between the tray and the facility ground should be less than one ohm. If the reading is higher, inspect and fix any poor connections.

Document the grounding and bonding process, including the locations of connections, wire sizes, and test results. This record is essential for future maintenance and compliance checks.

Inspecting and Testing

Before energizing the system, perform a detailed inspection to catch any issues. Walk through the entire installation and visually examine every section.

Ensure all cables are properly laid and secured at the correct intervals. Look for signs of abrasion or cables that have shifted. Check that ties are secure but not overly tight and that cables aren’t crossing unnecessarily, which can create pressure points and damage insulation.

Inspect all mechanical connections for tightness. Test hardware by hand, tightening any loose components to the specified torque. Pay extra attention to splice plates and expansion joints, as these areas are more prone to stress.

Look for sharp edges, burrs, or deformations in the tray system that may have been overlooked during installation. Address any issues immediately.

Review grounding and bonding continuity test results to confirm that all metallic components are properly connected to the facility ground. Investigate and resolve any high-resistance readings before proceeding.

Test the insulation integrity of the cables using a megohm meter rated for the voltage class of the cables. For medium voltage cables, ensure the insulation resistance meets or exceeds the manufacturer’s specifications. Document the results and replace any cables with low resistance values.

Verify that all cables are clearly labeled and that the labels are securely attached and legible. Cross-check the documentation with the actual installation, including cable routing, support locations, and any modifications made during the process.

Have the final installation reviewed by the site supervisor or quality team to confirm compliance with electrical codes and standards. Address any concerns before considering the installation complete.

Establish a maintenance schedule to inspect the system regularly. Start with checks every few months during the first year, then adjust the frequency based on the system’s performance. Routine maintenance helps catch minor issues before they turn into major problems, ensuring the system remains reliable for years to come.

Conclusion

Summary of Main Steps

To wrap things up, let’s go over the key steps for installing a cable tray system. Start with careful planning: review drawings, survey the site, and gather the necessary tools. This initial preparation lays the groundwork for a smooth installation process.

Next, prepare the site by cleaning the work area, marking the tray positions, and defining a clear path for the cables. Once that’s done, you can install the cable tray system, which includes mounting brackets and supports, aligning and leveling the trays, and securely connecting the sections.

Finally, move on to cable installation and securing. This involves laying the cables properly, grounding and bonding the system, and conducting thorough inspections and tests. Each step builds on the last, ensuring the system is both dependable and efficient when completed.

Using Quality Tools and Materials

The success and durability of your installation rely heavily on the tools and materials you use. Cable trays need to meet your specific needs, taking into account factors like cable weight and the spacing of support brackets. Similarly, brackets and fasteners must be chosen to handle the load and endure environmental conditions.

Using reliable tools reduces errors and ensures everything is installed correctly. For example, precise measuring tools help with accurate alignment and positioning throughout the process.

If you’re looking for dependable electrical components, Electrical Trader is a great resource. They offer a wide range of new, used, and surplus items from top brands like Siemens, ABB, and GE. This marketplace is tailored for electricians, contractors, and facility managers, providing quality products at competitive prices to help ensure successful installations. With the right tools and materials in hand, you can confidently move toward completing the system.

Closing Remarks

A well-installed cable tray system ensures long-term performance and safety. Properly mounted trays and neatly arranged cables reduce the risk of damage and electrical hazards. Grounding and bonding the trays to the grounding system not only prevent electric shocks but also ensure compliance with electrical standards.

Performing a tug test confirms cable stability, and a detailed inspection of all connections ensures the system is secure. Additionally, scheduling maintenance checks every few months during the first year can help catch and fix minor issues early on. This proactive approach, along with keeping accurate documentation, makes troubleshooting and future upgrades much easier. A carefully executed installation doesn’t just minimize downtime and maintenance costs - it also provides a solid foundation for your facility’s electrical infrastructure.

FAQs

What should you consider when choosing a cable tray system for medium voltage installations?

When choosing a cable tray system for medium voltage installations, it's crucial to consider several factors to ensure the system is safe, efficient, and meets required standards. Here are the key points to keep in mind:

• Load capacity: The tray must handle the weight of the cables currently in use, along with any potential future additions. Overloading can compromise safety and functionality.
• Material and environment: Select a material that fits the installation environment. For example, aluminum, steel, or fiberglass work well in different conditions, such as areas with high moisture, chemical exposure, or extreme temperatures.
• Ventilation needs: Decide between solid-bottom, ventilated, or ladder-style trays based on how much heat dissipation is required to maintain cable performance.
• Compliance: Make sure the system adheres to the National Electrical Code (NEC) and any other relevant standards to ensure regulatory compliance.

Taking the time to evaluate these factors will help you choose a system that's both reliable and suited to your specific installation requirements.

What are the best practices for grounding and bonding a medium voltage cable tray system to ensure safety compliance?

To ensure the proper grounding and bonding of a medium voltage cable tray system, here are some key steps to follow:

• Run grounding conductors the entire length of the tray system. Make sure they’re securely attached to the tray at consistent intervals to ensure electrical continuity.
• Connect all metallic parts, including joints and fittings, to eliminate any electrical potential differences that could cause issues.
• Double-check that every connection meets NEC (National Electrical Code) standards and any applicable local regulations to ensure both safety and compliance.

It's also important to routinely inspect the system for any signs of wear, corrosion, or loose connections. Regular maintenance is essential for keeping the system safe and reliable over time.

What are some common mistakes to avoid when installing medium voltage cable trays to ensure long-term reliability?

To keep medium voltage cable tray installations running smoothly for the long haul, there are a few common pitfalls you’ll want to steer clear of. One major issue is improper cable spacing. When cables are too close together, they can overheat or experience electromagnetic interference - both of which can lead to serious performance problems. Another mistake is not securing the cables properly. If cables are left loose, they can shift, get damaged, or even fail, especially in areas with constant vibration or heavy loads. And don’t overlook environmental factors like moisture or exposure to corrosive materials, which can weaken both the cables and the tray system over time.

Make sure you’re using the right tools and materials during installation, and always double-check connections and supports to ensure everything is stable. These simple steps can go a long way toward creating a safe, durable setup that stands the test of time.
