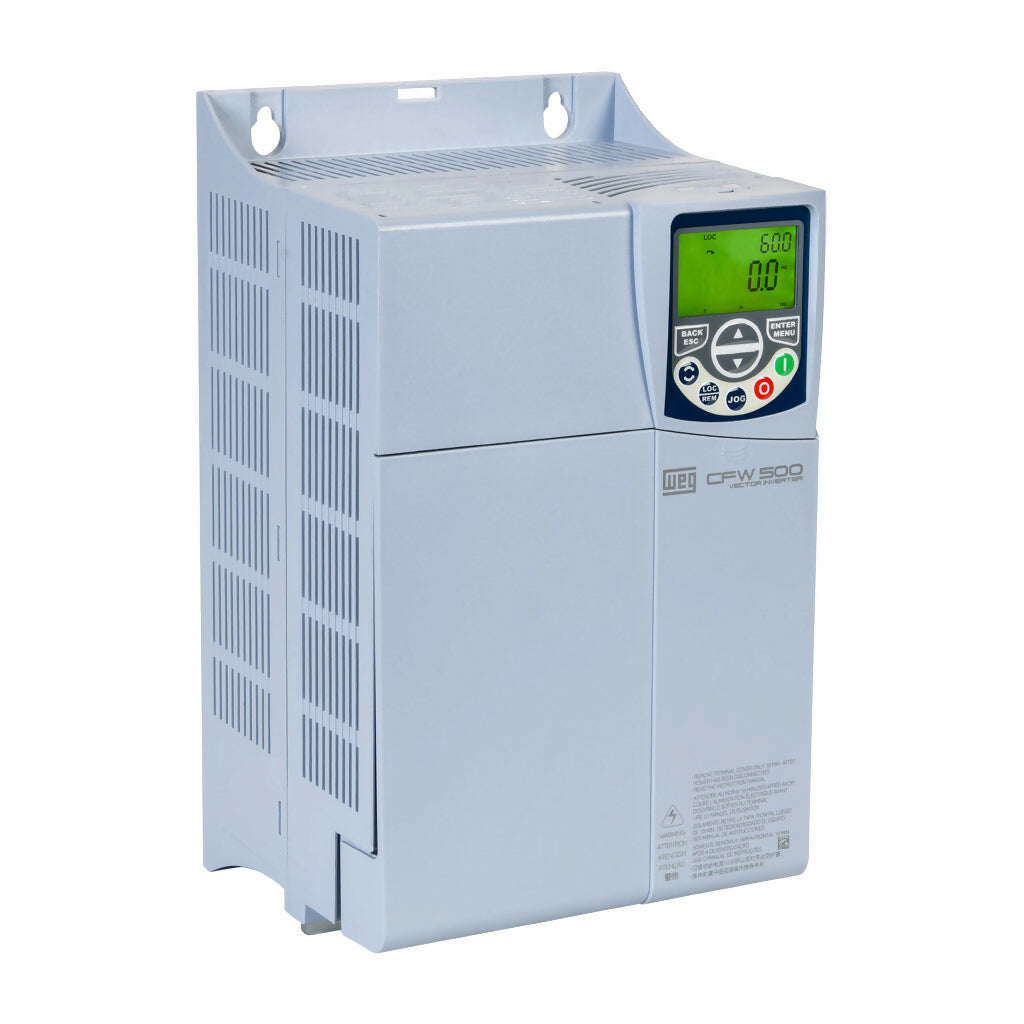

WEG Electric CFW500 series AC

WEG Electric CFW500 series AC

$1,600.00 USD
$1,600.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Manufacturer: WEG
  • Model:
  • Model Location: TX

Seller Info:

Seller Profile Page:

  • Verified Seller
  • Hassle-Free Transaction
  • Fast Shipping
Brand WEG Electric
Item Drive
Controller Type High-performance
Series CFW500
Voltage Type AC
Nominal Drive Input Voltage 460 VAC
Nominal Drive Output Voltage 460 VAC
Number of Input Phases 3
Number of Output Phases 3
Horsepower By Input Phase 20hp with 3-phase input
Amperage Rating 31A
Control Mode SVC, V/Hz, VVW, FOC or torque
Safe Torque Off (STO) No
Temperature Rating 0 to 50 deg C
Enclosure Type Enclosed
IP Rating IP20
Mounting Panel or wall
Frame Size D
Dynamic Braking Integrated dynamic braking
Communication Port and Connection Type(s)
  • (1) RS-485 (3-pin terminal)
Port Protocol(s)
  • Modbus RTU Master/Slave
Port Speed(s)
  • up to 38.4k baud
Input Signal 4-20 mA, voltage or potentiometer input
Output Type PWM output
Reverse Capability Built-in
Internally Bypassed No
Carrier Frequency Range 2.5-15 kHz
Output Frequency Range 0.1-500 Hz
Number of Analog Input Channels 1
Number Of Input Channels 1
Analog Input Signal Type Current/voltage
Number of Non-Isolated Analog Input Commons 1
Number of Points per Analog Input Common 1
Input Resolution 10-bit
Input Current Signal Range 0-20 mA, 4-20 mA
Input Voltage Signal Range 0-10 VDC
Number of Analog Output Channels 1
Number Of Output Channels 1
Analog Output Signal Type Current/voltage
Number of Non-Isolated Analog Output Commons 1
Number of Points per Analog Output Common 1
Output Resolution 10-bit
Output Current Signal Range 0-20 mA and 4-20 mA
Output Voltage Signal Range 0-10 VDC
Number of Discrete Input Points 4
Nominal Discrete Input Voltage 24 VDC
Discrete Input Type Sourcing/sinking
Number of Non-Isolated Discrete Input Commons 1
Number of Points per Discrete Input Common 1
Number of Discrete Output Points 2
Nominal Discrete Output Voltage 240 VAC and 24 VDC
Discrete Output Type Relay
Relay Configuration (1) Form C (SPDT) relay
Number of Non-Isolated Discrete Output Commons 1
Number of Points per Discrete Output Common 1
Load Current 0.5A/point relay, 150 mA/point discrete
Fuse Type User-supplied external fuse
Programming Language Ladder
SCCR Rating 65kA SCCR
Connector Type Screw terminal
For Use With 3-phase induction and permanent magnet AC motors
Additional Information Optional communication and STO modules available
Manufacturer Part Number CFW500D31P0T4DB20G2

Condition: New

View full details

FAQ

Does the product come with a warranty?

Please contact the seller of the product you purchased for any relevant warranty information

Does this product meet safety certifications?

Yes, this product is UL-certified and meets all relevant safety standards for electrical products.
