UL891 vs UL1558 switchgear

Choosing between UL891 and UL1558 switchgear depends on your power needs, safety requirements, and budget. Here's a quick breakdown:

  • UL891: Designed for systems up to 600V, it's a cost-effective option for commercial and light industrial spaces like offices, schools, and retail facilities. Features include molded-case circuit breakers, fixed-mounted designs, and non-insulated busbars. It offers a 3-cycle short-circuit withstand rating and is suitable for moderate electrical demands.
  • UL1558: Built for more demanding environments like hospitals, data centers, and industrial plants, it supports up to 1,000V. Key features include draw-out power circuit breakers, compartmentalized designs, and insulated busbars. It provides advanced safety, a higher interrupting capacity, and a 30-cycle withstand rating, making it ideal for critical power applications.

Quick Comparison

Feature UL891 UL1558
Voltage Rating Up to 600V AC Up to 1,000V AC
Breaker Type Molded-case (UL 489) Power breakers (UL 1066)
Breaker Mounting Fixed, group-mounted Draw-out, individually mounted
Busbar Design Non-insulated Insulated
Short-Circuit Rating 3-cycle withstand 30-cycle withstand
Applications Commercial, light industrial Industrial, critical facilities
Cost Range Lower cost $50,000 to $500,000+

Key Takeaway: UL891 works well for less demanding, budget-conscious projects, while UL1558 is better for environments requiring high reliability and enhanced safety.

Switchboard basics

UL891 Switchgear: Features and Uses

UL 891 switchgear provides an economical solution for dead-front switchboards, making it a great choice for commercial and light industrial spaces with moderate electrical needs.

Design and Features

UL 891 switchboards are built with a fixed, group-mounted design that prioritizes durability and simplicity. They use molded-case circuit breakers tested to UL 489 standards, ensuring dependable protection without the need for draw-out mechanisms.

The design includes a sturdy, bolted framework that allows for flexible configurations - such as in-line, back-to-back, U-shaped, or L-shaped setups - tailored to fit different facility layouts. The copper or aluminum busbars are left non-insulated, keeping the switchboard compact while adhering to size and spacing requirements. Additionally, they provide multiple cable access points for easier installation.

One essential feature is the dead-front construction, which ensures that all live parts are enclosed and safely out of reach during normal operation.

These design elements collectively enhance the functionality and adaptability of UL 891 switchboards across various settings.

Performance and Common Applications

Designed to handle nominal AC voltages up to 600V, UL 891 switchboards deliver a short-circuit withstand rating ranging from 10,000 to 200,000 amperes over a 3-cycle period. With a maximum capacity of 5,000 amperes, they are well-suited for medium-sized facilities.

You’ll often find these switchboards in commercial buildings, schools, offices, retail spaces, and light industrial environments where electrical requirements are moderate.

Maintenance and Certification Requirements

Reliable performance over time depends heavily on proper certification and regular maintenance.

While certification isn’t legally required, it’s highly recommended. Manufacturers must submit technical drawings, material specifications, performance data, and product samples, followed by factory audits, to meet certification standards.

For maintenance, periodic inspections and audits are necessary. This includes ensuring proper labeling for voltage, amperage, short-circuit ratings, and wiring diagrams, all while using UL-listed components.

The fixed-mounted design makes servicing straightforward, allowing for on-site maintenance that minimizes downtime and keeps the equipment compliant with UL standards.

UL1558 Switchgear: Features and Uses

UL 1558 switchgear stands as a top-tier choice for low-voltage power distribution, specifically engineered for demanding industrial environments and critical power applications.

Design and Features

What sets UL 1558 switchgear apart is its draw-out construction, a design that offers clear advantages over fixed-mount systems. It uses low-voltage power circuit breakers tested to UL 1066 standards, each housed in its own compartmentalized section. This setup allows for easy removal during maintenance or replacement, making upkeep more efficient. The compartmentalized design isolates each circuit breaker, enhancing safety by keeping live components separated. Both front and rear access are provided, simplifying inspections and repairs.

Another standout feature is the use of insulated busbars with increased clearances. This design minimizes the risk of electrical faults and arc flash incidents. By combining compartmentalization with insulated components, the switchgear provides multiple layers of protection for both the system and personnel. These features collectively improve performance and operational safety.

"UL 1558 switchgear offers higher short-circuit ratings, better compartmentalization, and enhanced safety features compared to UL 891 switchboards." – Spike Controls

Performance and Common Applications

Thanks to its advanced engineering, UL 1558 switchgear delivers impressive performance that justifies its premium status. It supports up to 1,000 volts AC and offers continuous current ratings ranging from 1,600 A to 10,000 A. Designed to handle short-circuit conditions for at least four cycles on a 60 Hz system, it provides robust fault protection. Its higher interrupting capacity allows it to manage larger fault currents more effectively than standard switchboards.

This switchgear is a go-to solution for environments where power reliability is non-negotiable. High-power industrial plants rely on it to maintain operational continuity, while mission-critical data centers depend on its ability to protect sensitive equipment from power fluctuations. Hospitals trust UL 1558 systems to ensure uninterrupted power for life-saving medical devices. It’s also widely used in utility power distribution and large-scale manufacturing operations. The price tag, which can range from $50,000 to over $500,000 for a full setup, reflects the sophisticated technology and components involved.

Maintenance and Reliability Benefits

UL 1558’s design doesn’t just enhance performance - it also simplifies maintenance. The draw-out breaker design allows for quick replacement or servicing of individual breakers without shutting down the entire system. This feature is especially valuable in facilities where downtime could lead to significant costs or safety risks.

The switchgear’s modular platform makes it adaptable to evolving power needs. Facilities can add or replace components to accommodate new equipment or changing requirements, offering scalability for growing operations. Additionally, its design reduces the risk of arc flash incidents during maintenance by ensuring technicians aren’t exposed to hazards from adjacent live components. This approach supports predictive maintenance, enabling service based on actual equipment conditions without disrupting operations.

sbb-itb-501186b

UL891 vs UL1558: Main Differences

When comparing UL891 and UL1558 switchgear, the distinctions become clear in their construction, performance capabilities, and intended applications. These differences shape how each system manages electrical loads, safety features, and maintenance demands.

Comparison Table: UL891 vs UL1558

Feature UL891 Switchboard UL1558 Switchgear
Voltage Rating Up to 600V AC Up to 1,000V AC
Breaker Type Molded-case circuit breakers (UL 489) Power circuit breakers (UL 1066)
Breaker Mounting Fixed, group-mounted Draw-out, individually mounted
Compartmentalization Not required Required for each breaker
Busbar Design Non-insulated, smaller clearances Insulated, greater clearances
Short-Circuit Rating Lower interrupting capacity Higher interrupting capacity
Arc Flash Protection Not mandated Enhanced protection measures
Access Requirements Front-access standard Front and rear access standard
Maintenance Approach More downtime required Less downtime, easier servicing
Typical Applications Commercial buildings, light industrial Industrial facilities, critical infrastructure
Testing Requirements Minimum 3-cycle withstand, 3 production tests Minimum 4-cycle withstand, 7 production tests

The voltage rating highlights a key difference: UL891 is designed for commercial settings, while UL1558 accommodates the demands of industrial environments.

"UL 1558 provides specific guidelines for sub-635 V equipment, including ambient air and altitude conditions, four-cycle testing, 30-cycle withstand, and seven production tests." - Eaton

UL891 features fixed, group-mounted breakers without requiring compartmentalization, whereas UL1558 utilizes individually draw-out breakers housed in isolated compartments. This design minimizes maintenance downtime and enhances safety.

Performance and Safety Impact

The structural differences between UL891 and UL1558 directly influence their performance and safety features. UL1558's higher interrupting capacity makes it better equipped to handle large fault currents, which are common in industrial settings.

Safety is another area where UL1558 excels. It includes mandatory arc flash protection measures such as insulated busbars and increased clearances, significantly reducing the risk of arc flash incidents. In contrast, UL891 lacks these requirements, reflecting its use in less hazardous commercial environments.

The draw-out breaker design of UL1558 also simplifies maintenance, reducing downtime compared to UL891. Additionally, UL1558's stricter testing protocols - such as four-cycle withstand and seven production tests - ensure reliable performance under demanding conditions.

"Switchboards are loosely defined as dead-front in UL 891, which also provides additional specifications: under 600 V equipment, minimum three-cycle withstand testing and three production tests." - Eaton

These differences explain why UL891 is commonly found in office buildings, retail spaces, and light manufacturing facilities, while UL1558 is the go-to choice for heavy industrial plants, data centers, and other critical infrastructure where power reliability is essential.

How to Choose the Right Switchgear

Choosing between UL891 and UL1558 switchgear comes down to understanding your system's voltage, fault currents, safety requirements, and budget. A wrong decision can lead to increased downtime and heightened risks, so it's crucial to carefully evaluate these factors, which align closely with the performance and design differences highlighted earlier.

Key Selection Factors

System voltage and power needs are critical. UL891 switchgear is designed for systems up to 600V, while UL1558 is built for more demanding installations, supporting voltages up to 1,000V.

Fault current levels in your system also play a major role. UL1558 switchgear is engineered to handle higher fault current capacities, making it suitable for systems with significant electrical loads. In contrast, UL891 switchboards typically feature a 3-cycle withstand rating, which is sufficient for moderate power demands.

Safety considerations differ significantly. UL1558 switchgear includes mandatory compartmentalization and insulated busbars, enhancing safety for industrial and high-risk environments. UL891, on the other hand, lacks these advanced safety features, making it better suited for less critical applications.

Ease of maintenance is another factor to weigh. UL1558 switchgear often comes with draw-out breakers, allowing maintenance without system shutdowns. In comparison, UL891 switchboards use fixed-mounted breakers, which can lead to longer service interruptions during maintenance.

Budget constraints also influence the decision. UL1558 switchgear, with its advanced materials and safety features, comes at a higher price point. Meanwhile, UL891 provides a more cost-friendly option for systems with less demanding requirements.

Application Examples

Different industries and environments call for specific types of switchgear:

  • Healthcare facilities: These often rely on UL1558 switchgear due to their need for high power reliability and stringent safety standards.
  • Retail and hospitality sectors: UL891 switchboards are a common choice here, as they meet moderate power needs while staying within budget.
  • Data centers: Smaller data centers might use UL891, but larger facilities typically require UL1558 for its superior capacity.
  • Manufacturing plants: With heavy machinery and high fault current potential, these facilities almost exclusively depend on UL1558 switchgear.
  • Multi-tenant residential buildings: UL891 switchboards are frequently used for primary electrical distribution in these settings.

Finding Equipment on Electrical Trader

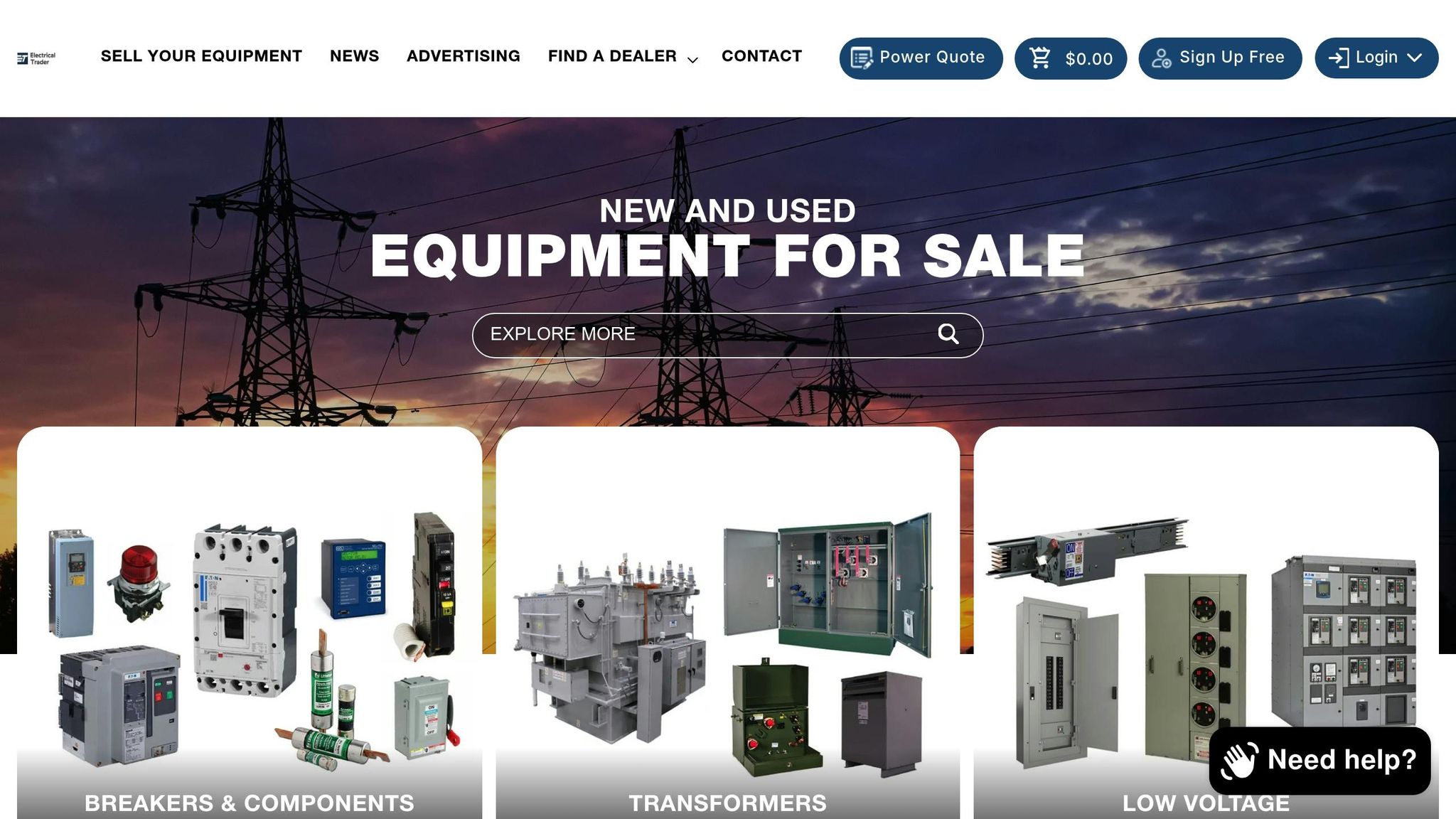

Electrical Trader

Once you've determined the right type of switchgear, sourcing it is the next step. Electrical Trader offers a user-friendly platform for finding both UL891 and UL1558 switchgear. Their online marketplace categorizes equipment by type, making it easy to locate products that meet your specific requirements.

The platform provides both new and used equipment options, giving you the flexibility to balance performance needs with budget constraints. This is particularly helpful when sourcing UL1558 switchgear, as high-quality used options can help manage costs without compromising on safety or performance.

Electrical Trader's organized product listings make it simple to find equipment from trusted manufacturers that comply with UL standards. Additionally, their resource center includes buying guides to help clarify technical specifications and streamline your decision-making process.

For industrial projects requiring UL1558 switchgear, Electrical Trader offers a wide selection of high-voltage components and power distribution systems. Their marketplace allows you to source entire electrical setups from one place, saving time and ensuring all components work seamlessly together.

Conclusion: Making the Right Switchgear Choice

Choosing the right switchgear is crucial for ensuring safety, reliability, and operational efficiency. As we've explored, the decision between UL891 and UL1558 switchgear hinges on the specific needs of your environment, safety requirements, and operational demands.

Key Points to Keep in Mind

  • UL891 Switchboards: Ideal for commercial and light industrial settings, these are designed for moderate electrical demands and tighter budgets. They support nominal AC voltages up to 600V, making them a solid choice for spaces like retail stores, hotels, and other commercial facilities. Their front-access design and fixed-mounted breakers also make them practical in areas where space is at a premium.
  • UL1558 Switchgear: Built for heavy-duty industrial environments, this option prioritizes safety and reliability. It handles voltages up to 1,000V and offers superior fault current management. Features like compartmentalized designs, insulated busbars, and draw-out breakers enhance arc flash protection and streamline maintenance. The 30-cycle rating, compared to UL891's 3-cycle rating, highlights its higher fault tolerance, which can improve system coordination by reducing reliance on instantaneous protection components.
  • Cost Considerations: UL1558 switchgear typically comes with a higher upfront cost due to its advanced safety features and robust build. However, in critical environments, the reduced downtime and enhanced safety measures often make this investment worthwhile.

Next Steps

Now that the differences are clear, it's time to assess your facility's specific needs. Consider factors like voltage requirements, fault current levels, and maintenance flexibility. For facilities requiring uninterrupted operation, UL1558's draw-out breaker design could be a game-changer. On the other hand, facilities with less stringent demands may find UL891 to be a cost-effective and reliable choice.

If you're ready to move forward, Electrical Trader offers a wide selection of UL891 and UL1558 options, including used equipment with detailed technical specifications. Their categorized listings make it easy to find products that meet your compliance and operational needs.

FAQs

What safety advantages make UL1558 switchgear better suited for critical environments compared to UL891?

UL1558 switchgear is equipped with advanced safety features tailored for demanding environments. It offers excellent arc flash protection, increased interrupting capacities, and improved component isolation. These elements work together to reduce risks during both operation and maintenance, prioritizing the safety of personnel and the integrity of equipment.

This switchgear is also engineered to manage higher fault currents and meet stricter safety standards. Its reliability makes it well-suited for settings where fault control and uninterrupted operations are critical - think hospitals, data centers, and industrial facilities.

What are the key differences in maintenance requirements between UL 891 and UL 1558 switchgear, and how do these affect system downtime?

The maintenance of UL 1558 switchgear is often quicker and more streamlined thanks to its compartmentalized, draw-out breaker design. This feature allows technicians to work on specific parts without needing to power down the entire system, helping to keep operational downtime to a minimum.

On the other hand, UL 891 switchboards come with fixed components, which typically require more extensive disassembly and a full system shutdown for servicing. This can lead to longer downtime compared to the UL 1558 switchgear. Deciding between the two largely depends on your system's operational priorities and how essential it is to reduce downtime for your specific application.

What are the main reasons a facility might choose UL 891 switchgear instead of UL 1558, even though UL 1558 offers higher fault tolerance?

Facilities often opt for UL 891 switchgear because it's generally more affordable and simpler to set up than UL 1558. One of the main reasons is its straightforward installation process - UL 891 switchgear doesn’t typically require rear access, which can cut down on both installation time and labor expenses. This makes it an excellent choice for standard low-voltage applications where extreme fault tolerance isn’t a top priority.

Another standout feature of UL 891 is its strong resistance to fire, offering added peace of mind for facilities that prioritize safety and regulatory compliance. For projects with tighter budgets or less complex operational needs, UL 891 delivers a reliable and cost-effective solution for standard applications.
