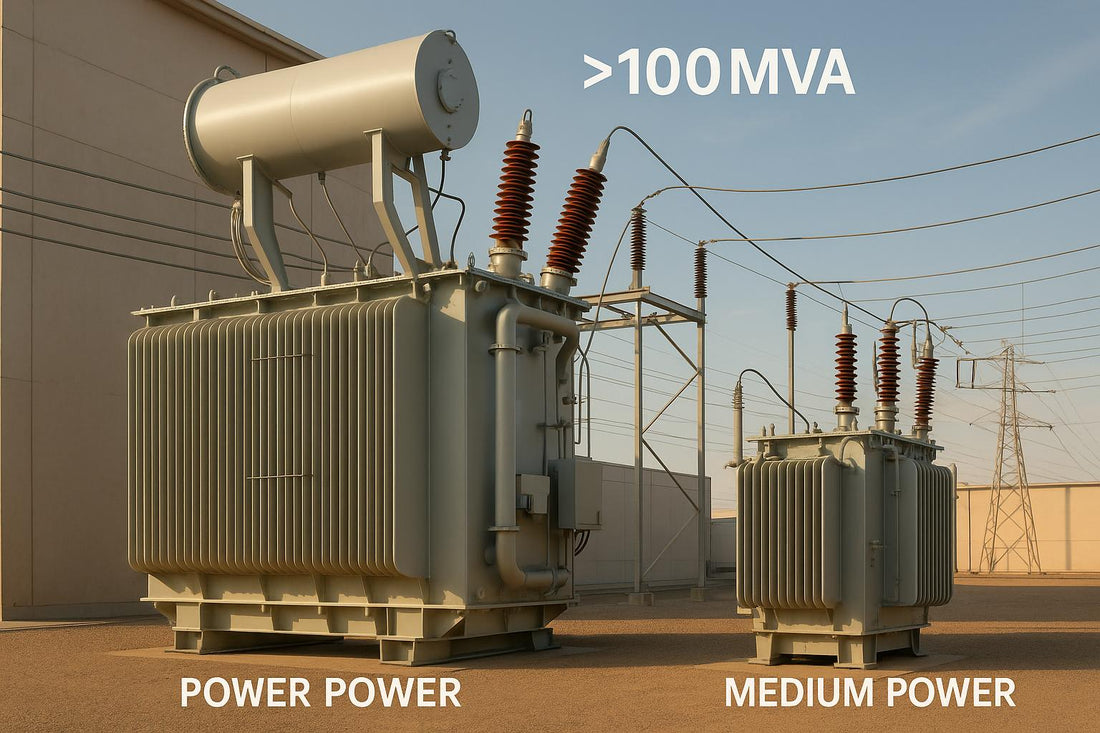

Large Power (>100MVA) vs Medium Power (<100MVA) Transformers
Share
Power transformers are critical for energy transmission and distribution. The main difference between medium power transformers (below 100 MVA) and large power transformers (above 100 MVA) lies in their capacity, voltage range, and applications. Here's a quick breakdown:
-
Medium Power Transformers:
- Capacity: Below 100 MVA
- Voltage: 1,000V to 69,000V
- Applications: Regional distribution, manufacturing plants, hospitals, schools, and commercial buildings
- Cooling: Simpler systems (e.g., ONAN)
- Cost: Around $800,000 for 10–50 MVA units
- Maintenance: Easier and less frequent
-
Large Power Transformers:
- Capacity: Above 100 MVA
- Voltage: 69kV to 765kV+
- Applications: Utility-scale transmission, power generation, and renewable energy integration
- Cooling: Advanced systems (e.g., ONAF, OFAF)
- Cost: $1.2M–$2.5M+ for 500 MVA units
- Maintenance: Specialized and more frequent
Quick Comparison
| Feature | Medium Power Transformers | Large Power Transformers |
|---|---|---|
| Capacity | Below 100 MVA | Above 100 MVA |
| Voltage Range | 1,000V - 69,000V | 69kV - 765kV+ |
| Applications | Local/regional distribution | High-voltage transmission |
| Cooling Systems | ONAN | ONAF, OFAF, OFWF |
| Cost Range | ~$800,000 (10–50 MVA) | $1.2M–$2.5M+ (500 MVA) |
| Maintenance | Simpler | Specialized and frequent |
Choosing the right transformer depends on your power needs, infrastructure, and budget. Medium transformers suit localized power needs, while large transformers are essential for long-distance, high-voltage transmission systems.
Large Power Transformer Design, Mfg and Testing GSU & Auto
Applications and Use Cases
Choosing the right transformer hinges on specific distribution needs and the existing infrastructure. Knowing the strengths of each type helps make decisions that balance performance and cost efficiency.
Medium Power Transformer Uses
Medium power transformers play a key role in regional power distribution, stepping down transmission voltages to levels fit for local use. These transformers are typically found in regional substations, where they take power from high-voltage transmission lines and distribute it to local networks that service communities and industrial zones.
Manufacturing facilities are a major user of medium power transformers. These facilities often require transformers capable of handling primary voltages like 4,160V or 2,400V, stepping them down to levels suitable for operating industrial equipment. Their flexibility makes them ideal for environments with diverse energy demands, where different machinery or production lines may need varying voltage levels. Additionally, they are crucial for process automation and control systems in industrial settings.
Commercial buildings - such as shopping malls, office parks, and data centers - also rely heavily on medium power transformers. These buildings often use pad-mounted or substation-style transformers to power mixed loads, including HVAC systems, lighting, and specialized equipment.
Institutional facilities, such as hospitals, schools, and correctional institutions, depend on medium power transformers for reliable electricity. Hospitals, in particular, need transformers that can ensure uninterrupted power for life-support systems and emergency equipment. With a voltage range of 1,000 to 69,000 volts, medium power transformers are well-suited for connecting to primary distribution circuits while maintaining the reliability required for these critical applications.
On the other hand, large power transformers are designed for broader, high-voltage transmission networks.
Large Power Transformer Uses
Large power transformers operate at the highest levels of the electrical grid, handling voltages ranging from 69kV to 765kV and beyond. Their primary function is at power generation stations, where they step up generator voltages for efficient long-distance transmission.
Utility substations are the most common location for large power transformers. Here, they adjust voltage levels to meet the needs of different parts of the electric grid. Transmission substations often house multiple large transformers working together to regulate power flow over vast areas.
These transformers are essential for energy transmission, enabling the efficient movement of electricity from generation sites to end users. High-capacity transmission networks depend on large power transformers to maintain grid stability and facilitate electricity redistribution across state and regional lines. These networks form the backbone of the national power system, bridging the gap between power plants and population hubs located hundreds of miles apart.
Large industrial complexes, like steel mills, aluminum smelters, and chemical processing plants, also rely on large power transformers. These facilities use them to step down high-voltage electricity from the grid to the lower voltages required for running heavy machinery and industrial operations.
Renewable energy sources have emerged as a growing use case for large power transformers. Wind farms and solar energy installations depend on these transformers to connect their generation capacity to the national grid. They must handle the variability of renewable energy sources while ensuring grid stability and consistent power quality.
Beyond energy transmission, large power transformers play a critical role in maintaining grid reliability. They help balance supply and demand fluctuations, ensure consistent power quality, and protect the system from potential failures.
| Application Type | Medium Power Transformers | Large Power Transformers |
|---|---|---|
| Primary Use | Regional distribution, commercial/industrial facilities | Utility transmission, power generation stations |
| Voltage Range | 1,000V - 69,000V | 69kV - 765kV+ |
| Typical Capacity | 315 - 2,500 kVA | 100+ MVA |
| Installation Location | Manufacturing plants, hospitals, schools, commercial buildings | Power substations, generation facilities, transmission networks |
| Load Characteristics | Mixed loads, process automation, institutional needs | High-capacity transmission, renewable energy integration |
| Geographic Scope | Local/regional distribution | State and national transmission networks |
Performance and Technical Comparison
When you dive into the technical details, the performance distinctions between medium and large power transformers become clear. These differences influence their efficiency, installation demands, and long-term upkeep.
Efficiency and Load Capacity
Both medium and large power transformers boast impressive efficiency, operating between 95% and 99% when running at 75%–80% of their load capacity. However, energy losses - such as core, hysteresis, eddy current, and copper losses - are inevitable with both types.
Medium power transformers, typically rated below 100 MVA, are ideal for regional distribution networks. On the other hand, large power transformers, with capacities exceeding 100 MVA, are built for major transmission systems where higher loads are required. This difference in load capacity sets the stage for their distinct cooling and installation requirements.
Cooling and Installation Requirements
Cooling systems mark a significant technical difference between the two types. Larger transformers generate more heat, necessitating advanced cooling solutions. Medium power transformers often rely on ONAN (Oil Natural Air Natural) cooling, which uses natural convection to dissipate heat. For higher-load scenarios, large power transformers employ ONAF (Oil Natural Air Forced) cooling, which boosts heat dissipation by up to 30% compared to ONAN. In even more demanding conditions, systems like OFAF (Oil Forced Air Forced) or OFWF (Oil Forced Water Forced) may be used.
The installation process also varies by size. Medium power transformers, such as sub-100 kVA single-phase units, can often be mounted above secondary mains. In contrast, large power transformers require dedicated platforms or pad-mounted setups to accommodate not only the unit but also its cooling systems, safety clearances, and maintenance access. For example, upgrading a 500 MVA transformer from ONAN to ONAF cooling reduced its peak temperature by 15°C, extended its lifespan by 30%, and prevented overheating-related shutdowns. Environmental factors also play a role, with forced air systems adding up to 33% extra loading capacity in certain conditions.
These operational differences naturally extend to maintenance and lifespan considerations.
Maintenance and Lifespan
The lifespan of a transformer largely hinges on its insulation quality and operating conditions. While the average lifespan is around 41 years, high-quality transformers can last 65–75 years. Standard insulation is rated for 180,000 hours at a 98°C hot spot, but pushing operations near these limits can significantly reduce durability.
Maintenance needs also differ. Medium power transformers typically follow simpler maintenance routines, while large power transformers demand more frequent and specialized care. This includes regular oil testing, filtration, and inspections of their complex cooling systems to handle higher operational stresses. As Georgina Robertson from Bowers Electrical Ltd explains:
"If the transformer is well maintained and serviced it could easily approach a working life of 40 years." - Georgina Robertson, Bowers Electrical Ltd.
Failure rates increase considerably once a transformer surpasses its expected lifespan. Data from DTE Electric indicates that transformers beyond 41 years experience double the failure rate compared to those within their designed lifespan. Meanwhile, a University of Stuttgart study found that approximately 0.5% of transformers fail regardless of age. Preventative measures, such as proper ventilation, using silica gel breathers or sealed tanks, periodic oil filtration, and regular inspections, are essential for extending service life and minimizing failures.
| Performance Factor | Medium Power Transformers | Large Power Transformers |
|---|---|---|
| Efficiency Range | 95% - 98.5% | 97% - 99% |
| Optimal Load | 75% - 80% of rated capacity | 75% - 80% of rated capacity |
| Primary Cooling | ONAN (Natural convection) | ONAF/OFAF (Forced cooling) |
| Installation Space | Moderate requirements | Extensive space needed |
| Expected Lifespan | ~75 years (distribution) | ~65 years (HV transmission) |
| Maintenance Complexity | Standard procedures | Specialized requirements |
| Failure Rate Impact | Lower complexity systems | Higher due to operational stress |
sbb-itb-501186b
Cost Considerations and Market Availability
When it comes to transformers, the costs go far beyond just the initial purchase price. The price differences between medium and large power transformers reflect a mix of factors like capacity, complexity, installation needs, and long-term operational expenses. These variables, combined with shifting market demands, create unique sourcing challenges.
Initial Costs and Maintenance Expenses
Medium power transformers with load tap changers (LTC) in the 10–50 MVA range typically cost around $800,000, while large power transformers can exceed $2.5 million. For example, a 100 MVA transformer may range from $400,000 to $900,000, but scaling up to units over 500 MVA pushes costs to $1.2 million to $2.5 million.
Interestingly, doubling a transformer's capacity doesn’t double the cost. Thanks to economies of scale, the price increase is only about 1.6 to 1.8 times. Voltage requirements, however, can drastically impact pricing. A transformer with the same 1 MVA capacity can vary in price by more than tenfold depending on its voltage rating and insulation class.
Custom specifications add another layer of expense. Standard medium power transformers benefit from streamlined production processes, while large power transformers often require custom engineering. These custom designs can cost 20% to 100% more than standard models due to the need for specialized validation, low production volumes, and unique components.
The total cost of ownership doesn’t stop at the purchase price. Installation, operational, and lifecycle costs can add 30% to 200% over the transformer's lifespan. Large power transformers, in particular, demand more extensive site preparation, specialized transport, and advanced cooling systems, all of which drive up both installation and maintenance costs.
Since January 2020, transformer prices have surged by 60% to 80%, with profit margins now accounting for about 20% of overall unit costs.
Market Availability and Sourcing Options
The U.S. transformer market is grappling with significant supply constraints, affecting both medium and large power units. Lead times have become a critical factor in project planning. For instance, power and generator step-up transformers now take an average of 150 weeks from order to delivery, a stark increase from the 4–6 weeks common just five years ago. Large transformers are particularly affected due to their production complexity.
"Delivery of a new transformer ordered today could take up to three years. Five years ago, that wait time was four to six weeks." - Peter Ferrell, Director of Government Relations, National Association of Electrical Manufacturers (NEMA)
One of the main reasons for these delays is limited domestic production capacity. U.S. manufacturers can only meet 20% of the country’s transformer demand. This shortfall is especially pronounced for large power transformers, which require specialized facilities and lengthy production cycles.
Efforts are underway to expand capacity. Twenty manufacturers have announced plans to build or expand facilities in 11 U.S. states. However, these projects will take years to significantly impact availability, especially for large power transformers that demand the most advanced manufacturing capabilities.
Market dynamics also complicate sourcing. The U.S. power system includes over 80,000 different transformer types, making it hard for manufacturers to achieve economies of scale. Medium power transformers benefit from more standardized designs, but large power transformers often require custom specifications, further lengthening lead times.
In response to these challenges, sourcing strategies have shifted. Utilities are increasingly turning to international suppliers for distribution transformers, while buyers of large power transformers must plan years ahead. Providing demand commitments with details like voltage ratings and MVA capacity has become standard practice. Manufacturers now require buyers to confirm specifications and pricing updates at least 16 weeks before production begins.
For buyers facing these hurdles, platforms like Electrical Trader offer alternatives. This marketplace provides access to both new and refurbished transformers, which can be a practical solution for medium power applications. Refurbished units often deliver reliable performance at lower costs and with shorter delivery times.
Looking ahead, the market is expected to remain under strain. Experts predict that the demand for distribution transformers could grow by as much as 260% by 2050 compared to 2021 levels. This surge, driven by electrification and infrastructure upgrades, will likely keep pressure on both pricing and availability across all transformer categories.
Industry Standards and Compliance
The choice of transformers plays a big role in grid performance and financial investment. To ensure reliability and safety, both medium and large power transformers must meet strict U.S. standards that govern their design and testing based on size.
U.S. Standards for Transformers
In the U.S., transformer standards are primarily guided by the IEEE C57 series, which addresses insulation, load capacity, and cooling systems. Among these, IEEE C57.12.00 outlines general requirements for liquid-immersed transformers. Testing protocols vary depending on transformer type and size. For instance, winding resistance tests apply to dry-type transformers starting at 300 kVA and to liquid-immersed transformers above 2,500 kVA.
ANSI standards complement IEEE guidelines to ensure consistency. For example, ANSI C57.12.91 specifies testing procedures for dry-type transformers, while ANSI C57.12.26 mandates a 5.75% impedance for transformers rated between 750 and 2,500 kVA. Additionally, IEEE limits transformer turns ratio variance to 0.5%. Larger power transformers often undergo more extensive testing to meet their critical performance demands.
UL standards add another layer of safety testing for transformers used in commercial and industrial environments. Testing approaches differ based on the transformer type. IEEE C57.12.00 primarily addresses liquid-immersed transformers, while IEEE C57.12.01 and IEEE C57.12.91 focus on dry-type transformers. This distinction is key because large power transformers are typically liquid-immersed, whereas medium power transformers may use either cooling method.
These detailed standards not only shape technical specifications but also ensure safety and compliance with environmental requirements.
Safety and Environmental Considerations
In addition to electrical safety, the Department of Energy (DOE) enforces energy efficiency standards aimed at reducing energy use and greenhouse gas emissions.
"The primary focus of DOE standards for transformers is to establish minimum energy efficiency requirements... The goal is to encourage the production and use of transformers that operate with higher energy efficiency, ultimately saving energy and reducing greenhouse gas emissions."
DOE estimates that these standards could cut emissions by 51.40 million metric tons of CO2.
NEMA standards further guide transformer design, manufacturing, and performance, ensuring uniformity and safety across different types. These are particularly relevant for large power transformers, which often require custom designs while still adhering to standardized safety protocols.
The National Electrical Code (NEC) outlines installation requirements tailored to transformer size and application. For example, installation rules for large power transformers are more stringent compared to smaller units.
Environmental compliance extends beyond efficiency. Programs like Energy Star, developed by the Environmental Protection Agency (EPA), offer voluntary labeling to identify the most energy-efficient transformers.
On a global scale, compliance becomes even more intricate. IEC 60076 serves as the primary international standard for power transformers, covering aspects like design, manufacturing, testing, and commissioning. While ANSI/IEEE C57 standards dominate in North America, IEC standards are widely used in Europe and much of Asia. Differences between these standards can be significant. For instance, IEC specifies temperature rise with two values (top oil and average winding), while IEEE uses a single value for both. Similarly, IEC employs "Um" (the highest voltage for equipment), whereas IEEE uses "BIL" (basic lightning impulse insulation level).
Staying updated on changes to DOE standards is crucial, especially for large power transformers with long operational lifespans. These units must maintain compliance throughout their service period.
As transformer size and criticality increase, so does the complexity of compliance. Large power transformers used in transmission systems face the most stringent requirements, while medium power transformers in distribution roles have slightly more flexibility. Regardless, both types must pass rigorous testing and provide detailed documentation before being deployed.
Conclusion
Our comparison highlights the key factors to consider when choosing between large power transformers (>100MVA) and medium power transformers (<100MVA). The decision ultimately hinges on your specific application needs, budget, and long-term operational priorities.
Large power transformers are tailored for high-voltage transmission and excel in critical infrastructure where efficiency and reliability are non-negotiable. On the other hand, medium power transformers are more budget-friendly and well-suited for local applications, industrial facilities, and commercial buildings. They also offer greater flexibility in sourcing and quicker deployment. As noted earlier, large power transformers come with higher initial and maintenance costs, while doubling transformer capacity typically increases the price by only 1.6–1.8×. Maintenance demands differ as well - large transformers require detailed programs, whereas medium units generally involve simpler upkeep with easier access to replacement parts.
When selecting a transformer, consider voltage, load, and operational environment to ensure dependable performance over time. With a typical lifespan of 20–30 years, choosing the right transformer is a crucial step in long-term infrastructure planning.
FAQs
What should I consider when choosing between a medium power transformer and a large power transformer?
When deciding between a medium power transformer (less than 100 MVA) and a large power transformer (more than 100 MVA), it’s essential to evaluate your facility’s power needs, voltage levels, and the specific application. Large power transformers are designed for high-capacity, high-voltage operations - think power transmission systems or large-scale industrial setups, typically handling voltages above 115 kV. Medium power transformers, however, are a better match for industrial or commercial distribution systems, operating within a voltage range of 1,000 to 69,000 volts.
You’ll also want to consider factors like available installation space, efficiency, and maintenance requirements. Large transformers take up more room and often need specialized equipment for handling, while medium transformers are generally easier to install and maintain. Getting the sizing right is key - take into account current load demands, potential future growth, and safety margins to ensure consistent and efficient performance. For tailored advice, consulting a specialist can make all the difference in choosing the right transformer for your needs.
What are the key differences in cooling systems between medium and large power transformers, and why do they matter?
Cooling systems for power transformers differ greatly depending on their size and the amount of heat they need to manage. Large transformers - those with capacities exceeding 100 MVA - often require more advanced cooling techniques. These can include oil-immersed radiators that use either forced or natural convection, and sometimes even water cooling, to manage the intense heat generated by such high-capacity equipment.
On the other hand, medium transformers, which are rated under 100 MVA, usually rely on simpler cooling approaches. Air-cooled systems or oil-natural systems are typically sufficient to handle their lower heat output.
These distinctions are crucial because proper cooling directly impacts a transformer's performance, safety, and lifespan. Without adequate cooling, larger transformers risk overheating, which can cause internal damage or significantly shorten their operational life. That’s why robust cooling systems are non-negotiable for ensuring reliable performance in high-capacity transformers.
How are current market challenges affecting the availability and lead times for large power transformers?
The availability of large power transformers has taken a major hit, with lead times skyrocketing due to ongoing market challenges. Back in 2021, the wait was about 50 weeks. Now? It’s stretched to an eye-watering 3 to 5 years. What’s driving this? A mix of supply chain disruptions and a surge in demand. To make matters trickier, over 80% of the transformers used in the U.S. are imported, adding another layer of complexity.
These extended delays are throwing a wrench into infrastructure upgrades and project schedules, often pushing costs higher. For businesses in the power sector, the key to tackling these hurdles lies in forward-thinking strategies. Strengthening supply chain operations and planning well in advance can help mitigate the impact and keep critical projects on track.
