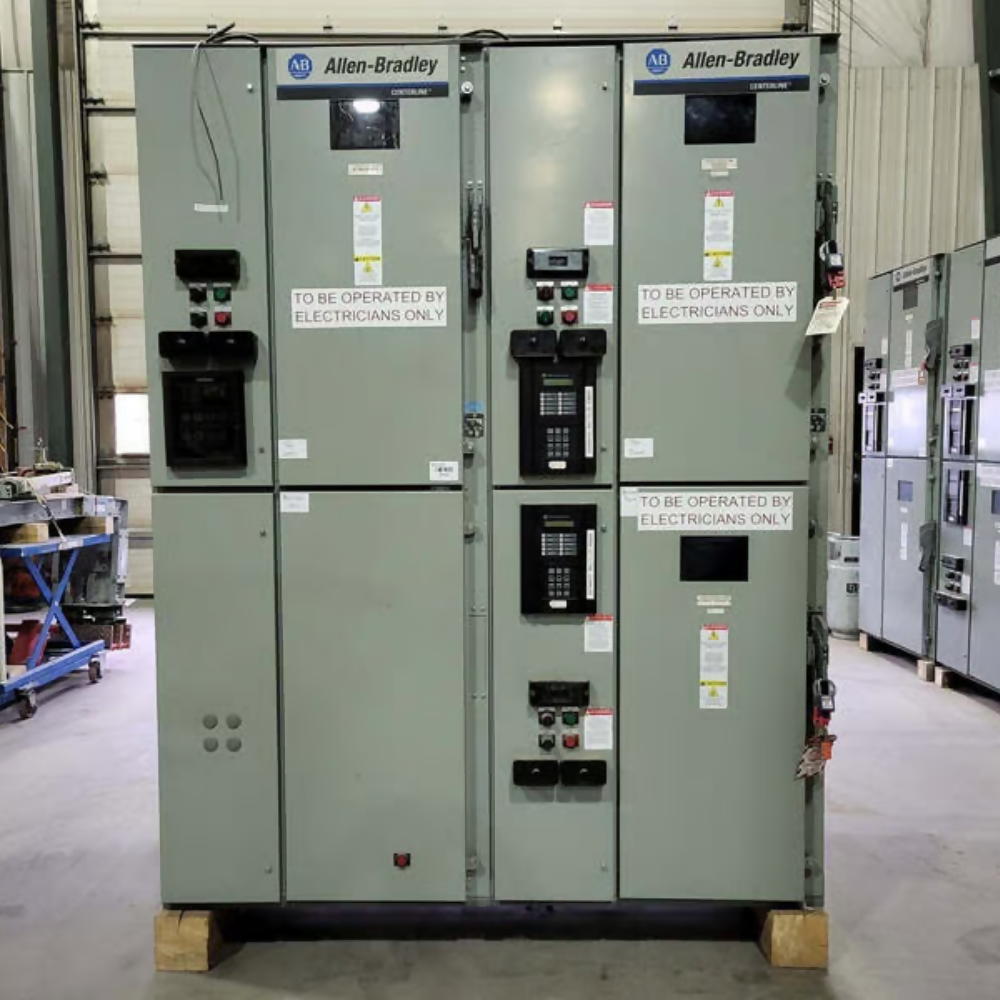

Allen-Bradley 5 kv/1200a Medium Voltage
Allen-Bradley 5 kv/1200a Medium Voltage
Regular price
$60,982.50 USD
Regular price
Sale price
$60,982.50 USD
Unit price
/
per
Shipping calculated at checkout.
- Manufacturer: Allen-Bradley
- Model:
- Model Location:
Seller Info:
Seller Profile Page:
- Verified Seller
- Hassle-Free Transaction
- Fast Shipping
SKU: 109488
Condition: Used
Electrical Specifications:
Max. Voltage: 5000
Additional Description:
Structure 1:
Structure Configuration: 1-High
Series No.: 7006202-005-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Unit Rating: 540A
Structure Total: 540A
Unit Components:
- GENERAL ELECTRIC F35 Multiple Feeder Management Relay
- ALLEN-BRADLEY Non-load Break Isolation Switch
- 3 x FERRAZ SHAWMUT Fuses A055B2D0R0-600E
- ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 800A, 12000A Interrupting Capacity
- 3 x Donut-Type Current Transformers
Structure 2:
Structure Configuration: 2-High
Series No.: 7006202-006-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Top Unit Rating: 260A
Bottom Unit Rating: 300A
Structure Total: 560A
Unit Components:
- GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0
- ALLEN-BRADLEY Non-load Break Isolation Switch
- 3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Top)
- 3 x FERRAZ SHAWMUT Fuses A480R9R-1 (Bottom)
- ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 400A, 6000A Interrupting Capacity
- 3 x Donut-Type Current Transformers
Condition: Used
Electrical Specifications:
Max. Voltage: 5000
Additional Description:
Structure 1:
Structure Configuration: 1-High
Series No.: 7006202-005-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Unit Rating: 540A
Structure Total: 540A
Unit Components:
- GENERAL ELECTRIC F35 Multiple Feeder Management Relay
- ALLEN-BRADLEY Non-load Break Isolation Switch
- 3 x FERRAZ SHAWMUT Fuses A055B2D0R0-600E
- ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 800A, 12000A Interrupting Capacity
- 3 x Donut-Type Current Transformers
Structure 2:
Structure Configuration: 2-High
Series No.: 7006202-006-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Top Unit Rating: 260A
Bottom Unit Rating: 300A
Structure Total: 560A
Unit Components:
- GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0
- ALLEN-BRADLEY Non-load Break Isolation Switch
- 3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Top)
- 3 x FERRAZ SHAWMUT Fuses A480R9R-1 (Bottom)
- ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 400A, 6000A Interrupting Capacity
- 3 x Donut-Type Current Transformers
Condition: Used
