Harmonic Distortion Limits by Voltage Level

Harmonic Distortion Limits by Voltage Level

Harmonic distortion can damage equipment, increase energy costs, and lower system reliability. Here's what you need to know:

  • What is Harmonic Distortion? It occurs when voltage or current waveforms deviate from their normal sinusoidal shape, often due to nonlinear loads like electronic devices or industrial equipment.
  • Why It Matters: It causes overheating, higher bills, and shorter equipment lifespans. Understanding and managing Total Harmonic Distortion (THD) is critical.
  • Key Standards: IEEE 519 and IEC 61000 set limits for harmonic distortion to ensure power quality and protect equipment.
  • Voltage-Specific THD Limits:
    • Low Voltage (120 V–600 V): THD ≤ 8%.
    • Medium Voltage (601 V–69 kV): THD ≤ 5%.
    • High Voltage (Above 69 kV): THD ≤ 2.5% (stricter for voltages over 161 kV).

Quick Tip: Reducing harmonics prevents costly downtime and extends equipment life. Compliance with IEEE 519 is essential for reliable performance.

Voltage Level THD Limit Individual Harmonic Limit
Low Voltage (≤ 600 V) ≤ 8.0% ≤ 5.0%
Medium Voltage (601–69 kV) ≤ 5.0% ≤ 3.0%
High Voltage (> 69 kV) ≤ 2.5% ≤ 1.5%

Understanding these limits helps you design better systems, reduce energy waste, and avoid equipment failures. Let’s dive into the specifics for each voltage category.

Applying IEEE 519-2022 Limits

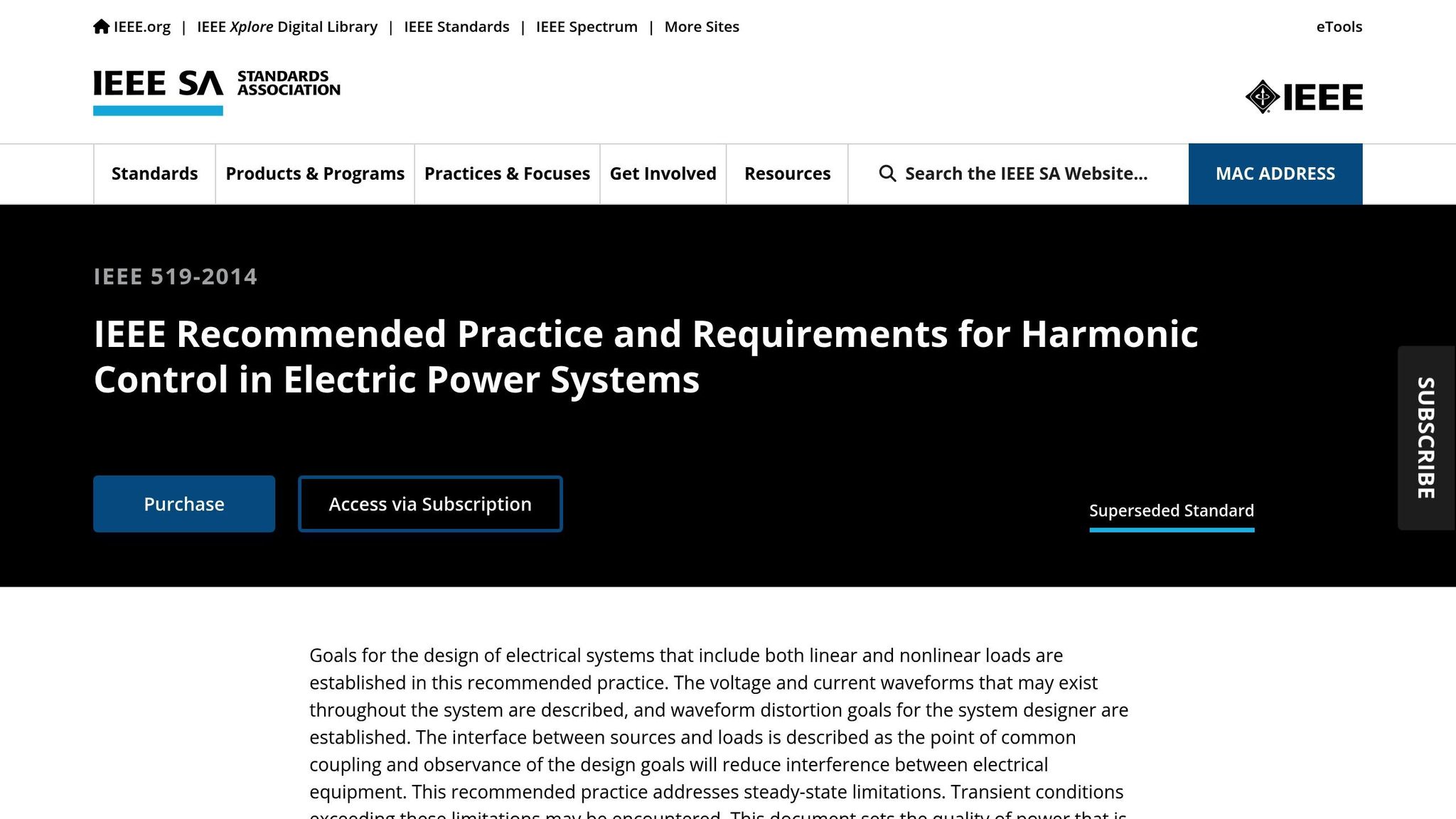

IEEE 519

1. Low Voltage Systems (120 V – 600 V)

Low voltage systems are the backbone of electrical installations in homes, businesses, and light industrial facilities across the U.S. However, these systems face specific challenges when it comes to harmonics, thanks to the widespread use of electronic devices and variable frequency drives.

Harmonic Distortion Limits (THD)

For systems operating at or below 1.0 kV, IEEE 519-2022 provides clear guidelines. The recommended limit for individual harmonic voltage is 5.0%, while the total harmonic distortion (THD) should not exceed 8.0%.

Current distortion limits for these systems depend on the short-circuit current to load current ratio (ISC/IL). In typical setups where this ratio is less than 20, individual harmonic limits range from 4.0% for lower-order harmonics (2nd to 10th) to 0.3% for higher-order harmonics (35th to 50th). Additionally, the Total Demand Distortion (TDD) is capped at 5.0%.

Impact on Equipment Performance

Harmonic distortion can create a range of problems for equipment:

  • Motors and drives: Harmonics lead to overheating and reduced efficiency, cutting into operational reliability.
  • Cables and conductors: Extra current caused by harmonics increases resistive losses, which can result in overheating.
  • Sensitive electronics: Devices relying on precise voltage waveforms, such as those that depend on zero-crossing detection, may malfunction due to distorted signals.
  • Energy costs: Harmonics increase system losses, which can drive up power bills.
  • Communication systems: Harmonic currents can generate electromagnetic interference, disrupting critical systems like Wi-Fi and telemetry devices.

Compliance with Standards

IEEE 519-2022 outlines the responsibilities for both utilities and customers in managing harmonics. The standard focuses on the Point of Common Coupling (PCC) - typically the main service entrance - where the utility's obligations end, and the customer's begin.

  • Utilities: Must ensure voltage distortion remains within acceptable limits to avoid issues for connected equipment.
  • Customers: Are responsible for ensuring their equipment doesn’t generate excessive harmonic currents.

The standard also adopts updated measurement techniques from IEC 61000-4-7. These include 10/12 cycles gapless harmonic subgroup measurements, aggregated over 150/180 cycles (around 3 seconds) and 10-minute intervals for statistical analysis. Compliance is verified through these statistical criteria:

  • Daily 99th percentile very short time (3-second) values must stay below 1.5 times the voltage distortion limits.
  • Weekly 95th percentile short time (10-minute) values must remain within the standard limits.

For engineers and electricians, knowing these standards is critical when designing systems or choosing components. Reliable equipment, like the transformers and breakers available at Electrical Trader, can help ensure compliance while maintaining system performance.

These low voltage guidelines lay the groundwork for tackling similar harmonic challenges in medium voltage systems.

2. Medium Voltage Systems (601 V – 69 kV)

Medium voltage systems act as the bridge between high voltage transmission networks and low voltage distribution systems, supplying power to industrial facilities, commercial buildings, and substations. However, these systems face specific harmonic challenges that demand stricter controls compared to their low voltage counterparts. Below, we break down the harmonic distortion limits outlined in IEEE 519-2022 for medium voltage systems.

Harmonic Distortion Limits (THD)

IEEE 519-2022 enforces tighter harmonic distortion limits for medium voltage systems. For systems operating between 1 kV and 69 kV, the standard specifies precise thresholds at the Point of Common Coupling (PCC). The voltage distortion limits are summarized in the table below:

Bus Voltage at PCC Individual Harmonic (%) Total Harmonic Distortion (THD) (%)
V ≤ 1.0 kV 5.0 8.0
1 kV < V ≤ 69 kV 3.0 5.0
69 kV < V ≤ 161 kV 1.5 2.5

For medium voltage systems, individual harmonics are capped at 3.0%, while total harmonic distortion cannot exceed 5.0%. Additionally, current distortion limits are determined by the short-circuit-to-load current ratio (ISC/IL). For systems with an ISC/IL ratio under 20, the Total Demand Distortion (TDD) is limited to 5.0%. While the methodology mirrors that of low voltage systems, the medium voltage limits are stricter.

Impact on Equipment Performance

Harmonic distortion in medium voltage systems can have serious consequences for equipment performance. Industrial motors and drives are particularly at risk, as harmonics can create torque pulsations, leading to mechanical vibrations, reduced efficiency, and accelerated wear. Similarly, voltage distortion can disrupt the operation of switchgear and protective devices, potentially damaging sensitive electronics or causing malfunctions.

Maintaining power quality is critical at this voltage level. For instance, programmable controllers typically require harmonic voltage distortion to remain below 5%, with no individual harmonic exceeding 3% of the fundamental voltage. Beyond equipment performance, harmonic currents contribute to energy losses, driving up operational costs without providing any functional benefit.

Compliance with Standards

IEEE 519-2022 emphasizes shared responsibility between utilities and customers when it comes to managing harmonics in medium voltage systems. At the PCC, voltage distortion limits are absolute, while current harmonic limits depend on the strength of the voltage source. Compliance is verified using statistical criteria applied at the PCC for medium voltage systems.

To address harmonic issues, mitigation strategies are essential. Installing harmonic filters near equipment generating harmonic currents can significantly reduce distortion. Other measures, such as using isolation transformers or relocating nonlinear loads, can also help minimize harmonic problems. Regular power quality monitoring is vital for detecting and resolving issues before they escalate. For facilities using medium voltage equipment - like the transformers and switchgear available at Electrical Trader - staying within these limits ensures both system efficiency and equipment reliability.

sbb-itb-501186b

3. High Voltage Systems (Above 69 kV)

High voltage systems, which transmit power from generators to distribution points, come with even stricter harmonic control requirements compared to medium voltage systems. Their role in maintaining grid stability is critical, and even small distortions can have far-reaching consequences. This section dives into the harmonic limits for these systems, highlighting their importance in preserving power quality and ensuring reliable operation.

Harmonic Distortion Limits (THD)

The IEEE 519-2022 standard sets the most stringent harmonic distortion limits for high voltage systems, dividing them into two categories based on voltage levels. As voltage levels increase, the requirements become more restrictive.

Bus Voltage at PCC Individual Harmonic (%) Total Harmonic Distortion (THD) (%)
69 kV < V ≤ 161 kV 1.5 2.5
161 kV < V 1.0 1.5*

*For systems with HVDC terminals, THD can reach up to 2.0%, provided the effects are mitigated at network points where future users may connect.

For bus voltages between 69 kV and 161 kV, individual harmonics are capped at 1.5%, with a maximum THD of 2.5%. When voltages exceed 161 kV, the limits are tightened to 1.0% for individual harmonics and 1.5% for THD. These limits are essential for preventing equipment damage and ensuring grid stability. In cases involving HVDC terminals, slightly higher THD levels are permissible if their impact is sufficiently reduced downstream.

Impact on Equipment Performance

Harmonic distortion in high voltage systems poses significant risks to both equipment performance and operational efficiency. The equipment used at these voltage levels represents substantial financial investments, and failures can result in widespread outages and costly repairs.

For example, transformer life expectancy is drastically reduced when total harmonic distortion in voltage (THDu) reaches 10%. Single-phase machines lose 32.5% of their service life, three-phase machines lose 18%, and transformers lose 5%. Additionally, harmonics increase energy losses, even in well-controlled systems. Utility distribution transformers, for instance, can experience energy losses between 10% and 15% due to additional copper losses (caused by the Joule effect) and iron losses (from eddy currents and hysteresis).

The financial impact of harmonic distortion is evident in real-world scenarios. In one metallurgy factory, excessive harmonics caused induction furnaces to overload and destroy three transformers (ranging from 1,500 to 2,500 kVA) within a year. The resulting production interruptions cost the facility an estimated $22,000 per hour. While this example involves industrial voltage levels, the consequences at transmission voltages are exponentially greater, as a single transformer failure can disrupt power for hundreds of thousands of people.

Compliance with Standards

To ensure high voltage systems remain reliable, IEEE 519-2022 provides a robust compliance framework. The standard emphasizes strict voltage distortion limits at the Point of Common Coupling (PCC) and requires daily and weekly measurements to identify chronic issues, even if brief disturbances occur.

Measurement practices under IEEE 519-2022 align with IEC standards, ensuring consistency in evaluations. Voltage distortion limits at the PCC are absolute, but current harmonic limits depend on the short-circuit ratio (ISC/IL). This reflects the ability of stronger transmission systems to handle harmonic currents without causing significant voltage distortion.

Harmonics also lead to increased heating in transformers, necessitating de-rating based on harmonic levels to prevent overheating and potential failures. Utilities managing high voltage equipment, such as specialized transformers and switchgear available through platforms like Electrical Trader, must prioritize continuous monitoring and active mitigation strategies. While these measures require investment, they ultimately enhance system reliability and extend the lifespan of costly equipment.

Advantages and Disadvantages

Understanding voltage-specific harmonic limits helps engineers make better decisions about system design and equipment selection. Each voltage category comes with its own set of benefits and challenges, influencing operational costs, equipment reliability, and compliance efforts.

Voltage Level Advantages Disadvantages
Low Voltage (120 V – 600 V) • More lenient THD limits (8.0%) allow for economical equipment choices
• Standard drives and basic mitigation tools are often sufficient
• Lower costs for compliance monitoring
• Greater flexibility in equipment sizing and selection		 • Higher harmonic levels lead to energy losses in transformers and motors
• Increased equipment stress shortens lifespan
• Risk of inaccurate billing caused by power meter interference
• Fire hazards from overheated wiring and transformers
Medium Voltage (601 V – 69 kV) • Balances cost and performance effectively
• Moderate THD limits (5.0%) reduce risk of major equipment damage
• Reasonable compliance requirements
• Wide availability of harmonic mitigation equipment		 • Requires more advanced monitoring and mitigation solutions
• Higher upfront investment in power quality tools
• More complex compliance documentation
• Limited flexibility in equipment options
High Voltage (Above 69 kV) • Strict harmonic limits (1.5–2.5%) ensure grid stability
• Reduced equipment stress extends lifespan
• Excellent power quality for sensitive loads
• Lower risk of widespread outages		 • Most expensive compliance and monitoring requirements
• Limited equipment options that meet stringent standards
• High initial investment in harmonic mitigation technologies
• Complex measurement and reporting processes

These comparisons highlight the trade-offs between initial investment, operational costs, and maintenance complexity. For instance, low voltage systems benefit from relaxed standards, allowing the use of standard 6-pulse drives, which reduces upfront costs. However, these savings can be offset by long-term expenses like increased energy losses and equipment wear caused by higher harmonic levels.

Low-harmonic variable speed drives, operating at 3–5% THD, offer a compelling solution. When used correctly, they allow transformers and backup generators to be sized 10–30% smaller. This reduction in size often compensates for the higher upfront cost of specialized low-harmonic equipment, especially in medium and high voltage systems. High voltage systems, while requiring more advanced maintenance protocols, experience fewer unexpected failures due to stricter harmonic control. On the other hand, low voltage systems, though simpler to maintain initially, can lead to more frequent failures and higher replacement costs over time.

For those sourcing equipment from Electrical Trader, understanding these trade-offs is essential for making smart purchasing decisions. Initial equipment costs are just one part of the equation - energy losses, maintenance, and compliance expenses often have a much greater impact on total costs.

While lower voltage systems might seem like a budget-friendly option at first, their long-term operating costs can surpass those of high voltage systems. Conversely, the higher initial investment for high voltage systems often pays off through better reliability and reduced maintenance expenses.

Conclusion

As we've explored, differences in harmonic limits across voltage levels demand targeted strategies to manage and reduce their impact. Grasping the importance of harmonic distortion limits isn't just a technical exercise - it’s critical to preventing equipment failures, improving power quality, and keeping energy costs under control. Left unchecked, harmonic distortion can degrade network reliability, damage equipment, and lead to inefficiencies that drain financial resources through higher bills and costly repairs.

The voltage-specific guidance in IEEE 519 offers a practical framework. Low voltage systems can handle higher distortion levels, but high voltage systems require tighter controls due to the broader impact of disturbances on these networks. This distinction underscores the importance of tailored solutions and expert input.

Brian Leavitt, Director of Electrical Engineering at IMEG Corp, highlights a common challenge:

"Harmonic distortion mitigation is commonly limited in original designs for a variety of reasons including a general lack of understanding, the mystery related to solutions, cost impact and the fact of IEEE 519 being a guideline, not required code".

Treating IEEE 519 as optional can lead to serious consequences. Excessive harmonic distortion overheats cables, motors, and other sensitive equipment, causing failures and inefficiencies. For example, the University Medical Centre Ljubljana addressed this issue by using Danfoss drives with integrated filters, keeping THDi capped at 5%.

For professionals sourcing equipment, platforms like Electrical Trader offer components that align with IEEE 519 standards. To ensure compliance, buyers should demand performance-based harmonic criteria, such as maintaining THDv below 8% and THDi under 5% for commercial applications. Sellers, on their part, should provide IEEE 519 studies during the shop drawing phase and offer equipment equipped with active front ends or passive input filters.

Well-designed variable speed drive systems can achieve total harmonic distortion levels as low as 3–5%, and optimized designs can reduce transformer and generator sizes by 10–30%. Considering that energy use often represents a significant portion of operating expenses, investing in harmonic mitigation strategies can lead to substantial long-term savings.

FAQs

How does harmonic distortion impact the performance and lifespan of electrical equipment?

Harmonic distortion can wreak havoc on electrical equipment, jeopardizing both its performance and longevity. It often leads to overheating, voltage stress, and greater energy losses, all of which put unnecessary strain on components. This extra stress accelerates wear and reduces efficiency.

Certain types of equipment, like transformers, motors, and electronic devices, are especially at risk. Long-term exposure to harmonic distortion can cause premature failures, drive up maintenance expenses, and lower reliability - factors that can seriously affect overall operational effectiveness.

How can harmonic distortion be reduced in medium and high voltage systems?

Reducing harmonic distortion in medium and high voltage systems is essential for keeping equipment running smoothly and ensuring system reliability. Here are a few ways to tackle the issue:

  • Install harmonic filters: These devices are designed to cancel out or reduce unwanted harmonic frequencies, helping maintain a steady power flow.
  • Use phase-shifting transformers: By redistributing harmonic currents, these transformers can lessen their overall impact on the system.
  • Upgrade to modern, energy-efficient equipment: Newer equipment typically produces fewer harmonics and is better equipped to handle power distortions.

Taking these steps can help protect your electrical systems from the negative effects of harmonic distortion while boosting their efficiency and performance.

Why are harmonic distortion limits tighter for high voltage systems, and how does this affect grid stability?

Harmonic distortion limits are more stringent for high-voltage systems because higher voltages make waveform distortions more pronounced. These distortions can cause energy losses, overheating, and even damage to essential equipment. By setting tighter limits, the power grid can operate more efficiently and reliably.

Enforcing stricter limits also minimizes excessive harmonic currents, which could otherwise destabilize the grid and shorten the lifespan of connected equipment. Adhering to these standards helps ensure steady power quality, improves grid stability, and safeguards both infrastructure and devices used by end-users.
