How to Choose Between RCD and RCBO

How to Choose Between RCD and RCBO

Need quick answers? Here’s a breakdown:

  • RCD (Residual Current Device):
    • Protects against electric shocks and ground faults.
    • Covers multiple circuits but doesn’t protect against overloads or short circuits.
    • Affordable and space-saving but may trip all circuits during a fault.
  • RCBO (Residual Current Breaker with Overcurrent Protection):
    • Combines ground fault protection with overload and short-circuit protection.
    • Protects individual circuits, avoiding system-wide shutdowns.
    • Costs more but offers targeted safety and easier troubleshooting.

Quick Comparison Table:

Feature RCD RCBO
Protection Type Ground faults only Ground faults + overloads/shorts
Circuit Coverage Multiple circuits Individual circuits
Fault Impact All circuits trip Only affected circuit trips
Cost Lower Higher
Space Requirements Less panel space required More panel space required

Which should you choose?

  • Use RCDs for basic protection in low-risk areas or when working with a tight budget.
  • Opt for RCBOs for high-risk areas (kitchens, bathrooms) or critical systems (refrigerators, security).

For the best results, consult an electrician to ensure compliance with local codes and optimal safety.

What's the difference between an RCD and an RCBO? - Circuit protection.

What Are RCDs?

An RCD (Residual Current Device) is a critical safety tool designed to protect against deadly electric shocks and fires caused by ground faults. In the U.S., these devices are commonly referred to as Ground Fault Circuit Interrupters (GFCIs). Unlike standard fuses or circuit breakers, RCDs can detect ground faults that other devices might miss.

RCDs work by constantly monitoring the flow of electricity in a circuit. If they detect any leakage, they cut off the power almost instantly - within 10 to 50 milliseconds. This quick action can prevent serious injuries and reduce the risk of fires. Regular circuit breakers, on the other hand, are only effective against overloads and short circuits, leaving a gap in protection that RCDs specifically address. To understand their efficiency, let’s take a closer look at how they work.

How RCDs Work

RCDs rely on a differential current transformer to monitor the balance of electrical current between the line (hot) and neutral wires. Normally, the current in these wires is equal. However, if a leakage occurs - such as when electricity escapes to the ground - the balance is disrupted, and the RCD quickly disconnects the circuit, often within milliseconds. This rapid response is crucial, as alternating currents above 20 mA (0.020 amperes) at 60 Hz can be hazardous.

Most RCDs are designed to trip when leakage currents exceed 30 mA, typically within 25–40 milliseconds. They also come with a built-in test button, which creates an artificial imbalance to ensure the device is functioning properly. This feature is especially important in areas where electrical faults pose significant risks, such as wet environments or industrial settings.

Where RCDs Are Used

In the United States, the National Electrical Code mandates the use of GFCIs in areas where the risk of electric shock is higher due to the presence of water or conductive surfaces. These areas include bathrooms, kitchens, garages, outdoor spaces, unfinished basements, laundry rooms, construction sites, and locations near hot tubs or spas. GFCIs are also required for all 125V/15A and 20A receptacles in dwelling units.

RCDs can be installed at the main electrical panel for whole-house protection or at individual outlets in high-risk locations. They are particularly effective in environments like wet areas or rooms with exposed concrete floors, where the likelihood of hazardous current paths increases. When properly maintained and tested, fixed RCDs have a reliability rate of about 97%, making them a cornerstone of electrical safety.

RCD Limitations

Despite their many benefits, RCDs are not a one-size-fits-all solution. They do not provide protection against overloads, phase-to-neutral short circuits, or phase-to-phase short circuits. To ensure comprehensive safety, they must be paired with standard circuit breakers.

Another common issue with RCDs is false tripping, which can occur due to minor electrical fluctuations. To maintain their effectiveness, it’s recommended to test RCDs every three months using the built-in test button. If an RCD fails to trip during a test, it’s essential to have a licensed electrician inspect the device and the electrical system. Regular testing and maintenance are key to ensuring these devices perform when needed.

What Are RCBOs?

An RCBO (Residual Current Circuit Breaker with Overcurrent protection) is a two-in-one device that combines the features of an RCD and an MCB. This means it protects against both ground faults and overcurrent issues, simplifying your electrical panel setup by eliminating the need for separate devices. Essentially, RCBOs offer a streamlined solution for comprehensive circuit protection.

How RCBOs Work

RCBOs are designed to monitor the flow of current through both the line and neutral wires. If they detect an earth fault as small as 30mA, they trip to cut off power. Additionally, they activate overcurrent protection when electrical loads exceed safe limits or in the event of a short circuit. This dual functionality helps prevent electrical shocks, fires, and equipment damage. It’s this combination of features that makes RCBOs a great choice for circuits requiring precise, localized protection.

Where RCBOs Are Used

RCBOs shine in situations where individual circuits need to operate independently. Unlike traditional RCD setups, where a single fault can take down multiple circuits, RCBOs ensure that a problem in one circuit doesn’t affect the rest.

They’re particularly useful in critical circuits like refrigerators, security systems, and fire alarms, where uninterrupted operation is essential. By isolating faults caused by earth leakage in other circuits, RCBOs help prevent nuisance tripping. Outdoor lighting and sockets, which are more prone to ground faults due to their exposure, also benefit from the added protection RCBOs provide. In high-risk areas like kitchens and bathrooms, RCBOs offer localized safety by quickly disconnecting power in response to even minor earth leakage. This targeted approach means only the affected circuit is disrupted, leaving the rest of the system running smoothly.

RCBOs are also a smart choice for protecting sensitive or expensive equipment, such as computers and home theater systems, from electrical disturbances.

Benefits of Combined Protection

The standout feature of RCBOs is their ability to combine overcurrent and residual current protection into a single device. This not only simplifies wiring but can also lower installation costs. By isolating faults at the circuit level, RCBOs make troubleshooting faster and more efficient. They’re particularly well-suited for circuits where a quick disconnect is crucial, offering the rapid response needed to prevent serious electrical hazards.

Whether in residential, commercial, or industrial settings, RCBOs provide a reliable, all-in-one safety solution for environments that demand a high level of electrical protection.

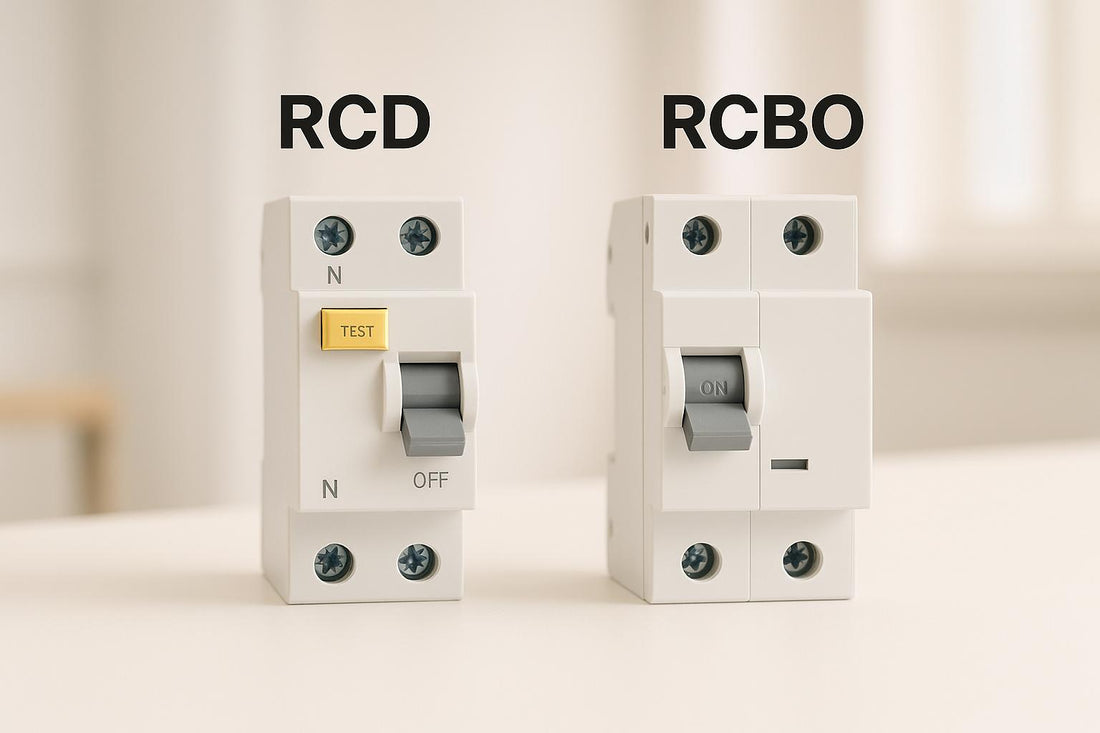

RCD vs RCBO: Main Differences

Grasping the differences between RCDs and RCBOs can help you make the right choice for your electrical setup. While both devices are designed to protect against hazardous ground faults, they serve distinct purposes and offer varying levels of safety.

Side-by-Side Comparison

The primary difference between these devices lies in their functionality. RCDs (Residual Current Devices) focus exclusively on detecting earth leakage faults, while RCBOs (Residual Current Breaker with Overcurrent) combine earth leakage protection with overcurrent and short-circuit protection in a single unit. This distinction impacts how they’re installed, how they respond to faults, and their overall cost.

Feature RCD RCBO
Protection Type Earth leakage faults only Earth leakage, overcurrent, and short circuits
Circuit Coverage Multiple circuits Individual circuit
Fault Impact All connected circuits shut down Only the affected circuit trips
Initial Cost Typically lower Generally higher
Installation One device protects several circuits One device per circuit
Space Requirements Less panel space required More panel space required
Troubleshooting Fault isolation can be challenging Easier fault identification

These features highlight how the devices behave during faults. For instance, an RCD protects multiple circuits simultaneously, meaning a single fault could cut power to all connected circuits. In contrast, an RCBO isolates only the problematic circuit, keeping the rest operational.

"An RCD is the best choice for protecting against electrical shock because it will quickly disconnect the power before serious damage can occur." - William, Electrical Engineering Author

Which Device Fits Your Needs

Choosing between an RCD and an RCBO depends on factors like safety priorities, budget, and the complexity of your electrical system. If your primary goal is to prevent electrical shock and you’re working within a tight budget, RCDs offer reliable safety at a lower cost. They’re particularly effective for general lighting and outlet circuits where occasional shutdowns of multiple circuits aren’t a major concern.

On the other hand, RCBOs are ideal when you need both shock and overcurrent protection in a single device. They’re well-suited for complex systems, high-powered appliances, or critical setups like refrigeration, security systems, or home offices where maintaining power is essential.

While RCDs are generally more affordable, the price gap between the two options has narrowed over time. This makes RCBOs a more appealing choice for their dual protection. However, using a single RCD to cover multiple circuits can still be a cost-effective option in simpler setups.

For the best results, consult a licensed electrician who can evaluate your specific needs and ensure compliance with local electrical codes.

sbb-itb-501186b

5 Steps to Choose the Right Device

Choosing between RCDs and RCBOs can feel overwhelming, but breaking it down into simple steps makes the process much easier. These steps build on earlier comparisons and focus on practical installation and compliance factors.

Step 1: Determine Your Safety Needs

Start by evaluating the safety requirements of your electrical system. Areas with higher risks, like bathrooms, kitchens, workshops, or outdoor outlets, often benefit from the added protection of RCBOs. If you have sensitive equipment - think computers, medical devices, or security systems - RCBOs are a great choice because they offer comprehensive protection. For commercial or industrial environments, where electrical loads can fluctuate, RCBOs are particularly useful. They isolate faults to a single circuit, minimizing the risk of widespread outages.

Step 2: Assess Your Panel and Wiring

Before making a decision, check that your electrical panel can accommodate the device. Ensure there’s enough space and that the mounting options are compatible. Your wiring also needs to meet specific voltage, frequency, and phase requirements. Pay close attention to the neutral bar configuration, especially in split-load units. Additionally, verify that all connected loads, including inrush and transient currents, fall within safe operating limits.

It’s worth noting that mixing breakers from different manufacturers can cause fitment issues. Consumer units are typically type-tested as a complete system, so sticking with compatible devices is a safer bet.

Step 3: Weigh Costs and Future Planning

RCDs are generally more affordable upfront, but they come with a tradeoff - if a fault occurs, all connected circuits may be disabled. RCBOs, on the other hand, protect individual circuits, which can significantly reduce downtime. When deciding, think beyond the initial cost. Consider long-term maintenance, the potential for future system expansion, and the overall cost of protection for your setup.

Step 4: Ensure Code Compliance

Make sure the device you choose complies with U.S. safety standards and local electrical codes. For example, the National Electrical Code (NEC) has mandated the use of GFCI devices in certain locations since the 1960s, with newer editions expanding these requirements. Today, GFCI protection is required in areas such as underwater swimming pool lights, construction sites, bathrooms, outdoor spaces, and garages.

"This is referenced in the National Electric Code section 406 (D) 2, however codes change and someone should always consult a licensed professional and their local building and safety departments."

Step 5: Get Expert Advice

When in doubt, turn to a licensed electrician. They can assess your panel’s compatibility, identify potential issues like neutral-to-ground faults or nuisance tripping, and ensure the device is configured correctly. For complex installations - or if you’re unsure about the best option - professional guidance is a smart investment that can save you time and trouble in the long run.

Conclusion

Choosing between RCDs and RCBOs becomes much easier when you understand what each device offers. RCDs are a cost-effective solution for protecting against electric shock and earth faults, making them ideal for outdoor circuits or installations where budget is a concern. On the other hand, RCBOs provide a higher level of protection by combining shock prevention with overcurrent protection, making them a great choice for critical circuits that demand selective tripping and minimal disruptions.

The decision ultimately depends on your specific needs. Factors like protection requirements, available space in your panel, budget constraints, and future expansion plans should guide your choice. High-risk areas such as kitchens, bathrooms, and workshops often benefit from the advanced safety features of RCBOs.

RCBOs go a step further by preventing overloads and short circuits, which can help reduce the risk of electrical fires. Matching the device to your system's demands ensures long-term safety and reliability.

Always ensure your installation complies with current electrical codes and hire a qualified professional to handle the job. The right device, installed properly, can make all the difference in keeping your system safe and dependable for years to come.

Looking for the right protection devices? Check out Electrical Trader for a wide range of options tailored to your needs.

FAQs

How do I decide whether to use an RCD or an RCBO for my home's electrical system?

When deciding between an RCD (Residual Current Device) and an RCBO (Residual Current Breaker with Overcurrent), it’s important to think about the level of protection your home requires:

  • RCDs focus on safety by guarding against earth faults and electric shocks. They cut off power the moment they detect a fault, reducing the risk of injury.
  • RCBOs take it a step further by combining the features of an RCD with protection against overcurrent and short circuits. This makes them a great choice for safeguarding individual circuits.

Although RCBOs provide broader protection, they typically come with a higher price tag compared to RCDs. To make the right choice, consider your home’s electrical load, safety priorities, and budget. If you’re uncertain, it’s always a good idea to consult a licensed electrician for advice tailored to your system.

What are the key differences between RCDs and RCBOs when it comes to installation and panel space requirements?

RCDs vs. RCBOs: Key Differences

The main distinction between RCDs and RCBOs lies in their functionality and the amount of space they occupy in an electrical panel.

  • RCDs (Residual Current Devices) are designed solely to protect against residual currents. They are typically larger and usually need a dedicated slot in the panel. While they are simple to set up, they can take up more room overall.
  • RCBOs (Residual Current Breaker with Overcurrent) combine the features of an RCD and a circuit breaker into one compact device. This makes them a great choice when panel space is tight. However, their integrated design may require extra care during installation due to their wiring and combined functionality.

When planning your electrical setup, make sure there’s at least 36 inches of clear working space in front of the panel, as outlined by electrical safety codes. Maintaining proper spacing and following these guidelines ensures both safety and optimal performance.

Can an RCBO replace an RCD in all electrical setups, or are there cases where an RCD is a better choice?

RCBOs are a versatile option because they provide both earth fault protection and overcurrent protection in a single device. This makes them a great choice for installations where space is limited or when you need protection for individual circuits.

On the other hand, RCDs are often used in simpler setups or as the primary safety device when only leakage protection is required. They work well when overcurrent protection is already managed by separate circuit breakers. Deciding between the two depends on the specific demands of your electrical system, including safety priorities and budget constraints.
