Thermal Overload Basics: Causes and Effects

Thermal Overload Basics: Causes and Effects

Thermal overloads can damage electrical systems, cause safety hazards, and disrupt operations. They occur when equipment draws too much current, generating excessive heat. Here's what you need to know:

  • Main Causes:
    • Equipment Overloading: Excessive current draw damages components, especially in older systems.
    • Mechanical Problems: Issues like worn bearings or misaligned shafts increase resistance and heat.
    • Electrical Imbalances: Uneven current flow overheats motors and circuits.
  • Effects:
    • Damaged components like wire insulation, motors, and transformers.
    • Increased safety risks, including electrical fires and shocks.
    • Costly system downtime and reduced efficiency.
  • Prevention:
    • Use thermal overload relays to monitor and cut power during prolonged overloads.
    • Ensure proper equipment sizing and regular maintenance.
    • Install circuit breakers and fuses for layered protection.

Motor Overload Protection

Main Causes of Thermal Overloads

Understanding the root causes of thermal overloads is key to avoiding costly damage to your equipment. The three primary reasons behind thermal overloads are equipment overloading, mechanical problems, and electrical imbalances. Each of these issues generates excessive heat, which can harm your electrical systems. Let’s break down these causes to see how they impact your operations.

Equipment Overloading

Equipment overloading happens when motors or circuits are forced to handle more current than they’re designed for. This extra load generates excessive heat, which can damage motor windings and other components. For instance, plugging multiple high-power devices into a single circuit or operating motors under loads beyond their specifications are common scenarios that lead to overloading.

When the load increases, motors pull more current - especially AC induction motors, which can draw up to 600% of their rated current during startup. This surge of current results in dangerous heat buildup.

The problem is even worse in older electrical systems. Over 50% of U.S. homes are more than 30 years old, with wiring that wasn’t built to handle modern electrical demands. Warning signs of overloading include flickering lights, frequently tripped breakers, warm or discolored outlets, burning smells, and buzzing noises[12–15].

Mechanical Problems

Mechanical issues often increase resistance in motors, forcing them to work harder and draw more power. This, in turn, leads to excess heat generation. For example, shaft misalignment causes friction, making the motor overexert and draw more current. Similarly, worn bearings add resistance, pushing the motor beyond its thermal capacity.

Electrical Imbalances and Circuit Overload

Electrical imbalances occur when current flows unevenly, creating extra heat and putting stress on components. In three-phase systems, a phase loss forces the remaining phases to carry more current, overheating motor windings. This is a critical issue in industrial environments where three-phase motors are essential.

Circuit overloads, on the other hand, happen when a circuit’s power demand exceeds its capacity. This can be caused by faulty wiring that increases resistance, malfunctioning circuit breakers that fail to stop overcurrent, or a lack of outlets that leads to unsafe extension cord use. Power surges also contribute to excessive current draw and heat generation.

The consequences of these issues are severe. Electrical malfunctions account for nearly 46,700 home fires annually, causing over $1.5 billion in damages. In industrial settings, thermal overloads can result in expensive downtime and the need for costly equipment replacements.

How Thermal Overloads Affect Electrical Systems

Thermal overloads can wreak havoc on electrical systems, leading to equipment damage, safety hazards, and operational disruptions. The consequences range from immediate failures to long-term wear and tear that may result in expensive repairs.

Damage to Electrical Parts

Thermal overloads often target the weakest components in a system. One common victim is wire insulation. When excessive current flows through conductors, the heat generated can melt the insulation, leaving wires exposed. This creates a dangerous situation where bare wires could ignite nearby materials.

Motors are another area of concern. Overloaded motors draw more current than they are designed to handle, causing their copper windings to overheat. This can lead to insulation breakdown, which may result in short circuits, ground faults, or complete motor failure.

Transformers face similar risks. In oil-filled transformers, overheating can compromise the insulation, increasing the likelihood of fire hazards.

Beyond these specific components, continuous overloads take a toll on wiring, outlets, and circuit breakers. Over time, this strain reduces their lifespan, and a single overload event can damage multiple pieces of equipment at once. These failures not only affect the system but also create significant safety and operational challenges.

Safety Risks

The safety dangers posed by thermal overloads are serious and sometimes life-threatening. One of the most immediate risks is electrical fires. Overheated wires and damaged outlets can reach ignition temperatures, sparking fires that spread quickly within buildings.

"An overloaded circuit is a significant source of potential house fires... The wires can overheat from this overexposure over time, starting a deadly fire in the surrounding area."

The Bureau of Labor and Statistics highlights the broader implications of heat-related issues, reporting 33,890 work-related heat injuries and illnesses from 2011–2020, along with 999 deaths between 1992–2021. While these figures encompass various causes, they emphasize the importance of managing thermal risks effectively.

Another safety concern is the increased likelihood of electrical shocks. When insulation is damaged due to overheating, conductors are exposed, raising the risk of accidental contact with conductive materials. These shocks can range from minor discomfort to severe, life-threatening injuries.

"Overloaded circuits increase the risk of electrical shocks, as overheated wires may become damaged or exposed, raising the chances of contact with conductive materials. These shocks can range from minor discomfort to potentially life-threatening injuries."

These safety risks not only endanger individuals but also contribute to operational interruptions, compounding the impact of thermal overloads.

System Downtime

Thermal overloads don’t just damage components and compromise safety - they also lead to costly downtime. When systems overheat, circuit breakers trip to prevent fires, but this protective measure halts operations and disrupts productivity.

In manufacturing, even a brief outage can result in significant productivity losses. Repeated shutdowns not only delay schedules but also increase maintenance expenses.

Overloaded systems also operate less efficiently. They consume more energy while delivering inconsistent performance, leading to higher utility bills and reduced output. Prolonged thermal stress accelerates the degradation of insulation and other materials, causing premature equipment failures. In severe cases, these failures can cascade, bringing entire operations to a standstill.

"Overloading leads to overheating of circuit components - including wires - and may cause a fire. A circuit with improper overcurrent protection devices, or one with no overcurrent protection devices at all, is a fire and shock hazard."

  • ILEC

How to Prevent Thermal Overloads

Preventing thermal overloads requires a mix of proper protection, smart design, and regular maintenance. The aim is to spot and address potential problems before they turn into safety hazards or lead to expensive equipment failures.

Thermal Overload Relays

Thermal overload relays play a critical role in guarding motors against overheating. These devices monitor the current flowing through a motor and disconnect power if an overload persists for too long. They often rely on a bimetallic strip that bends as it heats up, triggering a mechanism to cut power and prevent damage.

There are two main types of thermal overload relays: manual and auto-reset. Manual versions require a technician to inspect and restart the system, while auto-reset versions restore power automatically once the motor cools down. Setting the correct current threshold is key. If the threshold is too low, you’ll deal with frequent, unnecessary shutdowns. Too high, and the motor might not be adequately protected during an overload. These relays are also designed to handle brief, harmless surges in current without tripping.

Beyond relays, ensuring proper equipment sizing and sticking to a solid maintenance routine can significantly lower the risk of thermal overload.

Correct Equipment Sizing and Maintenance

Using equipment that’s properly sized for its intended load is essential to avoid overheating. Electrical systems that are too large can cycle on and off excessively, while systems that are too small may constantly run at full capacity. Both scenarios generate unnecessary heat and stress.

Regular maintenance is just as important. Dust, debris, corrosion, or loose connections can all interfere with the performance of overload protection systems. A good maintenance plan should include:

  • Visual inspections to spot damage or corrosion.
  • Calibration checks to ensure temperature settings are accurate.
  • Functional testing by simulating overload conditions to confirm the relays trip as expected.

Proper ventilation is another important factor. Good airflow helps dissipate heat and keeps devices from overheating. Maintaining a log of trip history and response times can also reveal patterns that might signal developing problems. On top of this, additional circuit protection can strengthen the overall system.

Circuit Protection Devices

While thermal overload relays focus on protecting motors, circuit breakers and fuses safeguard entire circuits. Circuit breakers, which often combine thermal and magnetic elements, respond to both sustained overloads and sudden short circuits. Choosing the right breaker means understanding the circuit’s normal operating current and allowing for temporary overloads.

Fuses, on the other hand, melt when exposed to excessive current and need to be replaced after they activate.

Together, these devices create a layered defense system. This redundancy ensures that if one protection device fails to act in time, another can step in to prevent damage. Regular testing, such as checking trip settings, ensuring coordination between devices, and replacing worn components, is crucial for keeping the electrical system safe and reliable.

sbb-itb-501186b

How Electrical Trader Helps with Overload Solutions

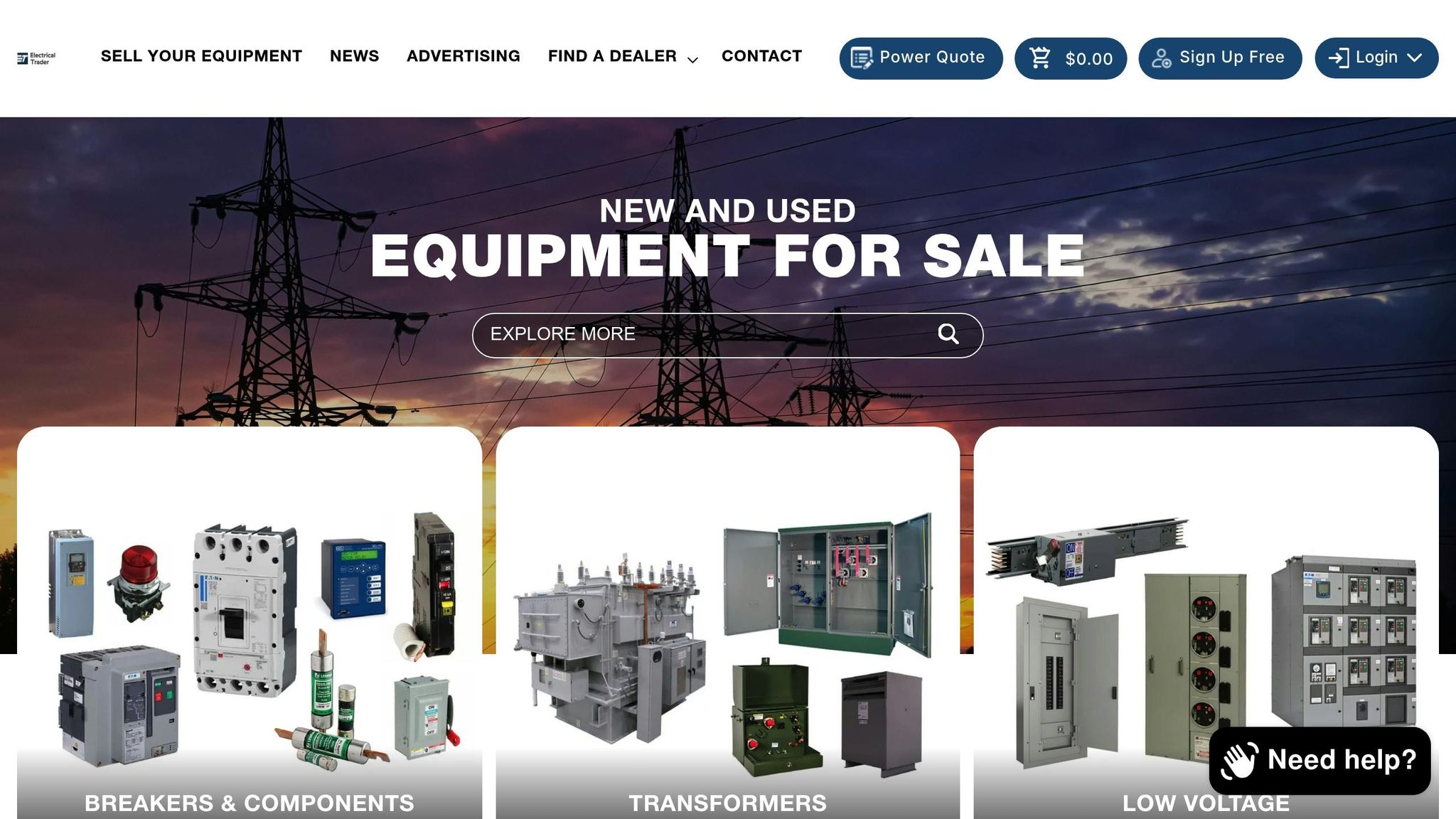

Electrical Trader

Electrical Trader plays a key role in helping professionals find the right components to address thermal overload challenges. Proper thermal overload protection is essential for both safety and operational efficiency, and Electrical Trader's platform connects users with a wide selection of new and used electrical components designed to safeguard systems. Below are some of the key overload protection components available through Electrical Trader.

Thermal Overload Relays and Parts

Thermal overload relays offered by Electrical Trader come with adjustable trip levels, allowing users to tailor them to specific load requirements. When choosing these relays, it's critical to select ones with current settings that align with the full load current of the motor or equipment being protected. These relays also feature built-in time delays, which allow temporary overloads to occur without interrupting the circuit, minimizing unnecessary shutdowns during normal operations.

However, it's important to understand that thermal overload relays alone do not provide short circuit protection. For optimal performance, they should be paired with fuses or circuit breakers. In applications like direct-on-line (DOL) motor starters, which experience high inrush currents, carefully sizing the relay is especially important to ensure proper protection.

Circuit Protection Equipment Selection

Electrical Trader also offers a variety of circuit protection devices, each with unique benefits. Here's a quick comparison of key features between circuit breakers and fuses:

Feature Circuit Breakers Fuses
Resettable Yes No (requires replacement)
Consistent Performance Yes No (deteriorates over time)
Quick Recovery Instant reset Replacement required
Safer in Medical Equipment Yes No

The platform provides access to options like the Wolverine series, MCBs (Miniature Circuit Breakers), RCBOs (Residual Current Breakers with Overcurrent), RCDs (Residual Current Devices), and main switches. Selecting the right breaker involves matching it to the circuit's normal operating current while accounting for brief overloads. Guidelines such as NEC 430-52 can help ensure proper sizing. Additionally, factors like motor characteristics, load demands, and environmental conditions should guide the choice of protection devices.

Why Source from Electrical Trader

Electrical Trader's marketplace offers a cost-effective and reliable way to source thermal overload protection components. The platform specializes in both new and used electrical equipment, providing professionals with a wide range of options to meet their needs. With organized listings and a resource center, finding items like breakers, transformers, and other components is straightforward and efficient.

When purchasing electrical products, it’s crucial to choose a reputable supplier with verified customer reviews and ratings. For more complex installations, consulting a licensed electrician is recommended to ensure the correct selection and installation of products.

Electrical Trader serves electricians, contractors, and facility managers who require dependable access to both common and specialized components. Whether replacing failed devices or upgrading an entire system, having access to both new and quality used equipment helps manage costs while maintaining safety and reliability. Sourcing from a trusted platform like Electrical Trader ensures system performance is upheld, supporting both safety and operational continuity.

Conclusion

Wrapping up the discussion on overload causes and prevention, here’s a concise summary of the key takeaways.

Thermal overloads pose risks to both equipment and safety. Protecting against them is essential to avoid damage, hazards, and downtime. As CJE Group emphasizes, "Thermal relays are an important part of electrical systems and play a vital role in protecting equipment and preventing potential hazards".

Key Points

Effective protection against overloads minimizes damage, reduces safety risks, and prevents costly downtime. Without proper safeguards, overloads can lead to damaged components, fire hazards, and interruptions that impact productivity.

Thermal overload relays are critical tools in this effort. They monitor current and temperature with adjustable trip settings and time delays, offering protection against sustained overcurrents. For comprehensive safety, pair them with circuit breakers or fuses.

The numbers highlight the importance of these measures. For instance, three-phase induction motors make up nearly 80% of industrial applications, and electrical overloads are a leading cause of malfunctions in residential circuits. This underscores the need for reliable protection equipment to ensure safe, continuous operation.

Regular inspections and properly sized components are also key to preventing overloads. Warning signs like frequent breaker trips, flickering lights, burning odors, or warm switches should never be ignored. Addressing these issues promptly with the help of licensed electricians ensures compliance with safety standards and the correct choice of equipment.

"By continuously monitoring temperature and current, thermal relays provide a reliable means of protection against potential faults and overloads".

This ability to monitor systems in real-time, combined with access to quality protection equipment through platforms like Electrical Trader, helps maintain system reliability. Whether opting for new or used components, these resources provide cost-effective solutions to safeguard your setup.

Taking proactive steps not only protects your equipment investment but also ensures ongoing safety. With the right components and expert guidance, you can maintain robust and secure electrical systems for the long term.

FAQs

What are the common signs of thermal overload in older electrical systems, and how can they be detected early?

Recognizing Thermal Overload in Older Electrical Systems

Thermal overload in aging electrical systems often shows up through several warning signs. Keep an eye out for flickering or dimming lights, outlets and switches that feel unusually warm or appear discolored, circuit breakers that trip frequently, buzzing or sizzling noises, or even a burning smell. These are all red flags that your system might be overheating or struggling under excessive strain.

To catch thermal overload early, tools like thermal imaging cameras can be incredibly helpful. They allow you to identify abnormal heat patterns in electrical components before they escalate into bigger problems. Another useful step is testing thermal overload relays using a multimeter or other specialized tools to confirm they’re working as they should. Addressing these issues quickly can help ward off serious risks like electrical fires or system breakdowns.

What is a thermal overload relay, and how does it protect electrical systems? What should you consider when choosing one?

A thermal overload relay is a protective device designed to shield electrical systems from damage caused by excessive heat due to overcurrent. It operates using a bimetallic strip that bends when exposed to high temperatures. This bending activates a mechanism that disconnects the circuit, preventing motors and other components from overheating or failing.

When choosing a thermal overload relay, it's essential to evaluate factors like the motor’s current rating, trip class, ambient operating conditions, and the specific needs of your application. Selecting the right relay ensures dependable protection and helps extend the lifespan of your equipment.

What maintenance steps can help prevent thermal overloads and keep electrical systems running smoothly?

To keep thermal overloads at bay and ensure your electrical systems run smoothly, regular upkeep is a must. Start with routine inspections to catch and replace any worn-out or faulty parts, such as circuit breakers or wiring, before they lead to bigger problems. Keeping the system clean - free of dust and debris - also helps everything function as it should.

Make sure to distribute electrical loads evenly across circuits to prevent overloading, and consider using surge protectors for an extra layer of safety. For high-power appliances, skip the extension cords and verify that circuits are properly sized to handle the load. It’s also a good idea to test thermal overload relays regularly to prevent overheating and extend the lifespan of your equipment.

By taking these straightforward steps, you can lower the chances of system damage, boost reliability, and save yourself from expensive repairs later on.
