What Are AFCIs and How They Work

Arc Fault Circuit Interrupters (AFCIs) are devices that prevent electrical fires by detecting dangerous arcing in wiring. Unlike standard breakers that only respond to overloads or short circuits, AFCIs monitor electrical currents for irregular patterns, cutting power instantly when hazards arise. This proactive approach has reduced fire-related deaths by 15% and injuries by 20% between 2017 and 2019. AFCIs are now required in many circuits under the National Electrical Code (NEC).

Key points about AFCIs:

  • Purpose: Detect and stop dangerous electrical arcs to prevent fires.
  • Types: Circuit breakers (protect entire circuits) and receptacles (protect specific outlets).
  • Cost: Around $49 per breaker; $392 to outfit a 2,000-square-foot home.
  • Installation: Requires professional setup and adherence to NEC standards.
  • Maintenance: Test monthly to ensure proper function; replace every 15-20 years.

AFCIs are particularly effective in bedrooms, kitchens, and living areas, where electrical arcs are more likely. By ensuring proper installation and regular testing, homeowners can significantly reduce the risk of electrical fires.

How AFCIs Detect and Stop Arc Faults

How AFCIs Work

AFCIs use advanced microprocessor-based technology to keep a constant watch on electrical waveforms. By analyzing frequencies and detecting irregularities in the waveform, they can tell the difference between normal electrical activity and dangerous arcing. These devices focus on the rising and falling edges of arcing currents, looking for specific patterns of magnitude and duration within each half cycle to determine if the arc is hazardous. When they detect a dangerous arc, AFCIs act immediately - cutting power to the circuit before heat can build up and create a fire risk. Let’s break down the types of arc faults these devices are built to detect.

Types of Arc Faults AFCIs Detect

AFCIs are engineered to identify and respond to three main types of arc faults:

  • Series arcing: This happens when there’s a break or loose connection in a conductor, causing electricity to jump across a gap. Standard breakers often miss this type of fault.
  • Parallel arcing: In this case, electricity jumps between conductors, generating extreme heat that can ignite nearby materials quickly.
  • Ground arcing: This occurs when current escapes to the ground through unintended paths, such as damaged insulation. Sensors set at 30 mA can detect this early breakdown.

To ensure reliable protection, AFCIs are designed to trip when eight half cycles of arcing occur within a 0.5-second window. This balance helps prevent fire hazards while avoiding unnecessary tripping.

Common Arc Fault Situations

Now that we’ve covered the fault types, let’s look at where these issues often arise. Arc faults can develop gradually but become serious fire hazards over time. Damaged insulation from construction work, aging, or even pests can lead to arc faults. Similarly, loose connections and corroded contacts in older wiring can create conditions for dangerous arcs, triggering AFCI trips until the problem is fixed.

Environmental factors also play a role. Moisture, for instance, can lead to short circuits or current leakage, while mold growth might form conductive paths between wires. Appliances like microwaves, power tools, and fluorescent lights - especially those with motors or heating elements - can produce arc patterns that AFCIs interpret as hazardous, causing them to trip for safety.

The importance of AFCI protection becomes clear when you consider data from a 1994 insurance company survey, which found that over 33% of electrical fires were caused by arcing conditions. With arcs capable of reaching temperatures high enough to ignite common household materials instantly, early detection and quick action are essential to preventing devastating fires.

What is an AFCI? Why are Arc Fault Circuit Interrupters Important?

Types of AFCIs and Where to Use Them

Choosing the right AFCI (Arc Fault Circuit Interrupter) is crucial for protecting your home. Each type serves specific purposes and offers varying levels of protection based on your electrical setup and safety needs.

AFCI Circuit Breakers

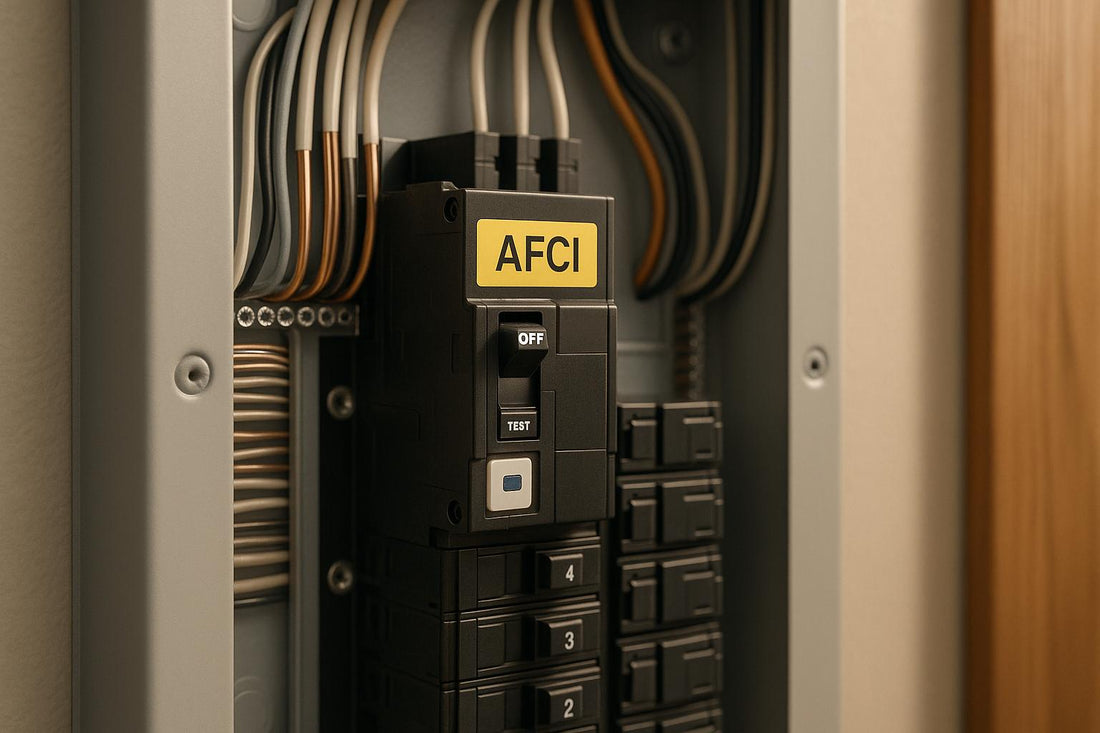

AFCI circuit breakers are installed in your electrical panel and safeguard entire branch circuits from arc faults. Acting as the first line of defense, they monitor electrical activity from the panel to every connected outlet and device on that circuit.

There are three primary types of AFCI circuit breakers:

  • Branch/Feeder AFCI Breakers: These detect parallel arcing, such as line-to-neutral and line-to-ground faults.
  • Combination Breakers: These protect against both parallel and series arcs, detecting series arcs as low as 5 amperes.
  • Dual-Function AFCI/GFCI Breakers: These combine arc fault and ground fault protection for maximum safety.

Circuit breaker AFCIs provide extensive coverage for entire circuits, making them ideal for new construction or when upgrading an electrical panel. However, for retrofitting existing systems, AFCI receptacles often present a more practical solution.

AFCI Receptacles

AFCI receptacles are outlets equipped with built-in arc fault detection. When installed as the first outlet on a branch circuit, they protect downstream outlets and wiring from both series and parallel arc faults. However, they do not safeguard the wiring between the breaker panel and the first AFCI receptacle.

These receptacles are particularly useful in retrofit projects where replacing circuit breakers isn't feasible or cost-effective. Electricians often use AFCI receptacles when modifying or extending branch-circuit wiring in areas requiring arc fault protection.

Some models also integrate ground fault protection, offering a combination solution for retrofit installations. Knowing the right device type ensures compliance with safety standards like the NEC.

NEC Requirements for AFCI Installation

Beyond understanding AFCI devices, it's essential to meet National Electrical Code (NEC) requirements to ensure circuits meet safety standards. According to the 2020 NEC and later updates, AFCI protection is required for all 120-volt, single-phase, 15- and 20-ampere branch circuits supplying outlets or devices in dwelling units.

The NEC mandates AFCI protection in living areas such as bedrooms and living rooms but exempts locations like bathrooms, basements, and garages. These rules apply to various housing types, including single-family homes, apartments, manufactured homes, mobile homes, and dormitory-style units like hotel rooms.

When both AFCI and GFCI protection are required in the same location, the receptacle must provide AFCI protection. Additionally, all AFCI devices should be listed products, meaning they’ve been tested by a nationally recognized lab to meet UL 1699 standards. Always consult the latest NEC edition and local amendments, as requirements may vary.

The importance of these guidelines is underscored by alarming statistics: electrical fires cause over 50,000 home fires annually in the United States, with branch circuit wiring responsible for nearly one-third of these fires. Properly installed AFCI breakers can reduce electrical fire risks by about 50%, making NEC compliance a key step in home safety.

sbb-itb-501186b

AFCI Pros and Cons

Building on the earlier discussion of how AFCIs work, let’s take a closer look at their strengths and challenges. While AFCIs play a key role in reducing electrical fire risks, they do come with certain limitations.

Benefits of Using AFCIs

AFCIs are highly effective at preventing electrical fires, with the Consumer Product Safety Commission (CPSC) estimating that they could prevent nearly 50% of home electrical fires each year. This is a significant figure, considering that between 2017 and 2019, electrical fires caused nearly 25,000 residential fires annually. These incidents resulted in hundreds of deaths, thousands of injuries, and over $1 billion in property damage.

Modern AFCIs are designed to be more reliable, with advancements that reduce nuisance tripping and allow them to differentiate between dangerous electrical arcs and normal fluctuations in current. Some homeowners even see financial perks - certain insurance companies offer policy discounts for homes equipped with AFCIs and other safety features. Plus, ensuring your home complies with the latest NEC standards can boost its market value, especially during renovations or new construction.

However, despite these advantages, AFCIs aren’t without their drawbacks.

AFCI Drawbacks to Consider

One of the biggest downsides to AFCIs is the cost. At around $49 per circuit breaker, equipping an average 2,000-square-foot home could cost approximately $392.

Installation can also be tricky. AFCIs need to be properly configured and tested, which often means hiring a professional electrician. While modern designs have made strides in reducing nuisance tripping, certain appliances or electrical setups can still cause false alarms, creating minor inconveniences for homeowners.

Another challenge is retrofitting AFCIs into older homes. Protecting an entire circuit in these cases can be more complicated and may require additional modifications to the electrical system.

To better understand the balance of benefits and challenges, here’s a quick comparison.

Feature Comparison

Aspect Benefits Limitations
Fire Prevention Reduces electrical fires by up to 50%; protects lives and property Does not eliminate all risks; proper installation is critical
Technology Improved reliability; fewer nuisance trips Certain appliances may still cause false alarms
Installation Available in breaker and receptacle formats for flexibility Professional installation often required; retrofitting older homes can be complex
Compliance Aligns with NEC standards; can enhance home resale value Mandatory in many areas; may involve additional regulatory compliance
Financial Impact May qualify for insurance discounts Initial costs are relatively high

It’s worth noting that electrical residential fires have shown a marked decline in recent years. Compared to a peak of 75,000 fires in 1980, deaths have dropped by 15%, and injuries have decreased by 20%. These improvements highlight the growing effectiveness of modern safety measures like AFCIs in reducing fire-related risks.

Installing and Maintaining AFCIs

Proper installation and upkeep of AFCIs (Arc Fault Circuit Interrupters) are key to preventing electrical fires. While these devices rely on advanced technology, following correct procedures ensures they function effectively for years.

How to Install AFCIs

AFCI installation should always be done by a licensed electrician. The process demands specific tools - like a screwdriver, wire strippers, pliers, and a voltage tester - and begins with turning off power to the circuit to ensure safety.

For AFCI breakers, the hot wire connects to the "Load Power" terminal, while the white circuit wire attaches to the "Panel Neutral" terminal. The breaker's coiled white wire then connects to the neutral bus bar, replacing the original white neutral wire. It's crucial to avoid connecting the grounding conductor directly to the AFCI breaker.

AFCI receptacles are another option, especially for retrofitting older homes. These are installed at the first outlet of the circuit, with wiring connected according to the manufacturer's instructions. Whether you're working with breakers or receptacles, always follow the manufacturer's guidelines and adhere to local electrical codes.

Once the new breaker is securely in place, power can be restored. Use the device's test button to confirm proper operation. Regular testing and maintenance are essential to ensure continued protection.

Testing and Maintenance

After installation, monthly testing is necessary to confirm that the AFCI is functioning correctly. Press the test button monthly, and if the device fails to trip, replace it immediately.

In addition to testing, routine maintenance is critical. Check for loose connectors and inspect the wiring for any signs of damage, such as fraying, burning, or exposed wires. Replace damaged wires promptly to avoid safety risks.

Keep AFCIs clean by removing dust and debris, as buildup can interfere with their operation. If you notice frequent tripping or the device no longer functions, it may need maintenance or replacement.

When to Replace AFCIs

With proper care, AFCIs typically last between 15 and 20 years. However, certain warning signs may indicate the need for replacement sooner. Frequent tripping, for instance, may suggest wiring issues or multiple arc faults in the circuit. Occasional tripping is normal, as it indicates the AFCI is detecting arc faults, but persistent tripping requires attention.

If an AFCI doesn’t reset after tripping, it could point to a persistent arc fault or a wiring issue that needs professional evaluation. Other symptoms, such as flickering lights or burning smells, also signal potential problems. In these cases, inspect the wiring for damage or loose connections. If issues persist, consult an electrician to determine whether the AFCI itself is faulty or if broader circuit issues are to blame.

Regular testing, visual inspections, and addressing warning signs promptly will help you maintain the safety benefits of AFCIs. By sticking to these guidelines, you can ensure these devices continue to protect your home from electrical fires.

Conclusion

Arc Fault Circuit Interrupters (AFCIs) have become a crucial step forward in electrical safety, tackling one of the most hazardous risks in modern homes and buildings. These devices use advanced sensors to detect dangerous arcing conditions, which can generate temperatures over 10,000°F. When such conditions arise, AFCIs quickly cut power to the affected circuit, reducing the risk of electrical fires.

The role AFCIs play in fire prevention cannot be overstated. Electrical malfunctions cause approximately 45,000 home fires each year, leading to more than 350 deaths, around 1,300 injuries, and over $1 billion in property damage. According to the Consumer Product Safety Commission, nearly half of these fires could be avoided with AFCIs.

Trends over the past few decades show a steady decline in residential electrical fires and related casualties, reflecting improved safety measures.

Corey Hannahs, a Senior Electrical Content Specialist at NFPA, shared a telling example from his own experience:

"AFCIs are such a nuisance!...AFCIs were not causing problems – they were telling me there was a problem. Maybe it was my wiring, or an old vacuum that was plugged in with a frayed cord, but at the end of every troubleshooting session that I performed, it always concluded with the same result - I found a problem that needed to be addressed. A problem that left unattended to, could have caused a fire that may result in the loss of property or occupants within the home."

This firsthand account highlights the importance of AFCIs as a proactive safety measure.

Key Points About AFCIs

AFCIs act as essential safeguards against electrical fires by detecting and interrupting dangerous arcing faults that traditional circuit breakers cannot recognize. When these faults are identified, AFCIs shut down the circuit to prevent potential disasters.

Their implementation is reinforced by the National Electrical Code (NEC), which mandates AFCIs for specific circuits in residential settings. This ensures that new constructions and renovations comply with current safety standards. The growing importance of AFCIs is also reflected in the market, which is projected to grow from $4.26 billion in 2024 to about $7.00 billion by 2034.

Proper installation and upkeep are vital for AFCIs to function effectively. Licensed electricians should handle installations, and homeowners are encouraged to test their AFCIs monthly to maintain protection. As fire safety advocates emphasize:

"AFCIs save lives, protect individuals and families from injuries and make homes safer."

FAQs

What makes AFCIs different from standard circuit breakers, and how do they enhance safety?

AFCIs, or Arc Fault Circuit Interrupters, provide a level of safety that standard circuit breakers can't match. While traditional breakers focus on protecting against overcurrent and short circuits, AFCIs are designed to detect arc faults - those dangerous electrical sparks that can result from damaged wires, loose connections, or malfunctioning equipment.

When an arc fault is detected, AFCIs cut off the power automatically, reducing the risk of electrical fires. This makes them an important safety feature in today's homes and buildings, offering critical protection against fire hazards linked to electrical problems.

What are the signs that an AFCI might need repair or replacement?

If your Arc Fault Circuit Interrupter (AFCI) isn’t working properly, there are a few telltale signs to watch for. These might include the breaker tripping often without a clear reason, outlets connected to the circuit not functioning, or the breaker not tripping during a routine test. You might also spot physical signs like scorch marks, heat damage, or loose connections around the breaker - these are clear red flags.

For your safety, it’s crucial to address these issues without delay. If you’re uncertain about the problem, it’s always a good idea to call a licensed electrician to inspect and fix any AFCI-related concerns.

Why should AFCIs be installed by a professional, and what are the risks of doing it yourself?

When it comes to installing Arc Fault Circuit Interrupters (AFCIs), it’s a job best left to licensed electricians. This process involves handling electrical panels and wiring, which can be both complicated and dangerous. Professionals have the knowledge and skills to ensure that all connections - like grounded and neutral conductors - are installed correctly and meet electrical code requirements.

Trying to tackle this as a DIY project can lead to major problems. Faulty wiring can increase the risk of electrical fires, cause power outages, or lead to frequent and frustrating nuisance tripping. On top of that, improper installation might violate local electrical codes or even void warranties and insurance coverage. To keep your home safe and avoid unnecessary headaches, it’s always a smart move to rely on a qualified electrician for the job.
