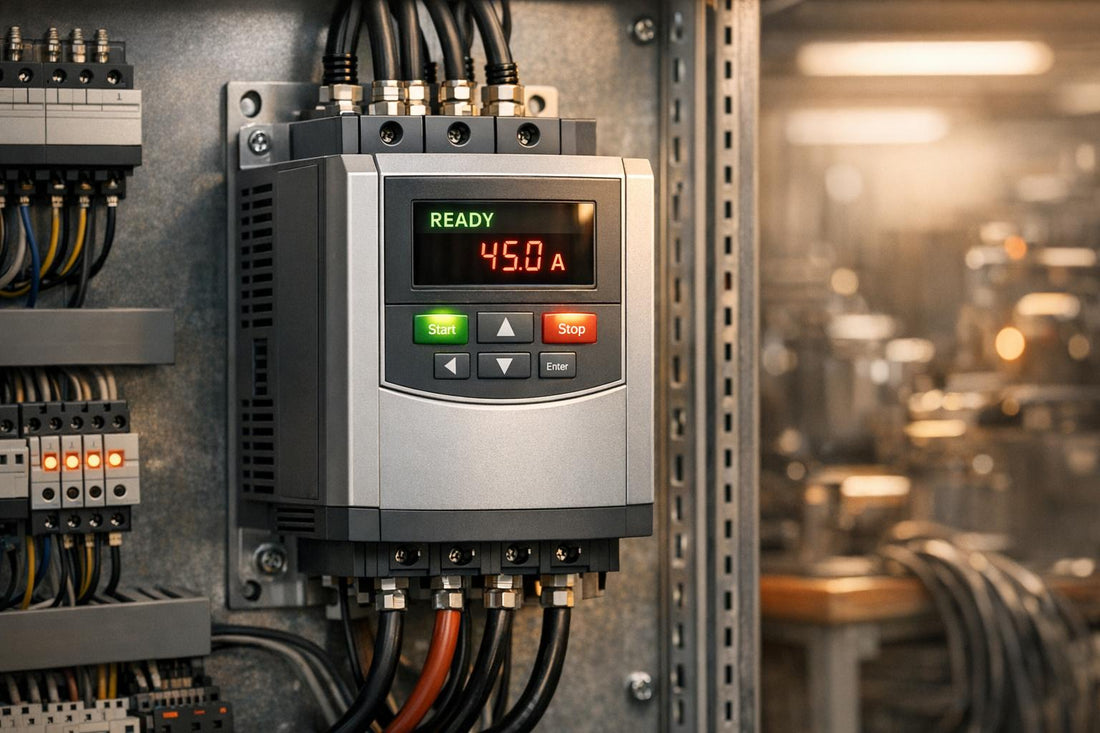

Soft Starters: Common Problems and Solutions
Soft starters help motors start smoothly by controlling voltage, reducing electrical and mechanical stress. But they can face issues like overheating, voltage imbalance, misconfiguration, and startup faults. Here's a quick breakdown of the key problems and solutions:
- Overheating: Caused by frequent starts, poor cooling, or bypass contactor failure. Fix by limiting starts, cleaning heat sinks, and ensuring proper ventilation.
- Voltage Imbalance: Leads to motor overheating and shorter lifespan. Check power supply, motor leads, and connections to resolve.
- Excessive Current Draw: Often due to misconfigured parameters or mechanical load issues. Adjust ramp time, inspect connections, and verify load capacity.
- Startup Faults: Result from incorrect sequences or damaged thyristors. Diagnose with error codes, test components, and replace faulty parts.
- Misconfiguration: Improper settings can cause bypass contactor failures. Align parameters with motor specs and fine-tune startup settings.
Regular maintenance - like cleaning, checking connections, and monitoring settings - can prevent these problems. Addressing these issues ensures smoother motor operation and reduces downtime.
5 Common Soft Starter Problems: Causes and Solutions Guide
3 Phase Soft Starter Installation and Troubleshooting | Message For @artisanelectrics
Overheating Problems in Soft Starters
Overheating in soft starters happens when the SCRs (silicon-controlled rectifiers) produce more heat than the cooling system can handle. Heavy current loads during motor startups can quickly raise temperatures, leading to shutdowns and even damaging components. Knowing the root causes of overheating is key to addressing the problem effectively.
What Causes Overheating
Several factors contribute to overheating in soft starters:
- Frequent startups: Starting the motor too often can overwhelm the thyristors. To avoid heat buildup, limit the soft starter to no more than six starts per hour. Each startup generates a surge of current, and the system needs time to cool between cycles.
- Cooling system issues: Problems like malfunctioning fans or dust-covered heat sinks can trap heat, reducing cooling efficiency. Faulty extraction fans that fail to remove hot air further exacerbate the problem.
- Extended startup times or bypass contactor failures: If the bypass contactor doesn’t engage when the motor reaches full speed, the SCRs are forced to handle the full load continuously, causing excessive heat buildup.
- Environmental factors: Poor ventilation or improper installation, like mounting the unit in a non-vertical position, can hinder natural convection. Additionally, ambient temperatures above 104°F (40°C) for enclosed units or 122°F (50°C) for panel-mounted installations push the system beyond its thermal capacity.
How to Fix Overheating
Tackling overheating requires addressing its specific causes with appropriate solutions:
- Limit the number of starts: Stick to six starts per hour. If your application demands more frequent starts, consider upgrading to a soft starter with a higher rating than your motor.
- Maintain the cooling system: Keep heat sinks clean and ensure fans are functioning properly. Use compressed air to remove dust and maintain unobstructed airflow around the unit.
- Inspect the bypass contactor: Test the contactor to ensure it engages correctly. Replace it if it sticks or fails to close.
- Optimize ramp parameters: Shorten startup times or switch to a higher-rated soft starter to reduce the heat generated by the thyristors.
- Improve installation conditions: Relocate the soft starter to a cooler, well-ventilated area. Always mount the unit vertically to allow for effective natural convection. These adjustments help prevent overheating, reduce the risk of thermal shutdowns, and extend the life of your equipment.
Voltage Imbalance and Phase Loss
Voltage imbalance and phase loss are two issues that can significantly impact motor performance right from the start. Voltage imbalance happens when the three phases of electrical power don’t deliver equal voltage. This can stem from utility issues, transformer problems, incorrect wiring, or uneven loads. On the other hand, phase loss, also known as single-phasing, occurs when one phase in the motor circuit is completely lost. This is often caused by blown fuses, open contactors, broken motor leads, or poor electrical connections.
When phase voltages are unequal, the motor’s temperature rises, which shortens its lifespan. For example, a 3% voltage imbalance can lead to an 18% increase in motor temperature. To make matters worse, every 10°C rise above the motor's rated temperature cuts its life expectancy in half. Recognizing these issues early is essential, and the signs below can help guide your diagnostics.
How to Identify Voltage Imbalance
Motors affected by voltage imbalance or phase loss often exhibit telltale signs: a distinctive loud "hum," reduced torque, or an inability to reach the rated RPM. Additionally, the soft starter may display error codes, remain stuck in a "Ready State", or frequently trip overload protection.
To pinpoint voltage problems, start by measuring phase-to-phase voltage using a digital multimeter while the motor is off. If the imbalance shows up here, the issue likely originates in your facility’s power system, not the soft starter. Next, use a clamp-on ammeter to check current on each output phase (T1, T2, T3). If the readings are uneven, this indicates a voltage imbalance or a problem with the motor windings. You should also compare the voltage readings on the soft starter’s keypad with actual measurements at the output terminals. Large differences may point to internal sensing faults.
Fixing Voltage Imbalance Issues
Once you’ve identified the imbalance, here’s how you can address it:
- Inspect the power supply. If the imbalance is present on the line side while the motor is off, the issue could be with the utility provider, transformers, or incoming power distribution equipment. If it only appears when the motor is running, the fault likely lies in the motor windings or the wiring between the starter and motor.
- Check motor lead resistance. Using an ohmmeter, measure phase-to-phase resistance on the motor leads. The readings should be nearly identical. High resistance could mean an open winding or poor connection, while low resistance to ground might indicate a short circuit.
- Inspect electrical connections. Loose screws, corroded conductors, or damaged terminals are common culprits for single-phase conditions. Thoroughly check all connections.
- Test the soft starter. For internal faults, perform a "static test" by measuring conductance between terminals (R to U, S to V, T to W) with a multimeter while the unit is off. If you detect continuity, the thyristor may be damaged and require replacement.
If voltage fluctuations are a recurring issue, you might want to stabilize the power supply with surge protectors or consider upgrading to better-quality starter components. These steps can help ensure smoother motor operation and extend its lifespan.
Excessive or Unstable Current Draw
When a soft starter experiences excessive or erratic current, it signals potential trouble. High current draw can put undue thermal stress on motor windings, cutting short the lifespan of both the motor and the soft starter. This doesn't just affect individual components - it can disrupt the entire motor control system. On the other hand, unstable current can lead to unpredictable motor behavior, even causing brownouts that reset controllers and interrupt facility-wide communications. Seth Price, a Technical Author, explains:
"The large inrush current required to start the motor can cause the power supply voltage to drop. In an industrial setting, this can reset controllers, reboot computers, cause communication drops, and generally wreak havoc on an otherwise stable factory."
What Causes Current Problems
Current issues often stem from earlier problems like overheating or voltage imbalances, but they also have their own specific triggers. For instance, grid instability or voltage fluctuations can cause the soft starter to misfire, leading to unstable current readings. A drop in supply voltage forces the motor to compensate by drawing more current to maintain torque. Misconfigured parameters - such as excessive startup voltage, overly long ramp times, or improper current limits - can also result in excessive current during startup.
Mechanical factors play a role, too. Starting a motor under full load, dealing with a locked rotor, or encountering increased resistance (like cold, thick oil in hydraulic systems) forces the motor to work harder, drawing more current. Other contributors include mismatched measurement equipment, which can produce inaccurate readings, and internal faults such as shorted thyristors or damaged filter boards, which can trigger overcurrent conditions. Additionally, if the soft starter is undersized for the motor, it will consistently struggle with excessive starting current.
How to Fix Current Problems
Start by verifying the load capacity and decoupling the motor load to pinpoint mechanical issues. If current levels return to normal after decoupling, the problem likely lies in the mechanical drive train - potential culprits include worn bearings, misalignment, or obstructions. If high current persists, the issue may be with the motor or the soft starter itself.
Next, review and reset the motor's current parameters to match its nameplate values. If the soft starter trips during startup, try increasing the acceleration ramp time (a range of 5 to 10 seconds is typical) or adjusting the current limit to give the motor more time to reach its operating speed. Check all electrical connections for wear, such as loose screws, corroded terminals, or signs of arcing, as these can cause current instability. Use a clamp-on ammeter to ensure balanced current across the U, V, and W phases. If there are significant differences, it could indicate phase loss or thyristor problems.
Proper hardware configuration is just as important. Make sure your ammeter and current transformers are compatible with the soft starter's specifications. The main transformer’s nominal power rating should be between 1.5 and 10 times that of the soft starter to maintain stability. Test thyristors with a multimeter to confirm that the trigger gate resistance falls within the standard range of 20 to 30 ohms. For hydraulic systems, check fluid temperature and pressure - cold oil or high back-pressure can increase torque demands and, consequently, current draw. Lastly, limit the soft starter to no more than six starts per hour under heavy loads to avoid overheating and overcurrent damage.
sbb-itb-501186b
Startup Faults and Thyristor Damage
Startup faults can bring motor operations to a sudden halt. One of the clearest signs is a fault light turning on while the motor remains stationary. This often points to issues like an incorrect startup sequence - such as powering the control circuit before the main supply - or a phase loss in the system. Another clue is a buzzing noise from the motor or an immediate attempt to start as soon as power is applied, which usually signals a shorted thyristor.
Timeout errors are another common issue. In these cases, the motor begins its startup sequence but stops before reaching full speed. This often happens when the startup time or voltage doesn’t align with the motor’s load requirements. Thyristor damage is frequently caused by overcurrent during startup, transient voltage spikes from the grid, or wear and tear from heat, dust, and vibration. Additionally, frequent startups - more than six per hour - can speed up this wear by causing repeated overheating.
How to Diagnose Startup Faults
Diagnosing startup faults requires a systematic approach. Start by checking the fault lights and error codes displayed on the soft starter’s keypad. If the keypad display is blank or distorted, inspect the internal control board for an active LED. A lit LED suggests the control board is functioning, meaning the issue may be with the keypad cable or socket. However, if no LED is visible, the control board itself may be damaged.
Next, confirm that the main power supply activates before the control power. Use a multimeter to check for phase loss by testing continuity across all three phases. A missing or weak phase usually points to a problem. To test thyristors, ensure the power is off, then measure continuity between terminals R–U, S–V, and T–W. Any readings here typically indicate a damaged thyristor.
Repairing or Replacing Damaged Components
Once the faults are diagnosed, it’s time to address the damaged components. If a thyristor or filter board is identified as faulty, replace it immediately, as shorted thyristors will continue to cause startup issues. For timeout errors, consider increasing the starting voltage or extending the startup time (5–10 seconds) to allow the motor to ramp up properly.
Regular maintenance can also prevent recurring problems. Use compressed air to clean heat sinks and fans, removing dust that could lead to thermal trips. Check all wiring connections, especially in the control circuit, to ensure they are secure and free from corrosion. Additionally, measure the resistance of trigger wires; consistent readings indicate that components are in good condition. Lastly, confirm that the soft starter is appropriately sized for the motor and limit the number of startups to avoid repeated damage.
Misconfiguration and Bypass Contactor Failures
Units under 55KW often face problems when parameters are misconfigured, leading to bypass contactor failures. If the bypass contactor doesn't close when the motor reaches full speed, the thyristors remain active. This is a serious issue because thyristors aren't designed to handle continuous full-load operation, which causes them to overheat quickly. The result? Frequent system restarts or even complete shutdowns, disrupting operations and driving up maintenance expenses. Let’s dive into the most common configuration errors that cause these problems.
Common Configuration Errors
One frequent issue is incorrect startup voltage settings. If the voltage is set too high, it can cause excessive inrush current, immediately tripping the breaker. On the flip side, if the voltage is too low, the motor might fail to generate enough torque to start the load. This can lead to overheating or timeout faults. Similarly, startup time parameters need careful adjustment. A ramp time that's too long can overheat the soft starter or trip the breaker, while a ramp that's too short might prevent the motor from reaching its required speed before the bypass contactor engages, resulting in faults.
Another common mistake involves the motor rated current parameter, often labeled as FP. If this setting doesn't align with the motor's nameplate data, it can interfere with internal protection algorithms. This mismatch may cause premature trips or prevent the bypass contactor from engaging. Additionally, setting current limit parameters too low can trigger overload protection during startup, as the motor may not draw enough current to overcome load inertia.
Fixing Configuration and Contactor Problems
To resolve these issues, start by resetting all parameters to the manufacturer's recommended settings if the system shows erratic behavior or fails to complete a proper startup cycle. Make sure the motor's rated current matches the data on its nameplate. Then, fine-tune the startup voltage and ramp time to suit the load conditions, ensuring smooth acceleration without overheating or incomplete starts.
Next, inspect the control wiring. Look for loose connections, corrosion, or damaged insulation. Tighten any loose screws, clean corroded terminals with alcohol, and check for damage. Use a multimeter to test the bypass relay by examining the control board's operation terminals. Ensure the peripheral circuits are sending the correct "close" signal to the contactor. Also, confirm the power-up sequence - main power should always activate before control power. Reversing this order can lead to startup faults. Finally, verify that protection device thresholds aren't set too low, as this can interfere with bypass engagement and force the thyristors to handle the full load, which they aren’t built to sustain.
Conclusion
Here’s a quick recap of the key points we covered about soft starter solutions.
Soft starters are dependable tools for motor control, but they need proper care to function at their best. Common challenges - like overheating, voltage imbalance, current issues, startup faults, and misconfiguration - can be avoided or resolved with the right maintenance practices. For example, keeping ambient temperatures within optimal ranges can prevent thermal trips. Regularly clean heat sinks with compressed air, and make sure cooling fans are working correctly by extracting hot air efficiently.
Configuration errors are another frequent issue. Always double-check that the motor’s rated current matches the nameplate data. Adjust startup voltage and ramp times to fit your specific load needs, and limit the number of startups to reduce thermal stress. These small adjustments can go a long way in preventing costly repairs and downtime.
Preventive maintenance is straightforward. At least once a year, inspect for loose connections, corrosion, or wear. Tighten screws and bolts to counteract vibrations that might loosen internal wiring. Periodic testing of components is also essential. Additionally, ensure the main power is turned on before the control power to avoid startup sequence errors.
For troubleshooting, check for power supply balance, wiring integrity, and correct protection settings. If issues persist, consider resetting the parameters. These steps align with the earlier solutions we discussed for overheating, voltage imbalances, and misconfiguration.
Finally, using quality parts is critical for system reliability. Platforms like Electrical Trader provide access to both new and used electrical components, including soft starters and other power distribution equipment, making it easier to keep your systems running smoothly.
FAQs
What can I do to prevent my soft starter from overheating?
To keep your soft starter from overheating, there are a few key steps to follow. First, limit the number of start attempts - especially for heavy loads, sticking to no more than six starts per hour is a good rule of thumb. Next, check that the heat sink is clean and dust-free, as dust buildup can interfere with proper heat dissipation. Also, ensure the cooling fan is working properly to maintain steady airflow. Finally, verify that the soft starter is correctly matched to your motor's current needs to prevent unnecessary strain during operation.
What are the signs of voltage imbalance in a motor, and how can it affect performance?
Voltage imbalance in a motor can cause uneven performance and may lead to long-term damage if not addressed. Some telltale signs include unusual vibrations, excessive heat, reduced efficiency, inconsistent motor speed, or strange noises during operation.
This imbalance happens when the voltage across the motor's phases isn’t evenly distributed. When this occurs, the motor may consume more energy than necessary and experience a shorter lifespan. To tackle this, start by checking for loose connections, evaluating the power supply for quality issues, and ensuring the phases are properly balanced. Performing routine maintenance is a practical way to prevent these issues and keep your motor running smoothly for longer.
What can I do to fix startup issues with soft starters?
When dealing with startup problems in soft starters, a few checks can often point you in the right direction. Start by confirming that all power supplies are securely connected and functioning as they should. Double-check the control wiring and ensure the start signal is operational. Also, make sure you're following the correct power-up sequence - main power should always be applied before control power.
If the bypass contactor isn't engaging, it might need some attention. Inspect it for any dirt or damage, clean it if necessary, or replace it if it's beyond repair.
For faults related to the motor load, adjusting the load or increasing the ramp-up time in the soft starter’s settings can help. Overheating is another common issue; to address this, clean the heat sink, inspect the cooling fan, and make sure the motor current stays within its rated limits. If you discover damaged components like SCRs or control boards, replacing them is usually the most effective fix. You can find replacement parts through Electrical Trader, which stocks a variety of components for soft starters.
Once you've made the necessary adjustments or repairs, test the system to confirm that the motor starts smoothly and without errors.
