How Hydrogen Supports Renewable Energy Storage
Hydrogen is emerging as a key solution for storing renewable energy, addressing the limitations of solar and wind power's intermittent nature. By converting excess renewable electricity into hydrogen through electrolysis, storing it, and later converting it back into electricity via fuel cells, hydrogen offers a long-term storage option. Here's what you need to know:
- How It Works: Hydrogen is produced using surplus solar or wind power, stored as a gas or liquid, and later used in fuel cells to generate electricity.
- Efficiency: Hydrogen systems achieve 50–60% efficiency, lower than batteries, but excel in storing energy over long periods.
- Storage Options: Includes compressed gas, liquefied hydrogen, underground caverns, and materials-based methods.
- Applications: Grid stabilization, seasonal energy storage, backup power, and industrial use.
- Challenges: High initial costs, infrastructure requirements, and energy losses during conversion.
Hydrogen’s ability to store energy for weeks or months makes it a promising option for balancing renewable energy supply and demand, especially for seasonal shifts. However, overcoming cost and efficiency challenges remains crucial for its widespread adoption.
How Green Hydrogen and Batteries Will Transform the Grid
How Hydrogen Works with Renewable Energy Systems
Hydrogen plays a key role in renewable energy systems by transforming surplus electricity into a storable fuel, which can later be converted back into power. This approach helps tackle the unpredictability of solar and wind energy through three main steps: electrolysis, storage, and reconversion into electricity.
Electrolysis: Turning Excess Renewable Energy into Hydrogen
When solar panels or wind turbines produce more electricity than the grid can handle, that extra energy can power an electrolysis process. During electrolysis, an electrolyzer uses electricity to split water (H₂O) into hydrogen and oxygen gases. The hydrogen is then collected and stored for future use, effectively capturing surplus renewable energy.
Electrolyzers can adjust their operations to align with renewable energy output. For instance, they can ramp up production when energy generation is high and scale back when it's lower. After this step, the focus shifts to storing the hydrogen efficiently.
Storing Hydrogen for Future Energy Needs
Once hydrogen is produced, it needs to be stored until it’s required for electricity generation. Hydrogen has a high energy density - around 120 MJ/kg compared to just 0.4 MJ/kg for lithium-ion batteries - making it ideal for long-term storage. Depending on the duration and scale of storage, hydrogen can be compressed into high-pressure tanks, liquefied at cryogenic temperatures, stored in underground caverns, or even embedded in materials-based systems.
This storage capability is particularly useful for balancing seasonal energy supply and demand. For example, solar energy generation tends to peak in summer, while winter often sees higher energy demand. Hydrogen can act as a seasonal energy reservoir, helping stabilize the grid by providing steady power during periods of low renewable output. Studies indicate that hydrogen storage can cut renewable energy curtailment by 8–13%, ensuring more of the generated clean energy is utilized.
Fuel Cells: Transforming Stored Hydrogen Back into Power
When the grid requires electricity, fuel cells step in to convert the stored hydrogen back into power. This process completes the energy cycle while providing quick and reliable electricity.
Fuel cells are particularly valuable for supporting the grid. They can operate continuously as long as hydrogen is available and respond rapidly to shifts in electricity demand. This makes them ideal for maintaining grid stability by providing frequency response and voltage support. Experts estimate that hydrogen could account for as much as 30% of total electricity in a fully renewable energy grid.
Benefits and Challenges of Hydrogen Energy Storage
Hydrogen energy storage offers promising opportunities for renewable energy systems, but it also comes with its fair share of obstacles.
Benefits of Hydrogen Storage
One of hydrogen's standout features is its high energy density - around 40 kWh/kg. To put that into perspective, this far surpasses lithium-ion batteries (0.25 kWh/kg) and even fuel oil (12 kWh/kg).
Another major perk is hydrogen's ability to store energy over the long term. Unlike traditional batteries that gradually lose their charge, hydrogen can be stored indefinitely without degradation. This makes it an excellent solution for seasonal energy storage, where surplus energy from sunny summer months can be saved for use during high-demand winter periods.
Hydrogen systems are also highly scalable, offering flexibility that many other storage technologies struggle to achieve. For example, underground hydrogen storage provides large-scale capacity at relatively lower costs compared to other storage options.
However, these advantages come with notable challenges.
Challenges in Adopting Hydrogen Systems
One of the biggest hurdles is the high upfront cost. The production and storage of hydrogen involve significant expenses. Currently, producing hydrogen costs between $1.20 and $3.00 per kg when derived from coal and $3.00 to $13.00 per kg when using renewable energy sources. The U.S. Department of Energy has set ambitious goals to lower these costs - aiming for under $2.00 per kg for transportation and below $1.00 per kg for industrial applications.
To tackle this issue, the U.S. Department of Energy launched the Hydrogen Shot program, which targets an 80% reduction in clean hydrogen production costs within a decade.
Another challenge lies in infrastructure requirements. Hydrogen takes up about four times the volume of gasoline, even when stored as a liquid. Its low volumetric energy density (0.01079 MJ/L) means that storage facilities need to be much larger than those for conventional fuels.
Safety concerns also come into play. Hydrogen storage requires either compression to extremely high pressures or liquefaction at very low temperatures - both of which are energy-intensive processes. Additionally, underground storage can face issues like gas leakage and chemical or biological reactions.
"Hydrogen storage efficiency remains a key challenge in clean energy adoption. The field drives technical innovation and market expansion." - FASTECH
Efficiency is another sticking point. While lithium-ion batteries boast round-trip efficiencies of over 90%, hydrogen systems typically lag behind, operating at 50–60% efficiency due to energy losses during electrolysis, storage, and fuel cell conversion.
Hydrogen Storage vs. Battery Storage Comparison
These challenges underscore the differences between hydrogen and battery storage. The choice often depends on the specific application and duration of storage needed. Studies suggest that batteries are more cost-effective for short-term storage, while hydrogen becomes a better option for long-term needs. The tipping point occurs at durations under 2 hours for low-end estimates and around 5.5 hours for high-end estimates.
| Metric | Hydrogen Storage | Lithium-ion Batteries |
|---|---|---|
| Energy Density | 40 kWh/kg | 0.25 kWh/kg |
| Round-Trip Efficiency | 50–60% | 90%+ |
| Storage Duration | Days to months | Hours to days |
| Scalability | High | Medium |
| Initial Cost | High infrastructure investment | High per kWh |
| Lifespan | Long (potential) | Limited |
| Emissions | Zero (at point of use) | Moderate (manufacturing) |
The transportation sector is a major driver for advancing hydrogen storage, especially for heavy-duty vehicles. Government initiatives are also playing a crucial role in building out hydrogen infrastructure. If these challenges can be addressed, hydrogen has the potential to play a central role in renewable energy storage systems.
sbb-itb-501186b
Hydrogen Storage Methods and Technologies
After hydrogen is produced and integrated into the grid, choosing the right storage method becomes a key factor in ensuring system efficiency. For renewable energy systems, several hydrogen storage options are available, each with its own set of advantages and challenges. The choice of storage method can greatly influence the cost and practicality of a hydrogen energy project.
Compressed and Liquefied Hydrogen Storage
Compressed hydrogen storage involves storing hydrogen gas in high-pressure tanks, typically at 350–700 bar (5,000–10,000 psi). This method is straightforward and scalable, making it a common choice for various applications. However, compressing hydrogen requires a lot of energy, and larger storage volumes are needed compared to other fuels. Compressed hydrogen achieves an energy density of about 4.5 MJ/L, with storage costs ranging from $500 to $1,000 per kilogram.
Liquefied hydrogen storage cools hydrogen to extremely low temperatures, down to its boiling point of −252.8°C (−423°F) at atmospheric pressure. This requires specialized cryogenic equipment but offers a higher energy density of approximately 8 MJ/L. The downside is the energy-intensive liquefaction process, which consumes about 30% of hydrogen's energy content. Storage costs are also higher, ranging from $1,500 to $3,000 per kilogram. Despite these challenges, liquefied hydrogen is easier to transport over long distances and is ideal for large-scale applications.
Underground and Materials-Based Storage
Beyond pressurized and cryogenic methods, other storage approaches offer benefits for large-scale or specialized needs.
Underground hydrogen storage is a cost-effective solution for storing large amounts of hydrogen over long periods. It involves storing hydrogen in natural underground formations like salt caverns, depleted oil and gas fields, or aquifers. For example, using an electrolyzer, salt cavern storage, and a combined-cycle power plant, the cost can be around $150/MWh for 2,000 hours of storage. A notable example is the Chevron Phillips Clemens Terminal in Texas, which has stored hydrogen in a salt cavern since the 1980s. This cavern, located 2,800 feet underground, has a capacity of 1,066 million cubic feet (equivalent to 2,520 metric tons). While the round-trip efficiency for underground storage is about 40% - lower than the 75–80% efficiency of pumped-hydro systems - the method's large scale and lower costs make it attractive for seasonal energy storage.
Materials-based storage involves storing hydrogen on the surfaces of solids (adsorption) or within solids (absorption). Metal hydrides are a popular choice, operating at pressures of 10–40 bars. This makes them safer than compressed gas storage due to the lower operating pressures. Solid-state storage offers a high volumetric capacity, typically between 100 and 130 g/L, with costs ranging from $2,000 to $5,000 per kilogram.
Key Factors for Hydrogen Storage Selection
Several factors influence the choice of a hydrogen storage method:
- Application Type: Stationary systems often prioritize volumetric density, while mobile systems need a balance between volumetric and gravimetric density.
- Cost Considerations: For example, the U.S. Department of Energy has set a target of $10/kWh (or $333 per kilogram of stored hydrogen capacity) for automotive applications.
- Safety: Compressed hydrogen carries high-pressure risks, liquefied hydrogen involves cryogenic hazards, and materials-based storage generally operates more safely at lower pressures.
- Scalability: Underground storage is ideal for large-scale, seasonal needs, while compressed and materials-based storage is better suited for smaller, distributed systems.
| Storage Method | Cost Range | Energy Density | Primary Applications | Safety Considerations |
|---|---|---|---|---|
| Compressed Gas | $500–$1,000/kg | 4.5 MJ/L | Medium-scale, mobile | High-pressure risks |
| Liquefied | $1,500–$3,000/kg | 8 MJ/L | Large-scale, transport | Cryogenic hazards |
| Underground | $150/MWh | Variable | Utility-scale, seasonal | Requires geological stability |
| Materials-Based | $2,000–$5,000/kg | 100–130 g/L | Distributed, safety-critical | Safer operation due to lower pressures |
The U.S. Department of Energy's Hydrogen and Fuel Cell Technologies Office (HFTO) is focusing on two main strategies: in the short term, advanced pressure vessels for compressed gas storage, and in the long term, cold or cryo-compressed hydrogen storage and materials-based technologies.
Ultimately, selecting a storage method involves weighing these factors against specific project needs, existing infrastructure, and long-term energy goals. These technologies provide the foundation for reliable hydrogen storage, helping to address the challenges of renewable energy intermittency.
Applications and Equipment for Hydrogen Energy Systems
Hydrogen energy systems are proving to be a smart way to store excess renewable electricity for future use. Across the United States, these systems are being put to work in various practical applications.
Hydrogen Energy Uses in the United States
One of the standout uses for hydrogen energy systems is grid stabilization. Hydrogen fuel cells act as adaptable power sources, converting stored hydrogen back into electricity when needed. This helps maintain a steady energy flow during peak demand or fluctuations.
Another growing application is backup power solutions, especially for critical infrastructure like data centers. Power outages are a major concern for these facilities, with 43% of significant outages linked to power issues and 60% of failures resulting in losses of $100,000 or more. Hydrogen-based backup systems offer a cleaner and more reliable alternative to traditional generators, ensuring operations can continue during outages.
Hydrogen also plays a big role in industrial applications, thanks to its ability to handle large-scale energy demands. For instance, Mitsubishi Power's Hydaptive™ Storage package demonstrates how hydrogen can store renewable energy for extended periods - from hours to even entire seasons. Depending on the location, the system can use pressure vessels or tanks to store tens of thousands of megawatt-hours (MWh) of energy, or it can take advantage of natural formations like salt caverns to store hundreds of thousands of MWh almost indefinitely.
The scale of hydrogen use is growing fast. Planned electrolyzer projects in the U.S. could boost capacity from 116 MW to a massive 4,524 MW. If all these projects come to life, hydrogen production via electrolysis could hit 0.72 million metric tons per year. While this is still a fraction of the 10 million metric tons currently produced from fossil fuels and other sources, it marks a big step toward cleaner energy.
These applications wouldn’t be possible without the specialized equipment that powers hydrogen systems.
Required Equipment for Hydrogen Systems
Building efficient hydrogen systems requires a range of key components.
- Electrolyzers: These devices split water into hydrogen and oxygen using renewable electricity. The two main types - alkaline and PEM (Proton Exchange Membrane) electrolyzers - offer efficiencies ranging from 62% to 87%. Alkaline electrolyzers have been around for over 75 years, while PEM electrolyzers represent a newer approach, operating in reverse compared to PEM fuel cells.
- Power electronics converters: These stabilize high-current operations in industrial electrolyzers, ensuring they run smoothly and efficiently.
- Fuel cells: Essential for converting stored hydrogen back into electricity, fuel cells are a key part of hydrogen energy systems. While some energy is lost during the conversion and storage processes - anywhere from 60% to 85% - fuel cells still provide critical services like backup power and grid support.
- Transformers and distribution equipment: These components manage voltage and high-power loads, ensuring seamless integration of hydrogen systems into the grid.
- Monitoring and control systems: These oversee the entire system, ensuring safe and efficient operation across all components.

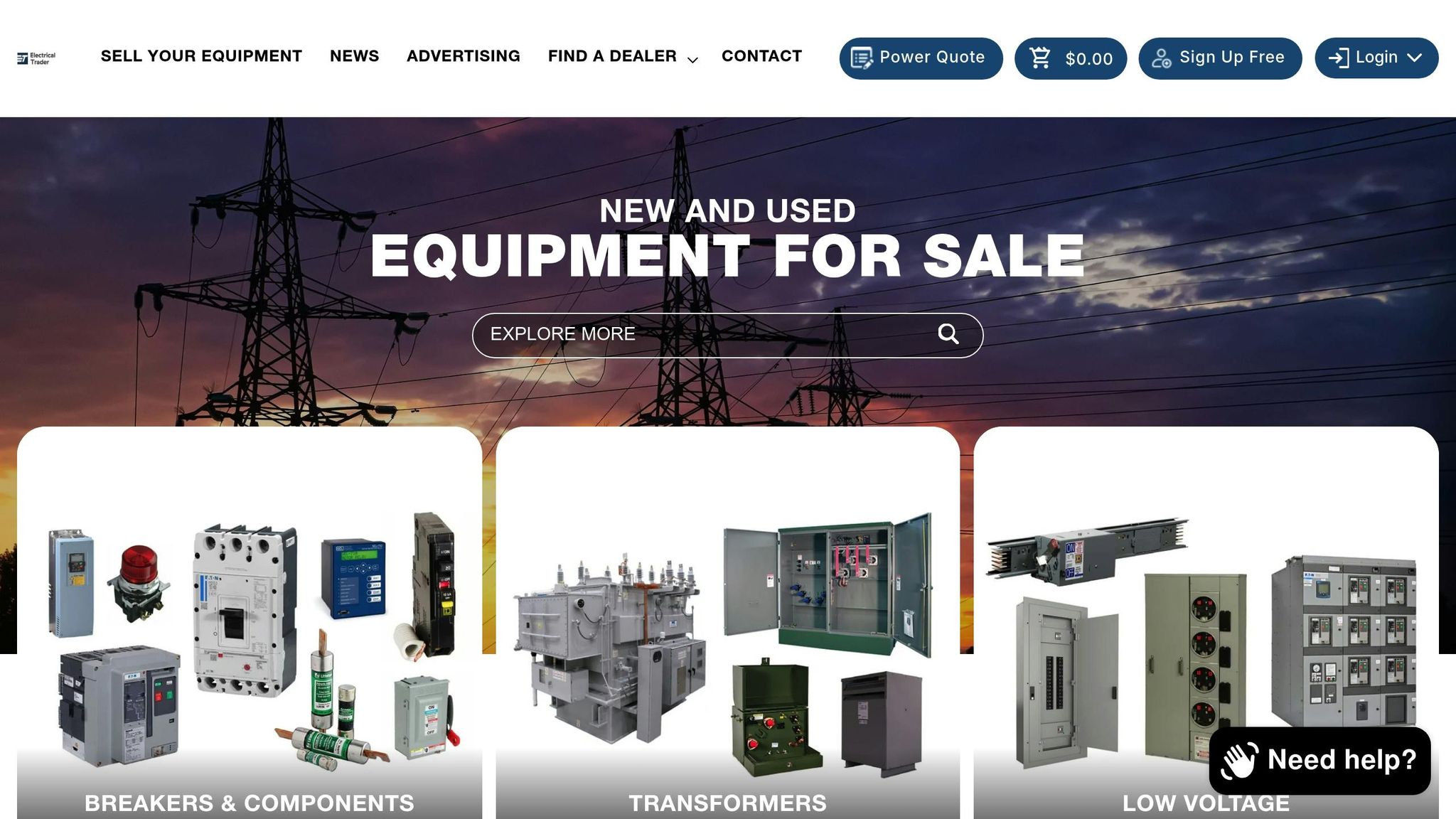

Electrical Trader's Role in Supplying Hydrogen System Components
Hydrogen systems come with their own set of challenges, from high costs to complex infrastructure needs. This is where Electrical Trader steps in, offering both new and pre-owned equipment to simplify and economize system integration.
Electrical Trader’s inventory includes transformers for regulating voltage in electrolyzer setups, power distribution equipment to manage energy flows, and breakers to enhance safety in hydrogen facilities. Their focus on dependable power generation tools ensures that critical components, like fuel cells, integrate seamlessly with existing electrical infrastructure.
For large-scale hydrogen projects, Electrical Trader provides substation transformers and 3-phase transformers. These are essential for handling the heavy electrical loads required by industrial electrolyzers and for connecting hydrogen production facilities to transmission networks.
Additionally, the platform’s resource center offers guidance on selecting the right equipment for hydrogen systems. This helps buyers navigate the technical requirements of integrating hydrogen into their existing setups, streamlining the process and reducing costs. Whether it’s finding used transformers to cut expenses or locating specialized components for complex installations, Electrical Trader makes it easier to bring hydrogen energy systems to life.
Conclusion: The Future of Hydrogen in Renewable Energy Storage
Key Takeaways
Hydrogen energy storage offers a long-term solution for renewable energy storage that stands out from traditional batteries. While batteries are excellent for short-term energy needs, hydrogen can store energy for weeks or even months without losing efficiency. This makes it particularly suited for addressing seasonal energy demands.
By 2050, the global hydrogen energy storage market could achieve a cumulative capacity of 3,000 GWh, representing an estimated $2.5 trillion opportunity. However, there are trade-offs to consider. Hydrogen's round-trip efficiency ranges from 30–50%, which is lower than the 80–90% efficiency of batteries, but its ability to support long-duration storage makes it indispensable.
Hydrogen systems are versatile but come with complexities. They require specialized components, yet they can go beyond energy storage to power industrial applications, serve as transportation fuel, and support heating systems.
"Green hydrogen could be a critical enabler of the global transition to sustainable energy and net zero emissions economies." – Abhinav Chugh (World Economic Forum) and Emanuele Taibi (International Renewable Energy Agency)
This adaptability positions hydrogen as more than just an energy storage option; it becomes a foundational technology for decarbonizing multiple sectors of the economy. These factors highlight hydrogen's essential role in the shift toward sustainable, long-term energy solutions.
Looking Ahead: The Promise of Hydrogen
The future of hydrogen depends on two critical factors: reducing costs and expanding infrastructure. The U.S. Department of Energy's Hydrogen Energy Earthshot initiative aims to slash the cost of clean hydrogen by 80%, targeting $1 per kilogram within the next decade. Achieving this goal could make hydrogen a cost-effective option for long-duration energy storage.
Infrastructure development is accelerating. The hydrogen storage and transportation market is projected to grow at a compound annual growth rate (CAGR) of 45.57% between 2025 and 2034, signaling strong confidence in hydrogen's potential. Researchers are also working on advanced solutions like solid-state hydrogen storage for improved safety and efficiency. Additionally, large-scale underground storage in salt caverns could provide capacities of up to 6 TWh per site, enough to power millions of homes for extended periods.
The United States is investing heavily in this field, with $100 million in federal funding allocated for hydrogen research and development. This positions the country as a leader in advancing hydrogen technologies. For electrical professionals and energy system designers, hydrogen represents both an opportunity and a necessity. Platforms like Electrical Trader provide the essential components needed to integrate these advanced storage systems into renewable energy infrastructures.
Hydrogen's role in transforming energy storage is clear. The real challenge lies in building the infrastructure needed to realize its full potential quickly.
FAQs
How does hydrogen storage compare to lithium-ion batteries in terms of efficiency?
Hydrogen storage doesn't match the efficiency of lithium-ion batteries. While lithium-ion batteries boast an efficiency of 85–95%, hydrogen storage systems only reach about 40–50%. The gap comes down to greater energy losses during hydrogen's production, storage, and conversion stages.
That said, hydrogen brings something different to the table. It's especially useful for long-term, large-scale energy storage, which is crucial for renewable energy setups. Hydrogen can hold surplus energy from wind and solar power for long durations, helping to smooth out the balance between energy supply and demand over time.
What are the biggest challenges in using hydrogen for large-scale energy storage?
Hydrogen presents some notable challenges when it comes to large-scale energy storage. A major hurdle is its low energy density, meaning it takes up much more space compared to conventional fuels. To store it effectively, either high-pressure tanks or cryogenic systems are required. Both options not only consume a lot of energy but also demand stringent safety protocols.
Another significant obstacle is the high cost of infrastructure. Producing, transporting, and storing hydrogen involves hefty investments. On top of that, safety issues such as hydrogen embrittlement - where metals become brittle due to prolonged hydrogen exposure - and limitations related to underground storage further complicate its use.
Even with these challenges, progress in technology and infrastructure is steadily improving hydrogen's potential as a renewable energy storage solution.
What is the U.S. government doing to support hydrogen storage technologies?
The U.S. government is putting significant resources into hydrogen storage technologies as part of its push for cleaner energy solutions. For 2024, the Department of Energy (DOE) has set aside $396 million to fund research and development in hydrogen, with a focus on improving electrolysis and fuel cell technologies across 24 states. On top of that, the DOE has committed $750 million to support 52 projects aimed at advancing clean hydrogen manufacturing and recycling processes.
These initiatives are bolstered by a mix of federal grants, tax incentives, and policies designed to speed up the adoption of hydrogen storage systems and fuel technologies across the country. This level of investment highlights the government's dedication to fostering progress and sustainability within the energy sector.
