Modular UPS Scalability: Pros, Cons, and Costs
Modular UPS systems offer a flexible way to manage power needs by allowing businesses to expand capacity incrementally. Unlike standard UPS setups, these systems use individual modules that can be easily added or replaced, ensuring high efficiency, reduced downtime, and better reliability. While they come with higher upfront costs and more complex installation, the long-term savings in energy efficiency, maintenance, and scalability make them a strong choice for growing businesses.
Key Takeaways:
- Scalability: Add modules as power needs grow, avoiding over-investment.
- Efficiency: Operate at up to 99% efficiency, cutting energy waste.
- Reliability: Hot-swappable modules and redundancy configurations (e.g., N+1) minimize downtime.
- Drawbacks: Higher initial costs and more complex setup compared to standard systems.
Quick Comparison:
| Feature | Modular UPS | Standard UPS |
|---|---|---|
| Scalability | Incremental module addition | Full unit replacement needed |
| Efficiency | Up to 99% | 94–97% |
| Redundancy | N+1, N+X configurations | Single point of failure risk |
| Space Requirements | Compact rack-based design | Larger horizontal footprint |
| Initial Cost | Higher upfront | Lower upfront |
If your business needs a power solution that grows with you and ensures uptime, modular UPS systems are a strong option. However, carefully assess your facility’s power needs and budget to determine the best fit.
Key Benefits of Modular UPS Scalability
Step-by-Step Expansion and Flexibility
One of the standout features of modular UPS systems is their "pay-as-you-grow" design. This approach helps keep initial costs low while allowing for easy upgrades over time to meet increasing power needs. With a modular system, you can start with a basic setup and add modules as your requirements grow. Compare this to traditional UPS systems, which often force you to replace the entire unit when scaling up - a time-consuming and costly process. Modular systems, on the other hand, let you expand seamlessly by adding or removing power modules, avoiding the need for a full system replacement. This makes upgrades quicker and far less disruptive to daily operations. Plus, you can scale with precision, adding only the required power capacity (measured in kVA) and steering clear of unnecessary expenses.
"With a modern modular UPS design, organizations can achieve greater flexibility in meeting evolving power demands and ensure uninterrupted availability of critical applications. By adopting a modular approach, businesses can scale their power infrastructure efficiently, reduce downtime during maintenance activities, and enhance overall system reliability." - Anna Remelli, Marketing Communications Manager, Vertiv
This incremental growth strategy not only keeps costs manageable but also boosts efficiency and system reliability in the long run.
Better Efficiency and Space Savings
Modular UPS systems go beyond scalability - they also excel in energy efficiency and space optimization. Traditional UPS units are often oversized to handle future loads, which can lead to inefficiencies when operating at partial capacity. Modular systems, especially ENERGY STAR-certified models, can reduce energy losses by 30–55%, with many achieving efficiency rates of 92–95%. Considering that electrical distribution losses, including those from UPS systems, account for 10–12% of a data center's total energy use, this level of efficiency can make a big difference.
Space-saving is another major advantage. Modular systems are designed to fit vertically in racks, taking up far less floor space than conventional horizontal setups. They also require fewer batteries, leaving room for other essential equipment. Unlike traditional N+1 configurations, modular UPS systems let you deploy only the number of power modules needed for your current load, expanding as necessary. Additionally, power modules can be activated or deactivated based on demand, cutting down on energy waste during low-load periods.
Better Redundancy and Reliability
Beyond scalability and efficiency, modular UPS systems shine when it comes to redundancy and reliability. One of the biggest drawbacks of traditional single-module UPS setups is the risk of a single point of failure - if one component fails, the entire system can go down. Modular systems eliminate this issue by isolating faults to individual modules, allowing the rest of the system to continue running smoothly. For example, a typical single-module UPS has a Mean Time Between Failure (MTBF) of about 2.6 million hours with a bypass source, but only around 100,000 hours without one. Modular systems, however, significantly reduce the likelihood of downtime.
Hot-swappable modules are another game-changer. They allow for maintenance or replacement without shutting down the entire system. Modular systems also support advanced redundancy configurations like N+1 or N+X. In an N+1 setup, if one module fails, it automatically removes itself from the critical bus, while the remaining modules handle the load. For even greater reliability, configurations such as 2N or 2(N+1) offer higher levels of fault tolerance.
Comparison Table: Modular vs. Standard UPS
| Feature | Modular UPS | Standard UPS |
|---|---|---|
| Scalability | Add or remove modules as needed | Replace entire unit for capacity changes |
| Initial Investment | Lower upfront costs; pay-as-you-grow approach | Higher upfront investment for future capacity |
| Efficiency | 92–95% efficiency; dynamic load adjustment | Often oversized, leading to inefficient operation |
| Space Requirements | Compact vertical rack design | Larger horizontal floor footprint |
| Redundancy | N+1, N+X configurations with hot-swappable modules | Higher risk of single point of failure |
| Maintenance Downtime | Minimal or zero downtime via hot-swappable modules | System shutdown required for major repairs |
| Failure Cost Impact | Replace individual modules at a lower cost | Replacement of the entire system can cost 10–20× more |
| Energy Management | Modules activate/deactivate based on demand | Fixed capacity regardless of load |
Drawbacks and Challenges of Modular UPS Scalability
Higher Initial Costs
Modular UPS systems offer flexibility, efficiency, and redundancy, but they come with a higher upfront price compared to traditional fixed-capacity systems. This cost difference stems from their advanced design and monitoring capabilities. While the total cost of ownership (TCO) may be lower over time due to better efficiency and scalability, the initial expense can still be a hurdle for organizations.
"Although the initial cost may be slightly higher than that of traditional fixed-capacity UPS systems, the benefits of modular UPS ultimately give you a better return on investment." - Powertron Battery Co.
Setup and Integration Complexity
Installing modular UPS systems isn’t as straightforward as plug-and-play solutions. These systems require detailed load planning and compatibility checks, making the setup process more intricate. Proper load balancing and integration demand technical expertise, and the configuration process often takes more time compared to monolithic systems. Even after installation, ongoing maintenance can pose additional challenges.
Maintenance and Compatibility Issues
As modular UPS systems grow, ensuring they work seamlessly with existing infrastructure becomes crucial. Without proper evaluation, compatibility problems can arise. It’s essential to involve experienced professionals who can assess power requirements and ensure smooth integration with your current electrical systems.
Comparison Table: Drawbacks of Modular vs. Standard UPS
| Challenge Area | Modular UPS | Standard UPS |
|---|---|---|
| Initial Investment | Higher upfront costs due to advanced design and redundancy | Lower initial purchase price |
| Installation Complexity | Requires detailed load planning and compatibility checks | Simple plug-and-play setup |
| Setup Time | Longer configuration and integration process | Quick and straightforward installation |
| Compatibility Planning | Needs careful evaluation to integrate with existing systems | Easier integration |
| Overcapacity Risk | Potential for adding unnecessary modules without proper planning | Fixed capacity avoids overcapacity issues |
Cost-Benefit Analysis of Modular UPS Scalability
Total Cost of Ownership (TCO) Breakdown
When analyzing the financial aspects of modular UPS systems, the Total Cost of Ownership (TCO) provides a comprehensive view. TCO includes acquisition (Capex), operational (Opex), and maintenance costs, giving a clearer picture of long-term expenses.
Acquisition costs are influenced by factors like the type and size of the UPS, redundancy needs, battery specifications, and installation complexity. Modular systems allow you to scale capacity incrementally, which helps avoid over-provisioning and can reduce upfront expenses.
Operational costs are largely tied to energy efficiency. Over a decade, energy losses at 97% efficiency could match or even surpass the initial acquisition cost. Modern modular systems, with efficiencies as high as 98%, reduce energy losses significantly. A 1% efficiency improvement can cut energy losses by one-third, often achieving a return on investment (ROI) in about 2.5 years.
Maintenance costs include battery replacements, component failures, and service contracts. Modular UPS systems minimize maintenance expenses by allowing individual modules to be serviced or replaced without shutting down the entire system. This also reduces the risk of operational disruptions.
The cost of downtime is another critical factor. Small data centers can lose around $100,000 per hour during outages, while financial institutions may face losses exceeding $1 million per hour. Modular systems enhance redundancy through N+1 configurations, significantly lowering the risk of downtime.
To better understand the financial impact, let’s look at cost examples for various facility sizes.
Cost Examples for Different Facility Sizes
Real-world cases highlight the advantages of modular UPS systems. For a 36 kW system, the BladeUPS costs $32,950, compared to $35,500 for a traditional UPS. Additionally, the modular design can save up to 50% on installation costs due to its plug-and-play setup.
Small facilities (10–50 kW): These facilities benefit from a pay-as-you-grow model. Instead of purchasing a full 50 kW system upfront, you can start with 20 kW and add 12 kW modules as needed. This approach lowers initial capital expenses while maintaining scalability.
Medium facilities (50–200 kW): Incremental capacity additions offer significant TCO improvements. Matt Yorston, a Data Center Manager, explains:
"It's a plug-and-play machine. If you need to add another power module, you just put it in like you would put a tape into a VCR or a CD into a CD ROM. You just throw it in and it automatically discovers itself. It's easy. When upgrading, you are able to increase the power capacity of the existing hardware until you get to 60kW. They're 12kW modules, so there are five of them. You can increase them by 12kW at a time. It keeps your operations costs down until you need it."
Large facilities (200+ kW): These facilities benefit from faster installation and greater flexibility in maintenance. Modular systems make it easier to deploy additional capacity as business demands grow.
Payback Period and Long-Term Savings
The payback period for modular UPS systems typically ranges from 2.5 to 5 years, depending on power requirements and growth patterns. Key savings come from higher energy efficiency, reduced maintenance costs through hot-swappable modules, and minimized downtime.
Energy efficiency plays a major role in cost savings. With efficiency rates reaching up to 99%, compared to 94–97% for traditional systems, even small improvements can lead to significant annual electricity savings, particularly for medium-sized facilities.
Maintenance savings are achieved through the modular design, which allows individual modules to be replaced without shutting down the entire system. This ensures maximum uptime and reduces overall TCO. Additionally, the ability to scale capacity incrementally prevents the expense of over-engineering and unused capacity.
The financial impact over time is considerable. The modular UPS market is expected to grow at a 9.3% compound annual growth rate (CAGR), reaching nearly $11 billion by 2032. Early adopters benefit from reduced TCO, improved efficiency, and enhanced redundancy.
The table below provides a side-by-side comparison of modular and standard UPS systems for a quick overview of cost advantages.
Cost Comparison Table: Modular vs. Standard UPS
| Cost Factor | Modular UPS (e.g., BladeUPS) | Standard UPS |
|---|---|---|
| Initial Investment | Lower upfront cost ($32,950 for 36 kW) | Higher upfront cost ($35,500 for 36 kW) |
| Installation Costs | ~50% savings due to plug-and-play design | Higher complexity and expense |
| Energy Efficiency | Up to 99% efficiency | Typically 94–97% efficiency |
| Maintenance Downtime | Zero downtime with hot-swappable modules | Requires full system shutdown |
| Scalability Costs | Add 12 kW modules as needed | Requires system replacement or reconfiguration |
| Redundancy | Cost-effective N+1 configurations | Often requires expensive duplicate systems |
| 10-Year Energy Costs | Lower due to higher efficiency | Energy losses may equal or exceed acquisition cost |
| Payback Period | 2.5–5 years | Longer payback period |
sbb-itb-501186b
How to Select and Source Modular UPS Systems
Key Selection Criteria
Picking the right modular UPS system means balancing performance, cost, and reliability. Starting with a clear understanding of your needs will help you avoid expensive missteps.
Power capacity and load requirements are crucial. Calculate the total load of all connected equipment. To allow for growth, choose a UPS rated at least 20% above your total VA needs. Opt for systems that let you add or remove modules as your power demands change.
Scalability and flexibility are especially important for businesses expecting growth or dealing with variable power needs.
Space and cooling constraints play a big role in your decision. For instance, rack-mounted UPS units are ideal for smaller spaces, while larger facilities might prefer floor-standing models. Modular UPS systems often take up less space than traditional ones. Be sure to consider both the physical space and cooling requirements of your setup.
Runtime requirements depend on your operational needs. Do you need just enough time to shut down equipment safely, or do you need to keep everything running for an extended period? Remember, smaller loads can stretch battery life.
Energy efficiency ratings affect your long-term operating costs. Most UPS systems operate at efficiency levels between 90% and 97%. While higher efficiency units may cost more upfront, they can save money over time, so weigh this against your budget.
Redundancy and reliability are vital for industries where downtime isn’t an option. Redundant systems ensure continued operation even if one unit fails. Modular UPS systems are particularly reliable, as their design eliminates single points of failure by using multiple replaceable modules.
Environmental factors also matter. Understand your current power setup - whether it’s single-phase or three-phase - and evaluate the installation environment. Conditions like temperature, humidity, and ventilation can all impact system performance.
Once you’ve identified your criteria, the next step is sourcing equipment that meets these requirements.
Finding Quality Equipment
To ensure long-term reliability, source modular UPS systems from suppliers with strong credentials and proven quality control.
Certifications and compliance are key indicators of quality. Look for systems that meet industry standards like ISO 9001, ISO 14001, and CE certification. These certifications reflect a manufacturer’s commitment to quality and environmental responsibility.
Testing and quality control processes help separate reliable suppliers from the rest. Focus on suppliers that follow rigorous testing protocols. Reliable maintenance teams and thorough testing are essential for dependable performance.
Maintenance and support capabilities are critical for keeping your system running smoothly. Choose suppliers with experienced service teams and options for service contracts, regular maintenance, and battery replacements.
Customization options allow you to adapt the UPS system to your specific needs. Look for suppliers that offer tailored solutions rather than forcing you into standard configurations.
Compatibility verification is essential when integrating new UPS systems with existing equipment. Check that the UPS matches the voltage and frequency needs of your current setup. If you’re using backup generators, ensure they’re properly synchronized with the UPS for a reliable power supply.
Once you’ve evaluated performance and reliability, finding a trusted marketplace is the final step.

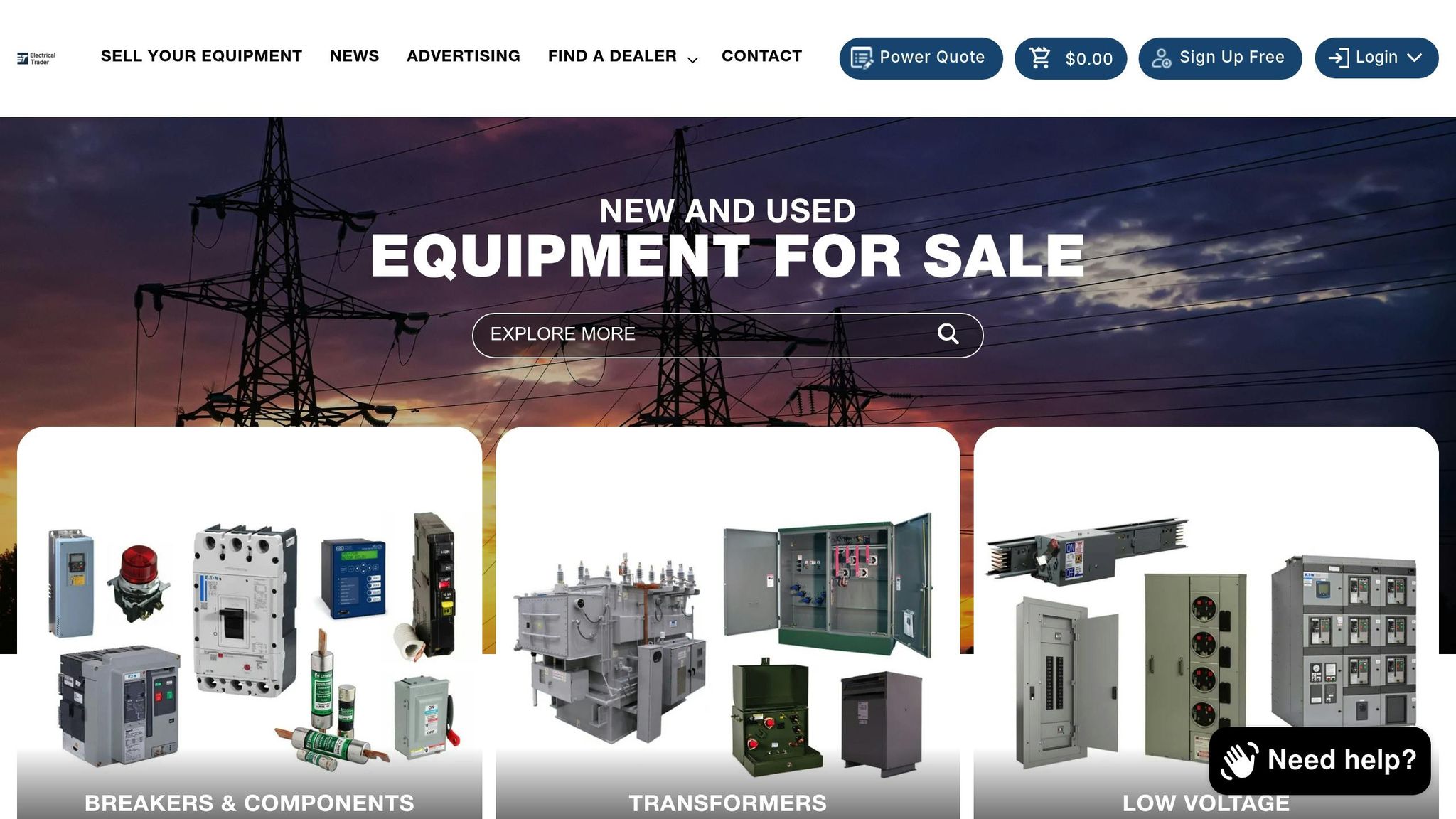

How Electrical Trader Can Help
After defining your criteria, partnering with a reliable supplier is key. Electrical Trader offers an online marketplace specializing in modular UPS systems and power distribution equipment. The platform caters to both new and used components, making it easier to find options that fit your budget.
Their marketplace organizes products into categories like power generation equipment, transformers, and voltage regulation systems, which are often used alongside modular UPS systems. This centralized approach simplifies procurement and ensures compatibility between components.
Electrical Trader places a strong emphasis on quality. They feature reputable brands and provide detailed product descriptions, along with buying guides to help you understand technical specs and make informed decisions.
The platform also offers cost flexibility by including both new and used equipment. This is particularly helpful for businesses deploying modular UPS systems in phases or testing scalability before committing to a full setup.
Conclusion
Key Points
Modular UPS systems are redefining power protection by offering scalable and efficient solutions tailored to modern business demands. Instead of overcommitting resources upfront, businesses can adopt a pay-as-you-grow strategy, starting with their current power needs and expanding capacity as required. These systems achieve up to 99% efficiency, compared to the 94%–97% typical of traditional models, and their compact, rack-based designs help conserve valuable floor space.
Reliability is another standout feature. Configurations like N+1 or N+X redundancy and hot-swappable modules ensure maintenance can be performed without shutting the system down. This is especially important considering that 30% of UPS failures are linked to maintenance errors.
However, modular UPS systems aren’t without challenges. Higher initial costs and integration complexities can pose difficulties, particularly for organizations lacking experienced technical teams. These factors highlight the importance of carefully assessing your facility’s power needs before making a decision.
On the cost side, modular UPS systems can offer significant savings. For instance, a preconfigured 36kW BladeUPS system can reduce initial installation costs by about 50%. That said, the total investment depends on factors like expansion plans and operational demands. Businesses with stable, predictable power needs might find traditional UPS systems a more economical choice.
Final Thoughts
If your business requires flexible capacity, scalable solutions, and dependable uptime, modular UPS systems are worth serious consideration. With the average power outage in the United States now lasting around seven hours, compared to 3.5 hours in the past, ensuring consistent power protection has never been more important.
As Dale Power Solutions puts it, modular UPS systems are "built with flexibility and futureproofing in mind". This makes them particularly appealing for companies planning to grow, needing high availability, or optimizing limited space.
To make the right choice, start with a comprehensive power audit. Look beyond the upfront cost and evaluate the total cost of ownership, factoring in installation, maintenance, energy use, and future expansion needs.
As the modular UPS market continues to grow, its benefits in scalability, efficiency, and reliability are becoming hard to ignore. For businesses ready to invest in adaptable and efficient power solutions, modular UPS systems offer a practical, forward-looking option.
Modular vs. Monolithic UPS
FAQs
What are the long-term financial advantages of choosing a modular UPS system, even with higher upfront costs?
A modular UPS system might come with a higher upfront price tag, but the long-term financial perks make it worth considering. One of its standout features is scalability - businesses can expand capacity as their needs grow, sidestepping the need for hefty, one-time investments. Plus, these systems are designed to operate more efficiently, cutting energy costs and reducing maintenance expenses over time.
Another big advantage is how the modular setup minimizes downtime. Repairs or upgrades can be carried out without disrupting operations, keeping the business running smoothly and avoiding potential revenue hits. For companies looking to grow or ensure a dependable power supply, the flexibility and cost savings of a modular UPS make it a smart choice.
How does redundancy in modular UPS systems enhance reliability compared to traditional UPS systems?
Modular UPS systems stand out for their redundancy design, which ensures uninterrupted operation even if a module malfunctions. When one module encounters an issue, the others automatically take over, keeping the system running at full capacity without any disruptions.
This fault-resistant setup significantly cuts down on downtime, lowers the chances of a complete system failure, and offers businesses a more reliable power backup option compared to traditional single-unit UPS systems. It’s a flexible and efficient solution to protect essential operations.
What should businesses consider when planning for the scalability of a modular UPS system?
When preparing for modular UPS scalability, it's important for businesses to assess their current power needs and anticipate future growth requirements. This ensures the system can expand as needed. It's also wise to factor in redundancy to keep operations running smoothly in case of failures. Don't forget to weigh the budget, including the upfront costs and the expenses tied to future upgrades. Modular UPS systems offer a flexible setup, letting you add more modules as power demands rise, which makes them a smart and economical choice for businesses planning for growth.
