Energy Losses from Poor Load Balancing: Study Insights

Energy Losses from Poor Load Balancing: Study Insights

Poor load balancing in electrical systems wastes energy, increases costs, and shortens equipment lifespan. Here's what you need to know:

  • What happens? Uneven distribution of electrical loads causes voltage drops, excess heat, and higher energy losses. Neutral conductors carry extra current, motors overheat, and equipment wears out faster.
  • How bad is it? In the U.S., electricity transmission and distribution losses average 5%. A study found that load imbalance can cause 88.68% of total power losses in transformers.
  • What causes it? Common issues include uneven single-phase equipment use, aging infrastructure, and harmonics from modern devices like variable speed drives.
  • How much does it cost? Losses can add thousands of dollars annually for businesses. For example, unbalanced loads on a 30 kVA transformer can cost $29,000 per year.
  • Solutions: Static and dynamic load balancing, phase rotation, and smart meters can reduce losses. Advanced systems, like AI-powered tools, cut energy consumption by up to 33%.

Proper load balancing saves energy, reduces costs, and prevents equipment damage. Businesses should invest in monitoring tools, efficient equipment, and regular maintenance to keep systems balanced and efficient.

Main Causes and Effects of Poor Load Balancing

Common Causes of Load Imbalance

Poor load balancing happens when the current or voltage across the phases in a three-phase power system becomes uneven. Identifying the reasons behind these imbalances is key to avoiding energy waste and equipment issues.

One of the primary causes is uneven distribution of single-phase equipment. This is common in commercial settings where systems like HVAC units, elevators, and industrial machinery aren’t evenly spread across all three phases. For example, air conditioning units, lighting systems, and office equipment may overload specific phases, leading to transient load imbalances.

Another factor is component variations. Differences in cable lengths or transformer resistances can create mismatches in impedance, especially in facilities with varying wire runs to different sections.

System faults also play a significant role. If a phase goes down due to a blown fuse or damaged conductor, the remaining phases are left to handle the full load, causing severe imbalance. Additionally, harmonics from nonlinear loads - like variable speed drives - introduce unbalanced currents and voltages, further complicating the system.

Aging infrastructure contributes as well. Old transformers and worn-out circuit breakers can disrupt power distribution over time. Even modern renewable energy setups, such as solar inverters, can unintentionally skew the balance if they aren't installed or configured properly. For instance, improperly sized inverters may feed power disproportionately into one phase. As facilities grow or change operations, these shifts can alter load patterns, making regular audits essential to maintaining balance.

These imbalances lead to the technical inefficiencies outlined below.

How Energy Loss Occurs

When imbalances arise, they trigger a chain reaction of technical problems that waste energy. One of the biggest culprits is increased system resistance. Subramanian Vadari from Intelligent Utility explains:

"Unbalanced loads lead to higher energy losses, reducing overall efficiency as some phases carry more power, resulting in higher currents, which leads to greater resistance loss."

This means that as current flows through conductors, it generates heat. Unbalanced loads amplify this effect, causing resistance losses that waste energy and lead to overheating in motors and transformers. Overheating not only wastes energy but also shortens the lifespan of equipment. Interestingly, current unbalance can be several times greater than voltage unbalance.

Another issue is increased neutral flow. In a balanced three-phase system, the neutral current should ideally be zero. However, imbalances force current through the neutral conductor, leading to unnecessary energy consumption.

Voltage instability is another consequence. Uneven loads on certain phases cause voltage fluctuations that can harm sensitive equipment. This instability forces power-conditioning systems to work harder, consuming more energy to stabilize voltage levels. For motors, even a small voltage unbalance can result in a current unbalance six to ten times larger, further stressing the system.

These inefficiencies don’t just waste energy - they also lead to higher operational and financial costs.

Operational and Financial Costs

The technical problems caused by load imbalances translate directly into higher operational expenses. Excessive phase currents can damage wiring through copper loss, leading to costly repairs, replacements, and increased maintenance efforts.

Real-world data highlights the financial toll of these imbalances. In Brazil, researchers found that unbalanced conditions resulted in 2.4 GWh of additional annual losses across 17,600 transformers, costing $134,000. For individual facilities, the losses can be steep: unbalanced loads can add $29,000, $53,000, and $52,000 in annual losses for transformer sizes of 30, 45, and 75 kVA, respectively. These costs accumulate year after year, creating a significant financial burden.

Industry standards reflect the importance of addressing these issues. ANSI C84.1 limits voltage unbalance to a maximum of 3% at electrical meters under no-load conditions. For motors, NEMA standard MG-1 specifies that polyphase motors should operate within a 1% voltage unbalance, with anything above 5% risking severe damage.

Beyond direct energy costs, businesses face additional challenges like equipment failures, production interruptions, and increased maintenance demands. These indirect costs often outweigh the direct losses, emphasizing why effective load balancing is so critical - not just for energy efficiency but for overall business stability and productivity.

Study Data: Energy Loss Numbers and Cost Impact

Measuring Energy Loss from Load Imbalance

Research shows that poorly balanced electrical loads can lead to significant energy waste. Imbalances in current result in extra Joule losses in distribution transformers and low-voltage cables, which account for a considerable share of total network energy losses in many regions.

One study used neutral conductor current as a marker for system imbalance. The findings revealed that neutral current levels hit about 26.36% during the day and 24.04% at night when conditions were unbalanced.

In a decade-long analysis of a 1 MVA transformer, load imbalance was responsible for 88.68% of total power losses, compared to just 11.10% under no-load conditions and 0.21% during on-load conditions.

Additionally, a 2% voltage imbalance was shown to reduce motor efficiency by 2%, while increasing I²R copper losses by as much as 30%.

These findings provide a clear picture of how load imbalances directly contribute to energy losses, setting the groundwork for evaluating their financial impact.

Financial Impact Analysis

For industrial operations, improving voltage balance can lead to significant cost savings. For instance, a plant with a 3,000-hp load could save at least $50,000 per year by achieving a 2% efficiency improvement.

In industries that rely heavily on three-phase induction motors, imbalances not only inflate utility bills but also escalate maintenance costs, shorten equipment lifespan, and increase the likelihood of failures.

Balanced vs. Unbalanced System Comparison

The following table illustrates the critical differences between balanced and unbalanced systems:

System Condition Energy Loss Percentage Motor Efficiency Impact Neutral Current Flow Maintenance Requirements
Balanced System Minimal losses (0.21% on-load) Maintains optimal efficiency Near zero Standard maintenance
Unbalanced System High losses (88.68% of total) ~2% efficiency drop per 2% imbalance 24–26% of phase current Elevated maintenance needs

This comparison highlights how unbalanced systems can waste energy at rates over 400 times higher than balanced systems. Balanced systems, on the other hand, ensure stable voltage, reduce equipment strain, and promote consistent performance. In contrast, unbalanced systems often lead to voltage instability, increased equipment wear, and operational challenges.

Research emphasizes that adopting load balancing techniques can result in significant energy savings, proving to be a cost-effective strategy for both consumers and power providers. The evidence underscores the importance of load balancing in maintaining efficient and economical electrical systems.

Methods and Technologies to Reduce Energy Loss

Proven Load Balancing Methods

Reducing energy waste starts with effective load balancing techniques. Static load balancing operates on fixed rules to distribute power across circuits. While straightforward and reliable for consistent energy demands, it lacks the flexibility to adapt to changes in real-time.

On the other hand, dynamic load balancing continuously monitors and adjusts power distribution using advanced algorithms. This real-time adaptability makes it ideal for systems with fluctuating energy requirements.

Another method, phase rotation, redistributes loads more evenly across three-phase systems by swapping phases. Though cost-effective, this approach often requires manual intervention to maintain efficiency.

For a more automated solution, advanced control systems, like smart meters integrated into smart grid infrastructures, provide real-time data that enables precise load adjustments. A case in point: XYZ Manufacturing Plant implemented comprehensive load balancing and achieved a 20% reduction in energy consumption. This not only highlights the energy-saving potential but also demonstrates how these improvements can lead to tangible cost reductions.

Cost Savings from Better Load Balancing

Reducing energy loss directly translates into lower costs. By optimizing load distribution, businesses can cut energy bills and reduce operational expenses. For example, AI-powered systems have been shown to lower data center energy consumption by as much as 33%.

A practical example comes from SA Power Networks, which deployed real-time monitoring across 1,500 low-voltage transformer sites. This initiative saved an estimated $5.3 million AUD (around $3.5 million USD) in operational expenses over five years, with a net present value of $4.23 million AUD (about $2.8 million USD) over the asset lifecycle.

Moreover, companies using targeted load balancing strategies have reported up to 20% reductions in operational costs, while infrastructure upgrades can cut energy losses by as much as 30%. Load scheduling further helps facilities avoid peak demand penalties, and real-time monitoring has been shown to reduce power wastage by up to 15%.

Load Balancing Method Comparison

Different load balancing methods come with their own benefits and challenges. Here's a quick comparison to help determine which approach might suit specific operational needs:

Method Pros Cons Cost Ease of Implementation System Effectiveness
Static Load Balancing Easy to implement Doesn't adapt to changing conditions Low High Moderate
Dynamic Load Balancing Adjusts in real-time Requires more complex setup and maintenance Moderate to High Moderate High
Phase Rotation Cost-effective for balancing loads May need manual intervention Low Moderate Moderate
Voltage Regulators Stabilizes voltage, improving efficiency Higher upfront costs Moderate to High Moderate High
Smart Meters Enables precise, automated adjustments Requires investment in smart grid technology High Low High

Additionally, software-defined networking (SDN) has proven effective in load balancing. For instance, round robin techniques in SDN can cut average round trip times by 53.2%, while hash-based methods reduce them by 12.8%. Similarly, modern Application Delivery Controllers (ADCs) like the LoadMaster 1500 consume significantly less energy - drawing only 0.2 AMPS at full load, which is 5–10 times less than comparable products.

Choosing between hardware and software load balancers ultimately depends on operational priorities. Hardware solutions deliver dedicated performance but often come with higher initial costs and maintenance needs. Meanwhile, software solutions offer greater flexibility, easier scaling, and better integration with cloud environments - all at a lower cost.

sbb-itb-501186b

Equipment Selection for Load Balancing

Choosing the Right Equipment

Selecting the right equipment for load balancing starts with ensuring the components match your power demands. For instance, circuit breakers and service panels must align with the electrical system's requirements. Single-pole breakers are typically rated for 15 to 20 amps, while double-pole breakers handle anywhere from 20 to 50 amps or more. High-demand appliances like refrigerators and air conditioners require more power than standard lighting circuits, which means careful circuit distribution across bus bars is essential.

Modern equipment with built-in monitoring features can help identify load imbalances, ensuring compliance with standards like EN50160. This standard limits unbalance to a maximum of 2% at the point of common coupling.

When evaluating equipment, consider both performance and physical requirements. Factors like voltage, current, frequency, and accuracy are critical for proper operation. Additionally, the size and form factor of the equipment impact installation feasibility, while its power consumption influences long-term costs.

It’s also smart to plan for future expansion. Testing compatibility with your current setup ensures your investment remains effective as your operations grow. Thoughtful equipment selection not only supports efficient load balancing but also simplifies procurement and maintenance.

Finding Equipment Through Electrical Trader

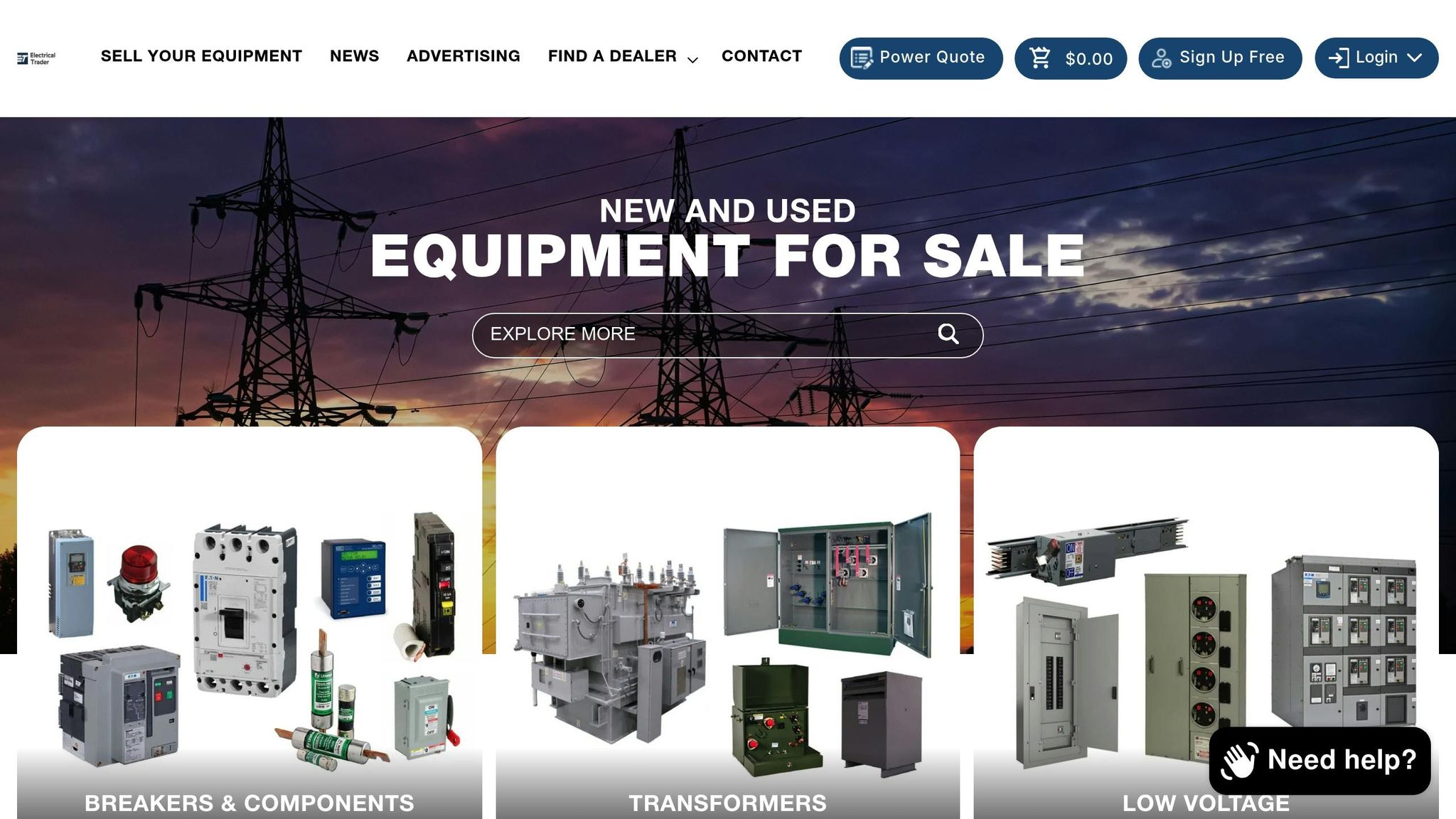

Electrical Trader

Electrical Trader provides a robust marketplace for sourcing new and used power distribution equipment tailored to load balancing needs. Their inventory includes essential components like circuit breakers, transformers, and monitoring tools from trusted manufacturers.

The platform offers flexibility for various budgets. New equipment comes with the latest advancements and full warranty coverage, while used options provide a cost-effective alternative without sacrificing functionality. Specialized items like 3-phase transformers and substation transformers are also available, making it a valuable resource for industrial load balancing projects.

Quality assurance is a top priority when sourcing equipment. Always choose products from reputable manufacturers to ensure reliability. Electrical Trader’s marketplace structure allows buyers to compare options, review specifications, and find components that meet precise requirements.

The platform’s categorized listings simplify the selection process, whether you need residential circuit breakers or industrial-grade transformers. They also offer emergency standby diesel generators and other power generation tools for comprehensive load management. By prioritizing high-quality components, you can improve load monitoring and reduce energy losses.

Load Monitoring and Maintenance Tips

After installing the right equipment, ongoing monitoring and maintenance are crucial for sustaining efficient load balancing. Regular health checks on system components can prevent costly failures and performance issues.

Real-time analytics and system logging provide valuable insights into traffic patterns and overall system health. Monitoring voltage and current levels across all circuits helps identify deviations that signal potential imbalances. Addressing these issues early can prevent downtime and maintain system performance.

Failover testing is another key aspect of maintenance. Regularly test backup systems to confirm they work as intended during unexpected outages. This process can reveal vulnerabilities and allow for adjustments to emergency procedures.

As system demands evolve, load-balancing algorithms should be updated to match current traffic patterns. Use performance data to fine-tune parameters and ensure optimal distribution. Dynamic monitoring tools can further enhance efficiency by automatically adjusting distribution based on real-time conditions, reducing the need for manual intervention.

Finally, have qualified electricians verify any system modifications. Routine maintenance should include checking connections, cleaning contacts, and ensuring circuits aren’t overloaded. These simple steps promote efficient power distribution and extend the lifespan of your equipment.

Summary and Next Steps

Main Study Results

The research highlights a critical issue: poor load balancing leads to major energy losses in electrical distribution networks. This imbalance impacts essential power quality metrics like the voltage unbalance factor (VUF), current unbalance factor (IUF), and voltage regulation. These factors contribute significantly to energy losses in low-voltage networks.

The financial implications go beyond wasted energy. Commercial and industrial customers often face "peak demand penalties" from electric utilities, which are added to their total usage costs during billing cycles. In other words, unbalanced systems not only waste energy but also result in higher charges during peak demand periods.

Data also reveals that discrepancies between estimated and actual power quality indicators are particularly pronounced in weaker grids or at the end of low-voltage feeders. This reinforces the urgency for immediate operational changes to address these inefficiencies.

To improve load balancing and reduce energy waste, distribution system operators and planning engineers need to base their power quality studies on real load data. The assumption that three-phase loads are inherently balanced or only slightly unbalanced doesn't hold true in actual conditions.

Energy savings are possible through smarter load scheduling, particularly during peak demand times. For instance, power scheduling in data centers has led to significant annual energy savings.

Organizations should also adopt real-time monitoring tools, such as smart PDUs and advanced sensors. PDUs with high-efficiency transformers can operate 2–3% more efficiently than standard units. Additional strategies include:

  • Installing reactive power generators (capacitors) to improve power factor.
  • Using anti-harmonic filters to mitigate harmonics from non-linear equipment.

The EN50160 standard for power quality sets a maximum unbalance limit of 2% at the point of common coupling, offering a clear benchmark for optimization.

Using Electrical Trader for Equipment Needs

Effective load balancing isn't just about operational adjustments - it also requires the right equipment. Platforms like Electrical Trader simplify the process of sourcing specialized tools for load balancing solutions. With 91% of procurement teams preferring online purchases and e-procurement sales surpassing $1 trillion in 2022, digital marketplaces have become essential for sourcing electrical components.

Electrical Trader's inventory includes vital equipment like circuit breakers (15 to 50+ amps), three-phase transformers, and monitoring tools. Automation through such platforms enables organizations to work up to 80% faster, with 24/7 access to inventory and real-time pricing.

Whether you're looking for new equipment with full warranty coverage or budget-friendly used alternatives, the platform's categorized listings make it easy to find the right fit for both residential and industrial needs. Additionally, their offerings include emergency standby diesel generators and other power management tools, ensuring comprehensive solutions for load balancing challenges. The marketplace's comparison features and detailed specifications further streamline the selection process, helping users make informed decisions.

Understanding Electrical Load Calculations & Load balancing

FAQs

How does improper load balancing affect the lifespan of electrical equipment?

Uneven load balancing places unnecessary stress on electrical systems, often resulting in overheating and faster wear on components. Over time, this extra strain can cause equipment to break down much sooner than expected.

Beyond the physical damage, unbalanced loads can lead to inefficiencies in energy use, driving up operating costs and making system failures more likely. Tackling these imbalances early not only helps protect your equipment but also cuts down on maintenance costs.

How do load imbalances impact the finances of small and medium-sized businesses?

Load imbalances can hit small and medium-sized businesses where it hurts most - financially. When load balancing is poorly managed, it often results in wasted energy, higher operational costs, and even premature wear on equipment. Research shows that energy disruptions, whether from power outages or load shedding, can lead to noticeable revenue losses for businesses.

Tackling these imbalances can make a real difference. Businesses that optimize their load balancing often see improved energy efficiency, reduced waste, and lower operating costs. For example, some companies have reported saving as much as $5,000 per year simply by implementing smarter load management strategies. Beyond the cost savings, proper load balancing boosts system reliability and overall performance, making it an investment that pays off in more ways than one.

How can AI tools optimize load balancing and reduce energy costs?

AI tools play a key role in improving load balancing by smartly distributing energy across various systems. This reduces waste and streamlines processes, leading to energy savings that can range from 15% to 70%, depending on the industry and application.

By processing real-time data and forecasting demand patterns, AI helps ensure energy is utilized efficiently. This not only cuts down on operational costs but also boosts system performance. For businesses, the advantages go beyond just lower energy bills - they also gain a more dependable and sustainable energy setup.
