Top Tools for Voltage Matching in Generators

Top Tools for Voltage Matching in Generators

Voltage matching ensures generators safely and efficiently connect to power grids, preventing equipment damage, power surges, and system failures. This process requires precise alignment of voltage, frequency, and phase angle. Here are the top tools used for voltage matching:

  • Synchronization Lamps: Simple and affordable for visual phase and voltage alignment.
  • Synchroscope: Offers precise phase and frequency feedback for manual synchronization.
  • Voltmeter: Provides accurate voltage readings to fine-tune generator output.
  • Synchronism-Check Relays: Adds a safety layer by blocking unsafe synchronization attempts.
  • Automatic Synchronizer Controllers: Fully automates synchronization, adjusting parameters in real time.

Each tool has specific strengths and limitations, with advanced controllers offering the highest precision. Selecting the right tools depends on your system's complexity, safety needs, and budget. Proper maintenance and calibration are critical for reliable performance.

Tool Function Accuracy Cost Range
Synchronization Lamps Visual phase/voltage check Basic $20–$100
Synchroscope Phase/frequency alignment High $150–$500+
Voltmeter Voltage measurement Very High $50–$300+
Synchronism-Check Relays Safety verification High $200–$800
Automatic Controllers Full automation Very High $800–$5,000+

Voltage matching tools are essential for safe generator operation, especially in critical facilities like hospitals or industrial plants. For reliable sourcing, platforms like Electrical Trader offer a range of products tailored for generator synchronization.

Generator Synchronization (Full Lecture)

Generator Synchronization Requirements

Getting a generator to sync with the grid requires precision in three critical areas: voltage, frequency, and phase angle. These factors must align perfectly to ensure a safe and stable power transfer. Let’s break down these requirements.

Voltage Level Alignment

Voltage alignment is essential to prevent inefficiencies and protect equipment. If the generator's voltage is too high or too low compared to the grid, it can lead to reactive power imbalances and potential damage. Ideally, the generator voltage should stay within ±5% of the grid voltage.

Modern digital automatic voltage regulators (AVRs) have significantly improved the accuracy of voltage matching. While older analog systems offered regulation accuracy between ±1% and ±2%, digital AVRs now achieve ±0.25% to ±0.5% accuracy. To double-check, technicians often use digital multimeters to verify that the generator's output matches the grid voltage before synchronization.

Frequency Synchronization

Frequency synchronization ensures the generator and grid operate in harmony. For systems running at 60 Hz, the generator’s frequency must fall within ±0.1 Hz of the grid. Even minor mismatches can cause the phase angle to drift, leading to power swings and instability.

To maintain frequency, the generator’s governor system adjusts the prime mover's speed. Modern digital AVRs also play a role, stabilizing frequency much faster - typically within 1–7 milliseconds - compared to the 10–20 milliseconds response time of older analog systems.

Phase Angle Matching

Phase angle alignment is crucial for smooth power transfer. At the moment the breaker closes, the generator and grid should have a phase angle as close to 0° as possible, with a tolerance of ±10°. Misaligned phase angles can result in circulating currents, which place mechanical stress on the generator shaft and electrical strain on its windings.

Technicians rely on tools like synchroscopes or clamp-on ammeters to monitor phase angle alignment during the synchronization process.

Parameter Tolerance Measurement Tool Consequences of Mismatch
Voltage Level ±5% of grid voltage Digital multimeter Reactive power imbalance, equipment damage
Frequency ±0.1 Hz (60 Hz) Frequency meter Phase drift, power swings, instability
Phase Angle Within ±10° (ideally 0°) Synchroscope Circulating currents, mechanical/electrical stress

These precise requirements highlight the importance of specialized tools and systems for synchronization. Automatic synchronizer controllers continuously monitor these parameters, making real-time adjustments and ensuring the breaker closes at the perfect moment. Up next, we’ll explore the key instruments that make these adjustments possible.

5 Tools for Generator Voltage Matching

When it comes to precise synchronization, having the right tools is non-negotiable. These tools ensure that generator and grid voltages align perfectly, whether you're relying on simple visual methods or advanced automated systems. Here's a closer look at five reliable options for voltage matching.

Synchronization Lamps

The three-dark-lamps method is one of the simplest and oldest techniques for voltage matching. It involves connecting three lamps between the generator and the busbar, with each lamp placed across corresponding phases. When all three lamps go dark at the same time, it indicates that the generator's voltage and phase are aligned with the grid.

The flickering of the lamps provides a visual cue: when the generator and grid are out of sync, the lamps will flicker or remain lit. As synchronization gets closer, the flickering slows until all lamps go completely dark - the ideal moment to close the breaker.

Pros:

  • Easy to use and inexpensive, requiring minimal equipment
  • Operates directly from the voltage difference without an external power source
  • Straightforward visual feedback that's simple to interpret

Cons:

  • Limited precision compared to modern tools
  • Doesn't provide frequency information - only voltage and phase alignment
  • Challenging to read in bright lighting conditions
  • Can indicate incorrect phase rotation if lamps go out sequentially instead of simultaneously

Synchroscope

For more precision, a synchroscope offers real-time feedback on both phase and frequency differences. Its rotating pointer shows whether the generator is running faster or slower than the grid. Synchronization is achieved when the pointer stops moving and rests at the 12 o'clock position.

Clockwise pointer movement means the generator is running faster than the grid, while counterclockwise indicates it's slower. The speed of the pointer's rotation reflects how far apart the frequencies are.

Pros:

  • Provides precise information about phase and frequency alignment
  • Offers clear visual cues that are easy to understand
  • Helps operators make frequency adjustments in the right direction

Cons:

  • Requires operator training to interpret correctly
  • More expensive than simpler methods like lamps
  • Relies on manual timing for breaker closure

Voltmeter

Digital multimeters are essential for accurate voltage measurement during synchronization. They display the exact voltage levels of both the generator and the grid, helping operators fine-tune the generator's voltage regulator.

Modern multimeters typically offer accuracy within ±0.25% to ±0.5%, which is crucial since generator voltage must match the grid within a ±3% to ±5% range for safe synchronization.

Pros:

  • Delivers precise voltage readings via a clear digital display
  • Can measure other parameters like current, frequency, and resistance

Cons:

  • Focuses only on voltage, leaving out phase and frequency information
  • Requires additional tools for complete synchronization
  • Over-reliance on voltage readings could overlook other critical factors

Synchronism-Check Relays

Synchronism-check relays (ANSI 25) add a layer of safety by automatically verifying synchronization parameters. These relays monitor voltage, frequency, and phase angle, allowing breaker closure only when all conditions meet preset limits - typically within a ±0.1 Hz frequency tolerance.

These devices act as protective interlocks, ensuring safe connections and preventing out-of-phase closures that could damage equipment or destabilize the power system.

Pros:

  • Enhances safety by preventing unsafe synchronization attempts
  • Automatically verifies parameters, reducing human error
  • Protects equipment from damage caused by improper connections
  • Functions as a safety feature for both manual and automated systems

Cons:

  • Requires proper calibration for accurate operation
  • Needs regular maintenance to ensure reliability
  • Doesn't adjust parameters - only permits or blocks synchronization

Automatic Synchronizer Controllers

For complete automation, automatic synchronizer controllers are the most advanced option. These devices continuously monitor generator and grid parameters, automatically adjusting the generator's voltage regulator and governor to achieve perfect synchronization. They can close the breaker at the optimal moment with little to no human intervention.

Modern controllers come with programmable settings, real-time data displays, and integration capabilities for plant protection systems. They synchronize faster and more consistently than manual methods.

Pros:

  • Offers faster and more precise synchronization than manual tools
  • Reduces operator workload by automating the process
  • Programmable settings allow customization for various applications
  • Integrates with control systems for remote monitoring
  • Ensures consistent performance by eliminating operator variability

Cons:

  • Higher upfront cost compared to basic tools
  • Requires skilled technicians for setup and maintenance
  • Relies on electronic components, which can introduce potential failure points
  • Operators may need training to use advanced features effectively
Tool Primary Function Accuracy Level Cost Range Best Application
Synchronization Lamps Visual phase/voltage indication Basic Low Small installations, backup systems
Synchroscope Phase/frequency alignment High Medium Manual synchronization with precision
Voltmeter Voltage magnitude comparison Very High (±0.25-0.5%) Low-Medium Essential for all voltage matching
Synchronism-Check Relay Safety verification High Medium-High Protection in manual/automatic systems
Automatic Controller Complete automation Very High High Critical systems, frequent synchronization

Selecting the right tools depends on your specific needs, budget, and safety priorities. For critical systems, synchronism-check relays and automatic controllers provide robust protection and performance. Smaller setups, on the other hand, might benefit from cost-effective options like synchroscopes and voltmeters for manual synchronization.

Where to Find Voltage Matching Equipment

When it comes to finding reliable voltage matching equipment, working with specialized suppliers is key to avoiding delays and ensuring compatibility. Electrical Trader simplifies this process by offering a carefully curated selection of synchronization tools.

Why Choose Electrical Trader?

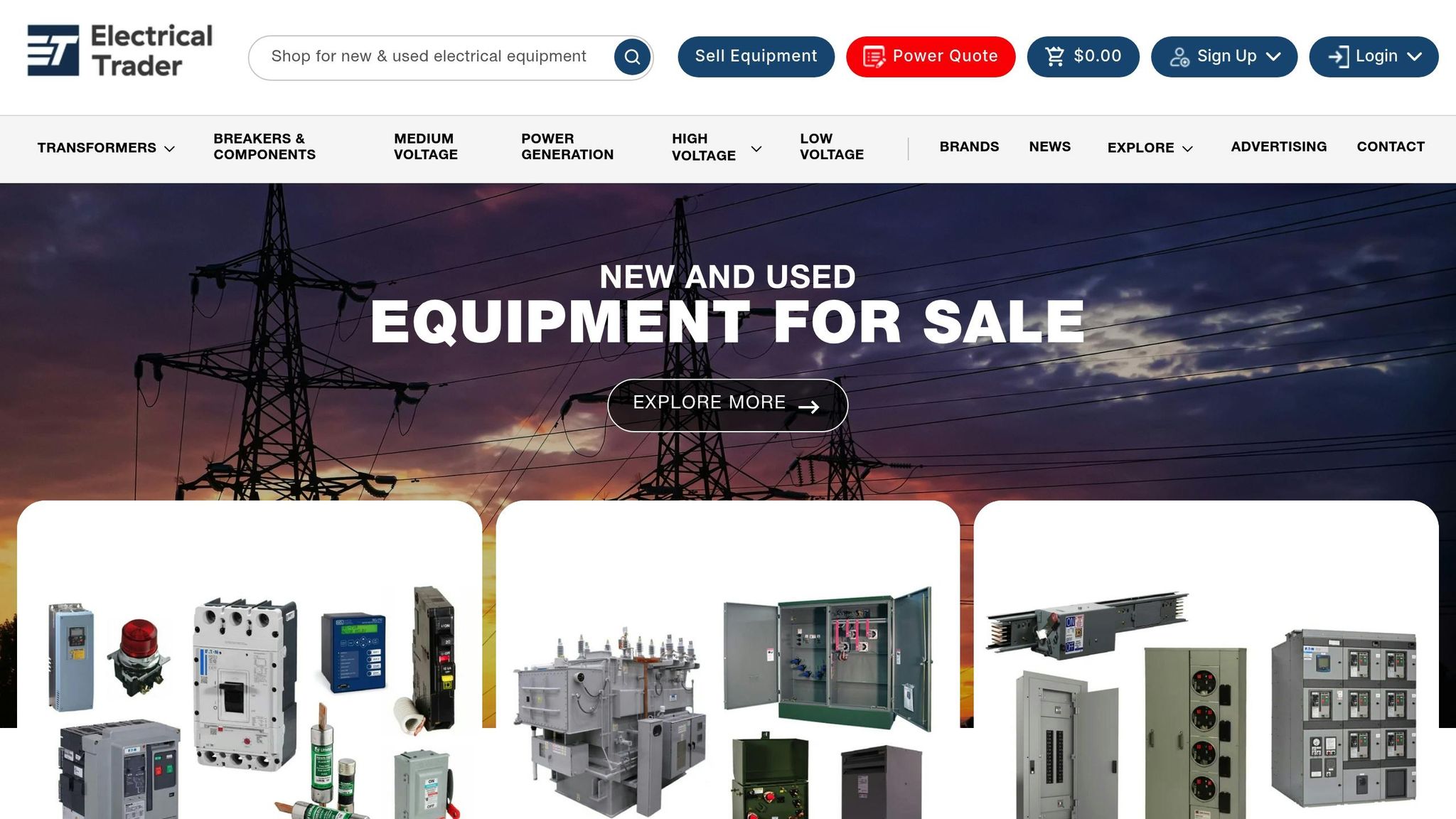

Electrical Trader

Electrical Trader is an online marketplace dedicated exclusively to electrical components and power distribution equipment. Unlike general e-commerce platforms, it focuses solely on the electrical industry, offering both new and pre-owned products from trusted manufacturers.

The platform makes sourcing easy by connecting buyers and vetted sellers in one place, saving you the hassle of reaching out to multiple suppliers. Its user-friendly listing system allows you to search by voltage ratings, capacity, or specific categories, ensuring you can quickly find the right tools for generator synchronization. Every item available is designed to meet the high demands of voltage synchronization in power generation systems.

Quality assurance is a top priority. Sellers are verified, and product listings often include manufacturer certifications, serial numbers, and detailed documentation. Transparent condition reports for used equipment, along with customer reviews, help maintain high standards and support informed purchasing decisions.

Electrical Trader caters to a diverse audience, including electricians, contractors, facility managers, and end-users in sectors like data centers, hospitals, and industrial facilities. This wide user base creates a thriving marketplace where buyers can access everything from common tools to specialized synchronization equipment.

Voltage Matching Tools Available

Electrical Trader’s power generation category offers a broad selection of voltage matching tools tailored for generator synchronization projects. Here’s a breakdown of what’s available:

  • Synchronization lamps: Priced between $20 and $100 per set, these visual indicators are ideal for smaller systems or backup installations where simplicity and affordability are key.
  • Synchroscopes: Available in analog and digital models, manual versions start at about $150, while advanced panel-mounted units can exceed $500. These tools provide precise feedback for manual synchronization, ensuring accurate alignment of phase and frequency.
  • Digital voltmeters and multimeters: Basic models start at $50, with advanced multi-function units priced over $300. These meters meet the ±0.25% to ±0.5% accuracy range needed for exact voltage matching.
  • Synchronism-check relays (ANSI 25): Essential for safety, these devices prevent unsafe synchronization attempts. Prices range from $200 to $800, depending on features and brand reputation.
  • Automatic synchronizer controllers: These premium tools start at $800 for entry-level models, with advanced units priced between $1,500 and $5,000. The used equipment section often lists these controllers at discounts, offering significant savings.

For budget-conscious buyers, refurbished equipment can reduce costs by 30% to 50% without compromising technical performance. Used synchronization tools often deliver the same reliability as new units, making them a cost-effective choice for many projects.

Every listing includes technical specifications, ensuring compatibility with U.S. standards like 60 Hz frequency requirements and the appropriate voltage ratings. The platform’s advanced search filters make it simple to find equipment that matches your system's configuration.

Additionally, buyers can access expert resources and seller support through the platform. Whether you need guidance on compatibility or installation, this specialized knowledge base is invaluable for selecting the right tools for critical power applications where safety and reliability are paramount.

Safety and Best Practices

Working with generator synchronization means dealing with high-voltage equipment and precise timing, so following safety protocols isn't just important - it's critical. These measures protect both the people involved and the equipment itself. By consistently sticking to these guidelines and keeping your tools in top condition, you can avoid risks and ensure smooth operations.

Synchronization Safety Tips

When performing generator synchronization, safety rules go hand in hand with technical requirements. Here are key tips to keep in mind:

  • Double-check voltage, frequency, and phase angle alignment before closing any breaker. These parameters must match perfectly between the generator and the grid. Any mismatch can lead to severe equipment damage or even outages.
  • Rely on synchronism-check relays (ANSI 25 relays) as your first line of defense. These devices monitor voltage, frequency, and phase angle differences, ensuring breaker closure only when conditions are safe. Never bypass these relays, even during testing or maintenance, as doing so can compromise safety and stability.
  • Confirm phase rotation and generator settings before synchronization. Make sure the generator is operating at its rated speed and voltage, and check for any alarms on the control panel. Alarms often signal conditions that could interfere with safe synchronization.
  • Use multiple tools to monitor parameters during manual synchronization. While the "three dark lamps" method is helpful for checking phase information, it doesn't detect frequency differences. Combining tools gives you a more complete picture of the synchronization conditions.
  • Follow the manufacturer's instructions without exception. These guidelines are designed to ensure safe and efficient operation.
  • Consider using automatic synchronizer controllers whenever possible. These systems reduce the chance of human error by continuously monitoring synchronization parameters and automatically closing breakers when conditions are ideal. They are particularly useful during critical operations or emergencies.

Equipment Maintenance

Safety isn't just about following protocols during synchronization - it also depends on keeping your equipment in excellent condition. Regular maintenance ensures that your tools remain reliable and accurate.

  • Calibrate synchronization tools annually or after major maintenance. Calibration ensures that instruments are accurate by comparing them to known standards. Keep detailed records of calibration dates and results for safety and compliance purposes.
  • Store equipment properly in clean, dry, and temperature-stable environments. Sensitive electronics can lose accuracy if exposed to extreme conditions or electromagnetic interference. Protective cases can help extend the life of portable instruments.
  • Inspect equipment regularly for signs of damage, corrosion, or display issues. Spotting problems early can prevent failures during critical operations.
  • Monitor battery levels in portable tools and replace them as needed. Low batteries can cause faulty readings or unexpected shutdowns, so always have spares on hand.
  • Test synchronism-check relays periodically to ensure they respond correctly to differences in voltage, frequency, and phase angle. These relays are the final safety barrier, so their reliability is non-negotiable.
  • Keep thorough maintenance records for all synchronization tools. Documenting calibration, repairs, and performance helps identify potential issues before they become serious.
  • Replace aging equipment proactively. Older tools can develop faults that compromise accuracy, which is a risk you don't want to take during critical synchronization tasks.

Conclusion

Voltage matching plays a key role in generator synchronization, ensuring safe operation, protecting equipment, and safeguarding personnel. This careful alignment is crucial for integrating generators into existing power systems. The tools discussed - from simple synchronization lamps to advanced automatic synchronizer controllers - each contribute to aligning voltage, frequency, and phase angle before generators connect to the grid or operate in parallel.

Modern digital automatic synchronizer controllers stand out for their precision and quick response times, far surpassing older analog systems. This makes investing in high-quality voltage matching equipment a necessity for facilities that rely on generator backup power.

For professionals in search of dependable voltage matching tools, Electrical Trader offers a specialized marketplace tailored to the electrical industry. The platform provides access to synchronization lamps, synchroscopes, voltmeters, synchronism-check relays, and automatic synchronizer controllers from trusted manufacturers like Siemens, ABB, and GE, all compliant with U.S. standards. Reliable sourcing like this supports the long-term success of proper voltage matching practices.

Investing in top-tier voltage matching equipment not only boosts reliability but also minimizes equipment wear and enhances safety. Whether using basic tools or advanced controllers, each piece contributes to seamless synchronization. Paired with regular maintenance, precise calibration, and strict adherence to safety protocols, these tools form the backbone of professional generator synchronization - ensuring facilities can count on their power systems when they need them most.

FAQs

What should I consider when selecting tools for voltage matching in generator synchronization?

When selecting tools for voltage matching during generator synchronization, focus on three key factors: precision, compatibility, and usability. Choose equipment that delivers accurate voltage readings and accommodates the voltage range specific to your generator system. Ensuring the tool is compatible with your generator's make and model is essential for smooth operation.

Ease of use is another critical aspect. Opt for tools with intuitive interfaces and clear displays to simplify the synchronization process and minimize potential errors. Some tools even offer advanced features like automatic voltage adjustments or real-time monitoring, which can be particularly helpful for managing complex systems. Weighing the strengths and weaknesses of each option will guide you toward the most suitable choice for your setup.

What are the safety and efficiency benefits of using automatic synchronizer controllers for generator synchronization compared to manual methods?

Automatic synchronizer controllers play a key role in improving safety and streamlining efficiency during generator synchronization. Unlike manual methods that depend on human accuracy, these controllers handle the alignment of voltage, frequency, and phase automatically. This reduces the chances of mistakes that could cause equipment damage or interrupt power supply.

By taking over the synchronization process, these controllers not only save valuable time but also lower the demand for highly skilled labor, freeing up operators to concentrate on other essential responsibilities. They also deliver steady and reliable performance, even when load conditions fluctuate, making them a dependable solution for today’s power systems.

Why is regular maintenance and calibration important for ensuring the accuracy of voltage matching tools?

Regular upkeep and calibration are crucial for ensuring voltage matching tools remain accurate and dependable. Over time, factors like wear and tear, environmental conditions, and prolonged use can cause these tools to deviate from their original settings, potentially leading to errors during generator synchronization.

Routine checks and calibrations help guarantee precise measurements, reduce the risk of costly mistakes, and prolong the tools' operational life. Additionally, maintaining proper calibration supports safety standards by preventing problems like power imbalances or damage to equipment.
