Solar Wire Sizing Guide: AWG and Ampacity Basics
Choosing the right wire size for your solar system is critical for safety, efficiency, and compliance with NEC standards. Undersized wires can overheat and lead to system failures, while oversized wires increase costs unnecessarily. Proper wire sizing ensures optimal performance by reducing voltage drop and preventing energy loss. Here's what you need to know:
- AWG (American Wire Gauge): Lower AWG numbers mean thicker wires, which carry more current and have less resistance.
- Ampacity: The maximum current a wire can handle without overheating, influenced by material, insulation, and installation conditions.
- Voltage Drop: Longer distances and higher currents require thicker wires to minimize energy loss.
- NEC Guidelines: Follow NEC ampacity tables and apply a 125% safety margin for continuous loads.
Wire selection depends on the current, distance, and specific section of your solar system (e.g., panels to charge controller, batteries to inverter). Use tools like ampacity charts and voltage drop calculators to determine the right wire size for each circuit. Copper is preferred for its conductivity and durability, but aluminum may be used for cost-sensitive projects. Proper planning and wire sizing protect your investment and ensure long-term system reliability.
American Wire Gauge (AWG) Explained
AWG Basics
The American Wire Gauge (AWG) system is the go-to standard for measuring wire sizes in the United States. It assigns a specific number to each wire size, making it easier for electricians, solar installers, and engineers to choose the right wire for their projects.
Here’s how it works: the higher the gauge number, the thinner the wire. So, a 10 AWG wire is thicker than a 12 AWG wire, and a 4 AWG wire is thicker than both. This inverse relationship means the gauge number decreases as the wire diameter increases.
For solar applications, copper is often the material of choice because it has lower electrical resistance. Let’s break down how wire gauge impacts resistance and system performance.
How AWG Affects Wire Resistance
Since wire thickness and gauge number are inversely related, thicker wires (with lower gauge numbers) have less resistance. Lower resistance is essential because it minimizes energy loss as heat, ensuring more power reaches your solar system’s batteries or inverter.
For example, imagine a 20-foot wire carrying 5 amps at 40 volts. A 16 AWG wire would work fine to maintain an acceptable voltage drop. But if you increase the distance or use a thinner wire (higher AWG number), the voltage drop could become excessive, wasting valuable energy.
The difference in wire diameters is striking. A 10 AWG wire has a diameter of 2.588 mm, while a 4 AWG wire measures 5.189 mm - almost double the thickness. This added thickness not only reduces resistance but also allows the wire to safely carry more current without overheating or causing voltage loss.
Understanding how resistance changes with wire size is key to choosing the right AWG for your solar setup, as we’ll explore next.
Typical AWG Sizes for Solar Applications
When designing a solar system, wire gauge selection depends on two main factors: the current the wire will carry and the distance it must run. Choosing the correct AWG size for each part of the system ensures efficiency and keeps costs under control.
- Commercial solar panels (typically over 50 watts) often use 10 AWG wire. This size can handle up to 30 amps, providing a balance between current capacity, cost, and ease of use.
- Residential solar systems usually use 12 AWG wire for lower-current circuits and shorter runs. It’s ideal for connecting individual panels in series or for branch circuits with moderate amperage.
- Combiner wires - used to connect multiple panels in parallel - are thicker, ranging from 3 to 8 AWG. These wires safely handle the combined current from multiple panels to the charge controller or inverter. The exact size depends on the total amperage of the array.
Here’s a quick comparison of common AWG sizes used in solar installations:
| AWG Size | Diameter | Copper Ampacity @ 90°C | Typical Solar Application |
|---|---|---|---|
| 4 | 5.189 mm | 95 A | Large combiner cables, high-current arrays |
| 6 | 4.115 mm | 75 A | Smaller RV/solar applications |
| 8 | 3.264 mm | 55 A | Motorcycles, ATVs, and small solar setups |
| 10 | 2.588 mm | 40 A | Commercial solar panels (50+ watts) |
| 12 | 2.053 mm | 30 A | Residential solar applications |
The ampacity ratings in the table assume a 90°C insulation rating, which is standard for solar wires. These numbers represent the maximum current each wire can handle without overheating.
When selecting wire for your solar system, always consult the National Electrical Code (NEC) ampacity tables, specifically NEC 310.17 for wires in conduit rated at 90°C. These guidelines ensure your installation is safe and meets inspection requirements. Keep in mind that wire sizing also depends on the distance of the run. A wire that works for a 10-foot run may not be suitable for a 50-foot run due to increased voltage drop.
Next, we’ll dive into ampacity and voltage drop to help you fine-tune your wire selection for every part of your solar system.
Ampacity Fundamentals for Solar Installations
What is Ampacity?
Ampacity refers to the maximum amount of current a wire can safely carry without overheating, and it's measured in amperes (amps). Think of it as the upper limit for electrical current that a wire can handle without risking damage or safety hazards.
In solar installations, ampacity plays a key role in determining the proper wire size. If the current flowing through a wire exceeds its ampacity, the wire can overheat, potentially melting the insulation, damaging nearby components, or even causing a fire. Each wire gauge has a specific ampacity rating that defines its safe operating capacity.
For example:
- A 10 AWG solar wire is rated for up to 30 amps.
- A 12 AWG wire handles 20 amps.
- A 14 AWG wire supports 15 amps.

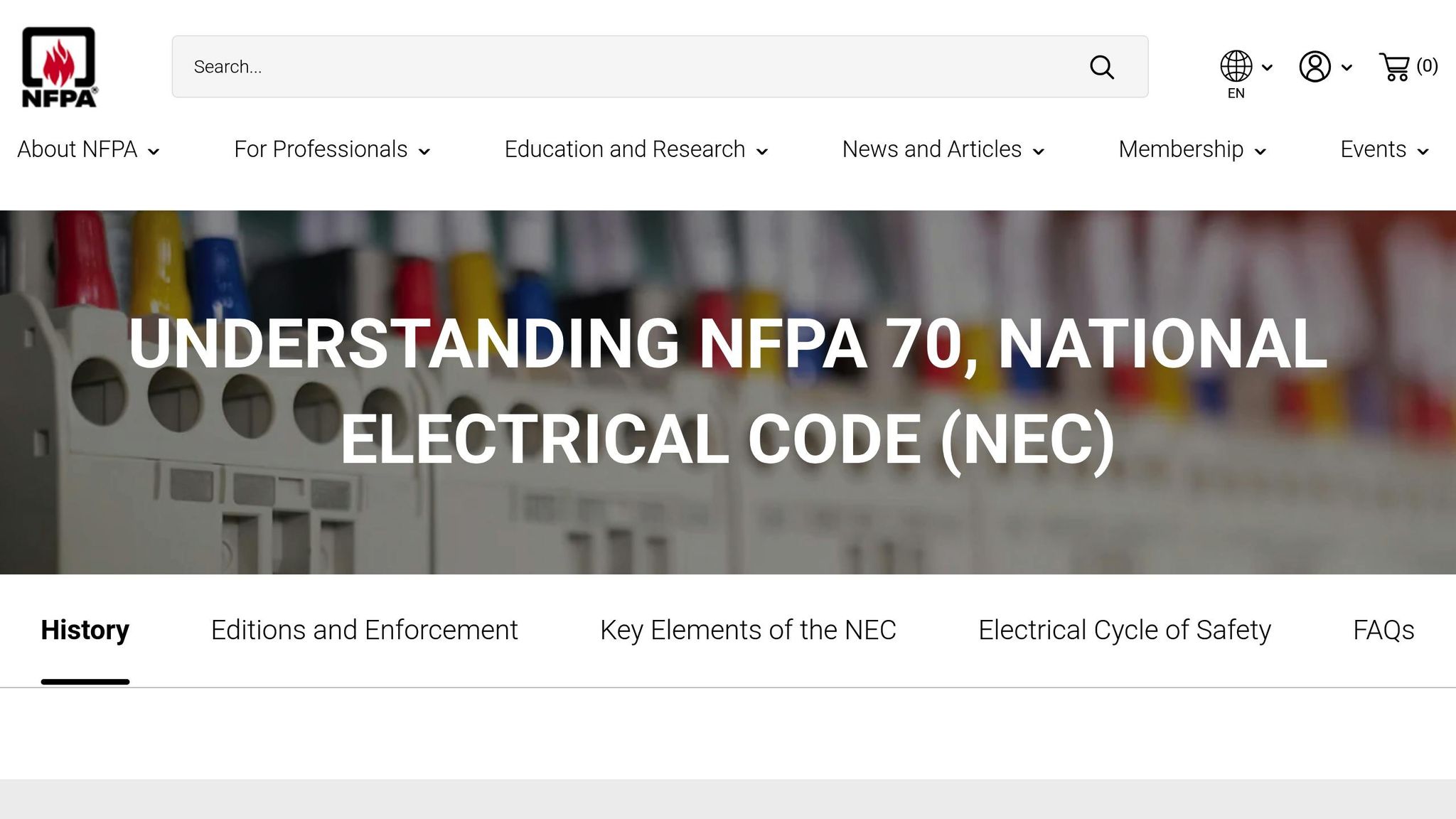

These ratings are standardized by the National Electrical Code (NEC) to ensure safety. Understanding and applying ampacity ratings is essential for creating a solar system that operates efficiently and safely, without putting your equipment - or your property - at risk.
What Affects Ampacity Ratings?
Several factors influence a wire's ampacity, including conductor material, temperature, insulation type, and installation method.
- Conductor Material: Copper and aluminum are the two most common materials used in wiring. Copper, with its lower electrical resistance, can carry more current than aluminum of the same gauge. This makes copper the go-to choice for most residential and commercial solar setups.
- Temperature: Ampacity ratings are typically based on an ambient temperature of 30°C (86°F). However, in hotter environments - like rooftops during the summer - the wire's ability to dissipate heat decreases, reducing its current-carrying capacity.
-
Insulation Temperature Rating: The type of insulation on a wire also affects its ampacity. For instance:
- A 10 AWG copper wire rated at 60°C can handle 30 amps.
- The same wire rated at 75°C can carry 35 amps.
- At 90°C, it can handle 40 amps.
- Wires rated for even higher temperatures, like 105°C, may carry as much as 60 amps under optimal conditions.
- Installation Method: How and where wires are installed impacts their ability to dissipate heat. Wires in conduits or raceways have lower ampacity ratings compared to those installed in open air because the conduit restricts airflow. Additionally, when multiple wires are bundled together, their combined heat output reduces each wire's ampacity further.
For solar systems, especially those installed on rooftops or in warm climates, these factors are crucial. A wire that works well in a cool, indoor environment might not be suitable for a rooftop array exposed to direct sunlight and high temperatures.
NEC Ampacity Requirements
The NEC provides detailed guidelines to ensure safe and efficient installations. These standards define ampacity ratings under specific conditions, such as a standard ambient temperature of 30°C (86°F) and no more than three insulated conductors in a conduit or free air.
One of the most commonly used references for solar installations is NEC Table 310.17, which outlines ampacity ratings for wires in conduit rated at 90°C (194°F). Here's a quick look at how ampacity changes with wire gauge and temperature rating:
| Wire Gauge | Ampacity @ 60°C | Ampacity @ 75°C | Ampacity @ 90°C |
|---|---|---|---|
| 8 AWG | 40 A | 50 A | 55 A |
| 6 AWG | 55 A | 65 A | 75 A |
| 2/0 AWG | 145 A | 175 A | 195 A |
| 4/0 AWG | 195 A | 230 A | 260 A |
The NEC also requires a 125% safety margin for continuous loads. For example, if your solar system generates 16.66 amps, you multiply this by 1.25 to get 20.82 amps. This means you need a wire rated for at least 21 amps to ensure safe operation. This safety buffer helps prevent overheating and extends the lifespan of the wiring.
Solar systems are typically classified as continuous loads, meaning they operate for more than three hours at a time. Because of this, the NEC requires the wire ampacity to be at least 125% of the continuous current. For systems with multiple panels wired in parallel, the formula for determining the required wire ampacity is:
Wire Amp Rating ≥ (Number of Panels × Short-Circuit Current in Amps) × 1.5625
For example, if you have three panels in parallel, each with a short-circuit current of 10 amps, the minimum wire ampacity would be 46.88 amps.
Other Considerations
While wire ampacity is critical, it's essential to account for the ampacity ratings of other components in your solar system. For example, MC4 connectors, which are commonly used in solar setups, typically have a maximum ampacity of 30 amps. So, even if your wire is rated for 60 amps, the connectors may limit the system's overall capacity to 30 amps. Always ensure that the lowest-rated component in your system determines the effective limit for safe operation.
Voltage Drop in Solar Systems
Understanding Voltage Drop
Voltage drop refers to the reduction in voltage as electricity travels through a wire over a distance. Think of it as similar to water pressure decreasing as it moves through a long pipe. In electrical systems, this drop happens because wires have inherent resistance, which causes energy to dissipate as heat.
In solar installations, this issue is especially important. Solar panels produce DC (direct current), which is more prone to voltage losses than AC (alternating current), particularly over long distances. A significant voltage drop means less power reaches your charge controller or inverter, which lowers the overall efficiency of your system.
For example, if your solar panels are 13 feet away from the charge controller and you’ve used wires that are too small, you could lose a noticeable amount of the energy your panels generate. This energy loss not only reduces efficiency but also creates heat, which can pose safety risks. That’s why calculating voltage drop during the wire selection process is crucial. Fixing this issue after installation can be both costly and time-consuming.
Voltage drop affects your system’s performance directly - higher losses mean more energy wasted as heat instead of being stored or used. To ensure your solar system runs efficiently, it’s essential to keep voltage drop within acceptable limits by choosing the right wire size from the start.
Next, let’s look at how to calculate and manage voltage drop effectively.
How to Calculate Voltage Drop
Calculating voltage drop helps you figure out how much of your system’s voltage is lost over the length of your wiring. Thankfully, tools and formulas make this process straightforward, even for non-experts.
Wire sizing calculators are a handy option. They take into account factors like amperage, voltage, distance, and the acceptable voltage drop percentage. These calculators also integrate resistance values and align results with NEC ampacity charts. For instance, if you’re working with a 60-amp, 54-volt system over a 6-foot wire run and aim for a 1.5% voltage drop, a 10 AWG wire would be the right choice.
Voltage drop limits vary depending on the part of the solar system. For circuits running from the panels to the combiner box, a drop of 1.5% to 2% is generally acceptable. Similarly, for the main DC circuit between the charge controller and the battery bank, keeping the drop within this range ensures efficiency. Across the entire system, the total voltage drop should ideally stay below 3% to 5%.
Why does this matter? Even a seemingly small 2% drop in a 48-volt system equates to nearly a full volt lost, which adds up over time. These losses can significantly impact your system’s return on investment.
The longer the wire run or the higher the amperage, the thicker the wire (lower AWG number) you’ll need to keep voltage drop in check. The distance between your panels and charge controller is one of the most critical factors when sizing wires.
Here are some practical examples to illustrate how these calculations apply.
Voltage Drop Examples
Example 1: Parallel Array Configuration
Imagine a residential solar array with three panels wired in parallel, each producing 10 amps of short-circuit current, located 13 feet from the charge controller. Using the safety factor formula - Number of panels × Short Circuit Current × 1.25 × 1.25 - the calculation would be:
3 × 10A × 1.25 × 1.25 = 46.88 amps minimum.
For this setup, a 10 AWG wire would handle the current safely and keep the voltage drop within acceptable limits.
Example 2: Series-Parallel Configuration
For a series-parallel configuration with 5 amps at 40 volts flowing through 20 feet of wire (10 feet each way to an MC4 combiner), you could use 16 AWG wire while maintaining a 1.5% voltage drop. Series wiring reduces amperage, allowing for smaller wire gauges even over moderate distances. The higher voltage offsets the longer wire run, minimizing losses.
Example 3: High-Current Battery Connection
Consider a battery bank connection carrying 100 amps over a 10-foot distance in a 48-volt system. To keep the voltage drop under 2%, you’d need a much thicker wire - likely 2 AWG or larger. Higher amperage generates more heat due to resistance, which is why battery and inverter connections often require the largest wires in a solar setup.
Key takeaway: Longer distances and higher amperages demand thicker wires to minimize losses. However, the relationship isn’t linear - doubling the distance or amperage may require jumping two or three wire sizes to maintain the same voltage drop percentage.
When planning your solar installation, calculate voltage drop for each circuit section individually. A wire size that works for the array-to-combiner connection may not be suitable for the battery-to-inverter connection, even if the distances are similar. Each circuit has unique voltage and amperage requirements that influence wire sizing.
How to Size Wires for Solar Systems
Determining Required Amperage
The first step in sizing wires for your solar system is figuring out the minimum wire ampacity. This ensures the wiring can handle the current from your panels safely, avoiding overheating or other risks.
Start by checking the short circuit current (Isc) listed on your solar panel's datasheet. This number represents the maximum current the panel can produce under ideal conditions. If you’re connecting multiple panels in parallel, add up the Isc values for all the panels.
Next, apply the National Electrical Code (NEC) safety multipliers: 1.25 for continuous operation and another 1.25 for an added safety margin. Use this formula to calculate the minimum ampacity:
Wire Amp Rating ≥ (Number of panels × Isc) × 1.25 × 1.25.
For example, if you have three panels, each with an Isc of 10 amps, the calculation would look like this:
3 × 10 A × 1.25 × 1.25 = 46.88 amps.
This means you’ll need a wire gauge that can safely carry at least 47 amps.
These safety multipliers ensure the wires operate well below their maximum capacity, helping to reduce heat and extend the system's lifespan. Skimping on wire size to save money can lead to overheating, efficiency losses, and even fire hazards.
Once you’ve determined the required amperage, compare it against NEC ampacity charts. Most solar systems use wires rated for 90°C (194°F), which offer higher ampacity for a given gauge. For instance, 10 AWG copper wire at 90°C is rated for 40 amps, 8 AWG for 55 amps, and 6 AWG for 75 amps.
Keep in mind that the way your system is designed impacts wire sizing. For example, wiring panels in series increases voltage while keeping amperage low. This allows for smaller gauge wires, potentially lowering material costs while offering more design flexibility.
Wire Sizing by System Section
Different parts of your solar system handle varying current loads and distances, so it’s important to size wires separately for each section. What works for connecting your solar array to a combiner box may not be sufficient for the battery-to-inverter connection.
- Solar array to combiner box: This section carries the combined short circuit current from all parallel strings, requiring the largest wire gauge on the DC side. For instance, if the panels are on a roof and the combiner box is on the ground, a 20-foot wire run might be necessary. Longer distances call for thicker wires to limit voltage drop.
- Combiner box to charge controller: This section handles the total current from the combined strings. For example, if your solar array and charge controller are 13 feet apart and you need to handle about 47 amps, 10 AWG wire may suffice. Voltage losses in this section can directly impact how much power reaches the charge controller.
- Charge controller to battery bank: This section has unique challenges. In MPPT systems, the output current from the charge controller is lower because it steps down voltage, while in PWM systems, the current is similar to the array current. Battery connections require the thickest wires in your system, as they handle high currents during charging and discharging.
Here’s a handy guide for wire sizing based on current and distance:
| Current (Amps) | 10 ft Distance | 25 ft Distance | 50 ft Distance | 100 ft Distance |
|---|---|---|---|---|
| 10 A | 14 AWG | 14 AWG | 12 AWG | 10 AWG |
| 20 A | 12 AWG | 10 AWG | 8 AWG | 6 AWG |
| 30 A | 10 AWG | 8 AWG | 6 AWG | 4 AWG |
| 40 A | 8 AWG | 6 AWG | 4 AWG | 2 AWG |
| 50 A | 6 AWG | 4 AWG | 2 AWG | 1 AWG |
For example, a 20-amp circuit would need 12 AWG wire for a 10-foot run, but for 100 feet, you’d need 6 AWG. Since voltage drop increases with distance, longer runs often require jumping two or more wire sizes to stay within safe limits.
Also, remember that MC4 connectors, commonly used in solar systems, are rated for a maximum of 30 amps. Even if your wire can handle more current, you can't exceed the connector’s limit. This often influences system design, encouraging series or series-parallel configurations to keep amperage within safe limits.
When to Use Larger Wire Sizes
Sometimes, it makes sense to go beyond the minimum wire size for better safety and performance. Upgrading to a larger wire size can improve efficiency and longevity, especially in specific situations.
- Longer wire runs: If you’re installing panels far from your main electrical panel - like on a barn or remote outbuilding - thicker wire reduces voltage drop, boosting efficiency. The higher upfront cost is often worth it.
- High-temperature environments: Wires running through hot areas, like sun-exposed conduits or attics, lose ampacity due to heat. For instance, 10 AWG wire with 105°C insulation is rated for 60 amps, but high temperatures or poor ventilation can lower this capacity.
- Future expansion: If you plan to add more panels later, installing larger wires now saves you from rewiring down the road. Battery connections, in particular, benefit from oversized wires because they handle high currents. For example, upgrading from 6 AWG to 4 AWG - or even 2 AWG - can reduce heat and improve power transfer.
While larger wires cost more upfront, they reduce energy losses, enhance reliability, and provide flexibility for future upgrades. For most residential systems, the price difference between adjacent wire sizes is small enough to make this an easy decision for long-term benefits.
sbb-itb-501186b
Other Factors in Solar Wire Selection
Copper vs. Aluminum Wire
In residential solar installations, copper wire is the go-to choice - and for good reason. Copper offers better conductivity compared to aluminum, meaning it can handle more current with less resistance at the same gauge. This lower resistance reduces voltage drop and minimizes heat buildup, which is critical for maintaining system efficiency and safety.
The difference in ampacity (current-carrying capacity) between the two materials is noteworthy. For instance, at 90°C (194°F), a 10 AWG copper wire is rated for 40 amps, while the same gauge in aluminum can only handle 35 amps. The gap becomes even more pronounced with larger gauge sizes: 6 AWG copper supports 75 amps, whereas 6 AWG aluminum maxes out at 55 amps. To match copper's performance, you’d need a thicker (and often pricier) aluminum wire.
Copper also has the advantage of being more resistant to corrosion, making it a better fit for outdoor solar setups exposed to moisture and sunlight. Aluminum, on the other hand, is prone to oxidation over time, which can lead to higher resistance at connection points and increase the risk of system failures.
While aluminum is cheaper upfront and lighter - qualities that appeal to commercial projects or long-distance power transmission - copper's reliability and durability make it the preferred material for residential solar systems, where safety and long-term performance are key.
Environmental and Installation Conditions
The environment where your solar wires are installed plays a big role in their performance. Factors like temperature, installation method, and exposure to elements can all affect a wire's ampacity. The National Electrical Code (NEC) provides ampacity tables based on standard conditions, typically assuming an ambient temperature of 86°F (30°C). But real-world conditions often deviate from these standards, requiring adjustments in wire sizing.
For example, bundling multiple wires together in conduits or raceways can trap heat, reducing each wire's effective ampacity. Similarly, wires running through sunlit conduits on a roof or in a hot attic may face ambient temperatures far above 86°F. These scenarios often call for thicker wires to ensure safe operation. Conversely, in cooler environments, wires may safely carry more current than the standard tables suggest.
For buried cables, additional factors like soil temperature, thermal conductivity, and depth of installation come into play. Poor heat dissipation in certain soils or shallow installations can necessitate larger wire sizes. This variability underscores the importance of consulting NEC guidelines and detailed ampacity charts tailored to your specific setup.
System Design for Better Wire Sizing
Even after considering material and environmental factors, system design remains a key piece of the puzzle when selecting the right wire size. A well-thought-out design can simplify wire sizing and reduce costs. The basic formula - Power (watts) = Voltage × Current (amps) - shows that increasing voltage reduces the required amperage for the same power level.
Solar arrays often take advantage of this by using series configurations. Connecting solar panels in series increases the system’s voltage while keeping the amperage low. For example, five 10-amp panels connected in parallel produce 50 amps at the panel’s voltage, requiring very thick wires. But if those same panels are connected in series, they produce just 10 amps at five times the voltage, allowing much smaller wires to be used.
This approach offers several benefits. Smaller gauge wires are generally less expensive, easier to handle, more flexible, and experience less voltage drop over long distances. These advantages can lead to significant material savings, especially in larger systems.
Modern solar systems often operate at higher voltages, such as 48V or more, to further reduce amperage. While this requires compatible charge controllers, the reduced amperage makes the trade-off worthwhile.
It’s also worth noting that MC4 connectors, commonly used in solar setups, are typically rated for a maximum of 30 amps. This limitation often pushes system designers toward series or series-parallel configurations that keep amperage within safe limits, ensuring system reliability and compliance with safety standards.
Tools and Resources for Wire Sizing
Wire Sizing Charts and Online Calculators
Wire sizing calculators and ampacity charts make it easier to select the right wire gauge for your solar installation. These tools use established formulas to calculate the best option based on your system's specific needs.
Most online calculators ask for a few key details: system amperage, voltage, wire run distance, and your acceptable voltage drop percentage. Once you input these numbers, the calculator determines resistance, voltage drop, and safety margins, then suggests the appropriate wire gauge.
The most reliable charts adhere to the National Electrical Code (NEC) standards, particularly the NEC 310.17 Table for conductors rated at 90°C (194°F). For more information, refer to the earlier section on wire sizing based on current and distance.
Temperature ratings are critical when using these tools. A wire’s ampacity changes depending on its insulation temperature rating. For example, 10 AWG copper wire can handle 30 amps at 60°C, 35 amps at 75°C, and 40 amps at 90°C. Solar setups often use 90°C-rated wire because it supports higher ampacity and withstands the elevated temperatures found in outdoor solar arrays.
Many calculators also factor in the installation method - whether the wire is in conduit, free air, or buried directly - since this affects ampacity. These details ensure your wire selection aligns with actual conditions, not just theoretical guidelines. These tools complement the system design principles discussed earlier.
Reading Single-Line Diagrams
Once you've identified the correct wire size using calculators, single-line diagrams provide a clear picture of your solar system. These diagrams are essential for professional solar installations, mapping out all components, their connections, and the wire specifications. They act as a blueprint, simplifying decisions about wire sizing and system layout.
A good single-line diagram includes the solar array configuration (series, parallel, or series-parallel), the distance between components, the amperage for each circuit section, and the recommended wire gauge. For instance, it might specify 10 AWG wire from the array to the combiner box, while calling for 6 AWG wire from the combiner to the charge controller. These variations reflect differences in amperage and distance across the system.
These diagrams also detail breaker and fuse ratings, disconnect switches, and grounding requirements. By following the diagram, you can ensure all components meet code requirements and are correctly sized. If you're designing your own system, creating an accurate single-line diagram before purchasing materials can help avoid costly errors and ensure you select the right wire sizes for each section.
Where to Buy Solar Wiring Components
After determining your wire sizing needs and reviewing your system diagrams, the next step is sourcing high-quality wiring and electrical components. These materials are the backbone of a safe and reliable solar installation. When shopping, focus on several key factors: wire gauge (AWG), insulation type and temperature rating (typically 90°C for solar), conductor material (copper is preferred), and compliance with standards like UL (Underwriters Laboratories) certification.
Make sure the wire's gauge and temperature rating are clearly marked on the jacket. For solar-specific items like MC4 connectors, breakers, and combiner boxes, check the ampacity rating and confirm compatibility with your chosen wire gauge.
Electrical Trader (https://electricaltrader.com) is a popular platform offering a wide range of both new and used electrical components, including wiring and power distribution equipment for solar installations. The site provides access to breakers, transformers, and other components from leading brands, making it a one-stop shop for sourcing quality materials. Whether you need specific wire gauges, circuit protection devices, or other solar system components, having access to detailed product specs and technical documentation ensures you select materials that meet code requirements.
When choosing a supplier, prioritize those offering technical support, detailed specifications, and compliance documentation. Reputable sellers provide ampacity charts and technical data sheets, giving you the tools to make informed decisions. For solar-specific equipment, confirm that components are rated for PV systems. These ratings ensure compatibility and long-term performance in your solar setup.
How to size wires and fuses for a solar electric system
Conclusion
Mastering wire sizing is a cornerstone of building a safe and efficient solar installation. At its core, proper wire sizing revolves around a few key principles. First, wire size is determined by ampacity - the maximum current a wire can handle without overheating - not by voltage. Undersized wires aren't just inefficient; they pose serious fire risks and violate National Electrical Code (NEC) requirements. Additionally, various factors come into play when selecting wires, such as the distance of the run, ambient temperature, installation conditions, and whether the wires are inside a conduit or exposed to air. The NEC also enforces a double 1.25 safety multiplier for continuous loads, helping to avoid overheating scenarios.
Distance is another critical factor, as longer wire runs require larger gauges to minimize voltage drop. Each segment of the system - whether it's from the array to the combiner box, the combiner to the charge controller, or the battery to the inverter - needs its own wire sizing calculations tailored to its specific amperage and distance requirements.
Thankfully, wire sizing charts and online calculators make these calculations easier. By inputting system amperage (accounting for short-circuit current and safety factors), distance, voltage, and the acceptable voltage drop (usually 1.5% to 3%), you can determine the appropriate wire size. Adhering to NEC guidelines is essential, as these conservative ampacity ratings are designed to account for real-world conditions and are the legal standard for electrical installations in the U.S.. Creating a single-line diagram for your system is another helpful step. It ensures balanced performance and prevents undersizing in critical sections.
The tools and resources mentioned - ampacity charts, calculators, and single-line diagrams - are invaluable for accurate wire sizing. Taking the time to get this right avoids costly mistakes, ensures reliable system performance, and keeps your solar installation running safely for decades. By following these principles and NEC standards, you’ll set your solar system up for safety, efficiency, and long-term success.
FAQs
How can I choose the right wire gauge for my solar system?
To figure out the right wire gauge for your solar setup, you’ll need to factor in the ampacity (how much current the wire can safely handle), the overall system voltage, and the distance between your components. In the U.S., wire sizes are standardized using the American Wire Gauge (AWG) system.
Getting the wire size right isn’t just about performance - it’s about safety. Using wires that are too small can lead to overheating, which increases the risk of fires or power loss. For accurate guidance, it’s always a good idea to consult a licensed electrician or check the National Electrical Code (NEC) to ensure your wire size meets the specific needs of your system and complies with local rules.
What should I keep in mind when deciding between copper and aluminum wires for my solar system?
When deciding between copper and aluminum wires for your solar setup, it's important to weigh factors like conductivity, cost, and weight. Copper wires are known for their superior conductivity and durability, making them a go-to option for high-performance systems. However, they come with a higher price tag and are noticeably heavier compared to aluminum. Aluminum wires, while more budget-friendly and lighter, need to be thicker (larger gauges) to match copper’s conductivity.
The installation environment also plays a key role in your choice. Copper resists corrosion better, which makes it a safer bet for humid or coastal locations. Aluminum, while less corrosion-resistant, can still perform well if paired with proper connectors and treated with anti-corrosion measures. Whichever material you choose, make sure the wire size complies with AWG standards and meets the ampacity requirements of your solar system to ensure safety and optimal performance.
How do ambient temperature and installation conditions impact wire sizing for solar systems?
When designing a solar system, ambient temperature and installation conditions are key factors in choosing the right wire size. Higher temperatures can lead to increased electrical resistance, which may cause wires to overheat if they’re not properly sized. Similarly, wires placed in enclosed spaces or exposed to direct sunlight may need adjustments to their ampacity ratings to ensure they operate safely and efficiently.
To address these challenges, it’s essential to consult the National Electrical Code (NEC) guidelines. Pay close attention to derating factors for temperature and installation environments. Correctly sizing your wires not only prevents overheating but also reduces energy loss and minimizes safety risks in your solar system.
