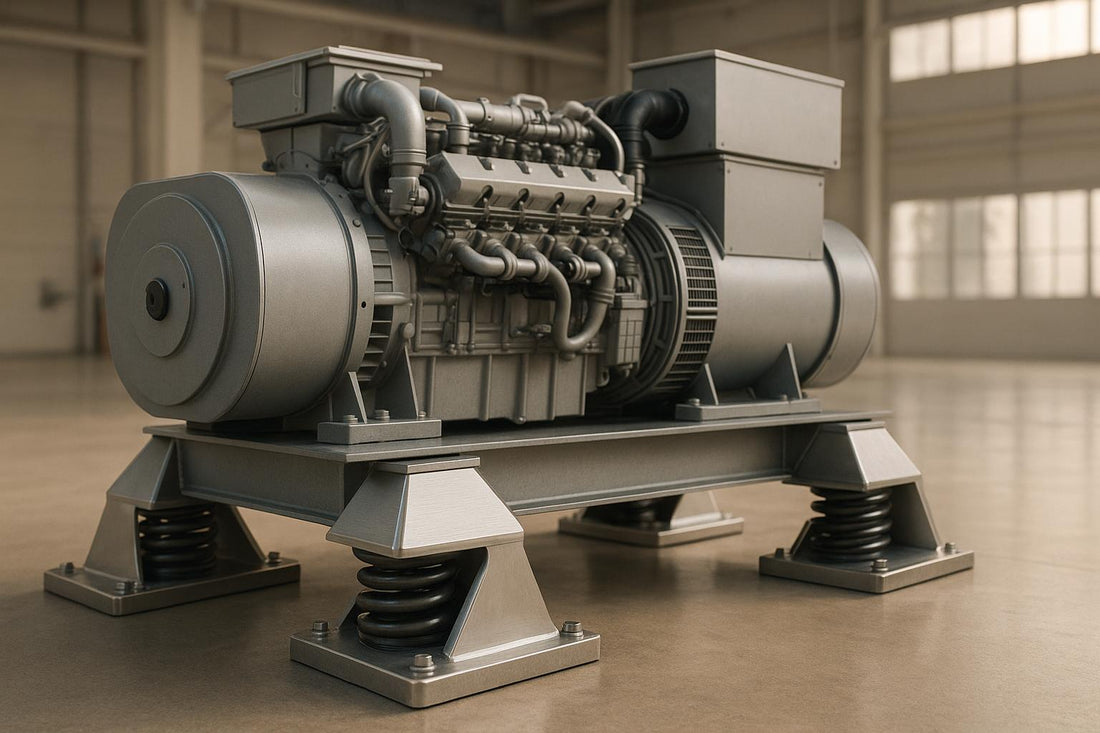

How to Choose Vibration Isolation for Generators
Share
Generators create vibrations that can damage equipment, increase noise, and even affect building stability. The solution? Vibration isolators. These devices absorb and redirect vibrations, protecting your generator and surrounding structures. Here's a quick breakdown of how to pick the right one:
- Understand Your Generator's Needs: Calculate weight, load distribution, and operating speed. Add a 25% safety margin to account for dynamic forces.
- Identify Vibration Frequencies: Match isolators with a natural frequency lower than the generator's operating frequency for effective isolation.
- Consider Installation Location: Ground-level setups often use rubber isolators, while rooftop or sensitive areas benefit from spring isolators.
- Check Environmental Factors: Choose materials resistant to weather, chemicals, or seismic activity.
- Test Performance: Verify isolation ratios and perform vibration analysis to ensure proper functionality.
Quick Comparison
| Feature | Rubber Isolators | Spring Isolators | Advanced Options |
|---|---|---|---|
| Isolation Efficiency | Up to 90% | Up to 98–99% | Up to 99% |
| Best Use | Ground-level setups | Rooftops, sensitive areas | Critical or seismic zones |
| Cost | Lower | Higher | Highest |
How Do Engineers Minimize Generator Vibration Ecologically? - Electrical Engineering Essentials
Check Your Generator's Basic Requirements
Start by gathering essential information about your generator. This data is critical for selecting the right isolation system that ensures both optimal performance and safety for your equipment.
Calculate Weight and Load Distribution
First, determine your generator's total weight and how that weight is distributed across its mounting points. Manufacturer specifications, including details about the engine, alternator, base frame, and any accessories, will help with this.
Another key factor is the center of gravity. If the specifications don’t provide this, you can reference layout drawings or measure it directly. Knowing the center of gravity ensures you understand whether the load is evenly spread or if certain mounting points will bear more weight.
To calculate the load per mounting point, divide the total weight by the number of mounting points. Then, add a 25% safety margin to account for dynamic forces like those experienced during startup, shutdown, and regular operation. For example, if your generator weighs 10,000 lbs and has four mounting points, each isolator should handle 2,500 lbs plus the safety margin, resulting in a capacity of 3,125 lbs per isolator.
For larger setups, use a concrete base that extends 6 inches beyond the generator skid on all sides. Position isolators at each corner to ensure even load distribution.
Once you’ve established weight and load distribution, the next step is to analyze the generator's operational dynamics.
Identify Operating Speeds and Vibration Frequencies
Your generator's operating speed, measured in RPM, plays a significant role in isolator selection. Most U.S. generators operate at either 1,800 RPM or 3,600 RPM, so confirm the exact speed with the manufacturer.
The primary vibration frequency is calculated by dividing the RPM by 60. For instance, a generator running at 1,800 RPM produces a vibration frequency of 30 Hz (1,800 ÷ 60 = 30).
The isolator’s natural frequency should be much lower than the generator’s operating frequency. To ensure effective vibration isolation, the vibration isolation ratio (operating frequency ÷ isolator’s natural frequency) should exceed 1.44. The higher the ratio, the better the isolation. For example, if your generator operates at 30 Hz, choose isolators with a natural frequency below 10 Hz to absorb vibrations effectively rather than amplifying them.
Review Application and Installation Location
After addressing weight and operational factors, consider the installation environment. Stationary generators have different needs compared to portable units, which often require isolators with captive restraints to prevent movement during transport.
For rooftop installations, spring isolators with higher deflection capabilities are essential to safeguard the building's structure. These isolators can achieve up to 98% isolation efficiency, making them ideal for above-ground setups.
Environmental conditions at the installation site also impact isolator selection. High humidity, extreme temperatures, or exposure to chemicals demand isolators made from materials that can withstand these challenges. For example, coastal areas with salty air, industrial sites with chemical vapors, or locations with significant temperature fluctuations require specially designed isolators to ensure durability.
In earthquake-prone regions, seismic considerations are crucial. Spring isolators equipped with lateral restraints are often necessary to limit movement during seismic events while maintaining effective vibration isolation during normal operation.
Avoid common missteps such as underestimating the total weight (by overlooking accessories), neglecting dynamic loading, or choosing isolators with natural frequencies too close to the generator’s operating frequency. These errors can lead to poor performance or even isolator failure.
With these factors in mind, you’re ready to explore different isolation types to meet your generator’s needs.
Compare Different Vibration Isolation Types
Once you've outlined your generator's requirements, the next step is to evaluate the different types of isolators available. Each type is designed for specific applications and environments, so understanding their strengths and limitations is key.
Rubber Isolators vs. Spring Isolators
Rubber isolators, commonly used by manufacturers, are ideal for standard installations at or below ground level. These isolators are particularly effective at reducing medium- to high-frequency vibrations. They are easy to install, budget-friendly, and require little maintenance, making them a popular choice for many setups.
Spring isolators, on the other hand, deliver a higher level of vibration isolation, with efficiency rates reaching up to 98–99%. These are better suited for installations above ground, such as on rooftops or suspended floors, and for environments that demand stricter vibration control, like hospitals, data centers, or residential buildings. Thanks to their greater deflection range (typically 25–50 mm), spring isolators achieve a lower natural frequency, which enhances their isolation capabilities. However, their lower damping may necessitate additional buffers to handle transient conditions.
| Feature | Rubber (Neoprene) Isolators | Spring Isolators |
|---|---|---|
| Isolation Efficiency | Up to 90% | Up to 98–99% |
| Typical Applications | At or below grade, standard installs | Above grade, sensitive environments |
| Deflection | Low (typically <25 mm) | High (25–50 mm) |
| Load Capacity | Moderate | High |
| Cost | Lower | Higher |
| Installation | Simple | More complex |
| Damping | Higher | Lower |
| Seismic Resistance | Limited | Good (with proper sizing) |
For smaller generator sets (under 600 kVA) installed at ground level, rubber isolators often provide sufficient vibration control. However, larger generators, rooftop installations, or locations with strict vibration limits benefit from the advanced performance of spring isolators. For even more demanding scenarios, advanced isolation solutions may be necessary.
Advanced Isolation Options
When standard rubber or spring isolators aren't enough, advanced isolation methods step in to meet stringent vibration control requirements.
Inertia bases involve mounting the generator on a heavy concrete block that is isolated from the surrounding structure using materials like cork or fiberglass. This setup is commonly used in hospitals, laboratories, or other facilities where even minimal vibration transmission can disrupt sensitive equipment. For instance, a 15-ton generator may require a concrete base weighing 30–45 tons, extending 6 inches beyond the generator's skid. This system can achieve isolation efficiencies of up to 99%.
Captive restraints are another specialized option, particularly useful for mobile generators or installations in seismic zones. These restraints secure the isolator to prevent excessive movement during transport or earthquakes while still allowing normal vertical deflection. This makes them an excellent choice for portable generators or stationary units in areas prone to lateral forces.
Air bellows offer a highly advanced solution, capable of achieving natural frequencies as low as 1–3 Hz and transmissibility rates under 5%. These systems are ideal for laboratories and other ultra-sensitive environments where traditional isolators fall short of the required vibration control standards.
Choosing the right isolation type involves balancing the demands of your generator with the constraints of the installation site. While rubber isolators work well for standard applications, spring isolators or advanced options are better suited for installations in sensitive or above-grade environments.
Account for Location and Operating Conditions
The environment where equipment operates plays a big role in its longevity. Factors like extreme temperatures, chemical exposure, and harsh weather can wear down isolator materials, leading to equipment failures.
Material Resistance to Weather and Chemicals
Temperature fluctuations can be tough on isolators. Elastomeric isolators should hold up between –20°F and 140°F. In freezing conditions, rubber components may become brittle and lose their flexibility, while excessive heat can cause cracking and premature aging. To combat UV damage, opt for UV-resistant elastomers or use protective covers. Materials like neoprene or EPDM rubber are excellent choices for resisting sunlight and weathering.
Chemical exposure, especially from oils or petroleum products, poses another challenge. Standard rubber isolators can break down quickly in such environments. For areas prone to spills or leaks, choose isolators made from oil-resistant neoprene or specialized synthetic rubber compounds. Always consult the manufacturer’s chemical resistance charts to confirm material compatibility.
At a coastal power plant, standard rubber isolators deteriorated within six months due to salt spray. This led to increased vibration, noise, and even caused the generator to shift, damaging its exhaust and fuel connections. Switching to neoprene mounts with stainless steel hardware solved the problem, restoring stability and reliability.
In corrosive environments, such as coastal or industrial sites, using isolators with stainless steel hardware or corrosion-resistant coatings is essential. Neoprene elastomeric mounts are effective against salt spray and harsh chemicals, while spring isolators should have galvanized or stainless steel components to prevent rust. Once durable materials are in place, ensure all generator connections can flex properly to handle movement.
Flexible Connections and Captive Restraints
After addressing material durability, focus on the flexibility of connected systems. Generator vibration isolation systems allow for vertical movement of about 10–20 mm (0.4–0.8 inches) during operation. All connected services - fuel lines, exhaust systems, and coolant lines - need to flex with the generator. Rigid connections can fail under constant movement, potentially leading to fuel leaks or exhaust damage.
Exhaust systems should include braided stainless steel bellows rated for high pressure (around 16 bar). These bellows absorb movement without transferring stress to fixed ductwork. For fuel lines, use dual-wall flexible hoses with swaged fittings, arranged in an "S" curve and at least 12 inches long. This setup helps distribute movement stress evenly, minimizing the risk of kinking or localized strain.
Coolant lines connecting to remote radiators may require expansion bellows to handle generator movement, ensuring the cooling system operates smoothly without added stress.
In mobile applications or seismic zones, captive restraints are critical. These mechanical features - such as bolts or brackets - limit side-to-side movement while still allowing vertical isolation. For trailer-mounted generators or installations in earthquake-prone areas, captive restraints maintain stability during transport or seismic activity without affecting vibration isolation. Regular inspections are crucial; check connections and restraints for wear, cracking, or corrosion based on the maintenance schedule and operating conditions.
sbb-itb-501186b
Test Performance and Choose the Right Isolator
Once you’ve outlined your generator and isolator requirements, the next step is to confirm that the selected isolators perform as needed. This involves testing whether they effectively meet your vibration control expectations. Think of this as the bridge between your initial planning and the final choice of isolators.
Review Vibration Isolation Ratios
One of the most important factors to consider is the vibration isolation ratio. This ratio compares your generator’s operating (or disturbing) frequency to the natural frequency of the isolator. To achieve effective vibration control, the ratio should exceed 1.44. The higher the ratio, the better the isolation performance.
Here’s an example: If your generator operates at 30 Hz and the isolator you’re considering has a natural frequency of 7 Hz, the ratio is 30 ÷ 7 ≈ 4.3. This is well above the 1.44 threshold. Spring isolators often achieve ratios of 6:1 or more, providing isolation efficiencies of up to 98–99%. In contrast, rubber isolators typically offer ratios between 3:1 and 4:1, with around 90% efficiency. For sensitive environments like hospitals or above-grade installations, isolators with the highest possible ratios are recommended. These ratios are critical for guiding the next step: vibration analysis.
How to Perform Vibration Analysis
Start by calculating the operating frequency of your generator using the formula: RPM ÷ 60. This gives you the frequency in hertz, which is essential for the analysis.
Next, check the load distribution across all mounting points. Uneven weight distribution can cause one isolator to compress more than the others, reducing overall performance. Instead of assuming equal distribution, measure the actual weight at each point to ensure accuracy.
You’ll also need to identify any structural resonances at the installation site. Buildings and floors have natural frequencies that could amplify vibrations if they align with your generator’s operating frequency. A site-specific vibration analysis, using tools like accelerometers, can help detect and address these potential issues before installation .
Finally, choose isolators with natural frequencies significantly lower than your generator’s operating frequency. For instance, if your generator operates at 30 Hz, isolators with natural frequencies of 7 Hz or lower will ensure a strong isolation ratio and effective vibration control.
Match Specifications with Generator Needs
To maintain consistent vibration control, ensure that your isolators meet three key specifications: load capacity, frequency compatibility, and resistance to environmental factors. Each isolator should not only support the load but also include a safety margin.
For example, if your generator weighs 4,000 lbs and is supported by four isolators, each isolator should handle at least 1,000 lbs. Since perfect weight distribution is rare, choosing isolators rated for 1,200–1,500 lbs each is a safer choice .
| Isolator Type | Isolation Efficiency | Load Capacity | Weather Resistance | Best Applications |
|---|---|---|---|---|
| Rubber/Neoprene | Up to 90% | Moderate | Good | Standard indoor/outdoor, at-grade |
| Spring | Up to 99% | High | May require protection | Above-grade, sensitive environments |
| Bulk/Inertia Block | Highest | Very High | Excellent | Critical applications, seismic zones |
For high-deflection spring mounts, expect deflection between 1–2 inches. This reduces their natural frequency and improves isolation. Rubber isolators, while compressing less, are often sufficient for standard installations.
Finally, verify compliance with local building codes, especially in areas prone to seismic activity. Some regions require specific restraints to meet safety standards. Always review manufacturer documentation to ensure compliance with recognized standards like ASTM or ISO .
For reliable isolators that meet these specifications, check out Electrical Trader. They offer a wide range of power generation components, including vibration isolators from certified manufacturers. You’ll also have access to technical support for selecting and installing the right products.
Find Quality Vibration Isolation Products
Once you've identified your generator's requirements and the type of isolator you need, the next step is sourcing reliable products. Choosing the right vibration isolators involves paying close attention to compliance with industry standards and working with dependable suppliers who can provide proper documentation and ongoing support.
Check Compliance with Industry Standards
Before making a purchase, ensure the vibration isolators meet the necessary industry standards for your application. In the U.S., isolators for generators should align with ASTM International standards for elastomeric materials, ISO 10816 for vibration severity, and local building codes - especially if the installation is in a seismic zone. For critical facilities like hospitals, compliance with the California Office of Statewide Health Planning and Development (OSHPD) may also be mandatory.
To confirm compliance, request certificates, test reports, and datasheets that verify adherence to ASTM, ISO, and local building codes. Look for UL or CE markings on the products, as these indicate they meet recognized safety and performance standards.
For example, a hospital facility manager sourced spring isolators from a certified supplier listed on a trusted marketplace. These isolators came with full compliance documentation and were pre-approved for OSHPD projects. This ensured the generator installation passed inspection, avoiding costly delays or retrofits.
Be cautious of suppliers who lack proper documentation, provide unclear specifications, or offer prices that seem suspiciously low compared to market averages. Other red flags include poor or nonexistent customer reviews, restrictive return policies, and unwillingness to provide technical support. Products without recognizable certification marks should also raise concerns.
It's equally important to ensure the materials used in the isolators are suitable for your environmental conditions.
Use Trusted Marketplaces
Once you've verified the quality and compliance of the products, use reputable platforms to source your vibration isolators. Established marketplaces offer several advantages over unknown suppliers. For example, Electrical Trader provides a centralized platform to compare options, prices, and specifications from multiple suppliers. Specializing in new and used electrical components - including vibration isolation products for generators - it connects buyers with equipment from leading brands like Siemens, ABB, and GE.
Electrical Trader stands out as a reliable marketplace, offering features like detailed search filters, verified seller records, and comprehensive after-sales support.
Trusted platforms typically vet their sellers, reducing the risk of counterfeit or low-quality products. They also provide secure payment options, transparent return policies, and robust customer support. With Electrical Trader, transaction records are maintained for traceability and future maintenance, and their network of pre-qualified sellers and technical experts ensures ongoing support throughout the product's lifecycle.
When using these platforms, take advantage of search tools to filter products by key specifications like load capacity, deflection ratings, and material type. This saves time and helps you find isolators that meet your generator's exact requirements without needing to contact multiple suppliers.
Additionally, trusted marketplaces often provide after-sales services, including help with installation, troubleshooting, and warranty claims. This level of support is especially valuable for complex installations or when working with high-performance spring isolators that demand precise setup.
Always confirm that suppliers include complete installation instructions and warranty documentation with their products.
Final Steps and Key Points
Let’s wrap up with some essential steps to ensure your vibration isolation setup is effective. Proper vibration isolation isn’t just a technical detail - it’s a safeguard for your generator investment. It helps extend your equipment’s lifespan and prevents expensive structural damage to nearby buildings.
Start by accurately calculating your generator’s total weight. This prevents the springs from compressing fully and ensures the isolators perform as intended.
The choice of isolators largely depends on the installation site. For above-grade setups, spring isolators are the go-to, offering efficiency rates as high as 98–99%. If your installation is at or below grade, rubber isolators might do the job, but spring isolators typically deliver better results.
Once installed, don’t skip the post-installation vibration analysis. This step confirms that the isolators are doing their job. For example, in a hospital setup, high-deflection spring isolators reduced transmitted vibration by over 95%, protecting sensitive medical equipment and meeting building code requirements.
Keep in mind that external factors like weather, chemical exposure, and seismic activity can impact the durability of your isolators. In earthquake-prone areas, make sure the spring isolators are correctly sized for the generator’s weight and securely mounted between the skid and the concrete pad.
Thorough documentation is key to long-term success. Keep records of the installation process, vibration analysis results, product datasheets, and compliance certificates. These documents aren’t just useful for maintenance - they’re critical for warranty claims and regulatory inspections. Regular inspections should check for isolator wear, corrosion, or compression set, while flexible connections should be monitored for leaks or fatigue.
When it’s time to source isolators, platforms like Electrical Trader can connect you with verified suppliers. This minimizes the risk of counterfeit products and ensures you’re getting high-quality isolators from reputable manufacturers. Plus, they often provide full technical support to help you make the right choice.
FAQs
How can I choose the right vibration isolator for my generator setup?
When choosing a vibration isolator for your generator, there are a few key factors to keep in mind. First, look at the generator's weight, size, and operating conditions - these details will help you determine the isolator's required load capacity and the best material for the job.
Next, think about where the generator will be installed. Is it indoors or outdoors? Will it sit on a concrete floor or be mounted on a steel frame? These environmental factors play a big role in selecting an isolator that can handle the specific conditions and offer the durability you need.
Don't forget to factor in noise reduction and vibration levels. For lighter or moderate applications, rubber isolators are an excellent choice for reducing noise. On the other hand, spring isolators are better suited for heavier-duty setups where vibration control is more demanding.
Always check the generator's specifications for guidance, and if you're unsure, reach out to a professional for advice. This ensures your generator operates smoothly and lasts longer.
What’s the difference between rubber and spring isolators, and how do I choose the best one for my generator?
When it comes to managing vibration in generator setups, rubber isolators and spring isolators each have their strengths, depending on the situation.
Rubber isolators work well for smaller or lightweight generators. They’re affordable, straightforward to install, and excel at reducing noise and low-frequency vibrations. On the other hand, spring isolators are designed for heavier generators or situations where vibrations are more intense. These isolators can handle larger loads and are particularly effective at managing high-frequency vibrations.
Choosing the right isolator depends on factors like your generator's size, weight, and the type of vibrations it produces. For smaller, less demanding setups, rubber isolators typically get the job done. However, if your generator is larger or operates in a high-vibration environment, spring isolators might be the better choice. If you’re unsure, consulting a professional or supplier can help you make the best decision for your setup.
How do I choose vibration isolators that meet industry standards and fit my generator's needs?
To make sure your vibration isolators are the right fit for your generator, start by understanding the generator's weight, size, and operating conditions - this includes load capacity and any environmental factors it may face. It's essential to verify that the isolators comply with industry standards like ISO or ASTM, ensuring they deliver the performance and safety needed.
Choose isolators tailored to your specific generator type, whether it's a standby, portable, or industrial model. For the best outcome, refer to the generator manufacturer’s recommendations or collaborate with a reliable supplier to find the perfect match. Selecting the right isolators can help minimize noise, extend the equipment's lifespan, and boost overall efficiency.
